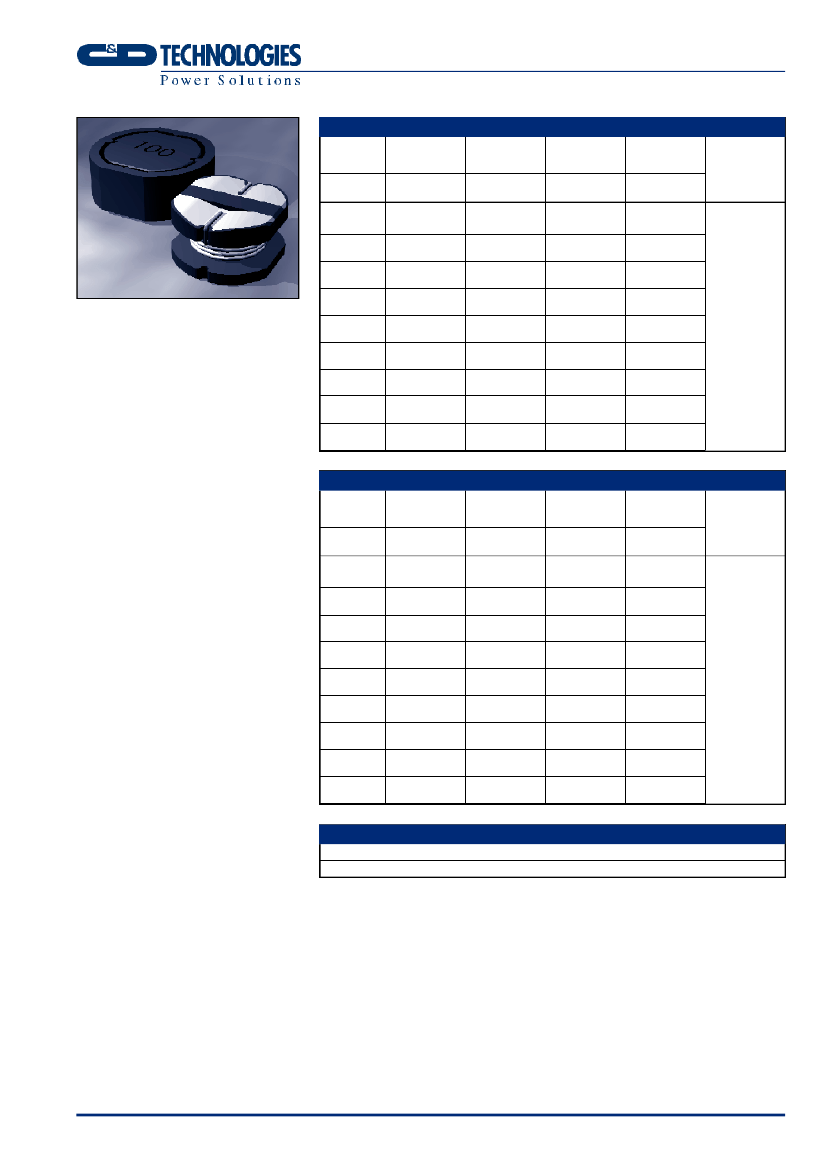

2400 SERIES
Bobbin Wound Surface Mount Inductors
SELECTION GUIDE
(UNSHIELDED TYPES)
1
DC
Resistance
DC Current
Continuous
2
Nominal Self
Resonant
Frequency
Nominal
Inductance
µH
Order Code 1Hz, 100mV
24100
24150
24220
24330
Ω
MAX
0.10
0.14
0.18
0.23
0.37
0.46
0.70
1.10
1.57
A
MAX
1.44
1.30
1.11
0.88
0.72
0.61
0.52
0.40
0.35
MHz
100mVrms
27.80
22.00
16.50
13.10
10.90
9.83
7.03
5.13
4.24
Mechanical
Dimensions
10±20%
15±20%
22±20%
33±15%
47±15%
68±10%
100±10%
150±10%
220±10%
FEATURES
s
Bobbin Format
s
Up to 1.64A IDC
s
10µH to 220µH
s
Optional Integral EMI Shield
s
Low DC Resistance
s
Surface Mounting
s
Compact Size
s
Tape and Reel Packaging
DESCRIPTION
The 2400 series is a range of bobbin wound
surface mount inductors designed for use in
switching power supply and power line filter
circuits. The parts are suitable for any
application requiring a high saturation
current in a miniature surface mount footprint.
Where EMI is a critical factor the devices are
available with an integral ferrite EMI shield.
24470
24680
24101
24151
24221
1
SELECTION GUIDE
(EMI SHIELDED TYPES)
1
DC
Resistance
DC Current
Continuous
2
Nominal Self
Resonant
Frequency
Nominal
Inductance
µH
Order Code 1Hz, 100mV
24S100
24S150
24S220
24S330
24S470
24S680
24S101
24S151
24S221
Ω
MAX
0.07
0.09
0.12
0.19
0.24
0.37
0.54
0.86
1.31
A
MAX
1.64
1.34
1.10
0.90
0.75
0.63
0.52
0.42
0.35
MHz
100mVrms
25.60
19.70
15.70
11.20
10.20
8.09
6.20
4.88
3.58
Mechanical
Dimensions
10+25/–15%
15+25/–15%
22+25/–15%
33+25/–15%
47+25/–15%
68+25/–15%
100+20/–15%
150+20/–15%
220+20/–15%
2
ABSOLUTE MAXIMUM RATINGS
Operating free air temperature range
Storage temperature range
–40°C to 85°C
–40°C to 125°C
1 Specifications typical at T
A
=25°C
2 The maximum DC current is the value at which the inductance falls to 80% of its nominal value or until its
temperature rise reaches 40°C, whichever is sooner.
www.dc-dc.com
2400 SERIES
Bobbin Wound Surface Mount Inductors

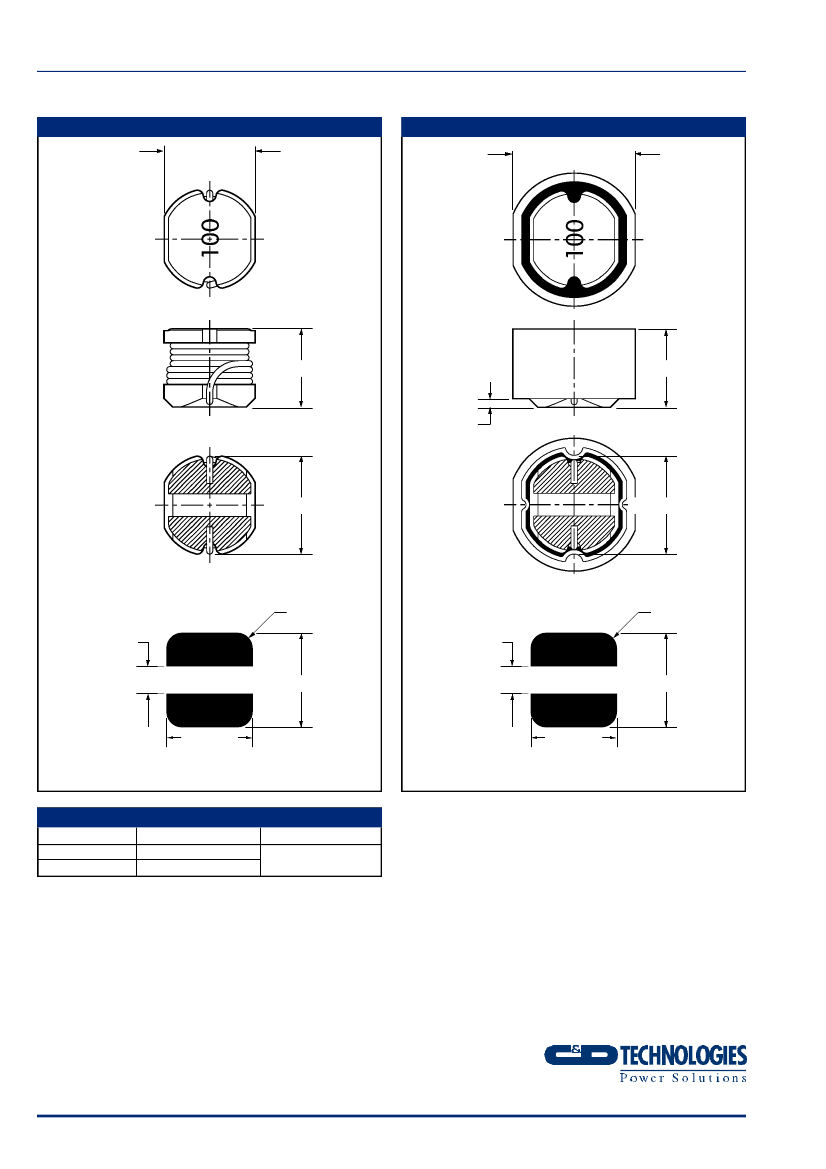

1 - MECHANICAL DIMENSIONS
5.20±0.30
(UNSHIELDED TYPES)
2 - MECHANICAL DIMENSIONS
7.10
(EMI SHIELDED TYPES)
4.50
4.50
0.65
5.80±0.30
5.80±0.30
Recommended Footprint Details
R1.00
1.70±0.05
Recommended Footprint Details
R1.00
1.70±0.05
6.00±0.05
6.00±0.05
5.50±0.05
Unless otherwise stated all dimensions in mm ±0.35mm.
Hatching represents solder pads.
5.50±0.05
Unless otherwise stated all dimensions in mm ±0.35mm.
Hatching represents solder pads.
PACKAGE DETAILS
Order Code
TYP Weight (g)
Packaging Style
24XXX
24SXXX
0.43
0.72
Tape & Reel
1
1 For tape and reel packaging details refer to datasheet NDCAN002.1
C&D Technologies (NCL) Limited reserve the right to alter or improve the
specification, internal design or manufacturing process at any time, without
notice. Please check with your supplier or visit our web site to ensure that
you have the current and complete specification for your product before use.
© C&D Technologies (NCL) Limited 2000
NMP 2400.2
No part of this publication may be copied, transmitted or stored in a
retrieval system or reproduced in any way including, but not limited to,
photography, photocopy, magnetic or other recording means, without prior
written permission from C&D Technologies (NCL) Limited.
Instructions for use are available from www.dc-dc.com
C&D Technologies (NCL) Ltd
Tanners Drive, Blakelands North
Milton Keynes MK14 5BU, England
Tel: +44 (0)1908 615232
Fax:+44 (0)1908 617545
email: info@cdtechno-ncl.com
www: http://www.dc-dc.com
