Type 716P, Orange Drop®, Polypropylene Film/Foil Capacitors
High Performance
Features
• Copper leads.
• Extremely low dissipation factor.
• Superb high frequency response.
• Excellent stability, virtually linear
temperature coefficient.
• Various lead spacings, crimp styles
and lead lengths available.
Insulation Resistance:
400,000 M minimum at +25°C
20,000 M minimum at +85°C
2,000 M minimum at +105°C
Pulse Rise Time, dV/dt:
Specifications
Capacitance Range:
See tabulated data.
Corona Start Voltage (typical):
220 pF to 1.0 µF
Capacitance Tolerance:
See tabulated data.
Encapsulation:
±3% to ±10%
Voltage Ratings:
Conformal coating of flame retardant orange
epoxy (meets UL94V-0 specifications)
Dielectric:
100 to 2000 Volts D-C
70 to 500 Volts A-C
Operating Temperature Range:
Polypropylene film.
Construction:
-55°C to +85°C
(+105°C with proper voltage derating)
Lead Wire:
Non-inductively wound with extended
foil. Additional details on general
specifications page.
Applications:
Tinned copper.
Dissipation Factor:
See tabulated data.
Switching and high voltage power
supplies, inverters, snubbers, resonant
converters and electronic lighting ballasts.
Regulatory Information
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
Type 716P, Orange Drop®, Polypropylene Film/Foil Capacitors
High Performance
General Specifications
The 715P and 716P series are manufactured with polypropylene film and extended foil. Polypropylene has a very
low dissipation factor, low dielectric absorption and exhibits excellent capacitance stability. These characteristics
combined with the direct connection of the lead wire to the extended foil electrode makes the 715P and 716P
series ideal for high current, high pulse applications.
The 715P series has a round profile and is available in tolerances as close as ±1%. The 716P series has a pressed
profile and, in addition, is designed with copper leads, thus adding to it's performance in high frequency, high
pulse current applications.
Other specifications are listed below and on the following pages.
Operating Temperature Range:
Humidity Testing:
The standard operating temperature range for
polypropylene film is -55°C to +85°C. The
715P and 716P may be operated up to +105°C
provided the DC working voltage is reduced
by 50%.
For specific derating of the AC voltage when
operating above +85°C please contact our
design engineering department.
Units subjected to 95% relative humidity for 72
hours with no voltage applied at +75°C. After 4
hours of drying minimum product of insulation
resistance and capacitance shall be 50,000 megohm-
microfarads.
DC Voltage Life Test:
The maximum operating temperature for 715P
and 716P polypropylene film capacitors is
+ 105°C.
Dielectric Withstanding Voltage:
Minimum of 500 hours at +85°C at 150% of rated
voltage. After test, capacitance shall not have
changed by more than 3%, insulation resistance shall
not have decreased by more than 25% and dissipation
factor shall not have changed by more than 0.03%.
Measurements made at 1 KHz.
AC Voltage Life Test:
Units rated below 800 VDC shall withstand
a DC potential of 250% of rated voltage applied
between terminals for not more than 5 seconds;
units rated 800 VDC and above shall withstand
200% of rated voltage.
Construction:
Units rated 100 through 600 VDC are single
section designs constructed of plain polypropylene
film with extended foil. Units rated 800 VDC
and above are series-section designs with extended
foil and incorporate a floating common of
metallized polypropylene. All units are non-
inductively wound.
Temperature Coefficient:
Minimum of 500 hours at +85°C at 60 Hz. AC test
voltage applied at 110% of AC rating. After test,
capacitance shall not have changed by more than 3%,
insulation resistance shall not have decreased by
more than 25%, and dissipation factor shall not have
changed by more than 0.03%. Measurements made
at 1 KHz.
Additional notes on Life Testing:
CDE performs standard 500 hour accelerated life tests,
both DC and line frequency AC, to monitor process
control over our wide range of products.
The typical temperature coefficient is -180 ppm/°C
over the temperature range of -55°C to +85°C.
We also perform longer term life testing, typically 2000
hours, during development of most products. In
addition we do accelerated life testing at 10-250 KHz
for our High Performance AC products. For additional
life test information please contact us.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
,
Type 7 16 P, Orange Drop® Polypropylene Film/Foil Capacitors
High Performance
Ordering/Part Number Information
715P
222
5
6
J
D
3
(XXXX)
A suffix may be added by
the factory to denote special
construction.
Lead Length
1 = 0.187 (4.7) ±0.030 (0.8)
2 = 0.250 (6.4) ±0.030 (0.8)
3 = 1.250 (32.0) Minimum
(Other lead lengths available)
Terminal
A = Straight Lead (1.25 Min. lead length)
B,F = Hairpin Crimp
C = Captive Crimp
1
D,G,H = Hockey Stick Crimp
Case Code
See Standard Sizes/Ratings Table
D-C Voltage Rating
Expressed in Hundreds of Volts
Capacitance Tolerance 9 = ±10%; 5 = ±5%; 3 = ±3%; 2 = ±2%; 1 = ±1%
Capacitance
Expressed in Picofarads. The first two digits are the significant figures,
the third is the number of zeros following. (i.e. 222 = 2200 pF = .0022 µF)
CDE Type Number
1
Identifies the basic capacitor design.
715P Round profile, 716P Pressed profile
Terminal C has a fixed lead length of 0.156 (4.0) ±0.020 (0.5), therefore it is not necessary to indicate the lead
length digit when ordering. Available for "L" case code parts only
Please note;
While it is not possible to list every capacitance value, tolerance, or design/size variation available,
our flexibility in design and manufacturing gives us the ability to quickly, and cost effectively, provide
you with the capacitor you require. Please contact us today with your specific needs!
Dimensions in inches, metric (mm) in parenthesis.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
Type 7 16 P, Orange Drop, Polypropylene Film/Foil Capacitors
High Performance

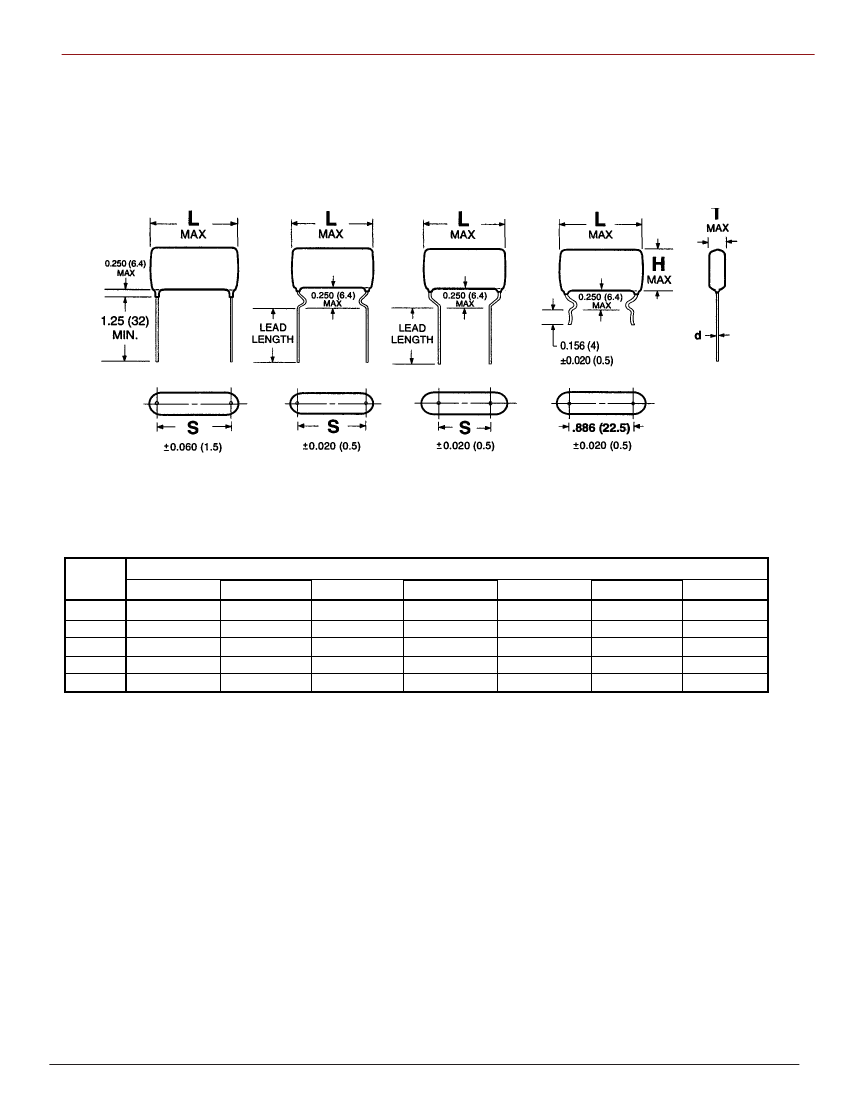

Standard Lead Styles
TERMINAL A
TERMINAL B,F
TERMINAL D,G,H
TERMINAL C
Standard Lead Spacings
CASE
CODE
N
J
K
L
M
S,
inches (metric, mm in parentheses)
Term. A
Term. B
Term. D
Term. C *
Term. F
Term. G
Term. H
0.394 (10)
0.500 (12.7)
0.688 (17.5)
1.031 (26.2)
1.406 (35.7)
0.500
0.688
0.969
1.344
0.394 (10)
(12.7)
(17.5)
(24.6)
(34.1)
---
---
---
0.375 (9.5)
---
0.375 (9.5)
0.719 (18.3)
0.886 (22.5)
---
1.094 (27.8)
0.295 (7.5)
0.394 (10)
0.590 (15)
0.886 (22.5)
---
---
0.197 (5)
0.197 (5)
0.295 (7.5)
0.295 (7.5)
0.394 (10)
---
0.590 (15)
---
1.083 (27.5)
* Terminal C is designed for printed circuit boards requiring a lead spacing of 0.886 (22.5) with board hole sizes of 0.044 (1.1)
to 0.048 (1.2) in diameter. Available for "L" case code parts only. Please consult us if you have a specific requirement.
Standard Marking Format
Sample Marking
on unit
CDE716P600V
222J 9810
CDE
716P
600V
222J
9810
Description
CDE Electronics identification
Type number
D-C Voltage rating, Volts
Capacitance and tolerance code
Weekly date code
(i.e. 10th week of 1998)
Tolerance codes
per EIA Standards
H
J
K
±3%
±5%
±10%
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
Type 7 16 P, Orange Drop, Polypropylene Film/Foil Capacitors
High Performance
Type 716P Standard Sizes/Ratings
2
Value
Part
1
Number
L max
µF
.0082
.009
.01
.012
.015
.018
.022
.025
.027
.033
.039
.047
.05
.056
.062
.068
.075
.082
.09
.1
.12
.15
.18
.20
.22
.25
.27
.30
.33
T max
.23
.24
.24
.23
.25
.26
(5.8)
(6.1)
(6.1)
(5.8)
(6.4)
(6.6)
H max
.36 (9.1)
.37 (9.4)
.38 (9.7)
.37 (9.4)
.39 (9.9)
.42 (10.7)
d
.032
.032
.032
.032
.032
.032
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
Value
Part
1
Number
L max
µF
.18
.22
.27
.33
.39
.47
.56
.68
.82
1.0
T max
.39 (9.9)
.43 (10.9)
.47 (11.9)
.47 (11.9)
.51 (13.0)
.56 (14.2)
.61 (15.5)
H max
.67 (17.0)
.71 (18.0)
.75 (19.1)
.86 (21.8)
.90 (22.9)
.95 (24.1)
1.00 (25.4)
d
.040
.040
.040
.040
.040
.040
.040
(1.0)
(1.0)
(1.0)
(1.0)
(1.0)
(1.0)
(1.0)
100 VDC / 70 VAC*
716P82291N
716P90291N
716P10391N
716P12391N
716P15391N
716P18391N
716P22391N
716P25391N
716P27391N
716P33391N
716P39391N
716P47391N
716P50391J
716P56391J
716P62391J
716P68391J
716P75391J
716P82391J
716P90391J
716P10491J
716P12491K
716P15491K
716P18491K
716P20491K
716P22491K
716P25491K
716P27491K
716P30491L
716P33491L
716P10392J
716P12392J
716P15392J
716P18392J
716P22392J
716P27392J
716P33392J
716P39392J
716P47392J
716P56392K
716P68392K
716P82392K
716P10492K
716P12492K
716P15492K
.57
.57
.57
.57
.57
.57
(14.5)
(14.5)
(14.5)
(14.5)
(14.5)
(14.5)
200 VDC / 155 VAC*
716P18492L
716P22492L
716P27492L
716P33492L
716P39492L
716P47492L
716P56492L
1.25 (31.8)
1.25 (31.8)
1.25 (31.8)
1.25 (31.8)
1.25 (31.8)
1.25 (31.8)
1.25 (31.8)
.57 (14.5)
.57 (14.5)
.57 (14.5)
.57 (14.5)
.57 (14.5)
.57 (14.5)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.90 (22.9)
.90 (22.9)
.90 (22.9)
.90 (22.9)
.90 (22.9)
.90 (22.9)
.90 (22.9)
1.25 (31.8)
1.25 (31.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.90 (22.9)
.90 (22.9)
.90 (22.9)
.90 (22.9)
.90 (22.9
.90 (22.9)
.28 (7.1)
.29 (7 4)
.27 (6.9)
.29 (7 4)
.31 (7.9)
.34 (8.6)
.28 (7 1)
.29 (7 4)
.31 (7.9)
.32 (8.1)
.33 (8.4)
.35 (8.9)
.36 (9.1)
.38 (9.7)
.33 (8.4)
.37 (9.4)
.40 (10.2)
.42 (10.7)
.44 (11.2)
.47 (11.9)
.49 (12.4)
.44 (11.2)
.45 (11.4)
.50 (12.7)
.53 (13.5)
.55 (14.0)
.58 (14.7)
.52 (13.2)
.53 (13.5)
.54 (13.7)
.56 (14.2)
.57 (14.5)
.59 (15.0)
.60 (15.2)
.62 (15.7)
.57 (14.5)
.61 (15.5)
.64 (16.3)
.66 (16.8)
.68 (17.3)
.71 (18.0)
.73 (18.5)
.032 (0.8)
.032 (0:8)
.032 (0.8)
.032 (0.8)
.032 (0.8)
.032 (0.8)
.032
.032
.032
.032
.032
.032
.032
.032
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
716P68492M 1.65 (41.9)
716P82492M 1.65 (41.9)
716P10592M 1.65 (41.9)
716P10294J
716P12294J
716P15294J
716P18294J
716P22294J
716P27294J
716P33294J
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.56 (14.2) .94 (23.9)
.040 (1.0)
.61 (15.5) 1.00 (25.4)
.040 (1.0)
.68 (17.3) 1.07 (27.2)
.040 (1.0)
.25 (6.4)
.22 (5.6)
.24 (6.1)
.25 (6.4)
.26 (6.6)
.24 (6.1)
.24 (6.1)
.24 (6.1)
.25 (6.4)
.24 (6.1)
.24 (6.1)
.25 (6.4)
.27 (6.9)
.29 (7.4)
.31 (7.9)
.28 (7.1)
.30 (7.6)
.31 (7.9)
.33 (8.4)
.36 (9.1)
.39 (9.9)
.40 (10.2)
.43 (10.9)
.38 (9.7)
.42 (10.7)
.45 (11.4)
.46 (11.7)
.50 (12.7)
.57 (14.5)
.63 (16.0)
400 VDC / 200 VAC*
.001
.0012
.0015
.0018
.0022
.0027
.0033
.47 (11.9)
.44 (11.2)
.45 (11.4)
.46 (11.7)
.48 (12.2)
.45 (11.4)
.45 (11.4)
.36 (9.1)
.37 (9.4)
.44 (11.2)
.44 (11.2)
.45 (11.4)
.46 (11.7)
.48 (12.2)
.50 (12.7)
.032
.032
.032
.032
.032
.032
.032
.032
.032
.032
.032
.032
.032
.032
.032
.032
.032
.032
.032
.032
.032
.032
.032
.040
.040
.040
.040
.040
.040
.040
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(1.0)
(1.0)
(1.0)
(1.0)
(1.0)
(1.0)
(1.0)
.032 (0.8)
.032 (0.8)
.032 (0.8)
.032 (0.8)
.032 (0.8)
.032 (0.8)
.032 (0.8)
.0039
.0047
.0056
.0068
.0082
.01
.012
.015
.018
.022
.027
.033
.039
.047
.056
.068
.082
.1
.12
.15
.18
.22
.27
.33
.39
.47
716P39294J .70 (17.8)
716P47294J .70 (17.8)
716P56294J .70 (17.8)
716P68294J .70 (17.8)
716P82294J .70 (17.8)
716P10394J .70 (17.8)
716P12394J .70 (17.8)
716P15394J .70 (17.8)
716P18394K
716P22394K
716P27394K
716P33394K
716P39394K
716P47394K
716P56394K
716P68394K
716P82394L
716P10494L
716P12494L
716P15494L
716P18494L
716P22494L
716P27494L
.90 (22.9)
.90 (22.9)
.90 (22.9)
.90 (22.9)
.90 (22.9)
.90 (22.9)
.90 (22.9)
.90 (22.9)
1.25 (31.8)
1.25 (31.8)
1.25 (31.8)
1.25 (31.8)
1.25 (31.8)
1.25 (31.8)
1.25 (31.8)
.41 (10.4) .65 (16.5)
.040 (1.0)
.42 (10.7) .67 (17.0)
.040 (1.0)
.25 (6.4)
.27 (6.9)
.26 (6.6)
.25 (6.4)
.27 (6.9)
.29 (7 4)
.32 (8.1)
.32 (8.1)
.34 (8.6)
.30 (7.6)
.33 (8.4)
.36 (9.1)
.39 (9.9)
.40 (10.2)
.45 (11.4)
.37 (9.4)
.39 (9.9)
.45 (11.4)
.45 (11.4)
.46 (11.7)
.032 (0.8)
.032 (0.8)
.032 (0.8)
.032 (0.8)
.032 (0.8)
.032 (0.8)
.032 (0.8)
.032 (0.8)
.032 (0.8)
.032 (0.8)
.032 (0.8)
.032 (0.8)
.032 (0.8)
.032 (0.8)
.032 (0.8)
200 VDC / 155 VAC*
.01
.012
.015
.018
.022
.027
.033
.039
.047
.056
.068
.082
.1
.12
.15
1
.47 (11.9)
.49 (12.4)
.55 (14.0)
.57 (14.5)
.60 (15.2)
.62 (15.7)
.68 (17.3)
.72 (18.3)
.67 (17.0)
.70 (17.8)
.73 (18.5)
.84 (21.3)
.89 (22.6)
.95 (24.1)
1.01 (25.7)
.48 (12.2)
.51 (13.0)
.56 (14.2)
.58 (14.7)
.55 (14.0)
.57 (14.5)
.60 (15.2)
.63 (16.0)
.69 (17.5)
.73 (18.5)
716P33494M 1.65 (41.9)
716P39494M 1.65 (41.9)
716P47494M 1.65 (41.9)
.57 (14.5) .96 (24.4)
.040 (1.0)
.62 (15.7) 1.01 (25.7)
.040 (1.0)
.68 (17.3) 1.07 (27.2)
.040 (1.0)
* Please refer to performance curves for RMS Voltage vs. Frequency characteristics.
To complete part number for proper tolerance, terminal style and lead length please refer to Ordering/Part Number Information page.
2
Type 716P capacitors are available through the CDE Distribution Network on special order.
Dimensions in inches, metric (mm) in parenthesis.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
京公网安备 11010802033920号
EEWORLD
