SPECIFICATIONS
Contact Resistance:
Insulation Resistance:
Voltage Rating & Current:
Withstanding:
Durability:
Insertion Force:
Extraction Force:
30m Ohm Max.
100M Ohm Min. AT 500V DC
DC12V.2A Max ; AC 100V.1A Max
250V AC for 1 Minute
100 Cycles
4.0KG Max.
0.9KG Min.
C
D
Item
1
2
3
4
Series
CMDJ
E
Name
Housing
Contact
Shield
Bottom Cover
Positions
XX
Material
PBT GF
Phos. Bronze T:0.2
Brass T:0.3
PBZT GF
Type
Plating
X
XX
Finish
Black
Gold:1~3u” ; NI:40~60u” ; Tin:120u”
Tin Plated Sn: 120~200u”
Black
Options
XX
[blank]=DIP
FF=Ferrite filter
SM=Surface mount L=Latch
KT=Kinked tail
PG=Panel grounds
SL=Slim
D
E
Circular mini DIN jack 3-8
F
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
A=No shield
[blank]=Silver
B=Four side shield SGXX=Selective gold
C=Five side shield GDXX=Gold
XX=Flash if blank; 3,
5, 10, 15, 20, 30µ”
Date
08/04/10
08/04/10
08/04/10 Part No.:
F
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
CMDJ-03-C
G
7
8
9
G
0.00 ± 0.20 Angles ± 3°
UNIT: mm
5
6

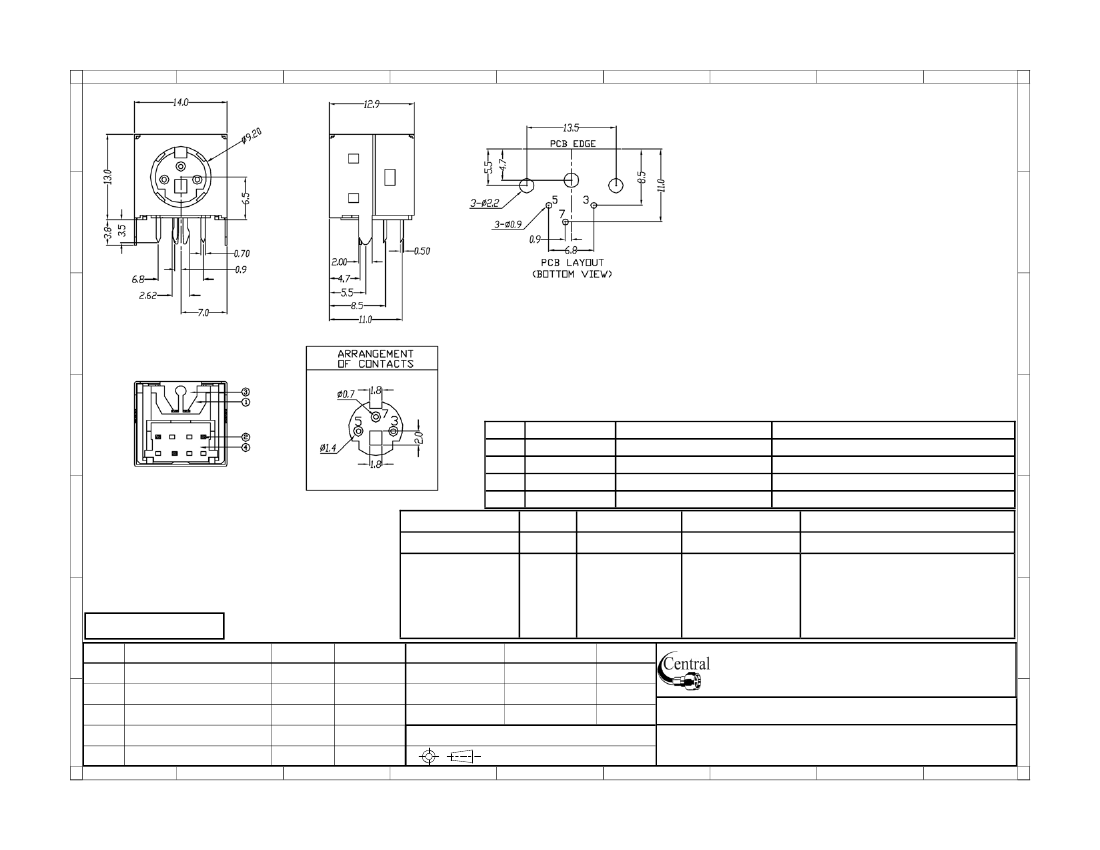

Description: Mini DIN Jack Flat 3 Pin DIP
