SPECIFICATIONS
Current Rating:
Withstanding:
Insulation Resistance:
Contact Resistance:
Poles:
Contact Material:
Base Material:
Operating Temp:
Processing Temp:
3A AC/DC
1000V AC/minute
1000MΩ min.
20mΩ max.
2-20 straight
Brass
Nylon 66 UL94V-0
-25°C to +85°C
230°C ± 5 sec. standard pin
260°C ± 5 sec. holding pin
B
C
C
D
D
E
E
Series
JS-CH
PCD Connector
Type
1001
1.5mm Wafer
Positions
XX
02-20
Pin Length
Options
XX
X
Blank=3.4mm (std) P=Polarized
HP=Holding Pin
D=3.2mm
KT=Kinked Tail
F
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
Color
XX
Blank=Natural
BK=Black
RD=Red
YL=Yellow
BL=Blue
Plating
XX
TN=Tin
GD=Gold
F
Date
01/31/11
01/31/11
01/31/11 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
JS-CH-1001-XX
G
7
8
9
G
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

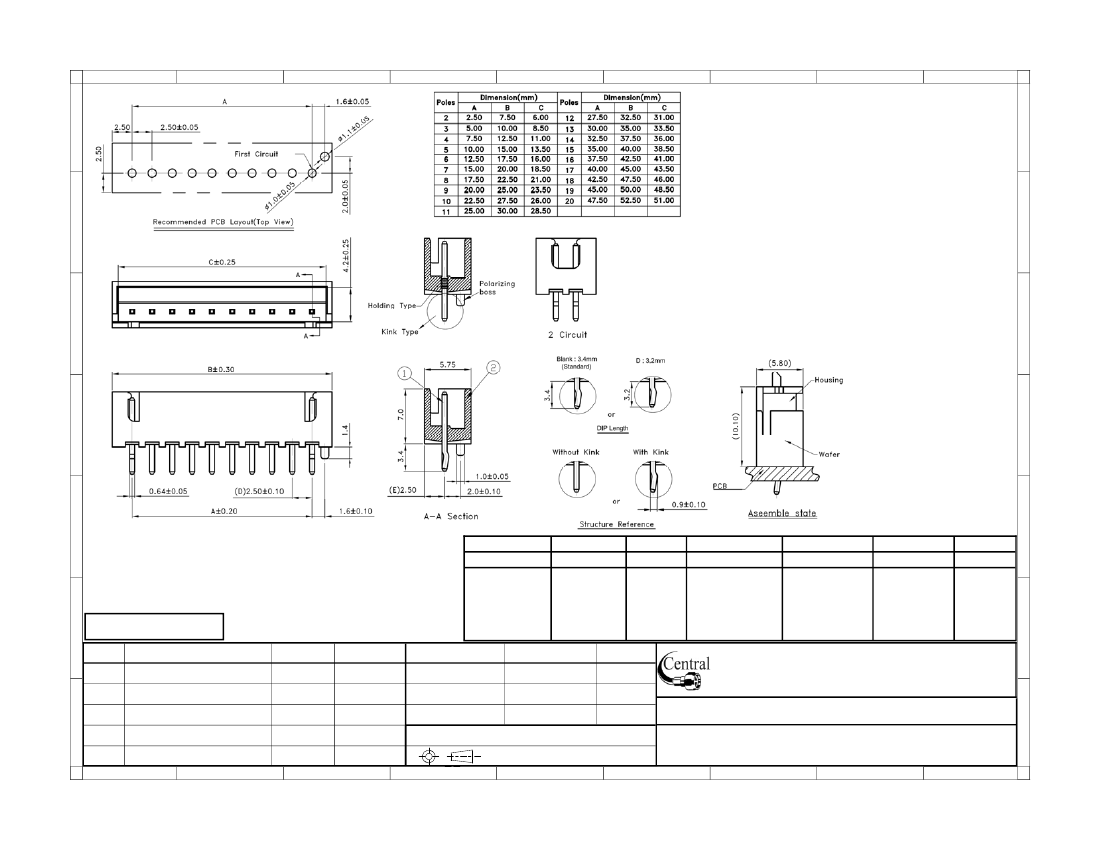

Description: 1.50mm Disconnectable Crimp Style Water (straight)
