XE101-131G-90.000MHZ

Description
TTL Output Clock Oscillator, 0.4MHz Min, 90MHz Max, 90MHz Nom, Hybrid,
CategoryPassive components    oscillator
File Size96KB,1 Pages
ManufacturerXsis Electronics Inc.
Download Datasheet Parametric View All

XE101-131G-90.000MHZ Overview

TTL Output Clock Oscillator, 0.4MHz Min, 90MHz Max, 90MHz Nom, Hybrid,

XE101-131G-90.000MHZ Parametric

Parameter NameAttribute value
Objectid1322292010
package instructionLDCC40,.5SQ,40
Reach Compliance Codecompliant
Installation featuresSURFACE MOUNT
Number of terminals40
Maximum operating frequency90 MHz
Minimum operating frequency0.4 MHz
Nominal operating frequency90 MHz
Maximum operating temperature70 °C
Minimum operating temperature
Oscillator typeTTL
Package body materialCERAMIC
Encapsulate equivalent codeLDCC40,.5SQ,40
power supply5 V
Certification statusNot Qualified
Maximum slew rate60 mA
Nominal supply voltage5 V
surface mountYES
technologyHYBRID

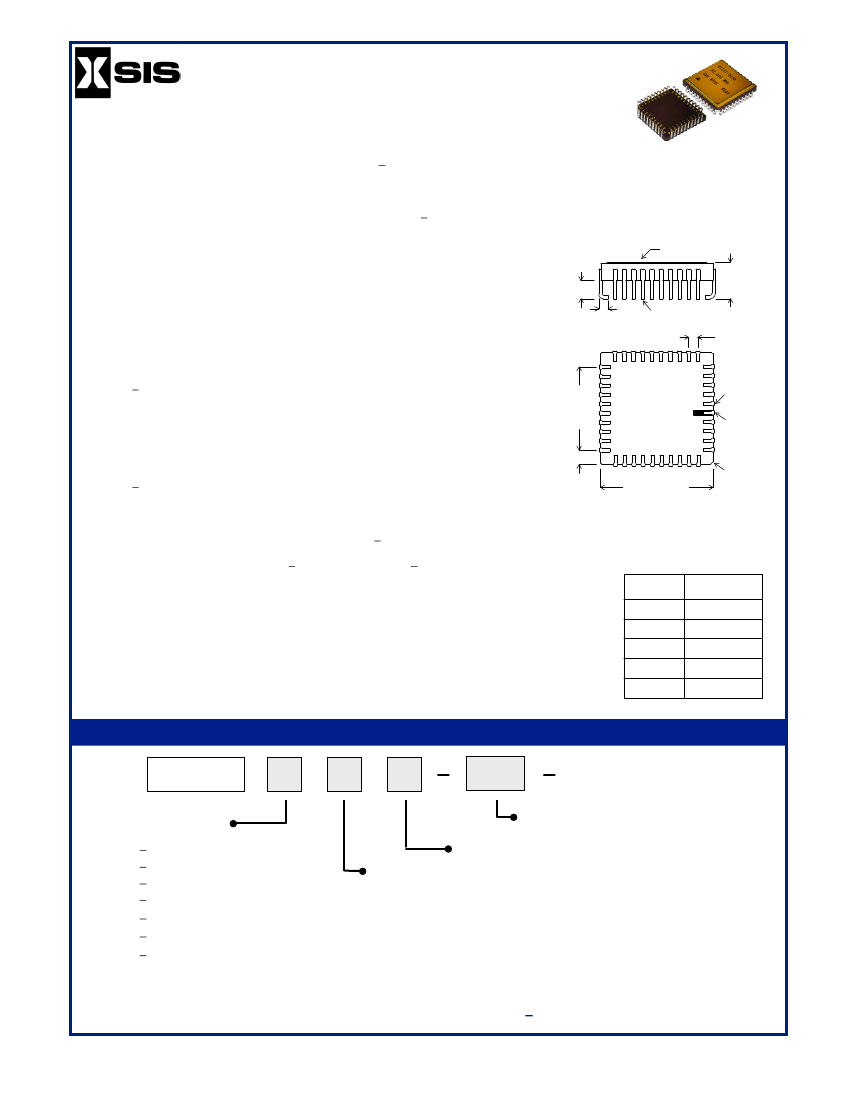

XE101-100 SERIES, TTL, 5V
High Reliability Hybrid Microcircuit Crystal Oscillators
Surface Mount, “ J “ Leads Package
Frequency Range
Frequency Accuracy at + 25
O
C
Frequency Stability Vs. Temperature
Operating Temperature Range
Input Voltage
Input Current at +5.0 VDC ( No Load )
200.0 KHz
to
6.4 MHz
6.4 MHz to 25.0 MHz
25.1 MHz to 40.0 MHz
40.1 MHz to 60.0 MHz
60.1 MHz to 90.0 MHz
Output
Output Symmetry ( at 1.4 VDC Level )
Rise & Fall Times ( 0.6 VDC to 2.2 VDC )
< 20 MHz
> 20 MHz
Enable/Disable Input
Start-up Time
< 10 MHz
> 10 MHz
Phase Jitter ( 10 KHz to 20 MHz Integrated )
Frequency Stability Vs. 10% change in Voltage
Aging at +70
O
C
Package, Seal & Weight
Terminations
Solder Reflow, Temp./Time
Package Thermal Resistance ( θ
JC
)
15 mS Max.
10 mS Max.
0.15 pS rms Typical
+ 5 PPM Max.
Dimensions: Inches (mm)
200 KHz to 90 MHz
+ 15 PPM Max.
See Options Below
See Options Below
+ 5 VDC + 10%
25 mA Max.
15 mA Max.
25 mA Max.
35 mA Max.
50 mA Max.
TTL ( 10 Loads )
60/40%
15 nS Max.
5 nS Max.
See Option Below
Ruggedized 4 point crystal mount
High Shock & Vibration
Low Profile Surface Mount
Tristate Output Available
Marking
.065 + .010
(1.65 + .25)
.040 + .005
(1.02 + .13)
.160 Max
(4.06)
.014 + .002
(.36 + .05)
.040 + .005
(1.01 + .13)
(36 PLCS)
Lead #40
Lead #1
( Index )
.360 + .005
(9.14 + .13)
SQ.
.060 + .010
(1.01 + .25)
.485 + .015
(12.32 + .38)
0.02 x 45
O
(0.51)
Ref.
+ 3 PPM Max. first year, + 2 PPM Max./ Yr. thereafter
Ceramic 90% AL
2
O
3,
Hermetic - Resistance Welded, 1.0 Gms typical
50 to 80 Microinches gold over 100 to 250 microinches Nickel,
Hot Solder Tinning per MIIL-PRF-55310 is optional at additional cost.
260 C Max for 10 Seconds Max.
50
O
C / Watt
O
Lead #
4 & 10
31 & 37
32
39
All others
Function
B+
GND
E/D (Optional)
OUTPUT
NC
Contact Xsis Engineering
for any other special requirements.
ORDERING INFORMATION ( Select from options below ) :
XE101 - 1
Model #
FREQUENCY
883B
= Mil-Screening, Leave Blank Otherwise
H
= Hi-Rel Screening, Leave Blank Otherwise
G
=
*
Enable/Disable, Leave Blank Otherwise
Operating Temperature Range
1=
2=
3=
4=
5=
6=
-
-
-
-
-
0 C to + 70 C
o
o
40 C to + 85 C
o
o
55 C to +125 C
o
o
55 C to +105 C
o
o
40 C to + 95 C
o
o
20 C to + 70 C
o
o
Frequency Stability
1 = + 0.1%
2 = + 0.05%
3 = + 100 PPM
4 = + 50 PPM
5 = + 20 PPM
*
6 = + 10 PPM
*
7 = + 25 PPM
*
*
Enable/Disable
Input is on Pad 32.
A “low” level at the input disables the
output.
*
Options 5, 6 & 7 are not available for all
operating temperature range options
EXAMPLE:
XE101-143 - 883B - 20.000 MHz = 5V, TTL Output , + 50 PPM over -55 C to +125 C,
Mil-Screened , and 20.000 MHz
o
o
10/12
Xsis Electronics, Inc.
12620 W. 63rd St., Shawnee, KS 66216 Tel. 913-631-0448 Fax. 913-631-1170 email xsis@xsis.com
