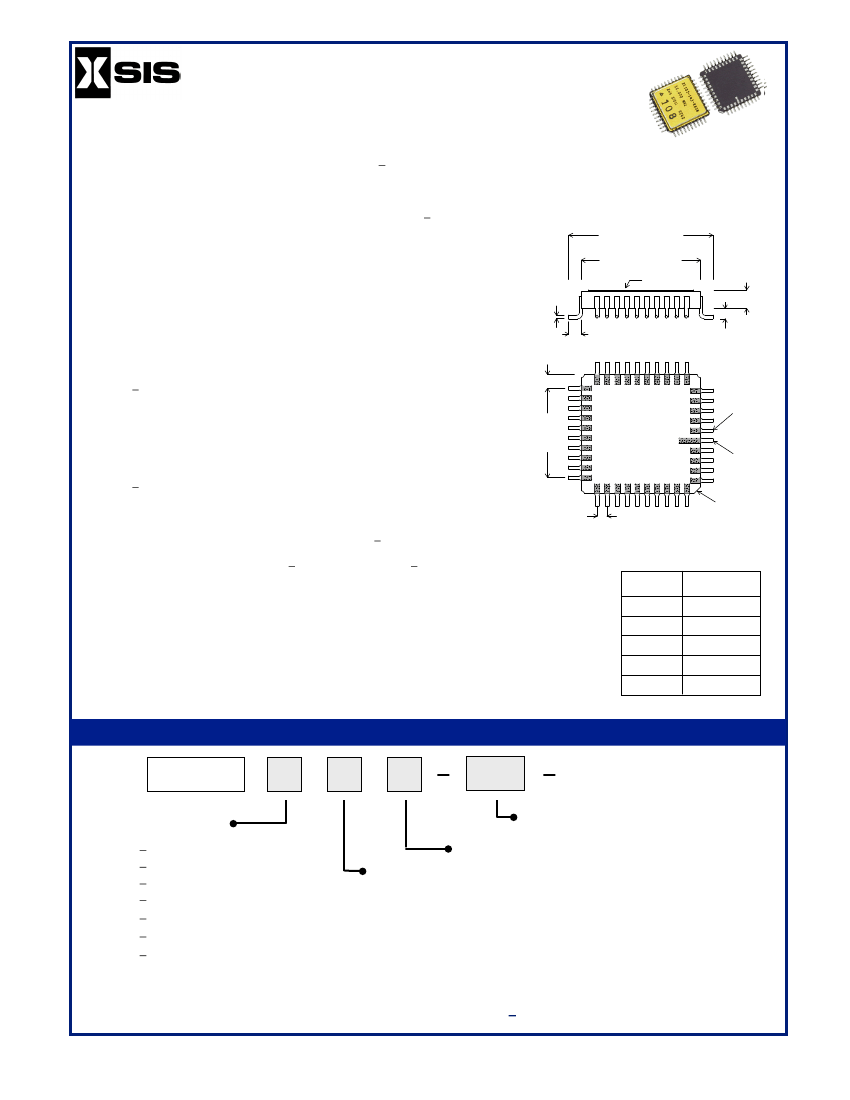

XE102-100 SERIES, TTL, 5V
High Reliability Hybrid Microcircuit Crystal Oscillators
Surface Mount, “ Gull Wing“ Leads Package
Frequency Range
Frequency Accuracy at + 25
O
C
Frequency Stability Vs. Temperature
Operating Temperature Range
Input Voltage
Input Current at +5.0 VDC ( No Load )
200.0 KHz
to
6.4 MHz
6.4 MHz to 25.0 MHz
25.1 MHz to 40.0 MHz
40.1 MHz to 60.0 MHz
60.1 MHz to 90.0 MHz
Output
Output Symmetry ( at 1.4 VDC Level )
Rise & Fall Times ( 0.6 VDC to 2.2 VDC )
< 20 MHz
> 20 MHz
Enable/Disable Input
Start-up Time
< 10 MHz
> 10 MHz
Phase Jitter ( 10 KHz to 20 MHz Integrated )
Frequency Stability Vs. 10% change in Voltage
Aging at +70
O
C
Package, Seal & Weight
Terminations
Solder Reflow, Temp./Time
Package Thermal Resistance ( θ
JC
)
15 mS Max.
10 mS Max.
0.15 pS rms Typical
+ 5 PPM Max.
.040 + .005
–
(1.01 + .13)
–
(36 PLCS)
0.02 x 45
O
(0.51)
Ref.
Dimensions: Inches (mm)
200 KHz to 90 MHz
+ 15 PPM Max.
See Options Below
See Options Below
+ 5 VDC + 10%
25 mA Max.
15 mA Max.
25 mA Max.
35 mA Max.
50 mA Max.
TTL ( 10 Loads )
60/40%
15 nS Max.
5 nS Max.
See Option Below
•
Ruggedized 4 point crystal mount
•
High Shock & Vibration
•
Low Profile Surface Mount
•
Tristate Output Available
.585 + .020 SQ.
–
(14.86 + .51)
–
.485 + .015 SQ.
–
(12.32 + .38)
–
Marking
.014 + .002
–
(.36 + .05)
–
.085 Max
(2.16)
.050 + .005
–
(1.27 + .13)
–
.040 + .010
–
(1.02 + .25)
–
.060 + .010
–
(1.01 + .25)
–
Lead #40
.360 + .005
–
(9.14 + .13)
–
SQ.
Lead #1
( Index )
+ 3 PPM Max. first year, + 2 PPM Max./ Yr. thereafter
Ceramic 90% AL
2
O
3,
Hermetic - Resistance Welded, 1.0 Gms typical
50 to 80 Microinches gold over 100 to 250 microinches Nickel,
Hot Solder Tinning per MIIL-PRF-55310 is optional at additional cost.
260
O
C Max for 10 Seconds Max.
50
O
C / Watt
Lead #
4 & 10
31 & 37
32
39
All others
Function
B+
GND
E/D (Optional)
OUTPUT
NC
Contact Xsis Engineering
for any other special requirements.
ORDERING INFORMATION ( Select from options below ) :
XE102 - 1
Model #
FREQUENCY
883B
= Mil-Screening, Leave Blank Otherwise
H
= Hi-Rel Screening, Leave Blank Otherwise
G
=
*
Enable/Disable, Leave Blank Otherwise
Operating Temperature Range
1=
2=
3=
4=
5=
6=
-
-
-
-
-
0 C to + 70 C
o
o
40 C to + 85 C
o
o
55 C to +125 C
o
o
55 C to +105 C
o
o
40 C to + 95 C
o
o
20 C to + 70 C
o
o
Frequency Stability
1 = + 0.1%
2 = + 0.05%
3 = + 100 PPM
4 = + 50 PPM
5 = + 20 PPM
*
6 = + 10 PPM
*
7 = + 25 PPM
*
*
Enable/Disable
Input is on Pad 32.
A “low” level at the input disables the
output.
*
Options 5, 6 & 7 are not available for all
operating temperature range options
EXAMPLE:
XE102-143 - 883B - 20.000 MHz = TTL Output, + 50 PPM over -55 C to +125 C,
Mil-Screened , and 20.000 MHz
o
o
10/12
