8152-3020: DescriptionD Type Connector, 20 Contact(s), 0.05 inch Pitch, Solder Terminal, Hole .099-.111, Receptacle; CategoryThe connector The connector; File Size137KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

8152-3020 Overview

D Type Connector, 20 Contact(s), 0.05 inch Pitch, Solder Terminal, Hole .099-.111, Receptacle

8152-3020 Parametric

Parameter Name	Attribute value
Objectid	304386933
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.362 inch
subject depth	0.425 inch
body length	1.314 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	CENTRONIC
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	8152
Plug contact pitch	0.05 inch
Installation option 1	HOLE .099-.111
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	4
Number of rows loaded	2
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Shell material	STEEL
Terminal length	0.112 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20

Preview

Download Datasheet

View All

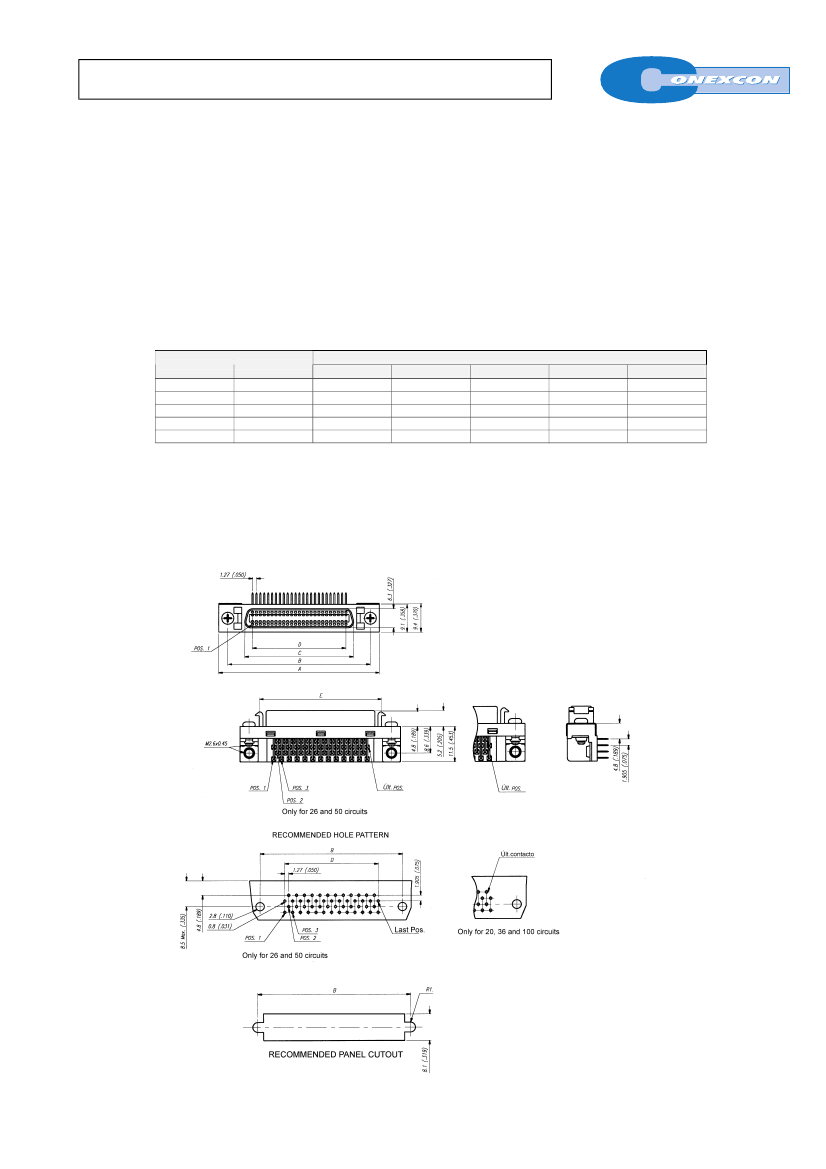

RIGHT ANGLE DIP PCB RECEPTACLE

SERIES.

8152 SERIES

For PCB Solder. With Hooks

Features

!

#

Shell: Cold roller Steel

Insulator Material: PBT + Glass-Fibre UL 94V-0

Accepts: 8160, 8161 and 8162 series

hoods

Staggered four rows of 2.54mm(0.100”) spacing with row-

to row spacing of 1.905mm(.075”) for board side

For electric equipments of high reliability and high density

packaging

Ordering and Dimensional Information

#

Available in 20, 26, 36, 50 and 100 circuits

Excellent I/O connector

Wire size (AWG 26 to 28)

Ribbon contact design

Contact Material: Phosphor bronze

Excellent EMI / ESD protection

Easy to use latching system (One-Touch Lock)

Dimensional Information

Circuit Size

20

26

36

50

100

Part Number

8152 –

T020

8152 –

T026

8152 –

T036

8152 –

T050

8152 –

T100

Dimensions

A

33.38 (1.314)

37.19 (1.464)

43.54 (1.714)

52.43 (2.064)

84.18 (3.314)

B

27.45 (1.081)

31.26 (1.231)

37.61 (1.481)

46.50 (1.831)

78.25 (3.081)

C

16.43 (0.647)

20.30 (0.799)

26.60 (1.047)

35.50 (1.398)

67.30 (2.650)

D

11.43 (0.450)

15.24 (0.600)

21.59 (0.850)

30.48 (1.200)

62.23 (2.450)

E

25.86 (1.019)

24.64 (0.970)

30.99 (1.220)

39.88 (1.570)

71.63 (2.820)

T = Contact Plating

#

T =

2.

Tin plated

#

T =

3.

Gold flash over 50µ" nickel

#

T =

5.

15µ” gold over 50µ” nickel

#

T =

6.

30µ” gold over 50µ” nickel

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation
