GUR010M025 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> GUR010M025

GUR010M025: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 10uF; CategoryPassive components capacitor; File Size169KB，1 Pages; ManufacturerGemmy Electronics Co., Ltd.

Download Datasheet Parametric View All

GUR010M025 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 10uF

GUR010M025 Parametric

Parameter Name	Attribute value
Objectid	1215522271
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	10 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	4 mm
dielectric materials	ALUMINUM
length	5 mm
Manufacturer's serial number	GUR(25V)
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
series	GUR(25V)
Terminal pitch	1.5 mm

Preview

Download Datasheet

View All

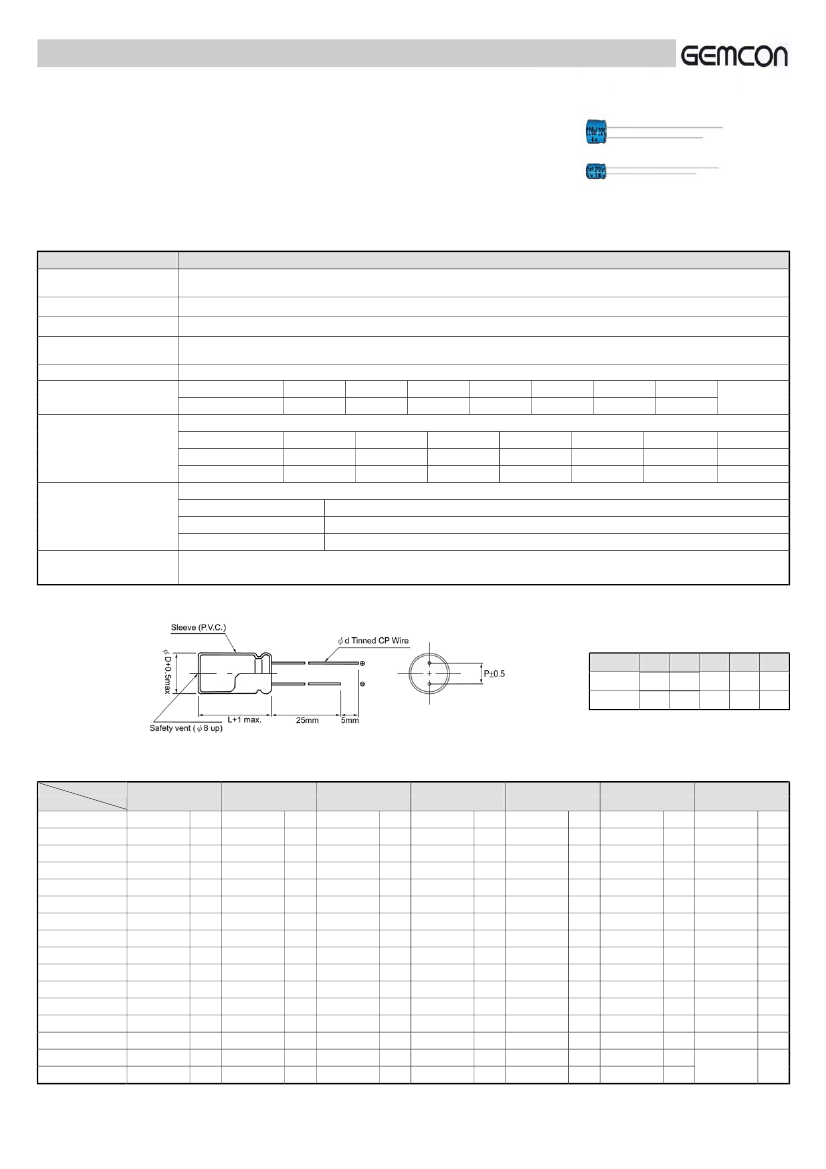

ALUMINUM ELECTROLYTIC CAPACITOR

GUR

5mm

高度立式

85°C

小型標準品

5mm Height, 85°C Standard Series

5mm

1,000

For general purpose use with 5mm height

Life guaranteed 1,000 hours/85°C.

Specifications

Item

Operating Temperature

range

Rated Voltage

Capacitance Range

Capacitance Tolerance

Leakage Current

Dissipation Factor

(120Hz, 20°C)

Temperature

Characteristics

(120Hz)

Performance Characteristics

-40 + 85°C

∼

50V

0.1

∼

470

µF

±20%

(120Hz, 20°C)

≤

0.02CV or 4

µA,

whichever is greater after 2 minutes application of rated voltage.

Rated voltage (V)

Tan

(max.)

Figures in ( )

0.24 (0.30) 0.20 (0.24) 0.16 (0.20) 0.14 (0.18) 0.12 (0.16) 0.10 (0.13) are for

Impedance Ratio / Stability at Low Temperature

0.35

Rated voltage (V)

Z (-25°C) / Z (20°C)

Z (-40°C) / Z (20°C)

Capacitance change

Tan

Leakage current

6.3

After 1,000 hours application of WV at 85°C, capacitor shall meet the characteristics requirements mentioned below.

Load Life

Within

±20%

of initial value

200% or less of initial specified value

Initial specified value or less

Shelf Life

After leaving capacitors under no load at 85°C for 1,000 hours and applying voltage according to JIS C5102 and C5141, they

shall meet the specified value as load life characteristics listed above.

Dimension

1.0

1.5

2.0

2.5

3.5

0.40 0.45 0.45 0.45 0.45

Standard Products Table

WV(SV)

Cap(µF)

0.1

0.22

0.33

0.47

2.2

3.3

4.7

100

220

330

470

○

4x5

5x5

6.3 x 5

8x5

145

185

(5)

6.3

(10)

(13)

(20)

(32)

(44)

x L (mm)

(63)

○

4x5

○

4x5

○

4x5

○

4x5

○

4x5

○

4x5

○

4x5

○

4x5

○

4x5

○

4x5

5x5

6.3 x 5

8x5

110

170

○

4x5

6.3 x 5

8x5

135

4x5

5x5

6.3 x 5

8x5

145

4x5

5x5

6.3 x 5

8x5

110

5x5

6.3 x 5

8x5

5x5

6.3 x 5

8x5

Case Size ripple

Ripple (mA) at 85°C 120Hz

Size 3x5 is available for above marked with “○”.
