CMD025P-TGS302-EMI datasheet, PDF

Datasheet> All Categories > The connector> The connector> CMD025P-TGS302-EMI

CMD025P-TGS302-EMI: DescriptionD Microminiature Connector, 25 Contact(s), Male, Plug,; CategoryThe connector The connector; File Size677KB，4 Pages; ManufacturerCristek Interconnects Inc

Download Datasheet Parametric View All

CMD025P-TGS302-EMI Overview

D Microminiature Connector, 25 Contact(s), Male, Plug,

CMD025P-TGS302-EMI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1842643891
Reach Compliance Code	compliant
Country Of Origin	USA
ECCN code	EAR99
YTEOL	8.68
Other features	STANDARD: M83513
body width	0.308 inch
subject depth	0.233 inch
body length	1.185 inch
Body/casing type	PLUG
Cable type	WIRE, STRANDED
Connector type	D MICROMINIATURE CONNECTOR
Contact point gender	MALE
contact mode	STAGGERED
Contact resistance	28 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.668 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYETHYLENE
MIL compliance	YES
Plug contact pitch	0.05 inch
Match contact row spacing	0.043 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#2-56
Installation option 2	THREADED
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	WITH CABLE ASSEMBLY
Rated current (signal)	3 A
Guideline	MIL
Shell surface	GOLD
Shell material	ALUMINUM ALLOY
Housing size	D
Termination type	WIRE
Total number of contacts	25
Maximum wire diameter	26 AWG
Evacuation force-minimum value	0.139 N

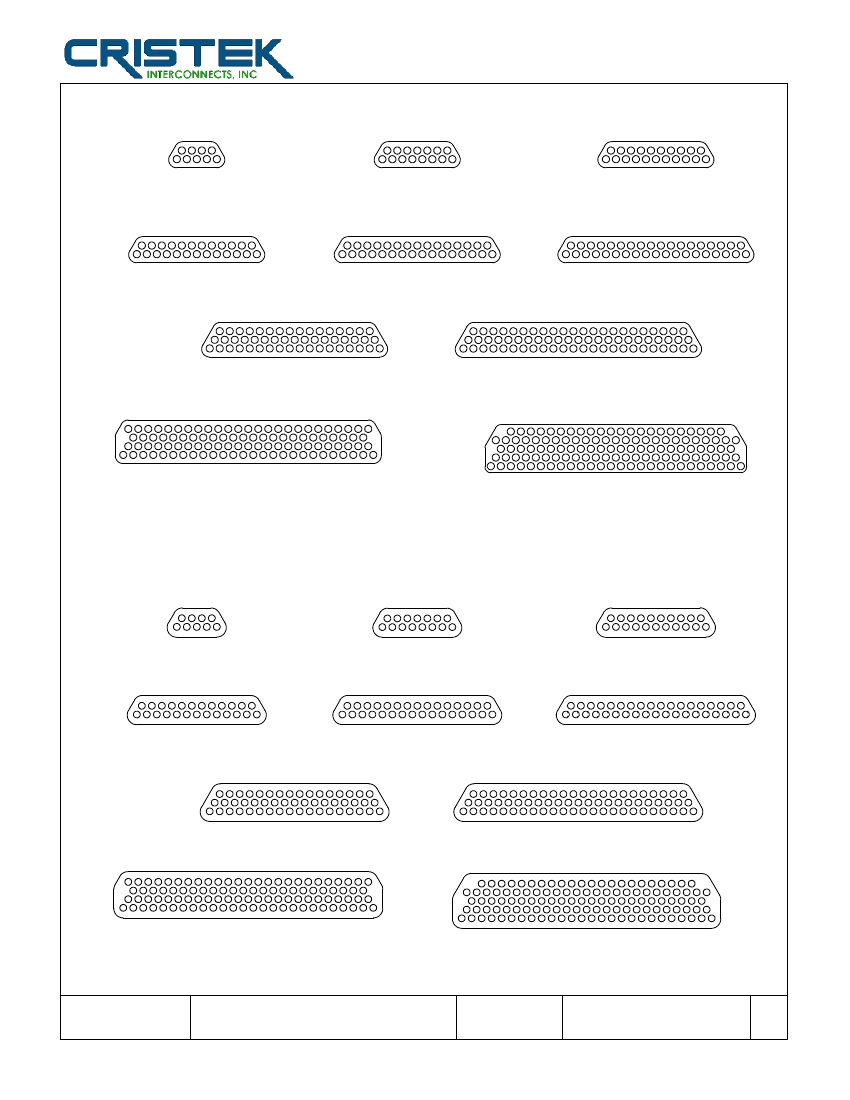

Preview

Download Datasheet

View All

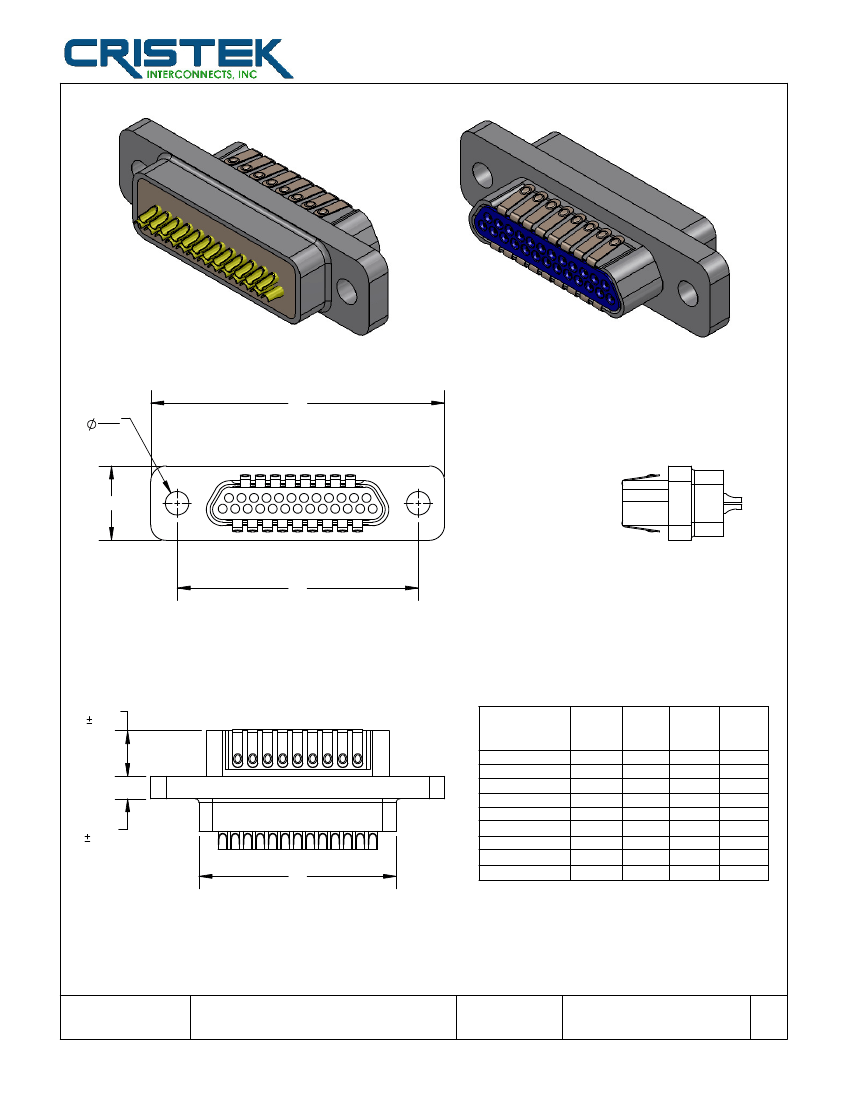

SERIES

CMD

MICRO-D METAL SHELL

NO. OF

CONTACTS

100

122

MAX

.785

.935

1.085

1.185

1.335

1.485

1.435

1.737

2.170

BSC

.565

.715

.865

.965

1.115

1.265

1.215

1.515

1.800

MAX

.400

.550

.700

.800

.950

1.100

1.050

1.350

1.442

.096

.088

.308

MAX

.195 .003 RECEPT

.183 .003 PLUG

RECEPTACLE

SOCKET #1

PLUG

PIN #1

(.239)

RECEPTACLE

.110

MAX

.429 MAX RECEPT

.416 MAX PLUG

.275

MAX

.093

.003

ID (.023) TYP

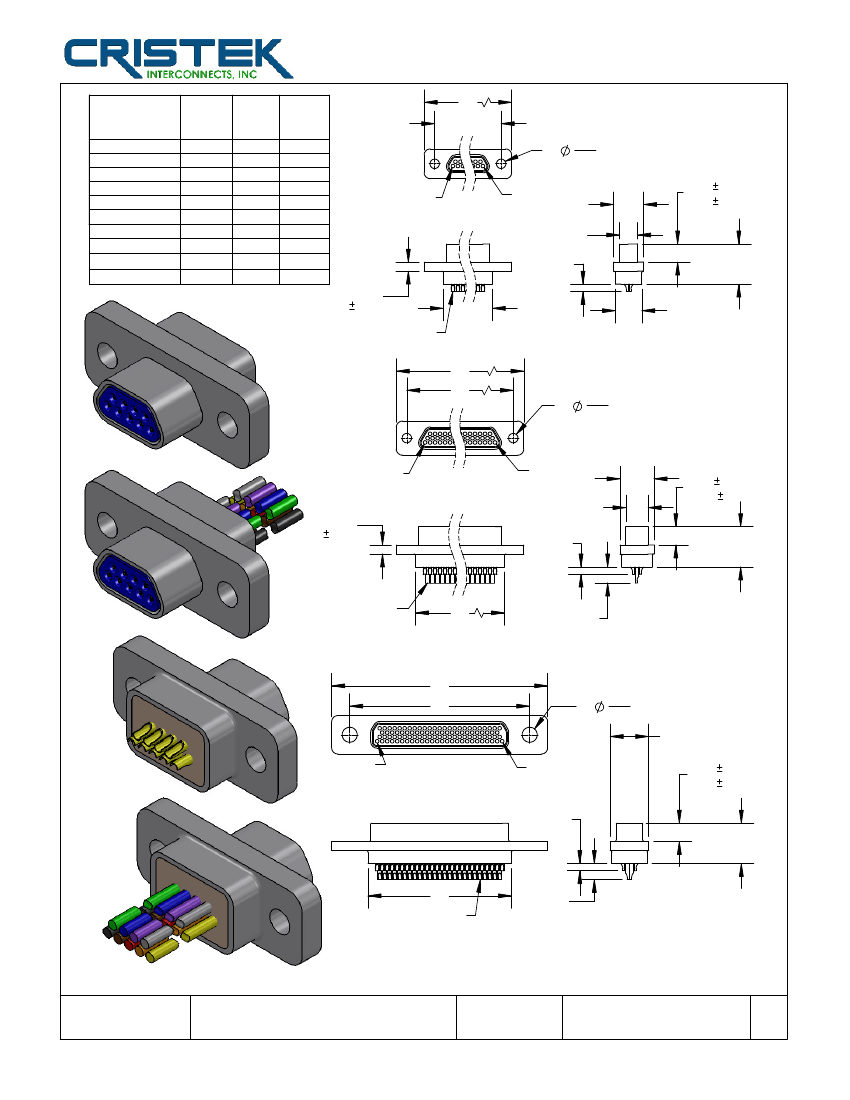

9-37 CONTACTS

.096

.088

RECEPTACLE

SOCKET #1

.093

.003

PLUG

PIN #1

(.281)

RECEPTACLE

.110

MAX

.351

MAX

.195 .003 RECEPT

.183 .003 PLUG

.429 MAX RECEPT

.416 MAX PLUG

ID (.023) TYP

.200

MAX

51-69 CONTACTS

.150

.145

SIZE 100 .394 MAX

SIZE 122 .475 MAX

RECEPTACLE

SOCKET #1

PLUG

PIN #1

.110

MAX

.195 .003 RECEPT

.183 .003 PLUG

.429 MAX RECEPT

.416 MAX PLUG

ID (.023) TYP

.200

MAX

100 - 122 CONTACTS

TOLERANCE: .XXX ±.005

.XX ±.01

ANGLE ±1°

TITLE

DWG. NO.

MICRO-D METAL SHELL

REV

SHT

CMD

888.265.9162

CRISTEK.COM
