M2-16-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M2-16-D

M2-16-D: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size100KB，1 Pages; ManufacturerAntelec; Websitehttp://www.antelec.fr; Environmental Compliance

Download Datasheet Parametric View All

M2-16-D Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

M2-16-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8035812669
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	M2
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

BTB

2.54 mm

www.antelec.fr

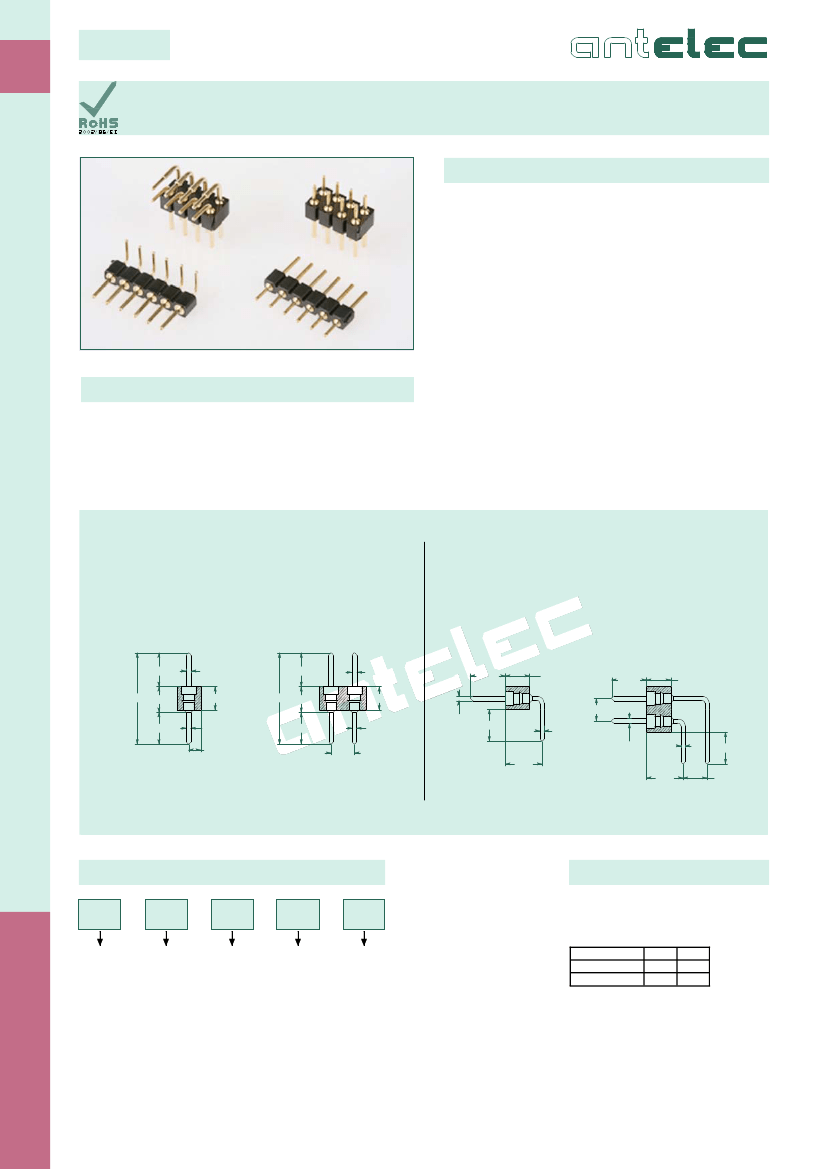

Pin header straight & right angle DIP type pin Ø 0.76 mm

Product specifications

Current rating : 3.0 A

Dielectric withstanding voltage : > 1000 Volts RMS

Insulation resistance : > 1000 MΩ

Operating temperature : -55°C to +125°C

Max processing temperature : 260°C during 5 sec

Mechanical cycles : 500 cycles min

Contact : brass

Plating : gold version (standard)

Insulator : PCT, UL94V-0

Mates with

F(1 or 2)-XX-(D or C)-([ ] or BP or H8)-D

F(1 or 2)-XX-W-DI-XX

F(1 or 2)-XX-(D or C)-XX-CMS-D

Straight type

Right angle type

1 Row

2 Rows

1 Row

2 Rows

Ø 0.76

2.8

5.00

2.8

5.00

2.8

3.2

2.8

3.2

2.54

Ø 0.76

3.0

Ø 0.6

1.27

3.0

2.54

4.5

2.54

Ø 0.6

3.2

Ø 0.6

Ø 0.76

Ø 0.6

3.2

Create your part number

Product range

BOARD TO BOARD 2.54

Pin header

1 row or

M2 for

2 rows

Total

number

of contacts

Straight

or C for

right angle

version

Empty for

standard

version

or BP for

low profile

(straight

type

only)

Golden

clip

(only

for Low

profile

version)

Number of pins :

1 row : 2 to 64 pins

2 rows : 4 to 72 pins

Version

Standard

Low Profile

5.0

3.6

11.2

9.8

106

info@antelec.fr

tel: +33 (0)1 49 80 14 14

fax: +33 (0)1 49 80 14 15
