Amphenol
MIL-DTL-83723, Series III, Pyle
TABLE OF CONTENTS
®
MIL-DTL-83723, Series III, Pyle
®
•
Table of Contents
. . . . . . . . . . . . . . . . . . . . . . .
137
•
Design Features, Customer Options, Manufacturer’s Specifications
.
138, 139
•
Quick Reference of Choices - Threaded Styles
. . . . . . . . .
140-142
•
Quick Reference of Choices - Bayonet Styles
. . . . . . . . . . . .
143
•
Quick Reference of Choices - Hermetic Receptacles, Threaded
. .
144, 145
•
Insert Availability, Alternate Keying Positions
. . . . . . . . . . . .
146
• Insert Arrangement Drawings . . . . . . . . . . . . . . . .
147, 148
• How to Order - Military or Commercial . . . . . . . . . . . . . .
149
• How to Order - Pyle Commercial Designed to Meet GE Specifications . .
150
• How to Order - Boeing (BACC63CM/CN) or Pyle Comm. Equivalent. . .
151
• How to Order - ASD Designation. . . . . . . . . . . . . . . . .
152
• How to Order - Pyle Commercial Equivalents to ASD Designations/
European Standards . . . . . . . . . . . . . . . . . . . . .
153
• How to Order - ESC10/11 for SBAC and Rolls Royce Standards . . . .
154
• How to Order - Pyle Commercial Equivalent to ESC11/
European Specifications - Scoop-Proof only . . . . . . . . . . . .
155
• How to Order - Hermetic, Military or Commercial . . . . . . . . . .
156
Threaded Shell Styles:
• Square Flange Receptacle . . . . . . . . . . . . . . . . . . .
157
• Jam Nut (D-Hole Mount) Receptacle . . . . . . . . . . . . . . .
158
• Straight Plug & Non-Decoupling Plug . . . . . . . . . . . . . . .
159
Bayonet Shell Styles:
• Square Flange Receptacle . . . . . . . . . . . . . . . . . . .
160
• Jam Nut (D-Hole Mount) Receptacle . . . . . . . . . . . . . . .
161
•
Straight Plug
. . . . . . . . . . . . . . . . . . . . . . . .
162
Hermetic Shell Styles:
• Square Flange Receptacle . . . . . . . . . . . . . . . . . . .
163
• Jam Nut (D-Hole Mount) Receptacle . . . . . . . . . . . . . . .
164
• Solder Mount/Weld Mount Receptacle . . . . . . . . . . . . . .
165
•
Contacts, Sealing Plugs, Tools
. . . . . . . . . . . . . . .
166-169
MIL-DTL-83723 Series III, Pyle
®
Typical Markets:
•
Military & Commercial Aviation
- High Temperature Applications
•
Military Vehicles
Amphenol
Aerospace
137
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
Amphenol
Aerospace
III

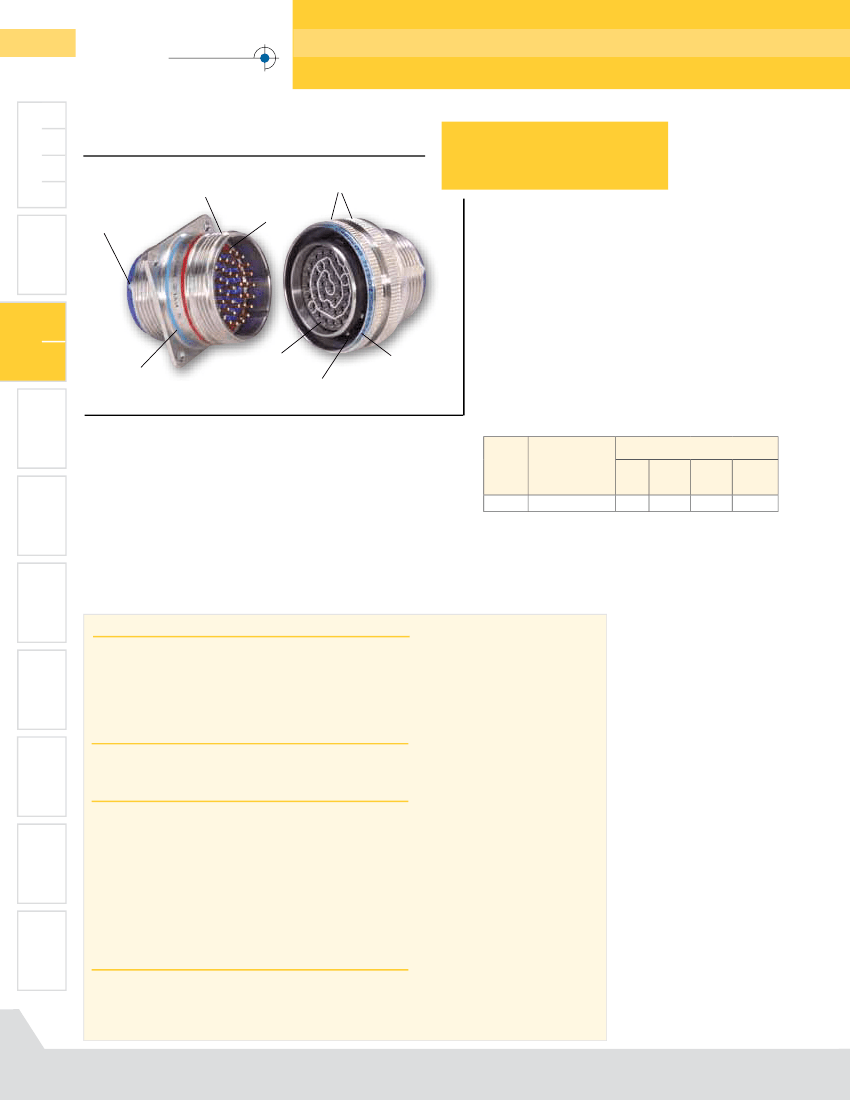

MIL-DTL-83723, Series III, Pyle
®
Threaded or Bayonet, High Temp. Stainless Steel
Design Features
38999
Amphenol Aerospace offers the Pyle
®
Product line
of MIL-DTL-83723*, Series III Connectors.
Accessory
Orientation Teeth
(Optional 360°
also available)
Threaded
Coupling
Static Dynamic
‘O’ Ring Seal
Knurled Coupling Nut
Grip Aid
II
(Threaded Style Shown)
The Amphenol MIL-DTL-83723 Series III family of
connectors includes styles from Pyle National.
These have proven technology for severe
environments and are widely used in commercial
and military aerospace markets. Amphenol/Pyle
83723 connectors incorporate many advantageous
features, such as a unique threaded coupling
mechanism that provides greater resistance to
decoupling. This coupling mechanism eliminates the
need for safety wiring and tends to couple during
vibration - thus offering the user added assurance
and a margin of safety.
83723 III
Matrix
Pyle
Matrix 2
26482
SJT
I
Full Mating
Indicator Band
Closed Entry
Socket Contacts
RFI Grounding
Spring (Optional)
Crimp Rear
Release Matrix
Blue Band
Rear Release
Indicator
5015
26500 Pyle
Amphenol/Pyle 83723 Series III high temperature styles are
capable of operation at 260° C/500°F. A 100% scoop-proof version
of the high temperature connector is also available under
specification ESC11/Pyle HTK Series. In addition, this connector
series incorporates a unique sealing grommet that is capable of
sealing on standard diameter wire as well as Kapton wire of
reduced diameter.
The Pyle 83723 family provides connectors in environmental,
firewall and hermetic classes that exceed the most stringent
specification requirements.
SERVICE RATINGS
Recommended Test Voltage AC (RMS), 60 cps
Operating AC
Sea 50,000 70,000 110,000
Voltage
Service
Level
ft.
ft.
ft.
at Sea Level
Rating
I
600
1,500
500
375
200
Circuit Board
Please note that the electrical data given is not an establishment
of electrical safety factors. This is left entirely in the designer’s
hands as he can best determine which peak voltage, switching
surges, transients, etc. can be expected in a particular circuit.
Printed
MIL-DTL-83723, Series III Connectors are Available in a Wide Variety of Styles:
THREADED STYLE CONNECTORS
•
•
•
•
Stainless steel shells** provide corrosion resistance
Metal to metal bottoming
Unique sealing grommet accepts a wide range of wire diameters
Patented non-decoupling device in plugs - a self-locking clutch plate that provides greater
resistance to decoupling than coupling during vibration
EMI Filter
Transient
Fiber Optics
BAYONET STYLE CONNECTORS
• Same quality features of the threaded style, but with 3 point bayonet coupling - quick turn
to lock, visual confirmation of complete coupling
HIGH TEMPERATURE STYLE CONNECTORS
•
High temperature connector materials and contacts provide operation to 200°C and
Firewall capability to 260°C
•
Improved metal to metal bottoming design
• Unique sealing grommet accepts a wide range of wire diameters
•
Improved 360° accessory orientation teeth provide greater performance under vibration
• Patented non-decoupling device (torque differential)
• Improved shell to shell conductivity with optional RFI grounding fingers
• Styles available that meet several European specifications, General Electric and Rolls
Royce specifications
Options
Others
High Speed
Contacts
HERMETIC STYLE CONNECTORS
• Hermetic styles are available in threaded receptacles with solderwell or flat eyelet
termination
• Designed for environmental moisture sealing with fused compression glass sealed inserts
• High temperature hermetics 200°C and 260°C Firewall
* MIL-DTL-83723 supercedes
MIL-C-83723.
** The Amphenol Pyle 83723 family
is offered in stainless steel shell
classes. See the Amphenol
Matrix 83723 family for aluminum
shell classes, in the preceding
section of this catalog.
138
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com

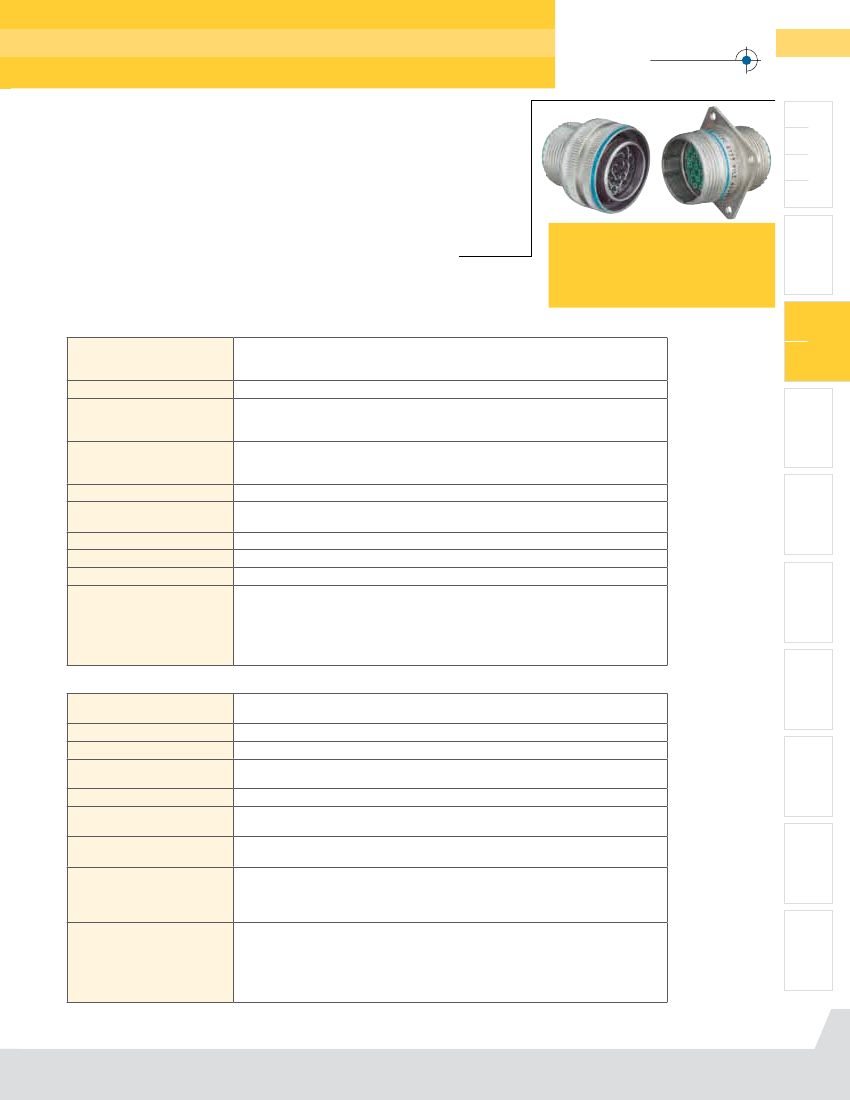

MIL-DTL-83723, Series III, Pyle
®
Manufacturer’s Specifications
The Amphenol/Pyle
®
Product line of MIL-DTL-83723*, Series III
Connectors was developed for the higher operating temperatures
inherent in today’s high performance aircraft and aircraft engines.
These connectors meet the performance requirements of the following
manufacturer’s specifications:
•
•
•
•
Boeing BACC63CM/CN* Firewall
European: ASD† EN2997
General Electric: M50TF3564
Rolls Royce/SBAC: ESC10 and ESC11
Amphenol
Aerospace
III
38999
II
I
SJT
Matrix 2
ESC11
Engine Connector
26482
Matrix
Pyle
83723 III
MIL-DTL-83723, SERIES III CONNECTOR PERFORMANCE CHARACTERISTICS
Operating Temperature Data
Altitude
Voltage
Breakdown Rating
Std: –85°F (–65°C) to 392°F (200°C)
Class K types meet fireproof test per MIL-DTL-83723 2000°F (1093°C)
High Temperature Series: Operates at 500°F (260°C)
Sea Level to 110,000 feet
Service Rating I
Sea Level ......1,500
70,000 ft. ......... 375
50,000 ft. ..........500
110,000 ft. ....... 200
Crimp Rear
Release Matrix
5015
Contact Rating
Contact Retention Strength
Connector Durability
Humidity
Exposure
Non-Decoupling
Size 20 contacts ... 7.5 amperes max.
Size 16 contacts ... 13.0 amperes max.
Size 12 contacts ... 23 amperes max.
Exceeds MIL-DTL-83723 requirements
500 cycles per MIL-DTL-83723 for threaded coupling;
500 cycles per General Electric M50TF2321 for non-decoupling styles
To 98% relative humidity, including condensation
Freezing rain
Exceeds requirements of MIL-DTL-83723/95 and 96.
Meets MIL-DTL-83723 of 41.7G’s for 16 hours.; Boeing BACC63CM/CN for 36 hours
General Electric vibration spec. M50TF2321 and M50TF2238 for 36 hours, which includes:
Printed
26500 Pyle
Circuit Board
Vibration
Temp. Extremes
G Level
Time Length
Room Temp. ............. 60 G’s .......... 12 hrs. (4 hrs. each axis)
–65°F ±5°F ............... 60 G’s ........... 12 hrs. (4 hrs. each axis)
350°F ±5°F ............... 60 G’s ............12 hrs. (4 hrs. each axis)
EMI Filter
Transient
HERMETIC CONNECTOR PERFORMANCE CHARACTERISTICS
Thermal Shock
Physical Shock (Mated)
Moisture Resistance (Mated)
Insulation Resistance, High
Temp. (Mated)
Corrosion (Unmated)
Temperature Life
Air Leakage (Unmated)
No damage detrimental to the operation of the connector occurs when subjected to 10
cycles of thermal shock from 0°C to 90°C and back to 0°C.
300 G’s
500 Megohms
500 Megohms
Complies with MIL-DTL-83723 Req.
Fully functional for 1000 hours at 200°C (392°F) ambient. Internal temperature 238°C
(460°F).
Less than .01 micron per cubic feet per hour on application of 15 PDS pressure differential
across the connector.
After 3 cycles immersed in salt water with pressure reduced to 1 in. Hg (75,000 ft. altitude)
for 30 minutes and returned to atmosphere pressure. While connectors submerged insula-
tion resistance should remain 1000 megohms minimum and support 1500 volts RMS
applied without flash-over or breakdown.
When tested in accordance with MIL-STD-202, Method 301, no flash-over or breakdown
under simulated altitude conditions as shown:
High Potential Voltage Altitude
(Unmated)
Altitude/Service Rating I
Fiber Optics
High Speed
Contacts
Altitude Immersion (Mated)
Options
Others
50,000 .......... 500 AC-RMS
70,000 .......... 375 AC-RMS
110,000 ........ 200 AC-RMS
* BACC63CM supersedes BACC63BR and BACC63CN supersedes BACC63BT.
† ASD supersedes AECMA
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
139
Amphenol
Aerospace
38999
III
II
Military:
MIL-DTL-83723, Series III, Pyle
®
Sq. Flange Receptacle, Threaded - Quick Reference
SERVICE CLASSES*
MILITARY AND COMMERCIAL
G
K
S
P
Y
KE
SE
YE
Stainless steel, 200°C
Stainless steel, 200°C Firewall
capability
Stainless steel, 200°C Firewall capa-
bility, Grounding Spring
Stainless steel, 200°C, Hermetic with
Eyelet contacts
Stainless Steel, 200°C, Hermetic with
Solderwell contacts
Stainless Steel, High Temp. (260°C)
Firewall capability
Stainless steel, High Temp. (260°C)
Firewall capability, Grounding Spring
Stainless Steel, High Temp. (260°C)
Firewall capability, Hermetic with
solderwell contacts

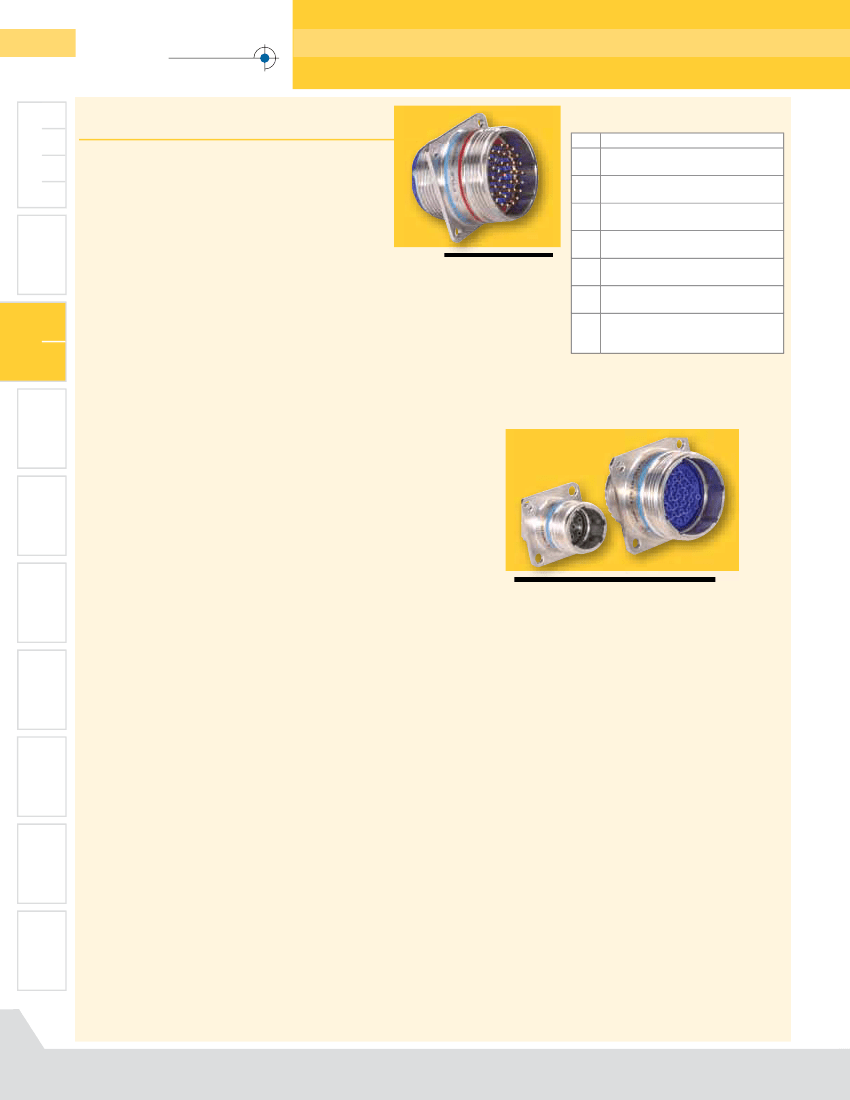

MIL-DTL-83723, SERIES III SQUARE FLANGE
RECEPTACLE, THREADED COUPLING
M83723/82
with Sockets,
Classes G, K
M83723/83
with Pins,
Classes G, K
BT( )-17
With ‘O’ ring seal, Classes G, K
I
SJT
Military:
Commercial:
Matrix 2
Fiber Optics
Comm. Special for
General Electric:
BJ-17
With Static Dynamic Seal,
Stainless Steel, but not avail. in Firewall
BJ8-17
Same as BJ-17 except with Scoop-proof
recessed pins
BN-17
Same as BJ-17 except Electro-deposited
Nickel Base
BN8-17
Same as BN-17 except with Scoop-proof
recessed pins
BNK-17
Same as BN except Stainless Steel Firewall
Special with Boeing
Designation:
BACC63CN**
With ‘O’ ring seal, Stainless Steel Firewall,
with Boeing approved contacts,
Shell modifications with 360° teeth per MS3155
Comm. Special per
Boeing Co. Spec.:
BSK-17
Stainless Steel Firewall with ‘O’ ring seal,
qualified to Boeing,
Y126 Variation - with Boeing approved contacts
Commercial
ASD Designation:
EN2997 ( )0
Meets ASD specifications
200°C temp. (Classes K, S, Y),
260°C high temp. (Classes KE, SE, YE)
Comm.- Meet Several
European Stds:
BT( )-17
With ‘O’ ring seal, Classes G, K
Variations for Euro market specifications
BJ( )-17
With Static Dynamic Seal,
Classes G, K
Variations for Euro market specifications
26482
83723 III
Matrix
Pyle
Square Flange
Receptacle
Threaded
Circuit Board
26500 Pyle
Crimp Rear
Release Matrix
* For Classes A, R and W (aluminum shell
types) - Amphenol supplies these in their
Matrix 83723 family. See the preceding
section of this catalog, 83723 III Matrix.
5015
Printed
Square Flange Receptacle,
Threaded, per European Stds.
(Green Insert - High Temp 260°C;
Blue insert - 200°C)
Commercial - Meet
Society of British
Aerospace Co./Rolls
Royce Standards:
ESC10 ( )0
260°C Firewall (Classes KE, SE, YE),
360° accessory teeth per MS3155
ESC11 ( )0
260°C Firewall (Classes KE, SE, YE),
Scoop-proof recessed pins,
360° accessory teeth per MS3155
ESC10 & ESC11 also available in
Hermetic square flange receptacles -
See Hermetic quick ref. page XX.
ESC11 with
Scoop-Proof
(Recessed pins):
High Speed
Contacts
EMI Filter
Transient
** BACC63CN supersedes BACC63BT.
See how to order pages 149-156 for complete part numbers.
Bayonet style square flange receptacles are shown on page 160.
HTK-17
Standard ESC11, Class K Firewall,
Scoop-proof, Variations for Euro market
specifications
HNK-17
Nickel finish, Class K Firewall
Mating recept. has ‘O’ ring seal,
Scoop-proof, Variations for Euro market specs
HSK-17
Same as HTK, except this is a special
designator for Boeing Co.
Options
Others
140
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com

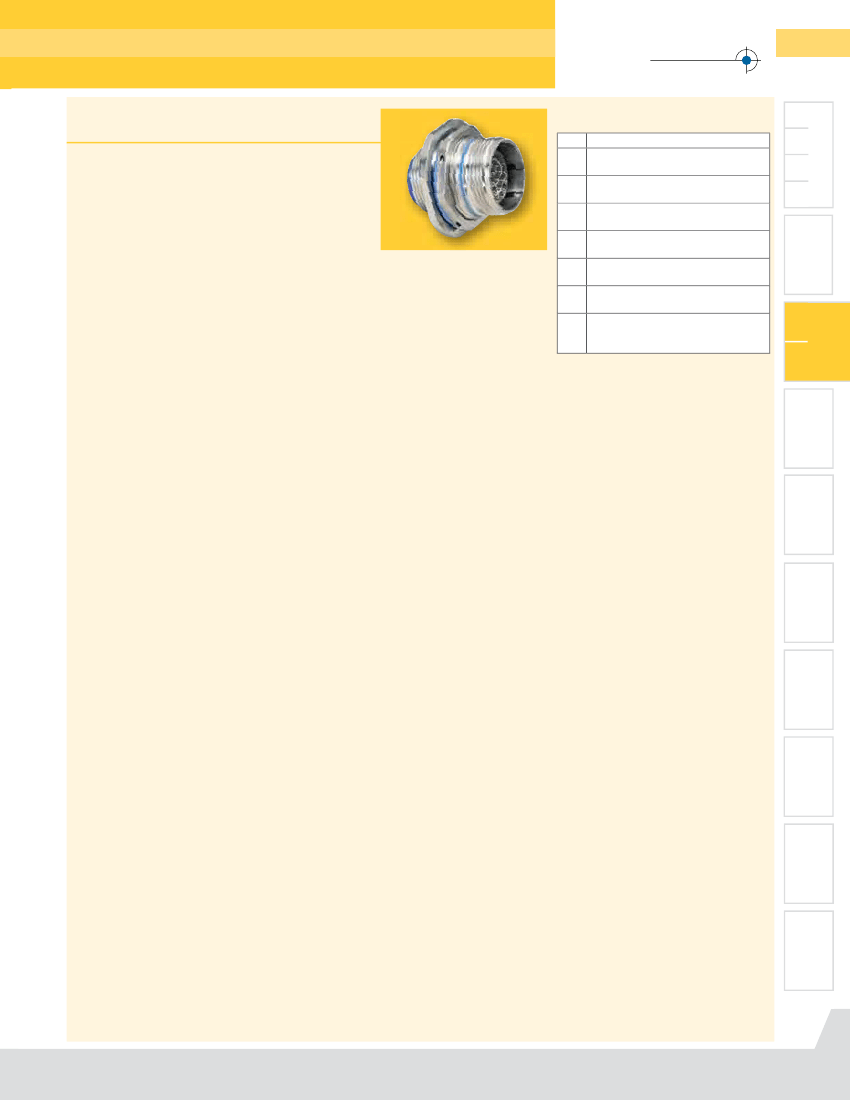

MIL-DTL-83723, Series III, Pyle
®
Jam Nut Receptacle, Threaded - Quick Reference
MIL-DTL-83723, SERIES III JAM NUT (D-HOLE
MOUNT) RECEPTACLE, THREADED COUPLING
Military:
Military:
Commercial:
M83723/84
with Sockets,
Classes G, K
M83723/85
with Pins,
Classes G, K
BT( )-19
With ‘O’ ring seal, Classes G, K
Amphenol
Aerospace
SERVICE CLASSES*
MILITARY AND COMMERCIAL
Stainless steel, 200°C
Stainless steel, 200°C Firewall
K
capability
Stainless steel, 200°C Firewall capa-
S
bility, Grounding Spring
Stainless steel, 200°C, Hermetic with
P
Eyelet contacts
Stainless Steel, 200°C, Hermetic with
Y
Solderwell contacts
Stainless Steel, High Temp. (260°C)
KE
Firewall capability
Stainless steel, High Temp. (260°C)
SE
Firewall capability, Grounding Spring
Stainless Steel, High Temp. (260°C)
YE
Firewall capability, Hermetic with
solderwell contacts
* For Classes A, R and W (aluminum shell
types) - Amphenol supplies these in their
Matrix 83723 family. See the preceding
section of this catalog, 83723 III Matrix.
G
III
38999
26482
II
I
SJT
Matrix 2
Comm. Special for
General Electric:
BJ-19
With Static Dynamic Seal,
Stainless Steel, but not avail. in Firewall
BJ8-19
Same as BJ-17 except with Scoop-proof
recessed pins
BN-19
Same as BJ-17 except Electro-deposited
Nickel Base
BN8-19
Same as BN-17 except with Scoop-proof
recessed pins
BNK-19
Same as BN except Stainless Steel Firewall
Commercial
ASD Designation:
EN2997 ( )7
Meets ASD specifications
200°C temp. (Classes K, S, Y),
260°C high temp. (Classes KE, SE, YE)
NFL 54143 ( )7
Comm.- Meet Several
European Stds:
BT( )-19
With ‘O’ ring seal, Classes G, K
Variations for Euro market specifications
BJ( )-19
With Static Dynamic Seal,
Classes G, K
Variations for Euro market specifications
Commercial - Meet
Society of British
Aerospace Co./Rolls
Royce Standards: ESC10 & ESC11 jam nut receptacles are
available in Hermetic only - See Hermetic
quick ref. page 145
Jam Nut
(D-Hole Mount)
Receptacle,
Threaded
Matrix
Pyle
83723 III
5015
High Speed
Crimp Rear
Release Matrix
Printed
26500 Pyle
Circuit Board
EMI Filter
Transient
Fiber Optics
Contacts
Options
Others
No Boeing Designated Jam nut receptacle.
See how to order pages 149-156 for complete part numbers.
Bayonet style jam nut receptacles are shown on page 161.
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
141
京公网安备 11010802033920号
EEWORLD
