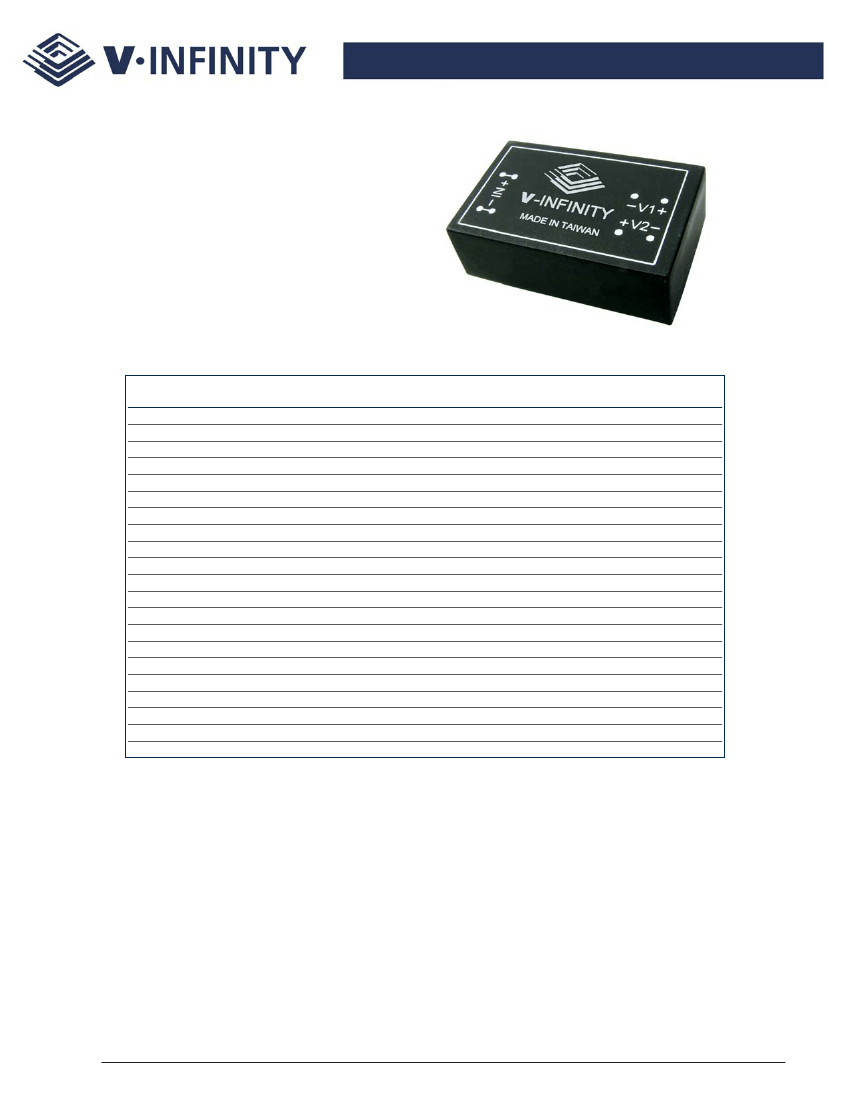

VABD6 Series DC-DC Converter
Rev. 06-2006
Features
·5-6 W Isolated Output
·Efficiency to 82%
·2:1 input range
·Regulated Outputs
·Pi Input Filter
·24-Pin DIP Package
·Meets EN55022 Class B, Conducted
·Remote ON/OFF option
Model
Number
VABD6-D12-S5
VABD6-D12-S12
VABD6-D12-S15
VABD6-D12-D12
VABD6-D12-D15
VABD6-D12-D5
VABD6-D12-S3R3
VABD6-D24-S5
VABD6-D24-S12
VABD6-D24-S15
VABD6-D24-D12
VABD6-D24-D15
VABD6-D24-D5
VABD6-D24-S3R3
VABD6-D48-S5
VABD6-D48-S12
VABD6-D48-S15
VABD6-D48-D12
VABD6-D48-D15
VABD6-D48-D5
VABD6-D48-S3R3
Input
Voltage
9-18VDC
9-18VDC
9-18VDC
9-18VDC
9-18VDC
9-18VDC
9-18VDC
18-36VDC
18-36VDC
18-36VDC
18-36VDC
18-36VDC
18-36VDC
18-36VDC
36-72VDC
36-72VDC
36-72VDC
36-72VDC
36-72VDC
36-72VDC
36-72VDC
Output
Voltage
5VDC
12VDC
15VDC
±12VDC
±15VDC
±5VDC
3.3VDC
5VDC
12VDC
15VDC
±12VDC
±15VDC
±5VDC
3.3VDC
5VDC
12VDC
15VDC
±12VDC
±15VDC
±5VDC
3.3VDC
Output
Current
1000mA
470mA
400mA
±230mA
±190mA
±500mA
1000mA
1000mA
470mA
400mA
±230mA
±190mA
±500mA
1000mA
1000mA
470mA
400mA
±230mA
±190mA
±500mA
1000mA
Input Current
No Load
7.5mA
7.5mA
7.5mA
12mA
12mA
12mA
7.5mA
5mA
5mA
5mA
7.5mA
7.5mA
7.5mA
5mA
2mA
2mA
2mA
3mA
3mA
3mA
2mA
Full Load
545mA
585mA
625mA
575mA
590mA
545mA
393mA
265mA
285mA
305mA
285mA
295mA
265mA
197mA
133mA
145mA
154mA
142mA
147mA
133mA
98mA
Efficiency
76%
80%
80%
80%
80%
76%
70%
78%
82%
82%
81%
81%
78%
70%
78%
81%
81%
81%
81%
78%
70%
NOTES:
1. Suffix “HM” for 1.5K Vdc isolation
2. Suffix “H” for 3K Vdc isolation
3. Suffix “-SMT” for SMT case style
4. Suffix “-1” for on/off control option
V-Infinity, LLC, 20050 SW 112th Ave., Tualatin, OR 97062
www.v-infinity.com
1-866-372-1258
2/4
VABD6 Series DC-DC Converter
Rev. 06-2006
Input
Input Voltage Range
12V
24V
48V
Input Filter
9-18V
18-36
36-72
Pi Type
Output
Voltage Accuracy
Voltage Balance(Dual)
Temperature Coefficient
Ripple and Noise, 20MHz BW
Short Circuit Protection
Line Regulation
single/dual
1
Load Regulation
single
2
dual³
±2.0% max.
±1.0% max.
±0.05% / °C max.
100mV p-p max.
1% p-p max.
continuous
±0.5%
±0.5%
±1.0%
3.3V / 5V
12V / 15V
General Specifications
Efficiency
Isolation Resistance
Switching Frequency
Isolation Resistance
Operating Temperature Range
Storage Temperature
Cooling
EMI/RFI
Dimensions
see table
10
9
Ohms
100kHz min.
10
9
Ohms
-25°C to +71°C
-40°C to +100°C
Free Air Convection
Conductive EMI Meet EN55022
Class B
1.25x0.8x0.5 inches
(31.8x20.3x12.7mm)
Isolation Voltage
500 VDC min
1.5K VDC min
3K VDC min
4
Standard Models
Suffix “HM” Models
Suffix “H” Models
Case Material
Standard models
Suffix “M” models
5
Non-Conductive Black Plastic
Black Coated Copper with
Non-Conductive Base
NOTES:
1. Measured from high line to low line
2. Measured from full load to 10% load
3. Measured from full load to 1/4 load
4. Non-conductive black plastic only
5. Suffix “-1” to the model number with
remote on/off for “H”/”HM” versions only
V-Infinity, LLC, 20050 SW 112th Ave., Tualatin, OR 97062
www.v-infinity.com
1-866-372-1258
3/4
VABD6 Series DC-DC Converter
Rev. 06-2006

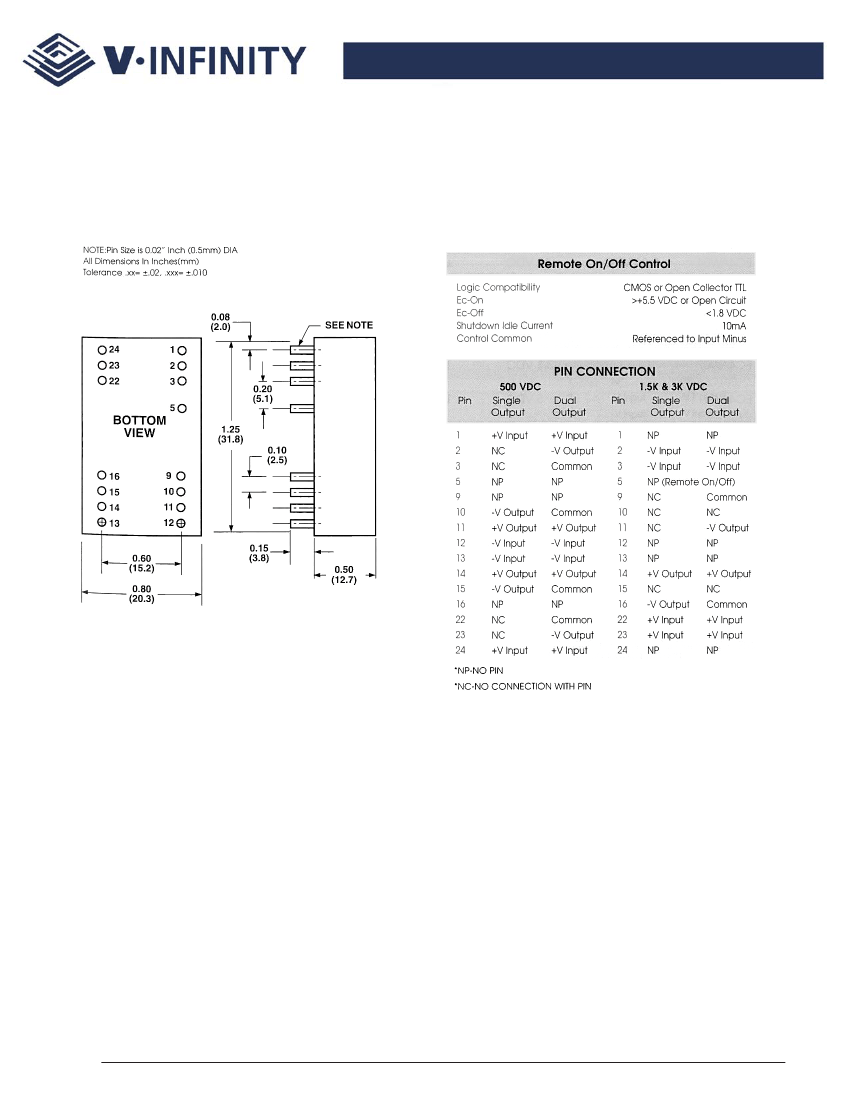

24-Pin DIP Case
All specifications typical at nominal line, full load and 25°C unless otherwise noted.
V-Infinity, LLC, 20050 SW 112th Ave., Tualatin, OR 97062
www.v-infinity.com
1-866-372-1258
4/4
VABD6 Series DC-DC Converter
Rev. 06-2006

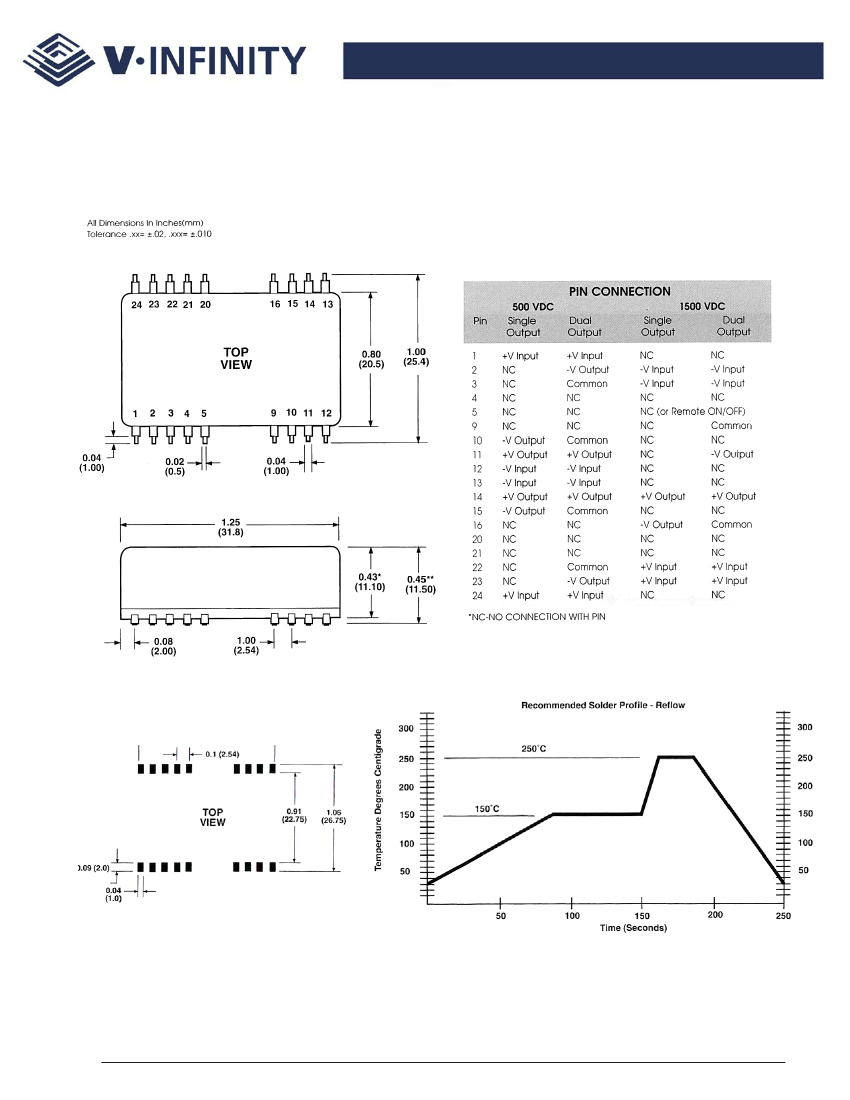

SMT Case
All specifications typical at nominal line, full load and 25°C unless otherwise noted.
V-Infinity, LLC, 20050 SW 112th Ave., Tualatin, OR 97062
www.v-infinity.com
1-866-372-1258
