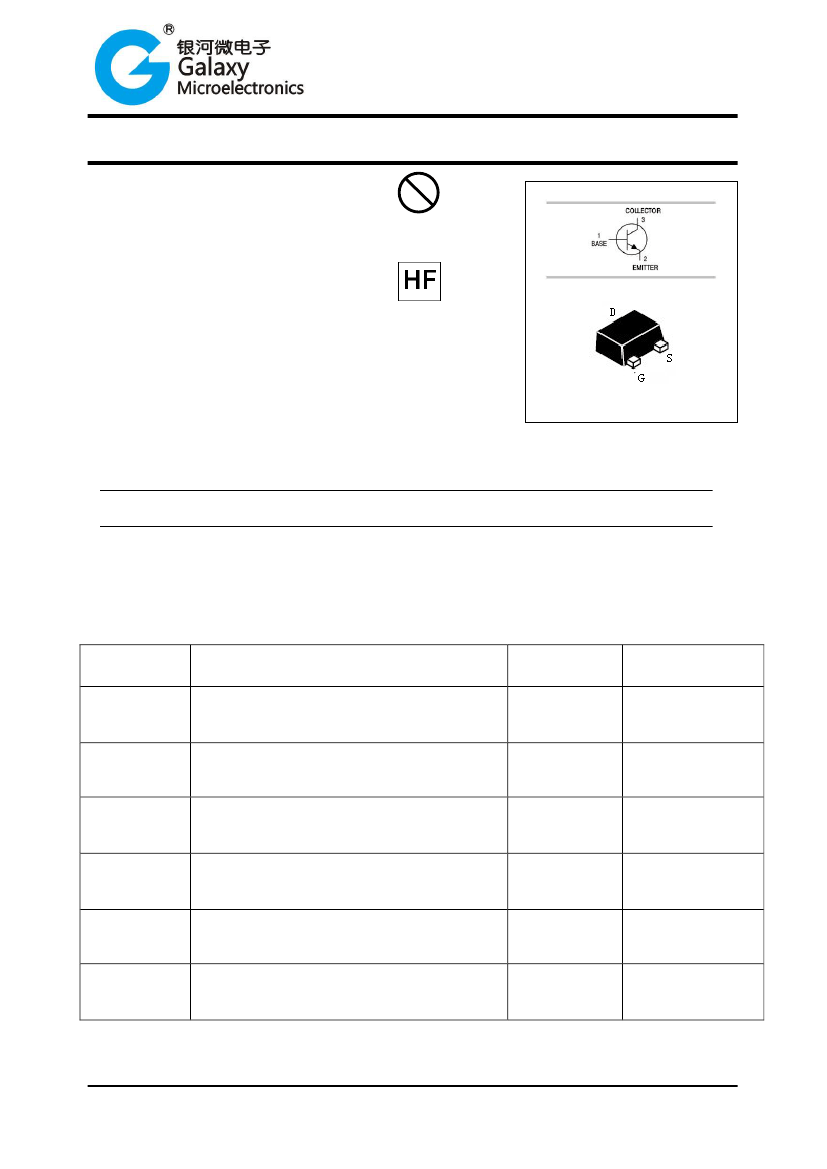

Product specification
GENERAL PURPOSE TRANSISTORS(NPN)
FEATURES
Complements the 2SA2029.
Low C
ob.
2SC5658
Pb
Lead-free
SOT-723
ORDERING INFORMATION
Type No.
2SC5658□
□:
none is for Lead Free package;
“G” is for Halogen Free package.
Marking
BQ\BR\BS
Package Code
SOT-723
MAXIMUM RATING
@ Ta=25℃ unless otherwise specified
Symbol
V
CBO
Parameter
Collector-Base Voltage
Value
60
Units
V
V
CEO
Collector-Emitter Voltage
50
V
V
EBO
Emitter-Base Voltage
7
V
I
C
Collector Current
150
mA
P
C
Collector Power Dissipation
100
mW
T
j,
T
stg
Junction and Storage Temperature
-55 to +150
℃
STM0019A
www.gmesemi.com
1
Product specification
GENERAL PURPOSE TRANSISTORS(NPN)
2SC5658
ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Parameter
Collector-base breakdown voltage
Collector-emmitter breakdown
voltage
Emitter-base breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-emitter saturation voltage
Transition frequency
Collector output capacitance
Symbol Test conditions
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
h
FE
V
CE(sat)
f
T
C
ob
I
C
=50uA, I
E
=0
I
C
=1m A, I
B
=0
I
E
=50uA, I
C
=0
V
CB
=60V,I
E
=0
V
EB
=7V,I
C
=0
V
CE
=6V,I
C
=1mA
I
C
=50mA, I
B
=5mA
V
CE
=12V, I
C
=2mA,
f=100MHz
V
CB
=12V, I
E
=0mA,f=1MHz
180
3.5
120
MIN
60
50
7
0.1
0.1
560
0.40
V
MHz
pF
TYP
MAX UNIT
V
V
V
μA
μA
Classification of
h
fe
Rank
Range
Q
120-270
R
180-390
S
270-560
STM0019A
www.gmesemi.com
2
Product specification
GENERAL PURPOSE TRANSISTORS(NPN)

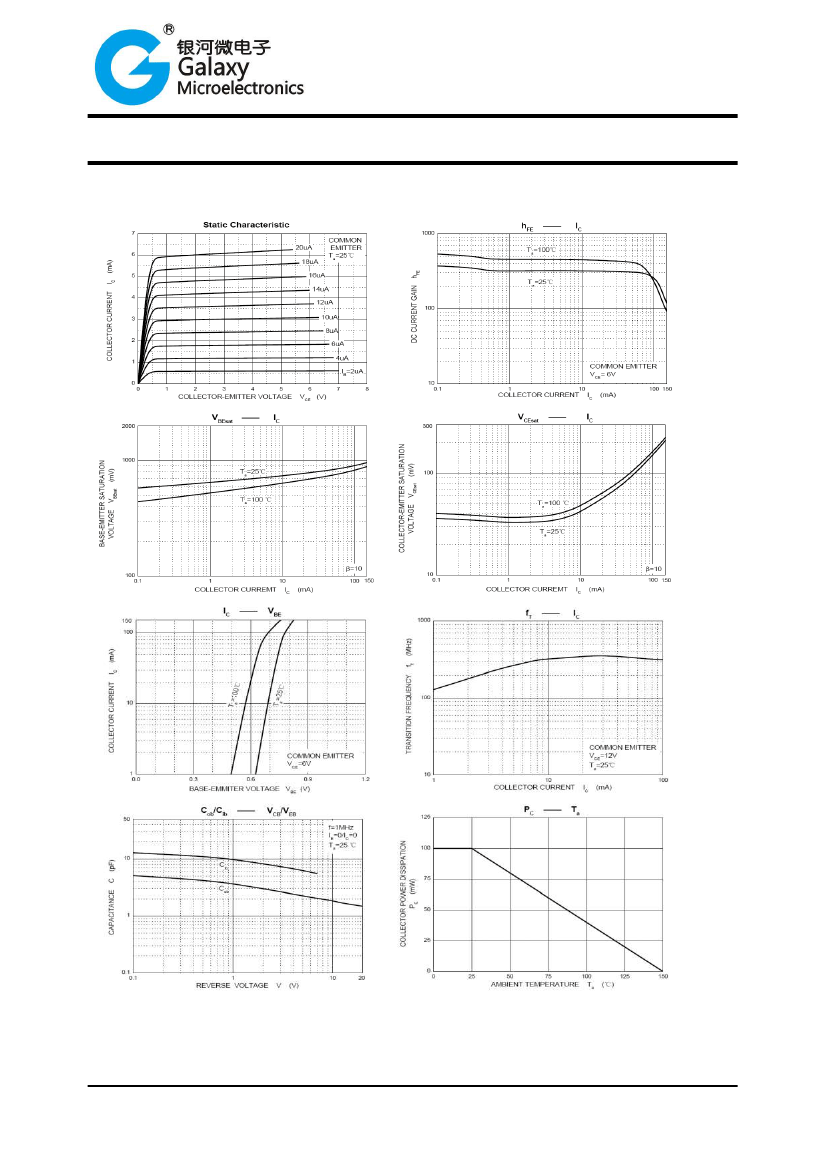

TYPICAL CHARACTERISTICS
2SC5658
STM0019A
www.gmesemi.com
3
Product specification
GENERAL PURPOSE TRANSISTORS(NPN)

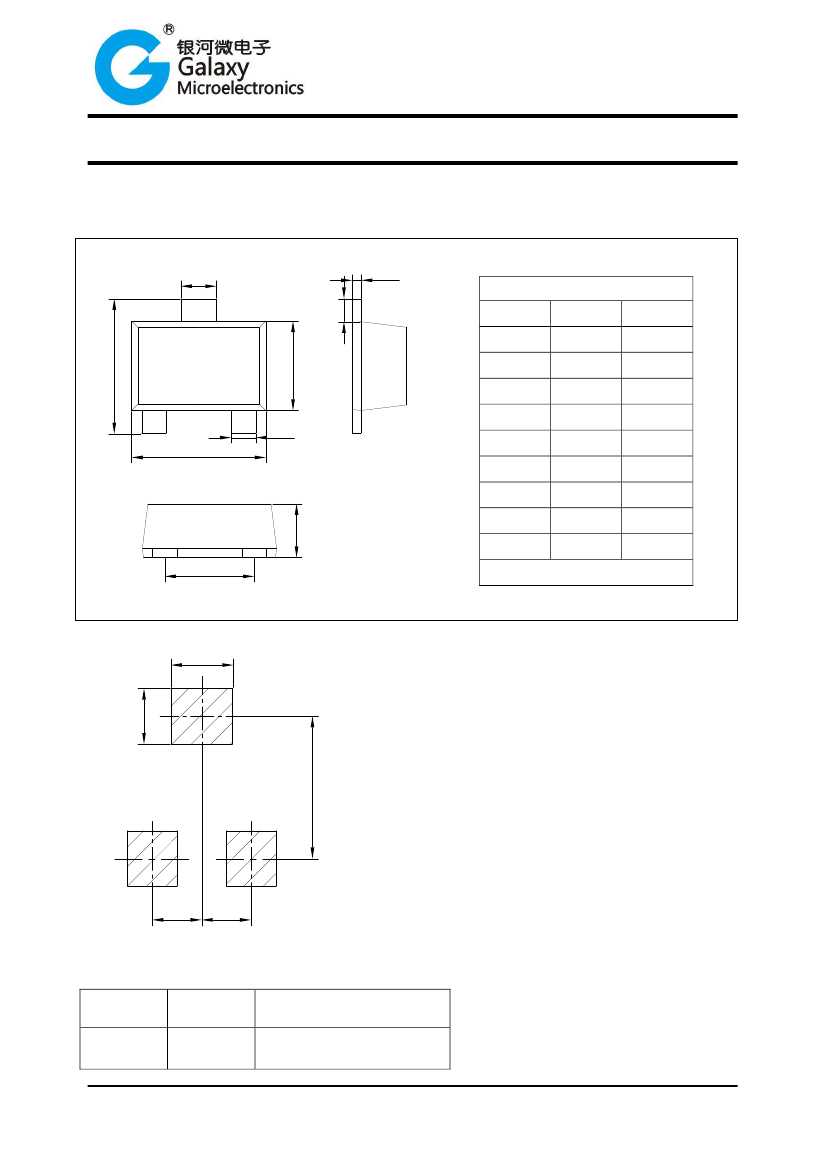

PACKAGE OUTLINE
Plastic surface mounted package
2SC5658
SOT-723
D
E
J
SOT-723
Dim
A
Min
1.10
0.70
0.40
0.22
0.10
0.12
0.70
0.08
1.10
Max
1.30
0.90
0.54
0.42
0.30
0.32
0.90
0.15
1.30
B
B
C
K
F
A
D
E
F
G
C
J
K
G
All Dimensions in mm
SOLDERING FOOTPRINT
0.50
0.45
0.40
0.40
Unit : mm
PACKAGE INFORMATION
Device
2SC5658
Package
SOT-723
Shipping
10000/Tape&Reel
1.15
STM0019A
www.gmesemi.com
4
