240-034-5-31SPGNN-.080 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 240-034-5-31SPGNN-.080

240-034-5-31SPGNN-.080: DescriptionD Microminiature Connector, 31 Contact(s), Female, Solder Terminal, Socket,; CategoryThe connector The connector; File Size493KB，4 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

240-034-5-31SPGNN-.080 Overview

D Microminiature Connector, 31 Contact(s), Female, Solder Terminal, Socket,

240-034-5-31SPGNN-.080 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	ENVIRONMENTALLY SEALED, STANDARD: MIL-DTL-83513
Body/casing type	SOCKET
Connector type	D MICROMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	240-034
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	GOLD
Shell material	ALUMINUM ALLOY
Housing size	E
Termination type	SOLDER
Total number of contacts	31
Base Number Matches	1

Preview

Download Datasheet

View All

Micro-D

Connectors

Micro-D Right Angle PCB

Basic Part Number

Filter Connector

Product Code

Shell Finish

(See Table I)

Right Angle Printed Circuit Board

240-034

Micro-D Filter Connectors

Contact Type

- Socket

Filter Type

- Pi Circuit

- C Circuit

PC Tail Length (Inches)

.080, .110, .125,

.150, .190, .250

240 - 034 - 2 - 37

Number of Contacts

9, 15, 21, 25, 31, 37

PU - .080

Hardware Option

- No Jackpost, No Threaded Insert

- Jackpost, No Threaded Insert

- Threaded Insert Only, No Jackposts

- Jackpost and Threaded Insert

Rear Panel Jackposts with Threaded Insert:

R6U

- 0.125" (3.2) Panel

R5U

- 0.094" (2.4) Panel

R4U

- 0.062" (1.6) Panel

R3U

- 0.047" (1.2) Panel

R2U

- 0.031" (0.8) Panel

Filter Class

A, B, C, D, E, F or G

(See Table II)

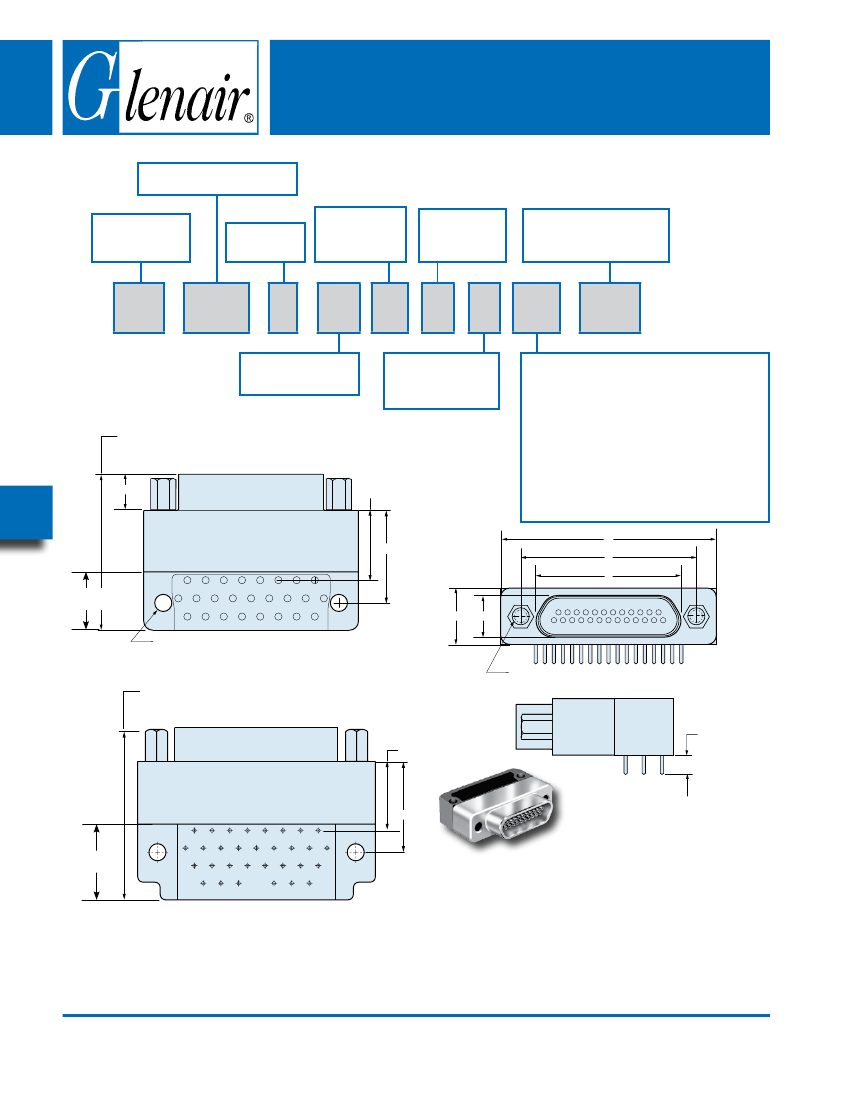

PI FILTER 1.205 (30.61) MAX

C FILTER .865 (21.97) MAX

.335 (8.51)

MAX

CONFIGURATION FOR 9-25 CONTACTS

2X MOUNTING HOLES.096 DIA. ± .003 (2.44 ± 0.08)

OR OPTIONAL 2-26 UNC 2B THREADED INSERTS

2-56 UNC-2B THREADS

PI FILTER 1.300 (33.02) MAX

C FILTER .960 (24.38) MAX

TAIL LENGTH ±

.015 (0.38)

CONFIGURATION FOR 31-37 CONTACTS

.430 (10.92)

MAX

2X MOUNTING HOLES .096 DIA. ± .003 (2.44 ± 0.08)

OR OPTIONAL #2-56 UNC 2B THREADED INSERTS

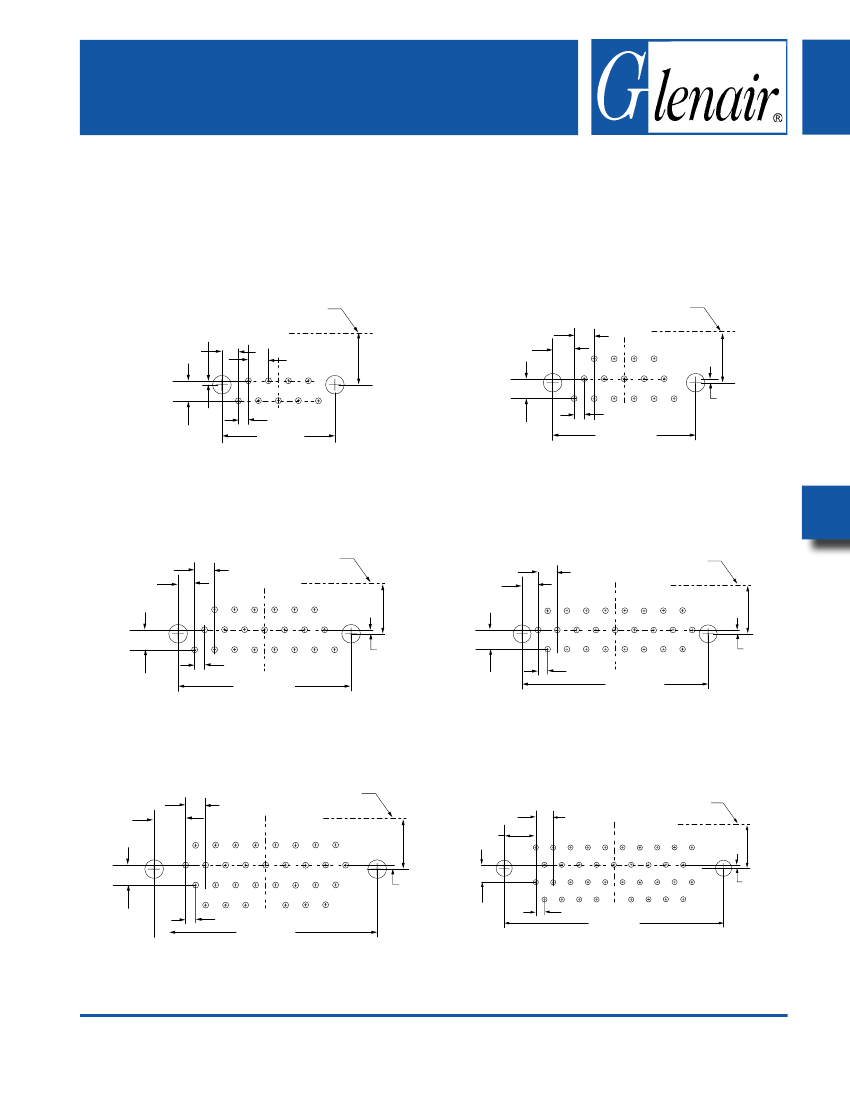

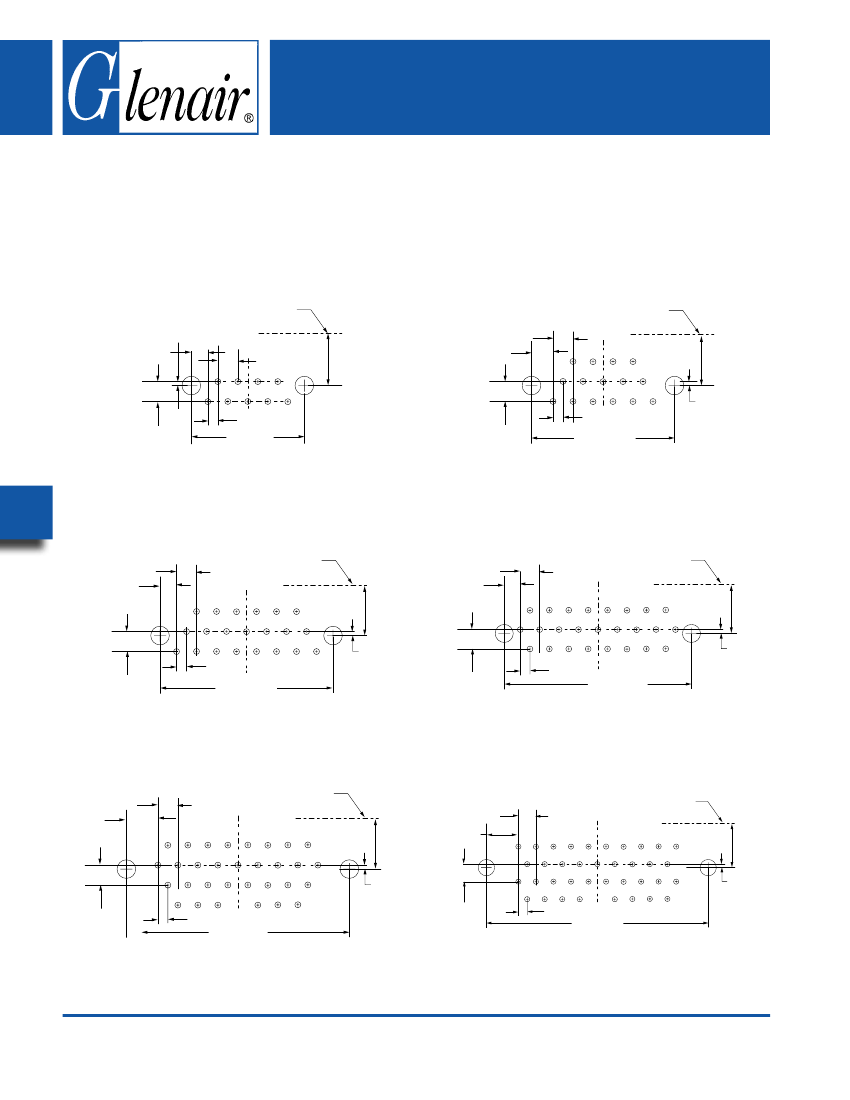

Right Angle Board Mount Filtered Micro-D's.

These

connectors feature low-pass EMI filtering in a right

angle header for PCB termination.

.100" x .100" Board Spacing—These

connectors are

similar to “CBR” style Micro-D's and share the same

board footprint, allowing retrofit to existing boards.

CAGE Codes 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

D-16
