231-104-00NC11-4PA-03 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 231-104-00NC11-4PA-03

231-104-00NC11-4PA-03: DescriptionCircular Connector Adapter, 4 Contact(s), Aluminum Alloy, Male-Male; CategoryThe connector The connector; File Size440KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

231-104-00NC11-4PA-03 Overview

Circular Connector Adapter, 4 Contact(s), Aluminum Alloy, Male-Male

231-104-00NC11-4PA-03 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	STANDARD: MIL-DTL-38999
Connector type	CIRCULAR CONNECTOR ADAPTER
Contact point gender	MALE-MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	231-104-00
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	ZINC
Shell material	ALUMINUM ALLOY
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

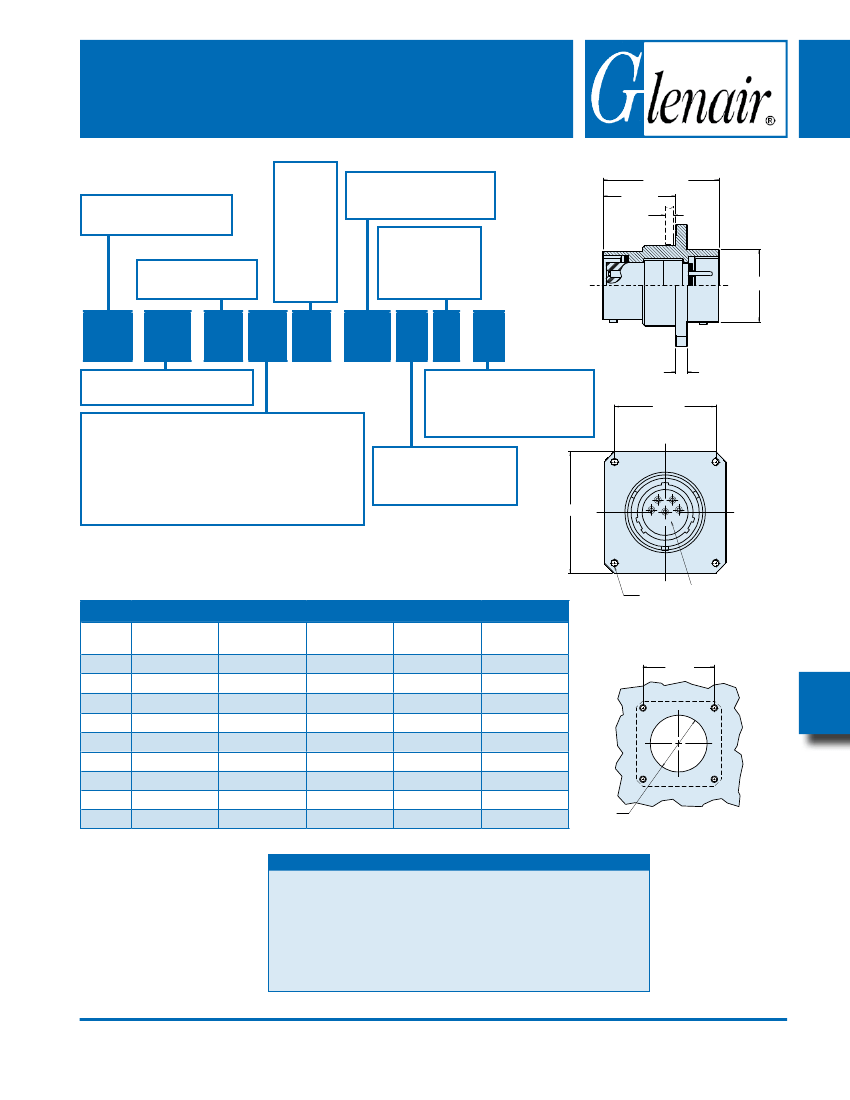

231-104-00

Wall Mount Environmental Bulkhead Feed-Thru

MIL-DTL-38999 Series I Type

Connector Series

231

D38999 Series I Type

Shell Style

- Wall Mount

Shell Size

Insert Arrangement

Per MIL-DTL-38999 Series I

MIL-STD-1560

Alternate Key

Position

A, B, C, D

(N = Normal)

1.56 Max

.84 Ref

Panel

Accom.

Flange Side

Ref

A TYP

231

104

00 M 11

Connector Type

104

Env. Bulkhead Feed-Thru

Connector Material and Finish

- Aluminum / Electroless Nickel

- Aluminum / Zinc-Cobalt

- Cad / O.D. Over Electroless Nickel (1000hr Salt Spray)

- Aluminum Zinc-Nickel Olive Drab

- Aluminum / Ni-PTFE 1000 Hour Grey

- Aluminum / Pure Electrodeposited Aluminum

P N

Panel Accomodation

- .0625″ (Min) .125″ (Max)

- .0625″ (Min) .250″ (Max)

- .0625″ (Min) .500″ (Max)

.150 Max

B Typ

Contact Termination

- Pin on Flange Side

- Socket on Flange Side

TABLE I: CONNECTOR DIMENSIONS

SHELL

SIZE

MAX

.573(14.6)

.701(17.8)

.851(21.6)

.976(24.8)

1.101(28.0)

1.208(30.7)

1.333(33.9)

1.458(37.0)

1.583(40.2)

.719(18.3)

.812(20.6)

.906(23.0)

.969(24.6)

1.062(27.0)

1.156(29.4)

1.250(31.8)

1.375(34.9)

1.500(38.1)

.938(23.8)

1.031(26.2)

1.125(28.8)

1.219(31.0)

1.312(33.3)

1.438(36.5)

1.562(39.7)

1.688(42.9)

1.812(46.0)

DIA

.125(3.2)

.156(4.0)

±.005(0.1)

.703(17.9)

.827(21.0)

1.015(25.8)

1.140(29.0)

1.265(32.1)

1.390(35.3)

1.515(38.5)

1.640(41.7)

1.765(44.8)

DIA

D DIA

TYP

Insert Arrangement per

MIL-DTL-38999, Series l

MIL-STD-1560

B Ref

Recommended Panel Cutout

APPLICATION NOTES

Material/finish:

Shells and nuts – Al alloy, 6061-T6, QQ-A-225/8, see Table I (D5)

Contacts – Leaded nickel copper/gold plate MIL-G-45204, Type II, Class I

Bayonet pins – AISI 300 series stainless steel/passivate, QQ-P-35

Hoods – AISI 305 series stainless steel/passivate, QQ-P-35

Inserts – Epiall 1908

Seals – Silicone per ZZ-R-765

Metric Dimensions (mm) are indicated in parentheses.

CAGE CODE 06324

Printed in U.S.A.

E-Mail: sales@glenair.com

www.glenair.com

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-3

Bulkhead

Feed-Thrus
