54LS244/BSBJC datasheet, PDF - EEWORLD Datasheet

54LS244/BSBJC: DescriptionIC,BUFFER/DRIVER,DUAL,4-BIT,LS-TTL,FP,20PIN,CERAMIC; Categorylogic logic; File Size190KB，4 Pages; ManufacturerFREESCALE (NXP)

Download Datasheet Parametric View All

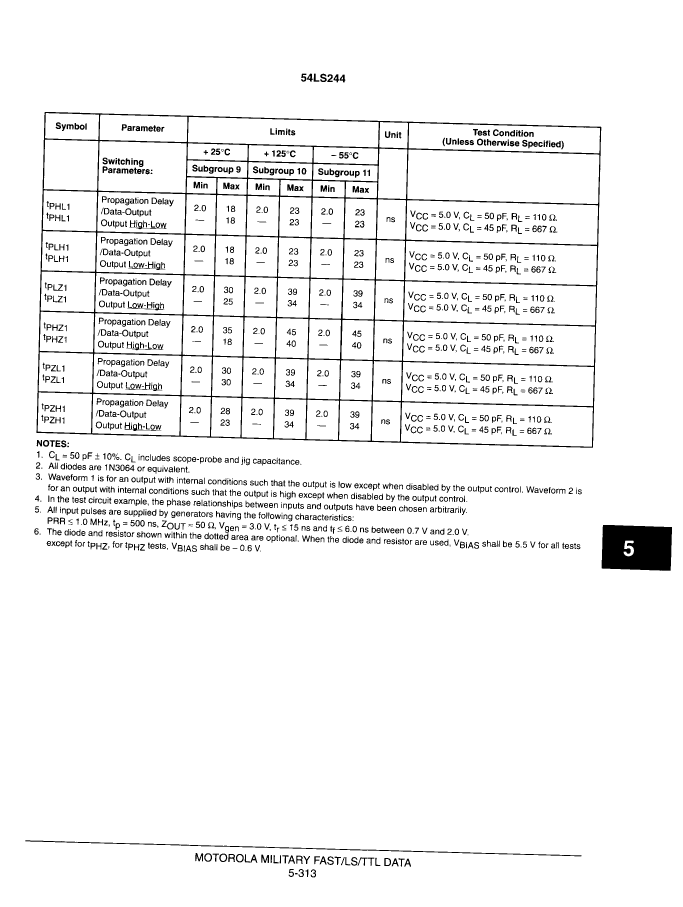

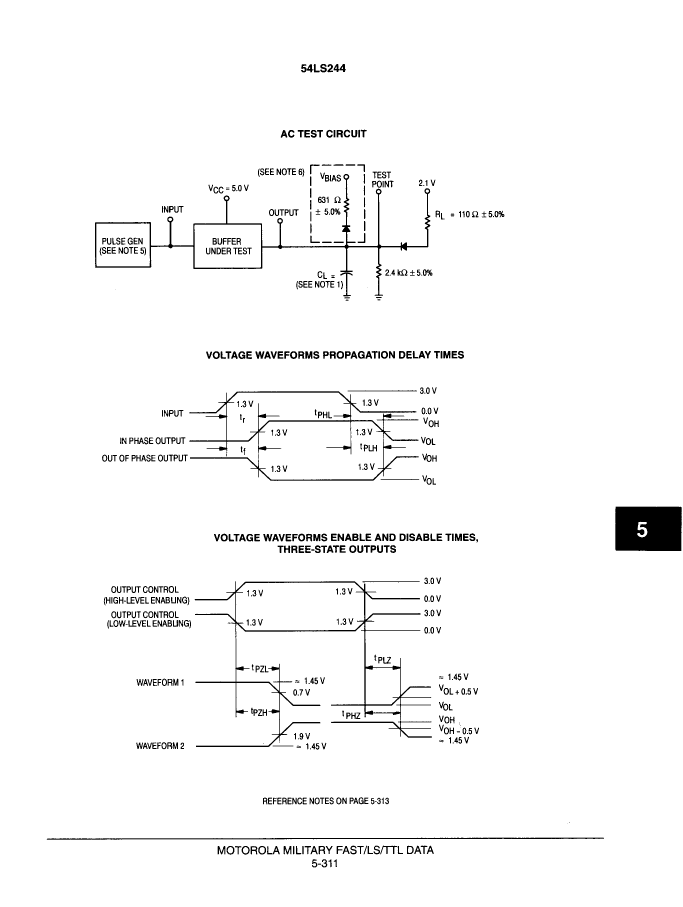

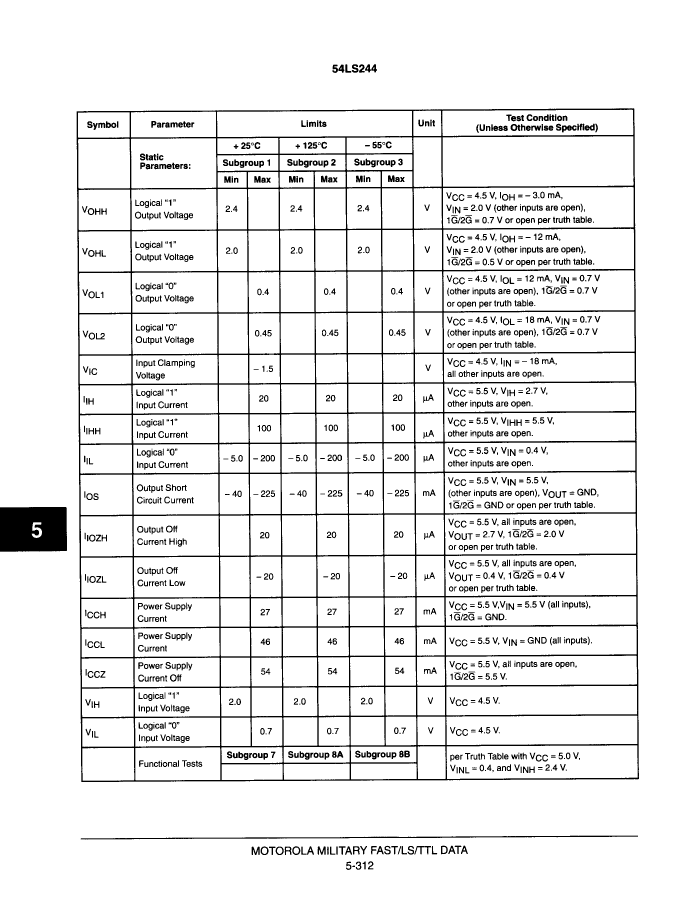

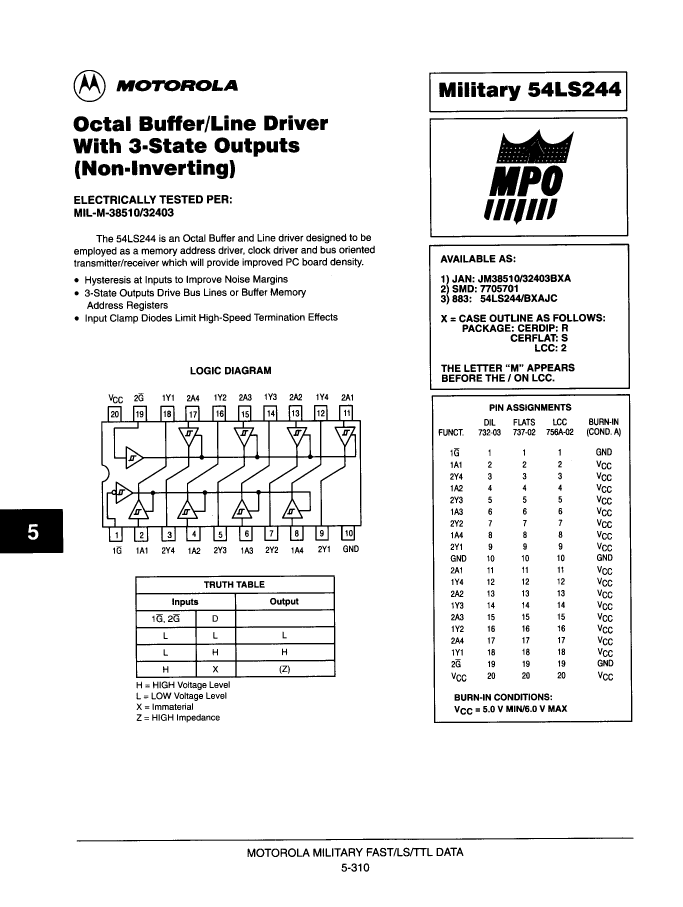

54LS244/BSBJC Overview

IC,BUFFER/DRIVER,DUAL,4-BIT,LS-TTL,FP,20PIN,CERAMIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	105354565
package instruction	DFP, FL20,.3
Reach Compliance Code	unknown
Control type	ENABLE LOW
JESD-30 code	R-XDFP-F20
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL20,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
