NRWS102M63V16X25F datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NRWS102M63V16X25F

NRWS102M63V16X25F: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 1000uF, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size314KB，3 Pages; ManufacturerNIC Components Corp; Environmental Compliance

Download Datasheet Parametric View All

NRWS102M63V16X25F Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 1000uF, RADIAL LEADED, ROHS COMPLIANT

NRWS102M63V16X25F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1991433648
package instruction	,
Reach Compliance Code	compliant
Country Of Origin	Mainland China, Japan, Taiwan
ECCN code	EAR99
YTEOL	7.06
capacitance	1000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	16 mm
dielectric materials	ALUMINUM (WET)
ESR	65 mΩ
JESD-609 code	e3
length	25 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	63 V
ripple current	1100 mA
Terminal surface	Matte Tin (Sn)
Terminal pitch	7.5 mm

Preview

Download Datasheet

View All

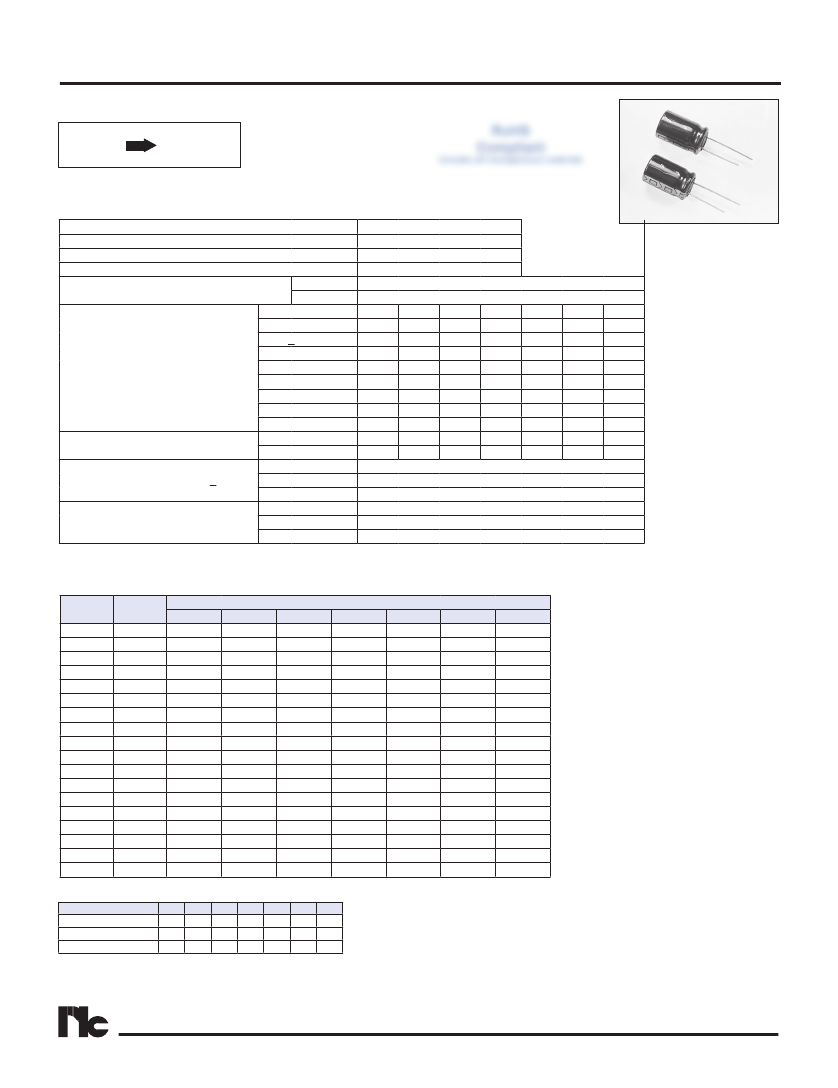

Miniature Aluminum Electrolytic Capacitors

RADIAL LEADS, POLARIZED, NEW FURTHER REDUCED CASE SIZING,

FROM NRWA WIDE TEMPERATURE RANGE

RoHS

EXTENDED TEMPERATURE

Compliant

NRWA

NRWS

includes all homogeneous materials

(today’s standard)

(reduced sizes)

NRWS Series

• MEETS THE REQUIREMENTS OF AEC-Q200*

*Contact NIC for supporting test data

CHARACTERISTICS

Rated Voltage Range

Capacitance Range

Operating Temperature Range

Capacitance Tolerance

*See Part Number System for Details

Maximum Leakage Current @ +20°c

Max. Tan

at 120Hz/20°C

Low Temperature Stability

Impedance Ratio @ 120Hz

Load Life Test at +105°C & Rated W.V

2,000 Hours: 16V ~ 63V D> 10φ

1,000 Hours: All others

Shelf Life Test

+105°C 1,000 Hours

No Load

After 1 min.

After 2 min.

W.V. (Vdc)

S.V. (Vdc)

C <

1,000μF

C = 2,200μF

C = 3,300μF

C = 4,700μF

C = 6,800μF

C = 10,000μF

C = 15,000μF

Z-25°C/Z+20°C

Z-40°C/Z+20°C

∆

Capacitance

∆

Tan

∆

Capacitance

∆

Tan

∆

6.3

0.28

0.30

0.32

0.34

0.36

0.38

0.56

6.3 ~ 63VDC

2.2 ~ 15,000μF

-55°C ~ +105°C

±20% (M)

0.03CV or 4μA whichever is greater

0.01CV or 3μA whichever is greater

0.24

0.20

0.16

0.14

0.12

0.26

0.22

0.18

0.16

0.14

0.28

0.24

0.20

0.18

0.16

0.30

0.26

0.22

0.20

0.32

0.28

0.24

0.34

0.30

0.52

Within ±20% of initial measured value

Less than 200% of specified value

Less than specified value

Within ±20% of initial measured value

Less than 200% of specified value

Less than specified value

0.10

STANDARD PRODUCT AND CASE SIZE TABLE DφxL (mm)

Cap. (μF)

2.2

3.3

4.7

100

220

330

470

1,000

2,200

3,300

4,700

6,800

10,000

15,000

Code

2R2

3R3

4R7

100

220

330

470

101

221

331

471

102

222

332

472

682

103

153

6.3

5x11

6.3x11

8x11.5

10x16

10x20

12.5x20

12.5x25

16x25

16x35.5

0.5

2.0

0.5

5x11

6.3x11

10x12.5

10x20

12.5x20

12.5x25

16x25

16x31.5

18x35.5

Working Voltage (Vdc)

5x11

6.3x11

8x11.5

10x12.5

8x11.5

10x12.5

10x16

10x20

12.5x20

12.5x20 12.5x25

16x25

12.5x25

16x25

16x35.5

16x25

16x31.5 18x35.5

18x35.5

16 18

0.8 0.8

7.5 7.5

0.5 0.5

Note: Capacitors shall conform to JIS-C-5141, unless otherwise specified here.

*1. Add 0.5 every 1000μF for more than 1000μF *2. Add 1.0 every 1000μF for more than 1000μF

5x11

6.3x11

8x11.5

10x12.5

10x16

10x20

12.5x25

16x31.5

18x35.5

5x11

6.3x11

8x12.5

10x16

10x20

12.5x20

16x25

LEAD SPACING AND DIAMETER (mm)

Case Dia. (Dφ)

Lead Dia. (Dφ)

Lead Spacing (F)

Dim.

6.3

10 12.5

0.5 0.6 0.6 0.6

2.5 3.5 5.0 5.0

0.5 0.5 0.5 0.5

NIC COMPONENTS CORP.

www.niccomp.com

SPECIFICATIONS ARE SUBJECT TO CHANGE
