NV73A1JTBK18

Description
Varistor, 12.8V, 0.1J, Surface Mount, CHIP, 0603, ROHS COMPLIANT
CategoryPassive components    The resistor
File Size207KB,4 Pages
ManufacturerKOA
Environmental Compliance
Download Datasheet Parametric View All

NV73A1JTBK18 Overview

Varistor, 12.8V, 0.1J, Surface Mount, CHIP, 0603, ROHS COMPLIANT

NV73A1JTBK18 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1616831283
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL8.25
Circuit maximum DC voltage12.8 V
Circuit RMS maximum voltage9.1 V
Maximum energy absorption capacity0.1 J
JESD-609 codee3
Installation featuresSURFACE MOUNT
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package shapeRECTANGULAR PACKAGE
method of packingBULK
Resistor typeVARISTOR
surface mountYES
Terminal surfaceTin (Sn)
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Operating Voltage12.8 V

NV73A1JTBK18 Preview

VARISTORS
NV73
積層½金属酸化物バリスタ
Multilayer Type Metal Oxide Varistors

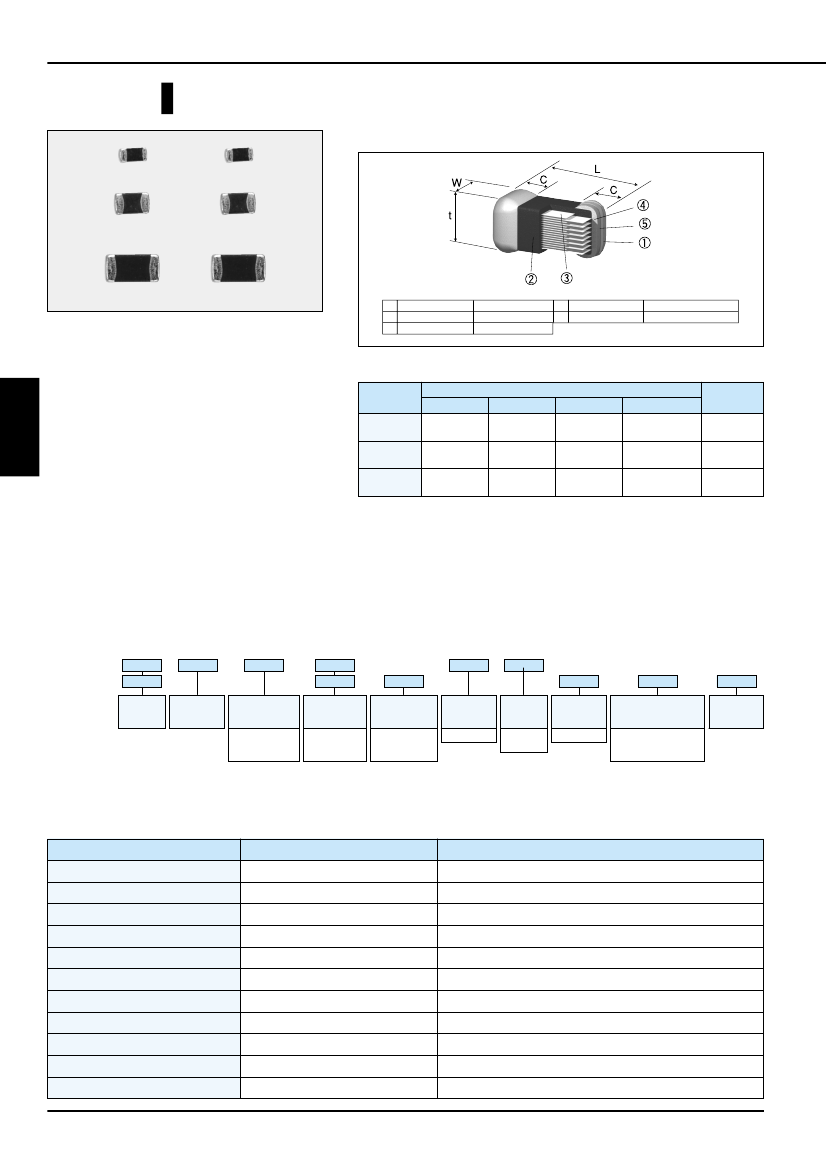

■構造図 Construction
外装色:黒 Body color:Black
① 外部電極
② バリスタ素子
③ 内部電極
Sn plating
Varistor element
Inner electrode
内部側面電極
⑤ ニッケルめっき
Inner side electrode
Ni plating
■特長 Features
双方向対称性を有し、正負のサージ吸収が可½です。
積層構造により、
小½ながら大きなサージを吸収できます。
小½パッケージにより、省スペース、高密度実装が可½です。
端子鉛フリー品は、RoHS対応品です。電極、バリスタ素子、ガ
ラスに含まれる鉛ガラスはRoHSの適用除外です。
Varistors own two-way symmetries and can absorb positive and
negative surges.
Multilayer construction allows its small size to absorb a large surge.
Small space and high density mounting available due to the small
package.
Products with lead free termination meet RoHS requirements.
RoHS regulation is not intended for Pb-glass contained in electrode,
varistor element and glass.
■外½寸法 Dimensions
½ 名 Type
(Inch Size Code)
NV73 1J
(0603)
NV73 2A
(0805)
NV73 2B
(1206)
L
1.6±0.15
2±0.2
3.2±0.20
寸法 Dimensions(mm)
W
0.8±0.15
1.25±0.2
1.6±0.2
t
0.8±0.15
1.3max.
1.65max.
c
0.4
+0.15
−0.2
.
0.5±0.25
0.5
+0.35
.
−0.25
Weight
(g)
(1000pcs)
6.3
8∼14
16∼32
バリスタ
Varistors
■用途 Applications
携帯機器の入出力端子からのESD保護
モータ、リレー等の誘導負荷から発生するサージ電圧の吸収
過電圧からの半導½素子の保護
圧電素子から発生するサージ電圧の吸収
Protection of ESD from input and output terminals of mobile devices.
Absorption of surge voltages occurred from inductive load of motors, relays, etc.
Protection of semiconductor elements against over voltages.
Absorption of surge voltages generated from piezoelectric elements.
■品名構成 Type Designation
例 Example
Sn/Pb Type
Lead Free Type
NV
NV73
品種
Product
Code
バリスタ電圧
Varistor
Voltage
サイズ
Size
MCA:1.6×0.8mm
MC1:2.0×1.2mm
MC2:3.2×1.6mm
24
MCA
A
A
エネルギーコード
Energy
Code
A
B
C
P
1J
サイズ
Size
1J:1.6×0.8mm
2A:2.0×1.2mm
2B:3.2×1.6mm
端子表面材質
Terminal
Surface Material
P:Sn/Pb
T
T
二次加工
Taping
T:Taping
Nil:Bulk
端子表面材質
Terminal
Surface Material
T:Sn
TE
二次加工
Taping
TE:Taping
(2,500pcs)
TEB:Taping 10,000pcs)
BK:Bulk
24
バリスタ電圧
Varistor
Voltage
端子表面材質は鉛フリーめっき品が標準となります。
テーピングの詳細については巻末のAPPENDIX Cを参照して下さい。
The terminal surface material lead free is standard.
For further information on taping, please refer to APPENDIX C on the back pages.
■性½ Performance
試験項目
Test Items
バリスタ電圧
Varistor Voltage
はんだ耐熱性
Resistance to soldering heat
はんだ付け性
Solderability
温度急変
Rapid change of temperature
サ−ジ耐量
Maximum peak current
エネルギ−耐量
Maximum energy
高温直流電圧印加
High temperature life with d.c. bias
高温交流電圧印加
High temperature life with a.c. bias
高温高湿電圧印加
High temperature & high humidity life with d.c. bias
高温保存
High temperature storage life
½温保存
Low temperature storage life
規格値 Performance Requirements
ΔV±%
規定の許容差内
Within specified tolerance
10
75%以上新しいはんだで覆われていること
75% Coverage min.
10
10
10
10
10
10
10
10
試験方法
Test Methods
1mAを流した時の端子間電圧
Voltage between terminals when 1mA is flowed.
270℃±5℃ 3s±0.5s
230℃±5℃ 4s±1s
−40℃
(30min)
/+125℃
(30min)30cycles
定格の衝撃波電流
(T=8/20μs)
正逆各一回印加
A single standard impulse of 8/20μs, positive/negative applied once each
定格のエネルギ−
(T=2ms)
を一回印加
A single standard impulse of 2ms, once
85℃±5℃、Vc=最大許容回路電圧
(Vd.c.)1000h
Load: Maximum Allowable Circuit Voltage
(d.c.)
85℃±5℃、Vc=最大許容回路電圧
(Va.c.
r.m.s.
)1000h
Load: Maximum Allowable Circuit Voltage
(Va.c.
r.m.s.
40℃±5℃ 95%RH 最大許容回路電圧
(Vd.c.)500h
Load: Maximum Allowable Circuit Voltage
(d.c.)
125℃±5℃ 1000h
−40℃±5℃ 1000h
本カタログに掲載の仕様は予告なく変更する場合があります。御注文及び御½用前に、納入仕様書などで内容を御確認下さい。
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
www.koanet.co.jp
■定格 Ratings
動½温度範囲 Operating Temp. Range:−40℃∼+85℃  保存温度範囲 Storage Temp. Range:−40℃∼+125℃
包装数/リール Q’ty / Reel :TE 2,500pcs TEB 10,000pcs
½  名
Type
NV73A1JTTE8.2
NV73A1JTTE12
NV73A1JTTE15
NV73A1JTTE18
NV73A1JTTE20
NV73A1JTTE22
NV73A1JTTE24
NV73A1JTTE27
NV73A2ATTE8.2
NV73A2ATTE12
NV73A2ATTE15
NV73A2ATTE18
NV73A2ATTE20
NV73A2ATTE22
NV73A2ATTE24
NV73A2ATTE27
NV73A2ATTE33
NV73A2ATTE39
NV73A2ATTE47
NV73B2ATTE8.2
NV73B2ATTE12
NV73B2ATTE15
NV73B2ATTE18
NV73B2ATTE20
NV73B2ATTE22
NV73B2ATTE24
NV73B2ATTE27
NV73B2ATTE33
NV73C2ATTE8.2
NV73C2ATTE12
NV73C2ATTE15
NV73C2ATTE18
NV73C2ATTE20
NV73C2ATTE22
NV73C2ATTE24
NV73A2BTTE27
NV73A2BTTE33
NV73A2BTTE39
NV73A2BTTE47
NV73A2BTTE56
NV73B2BTTE8.2
NV73B2BTTE12
NV73B2BTTE15
NV73B2BTTE18
NV73B2BTTE20
NV73B2BTTE22
NV73B2BTTE24
NV73B2BTTE27
NV73C2BTTE8.2
NV73C2BTTE12
NV73C2BTTE15
NV73C2BTTE18
NV73C2BTTE20
NV73C2BTTE22
NV73C2BTTE24
NV73C2BTTE27
バリスタ電圧
Varistor Vol.
Vc
Ic=1mA (V)
6.8∼9.8
10∼14.4
12.5∼18.0
16∼20
18∼22
19∼24
21.8∼26.5
25∼32
6.8∼9.8
10∼14.4
12.5∼18.0
16∼20
18∼22
19∼24
21.8∼26.5
25∼32
30∼39
37∼47
45∼54
6.8∼9.8
10∼14.4
12.5∼18.0
16∼20
18∼22
19∼24
21.8∼26.5
25∼32
30∼39
6.8∼9.8
10∼14.4
12.5∼18.0
16∼20
18∼22
19∼24
21.8∼26.5
25∼32
30∼39
37∼47
45∼54
52∼62
6.8∼9.8
10∼14.4
12.5∼18.0
16∼20
18∼22
19∼24
21.8∼26.5
25∼32
6.8∼9.8
10∼14.4
12.5∼18.0
16∼20
18∼22
19∼24
21.8∼26.5
25∼32
最大許容回路電圧
Max. Allowable Vol.
a.c.
r.m.s.
(V)
4.2
6.1
7.6
9.1
10.6
12.0
14.0
17.0
4.2
6.1
7.6
9.1
10.6
12.0
14.0
17.0
20.0
25.0
30.0
4.2
6.1
7.6
9.1
10.6
12.0
14.0
17.0
20.0
4.2
6.1
7.6
9.1
10.6
12.0
14.0
17.0
20.0
25.0
30.0
35.0
4.2
6.1
7.6
9.1
10.6
12.0
14.0
17.0
4.2
6.1
7.6
9.1
10.6
12.0
14.0
17.0
d.c.(V)
6.0
8.6
10.8
12.8
15.0
16.5
18.0
22.0
6.0
8.6
10.8
12.8
15.0
16.5
18.0
22.0
26.0
31.0
38.0
6.0
8.6
10.8
12.8
15.0
16.5
18.0
22.0
26.0
6.0
8.6
10.8
12.8
15.0
16.5
18.0
22.0
26.0
31.0
38.0
45.0
6.0
8.6
10.8
12.8
15.0
16.5
18.0
22.0
6.0
8.6
10.8
12.8
15.0
16.5
18.0
22.0
制限電圧
Clamping Vol.
V
1A
18
24
29
29
33
39
42
50
60
72
86
V
2A
21
29
35
37
40
42
46
49
18
24
30
32
36
40
42
58
66
18
24
29
32
35
40
42
55
60
72
85
100
18
24
29
32
35
40
42
52
18
24
29
29
31
35
38
48
エネルギー耐量
Max. Energy
E
(J)
サージ耐量
(2回印加)
Max. Peak Current
Ip (2 times)
(A)
0.1
30
0.01
0.03
0.04
0.05
0.06
0.07
0.12
0.14
0.16
0.03
0.05
0.07
0.08
0.09
0.11
0.12
0.24
0.25
0.04
0.09
0.11
0.13
0.14
0.17
0.18
0.13
0.15
0.18
0.22
0.26
0.03
0.07
0.09
0.10
0.11
0.12
0.14
0.16
0.06
0.10
0.13
0.15
0.17
0.19
0.20
0.24
10
20
バリスタ
Varistors
25
20
35
50
25
50
40
30
50
40
70
上記以外の詳細データも用意しておりますので、営業所へご要求下さい。
Detailed data other than the above-mentioned are also available, for which please ask our sales office.
本カタログに掲載の仕様は予告なく変更する場合があります。御注文及び御½用前に、納入仕様書などで内容を御確認下さい。
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
www.koanet.co.jp
VARISTORS
NV73
NV73A1J
100
もれ電流
Leakage Current
積層½金属酸化物バリスタ
Multilayer Type Metal Oxide Varistors

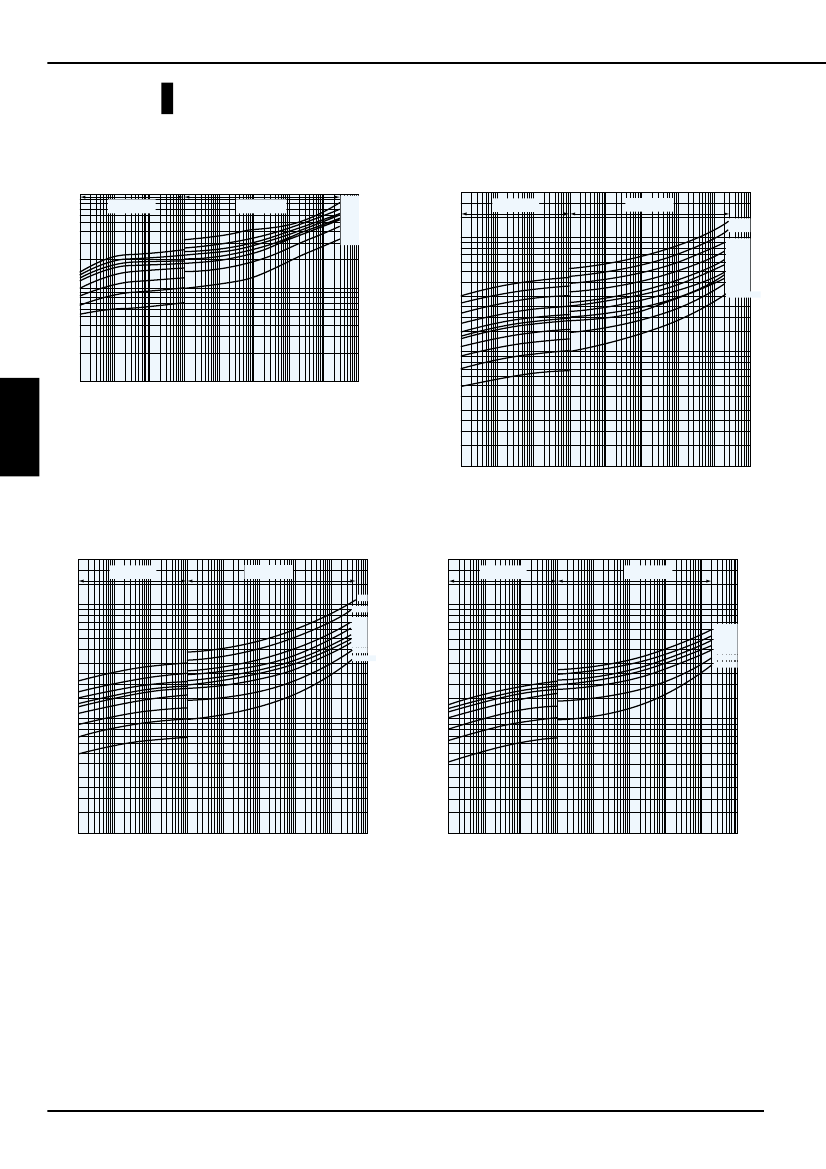

■電圧-電流曲線
(参考) Voltage-Current Curves
(Reference)
(Ta=25℃)
NV73A2A
制限電圧
Clamping Voltage
NV73A1JT27
NV73A1JT24
NV73A1JT22
NV73A1JT20
NV73A1JT18
NV73A1JT15
NV73A1JT12
NV73A1JT8.2
200
150
100
もれ電流
Leakage Current
制限電圧
Clamping Voltage
NV73A2AT47
NV73A2AT39
NV73A2AT33
NV73A2AT27
NV73A2AT24
NV73A2AT22
NV73A2AT20
NV73A2AT18
NV73A2AT15
NV73A2AT12
NV73A2AT8.2
電 圧 Voltage(V)
10
電 圧 Voltage(V)
50
40
30
25
20
15
10
1
10
−6
10
−5
10
−4
10
−3
10
−2
10
−1
10
0
10
1
10
2
バリスタ
Varistors
電 流 Current(A)
5
4
3
2.5
2
1.5
1
10
−6
10
−5
10
−4
10
−3
10
−2
10
−1
電 流 Current(A)
10
0
10
1
10
2
NV73B2A
200
150
100
NV73B2AT33
NV73B2AT27
NV73B2AT24
NV73B2AT22
NV73B2AT20
NV73B2AT18
NV73B2AT15
NV73B2AT12
NV73B2AT8.2
もれ電流
Leakage Current
制限電圧
Clamping Voltage
NV73C2A
200
150
100
NV73C2AT24
NV73C2AT22
NV73C2AT20
NV73C2AT18
NV73C2AT15
NV73C2AT12
NV73C2AT8.2
もれ電流
Leakage Current
制限電圧
Clamping Voltage
電 圧 Voltage(V)
30
25
20
15
10
電 圧 Voltage(V)
50
40
50
40
30
25
20
15
10
5
4
3
2.5
2
1.5
1
10
−6
10
−5
10
−4
10
−3
10
−2
10
−1
電 流 Current(A)
10
0
10
1
10
2
5
4
3
2.5
2
1.5
1
10
−6
10
−5
10
−4
10
−3
10
−2
10
−1
電 流 Current(A)
10
0
10
1
10
2
本カタログに掲載の仕様は予告なく変更する場合があります。御注文及び御½用前に、納入仕様書などで内容を御確認下さい。
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
www.koanet.co.jp

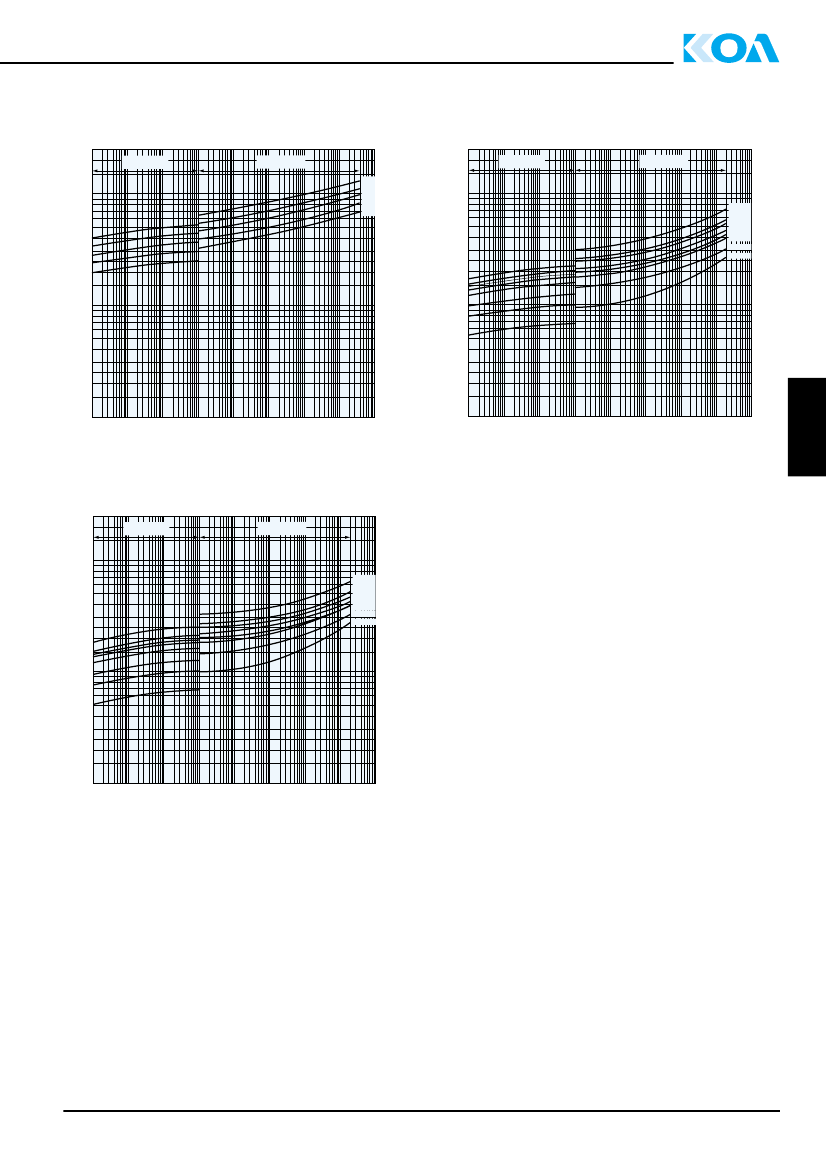

■電圧-電流曲線 Voltage-Current Curves
(Ta=25℃)
NV73A2B
200
150
100
もれ電流
Leakage Current
制限電圧
Clamping Voltage
NV73A2BT56
NV73A2BT47
NV73A2BT39
NV73A2BT33
NV73A2BT27
NV73B2B
200
150
100
NV73B2BT27
NV73B2BT24
NV73B2BT22
NV73B2BT20
NV73B2BT18
NV73B2BT15
NV73B2BT12
NV73B2BT8.2
もれ電流
Leakage Current
制限電圧
Clamping Voltage
電 圧 Voltage(V)
電 圧 Voltage(V)
50
40
30
25
20
15
10
50
40
30
25
20
15
10
5
4
3
2.5
2
1.5
1
10
−6
10
−5
10
−4
10
−3
10
−2
10
−1
電 流 Current(A)
10
0
10
1
10
2
5
4
3
2.5
2
1.5
1
10
−6
10
−5
10
−4
10
−3
10
−2
10
−1
電 流 Current(A)
10
0
10
1
10
2
バリスタ
Varistors
NV73C2B
200
150
100
NV73C2BT27
NV73C2BT24
NV73C2BT22
NV73C2BT20
NV73C2BT18
NV73C2BT15
NV73C2BT12
NV73C2BT8.2
もれ電流
Leakage Current
制限電圧
Clamping Voltage
電 圧 Voltage(V)
50
40
30
25
20
15
10
5
4
3
2.5
2
1.5
1
10
−6
10
−5
10
−4
10
−3
10
−2
10
−1
電 流 Current(A)
10
0
10
1
10
2
本カタログに掲載の仕様は予告なく変更する場合があります。御注文及び御½用前に、納入仕様書などで内容を御確認下さい。
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
www.koanet.co.jp
Show off my LPC1114 development board
As I continue to collect, I already have quite a few LPC1114 development boards, with various designs, but unfortunately, they are all LPC1114, without LPC1343, LPC11C00 and LPC11U00. I look forward t...
zhaojun_xf NXP MCU
Interconnection between chip and PCB
Pentium IVs and high-speed chips with lots of input/output interconnects are now available. The chips themselves are reliable and capable of processing at speeds up to 1 GHz. The excitement at the rec...
jamieyang PCB Design
How to set pause in c51?
I want to pause the timer, how do I write the pause statement? How do I achieve it? Thanks for your help....
gaohuating 51mcu
Do you know how to save power in RTOS applications?
Do you know how much energy you can save by using one line of code in the idle task? WHIS, the provider of the commercial version of FreeRTOS, OpenRTOS, and the secure version SAFERTOS, created a basi...
MamoYU Embedded System
About the problem of not being able to see controls in GroupBox
I put several controls in a GROUPBOX, but when I run the program, I can only see the group box but not the controls. However, if I put the controls first and then the group box, I can see the controls...
藤堂香澄 Embedded System
The problem of lower yield strength
Our company makes testing machines. The picture above is a picture of determining the upper yield strength and the lower yield strength. 23 is the upper yield strength and 24 is the lower yield streng...
chenbingjy stm32/stm8

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 1822  321  994  2515  1923  37  7  21  51  39
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
