RN73E2BTE1352B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RN73E2BTE1352B

RN73E2BTE1352B: DescriptionRESISTOR, THIN FILM, 0.125W, 0.1%, 25ppm, 13500ohm, SURFACE MOUNT, 1206, CHIP; CategoryPassive components The resistor; File Size42KB，1 Pages; ManufacturerKOA

Download Datasheet Parametric View All

RN73E2BTE1352B Overview

RESISTOR, THIN FILM, 0.125W, 0.1%, 25ppm, 13500ohm, SURFACE MOUNT, 1206, CHIP

RN73E2BTE1352B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1951845055
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: MIL-R-55342D
JESD-609 code	e0
Manufacturer's serial number	RN73
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, EMBOSSED PLASTIC
Rated power dissipation(P)	0.125 W
Rated temperature	70 °C
resistance	13500 Ω
Resistor type	FIXED RESISTOR
size code	1206
surface mount	YES
technology	THIN FILM
Temperature Coefficient	25 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WRAPAROUND
Tolerance	0.1%
Operating Voltage	150 V

Preview

Download Datasheet

View All

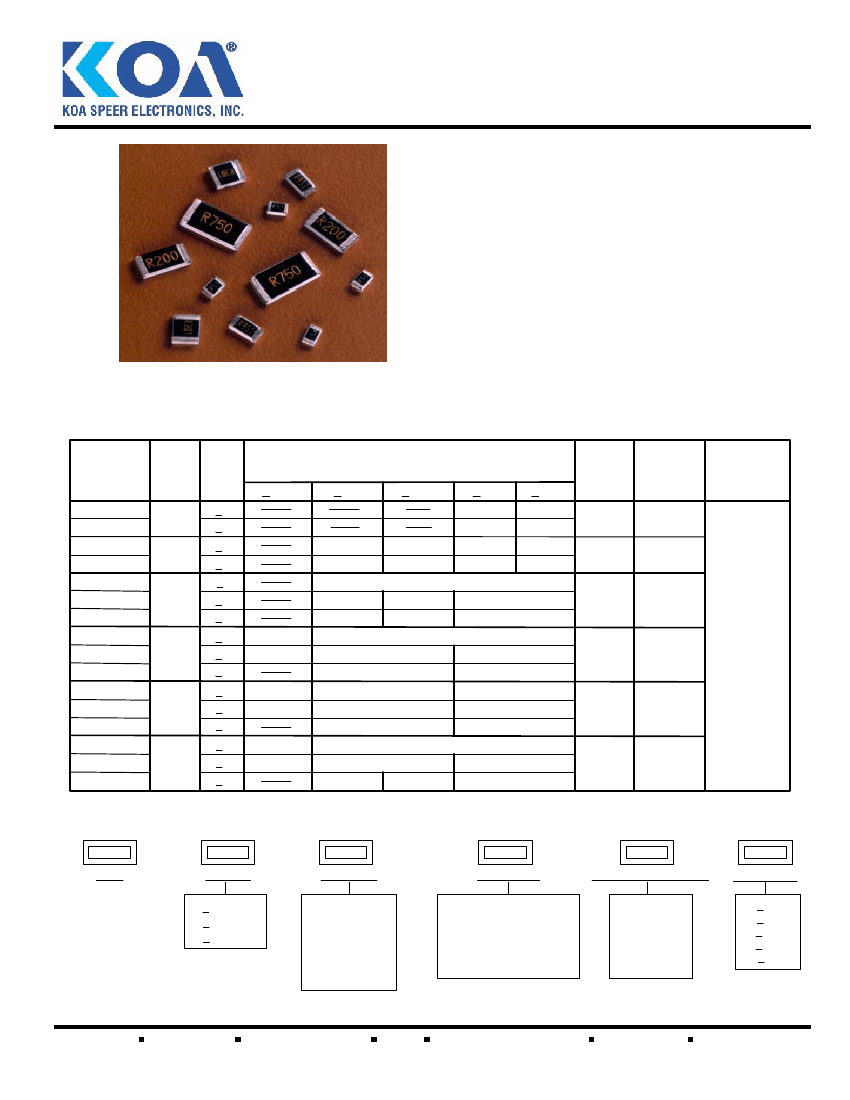

FLAT CHIP RESISTORS

ULTRA PRECISION 0.05% TO 1% TOLERANCE

2-18-2002

RN73

FLAT CHIP RESISTOR - ULTRA PRECISION

Nickel Chromium Thin Film Resistor Element

Anti-Leaching Nickel Barrier Terminations

90/10 Solder Plated Terminations, Standard

Meets or Exceeds EIA 576, MIL - R - 55342D,

UL94V-0

Four (4) Digit Marking, Distinctive Color Identifiers

(Only E24 Values are Marked on 0603)

NEW EXPANDED RANGE - CONTACT KOA SPEER ELECTRONICS FOR PRICING, LEAD TIME

& AVAILABILITY FOR ANY PARTS LISTED BELOW.

POWER

TCR

PART

RATING (ppm/

DESIGNATION

@70

MAX

E-24 / E-96 / E-192

RESISTANCE RANGE - TOLERANCE

A(+0.05%)

B(+0.1%)

C(+0.25%)

ABSOLUTE

MAXIMUM

WORKING

D(+0.5%) F(+1.0%)

VOLTAGE

33Ω-33ΚΩ 33Ω-33ΚΩ

15V

ABSOLUTE OPERATING

MAXIMUM TEMPERATURE

OVERLOAD

RANGE

VOLTAGE

30V

50mW

RN73C1H** (1/20W)

63mW

RN73C1E** (1/16W)

RN73T1J

RN73E1J

RN73C1J

RN73T2A

RN73E2A

RN73C2A

RN73T2B

RN73E2B

RN73C2B

RN73T2E

RN73E2E

RN73C2E

250 mW

(1/4W)

125mW

(1/8 W)

100mW

(1/10W)

63mW

(1/16W)

RN73E1E**

RN73E1H**

+ 25

+ 50

+ 25

+ 50

+10

+ 25

+ 50

+ 10

1ΚΩ

63.4ΚΩ

+ 25

1ΚΩ

63.4ΚΩ

+ 50

+ 10

+ 25

+ 50

+ 10

+ 25

+ 50

1ΚΩ

178ΚΩ

1ΚΩ

178ΚΩ

51Ω-1MΩ

51Ω

1ΜΩ

15Ω

1ΜΩ

1ΚΩ

250ΚΩ

1ΚΩ

250ΚΩ

15Ω-1MΩ

100Ω - 250KΩ

15Ω - 1MΩ

750Ω-10ΚΩ

100Ω-10ΚΩ

33Ω-4.7ΚΩ 33Ω-4.7ΚΩ

10Ω-10ΚΩ 10Ω-10ΚΩ

10Ω-100ΚΩ 10Ω-100ΚΩ

10Ω

104ΚΩ

10Ω

104ΚΩ

25V

50V

100Ω − 33ΚΩ

100Ω

104ΚΩ 51Ω

104ΚΩ

100Ω

104ΚΩ 51Ω

104ΚΩ

100Ω-100KΩ

10Ω-1MΩ

84.5Ω - 250KΩ

10Ω-1MΩ

100Ω - 240KΩ

10Ω-1MΩ

10Ω

−

1MΩ

200V

400V

150V

300V

100V

200V

50V

100V

-55

+125

**1H & 1E Series Available in E-24 Only

ORDERING & SPECIFYING INFORMATION*

RN73

TYPE

TEMPCO

T: + 10 ppm/

E: + 25 ppm/

C: + 50 ppm/

SIZE CODE

(See Description)

1H:0201

1E:0402

1J: 0603

2A: 0805

2B: 1206

2E: 1210

PACKAGING

T: Punched Paper

TE: Embossed Plastic

TDD: 10" Punched Paper

TED: 10" Embossed Plastic

TP: Punched Paper 2mm:

0201 & 0402 only.

1002

NOMINAL RESISTANCE

3 Significant

Figures + 1

Multiplier:

R Indicates

Decimal on

Value < 100Ω

TOLERANCE

A: +0.05%

B: + 0.1%

C: + 0.25%

D: + 0.50%

F: + 1.0%

*Please Note: KSE's Part Numbers Do Not Contain any Spaces or Hyphens.

Bolivar Drive

P.O. Box 547

Bradford, PA 16701

USA

WWW.KOASPEER.COM

814-362-5536

Fax 814-362-8883
