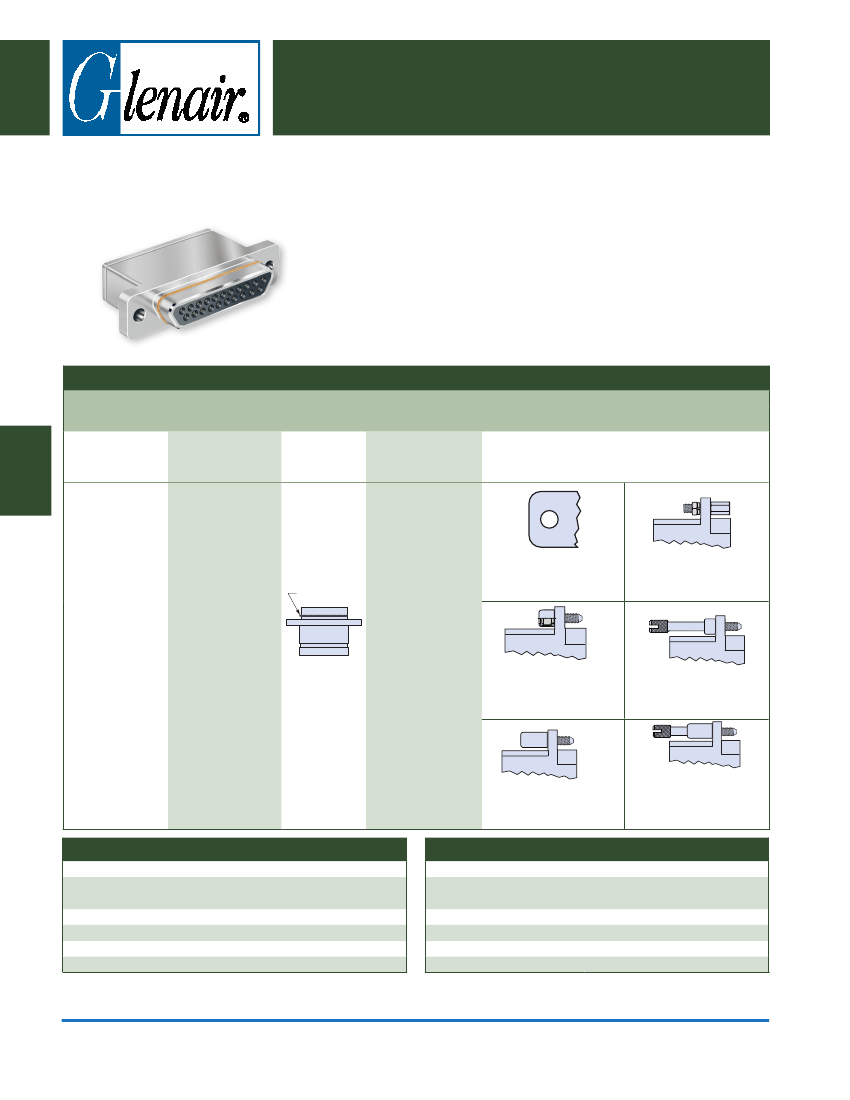

790-025S
Crimp Terminated Cable Plug Connector,
Socket Contacts
How To Order
Series 79
Cable
Connectors
790-025S Cable Plugs
SOCKET CONTACTS WITH CRIMP TERMINATION
790-025S connectors feature machined aluminum shells and wire
grommets for environmental protection. Contacts are rear-release
snap-in crimp type. Connectors are supplied with crimp contacts
packaged separately. Size #23 signal pins accept up to #22 AWG
wire. Size #16 contacts accept #16-18 AWG wire. Size #12 contacts
accept #12-14 AWG wire. Size 12 and 16 cavities also accept coaxial
contacts purchased separately. Connector shell features a groove for
attachment of a low-profile EMI adapter 799-015, ordered separately.
Sample Part Number
HOW TO ORDER
790-025S
H-5P5
Shell Size -
Insert
Arrangement
See Table 1 for
Available Insert
Arrangements
To order a
connector without
size #16 or #12
power pins,
substitute “W”
instead of “P” in the
insert arrangement.
Example:
36P2
is supplied
with 2 power pins.
36W2
is supplied
less the power pins.
See Section
B for coaxial
contacts purchased
separately.
E
M
S
Hardware Option
D
Part Number
Cable Plug With
Socket Contacts
EMI Spring
EMI Spring
No Spring
EMI Spring
Shell Finish
Electroless Nickel
general purpose
applications
790-025S
E
M
N
1000 Hour Grey™
maximum corrosion
protection and
durability
(non-reflective grey)
Nickel-PTFE
MT
Thru-Hole
No Hardware
N
Female Jackpost
P
Note:
EMI Spring
is not
compatible
with chromate
finishes
including
cadmium and
zinc-nickel
tactical applications
(non-reflective black)
Zinc-Nickel with
Black Chromate
ZNU
Low-Profile Captivated
Jackscrew, Hex Head
L
Slot-Head Extended
Jackscrew
K
Additional shell
finishes are listed on
page C-9.
Low-Profile Captivated
Screwlock, Hex Head
S
Slot-Head Extended
Captivated Screwlock
T
SPECIFICATIONS
Current Rating
Dielectric Withstanding
Voltage
Insulation Resistance
Operating Temperature
Shock
Vibration
#23 5 AMPS, #16 13 A., #12 23 A.
#23 500 VAC RMS, #12 and #16 1800
VAC RMS
5000 megohms minimum
-65° C. to +150° C.
300 g.
37 g.
Shell
Contacts
MATERIALS AND FINISHES
Aluminum alloy
Copper alloy, 50 microinches gold
plated, stainless steel hood
Liquid crystal polymer (LCP)
Beryllium copper alloy
Flourosilicone rubber
300 series stainless steel
Insulators
Retention Clips
Grommet
Hardware
Dimensions in Inches (millimeters) are subject to change without notice.
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
D-4

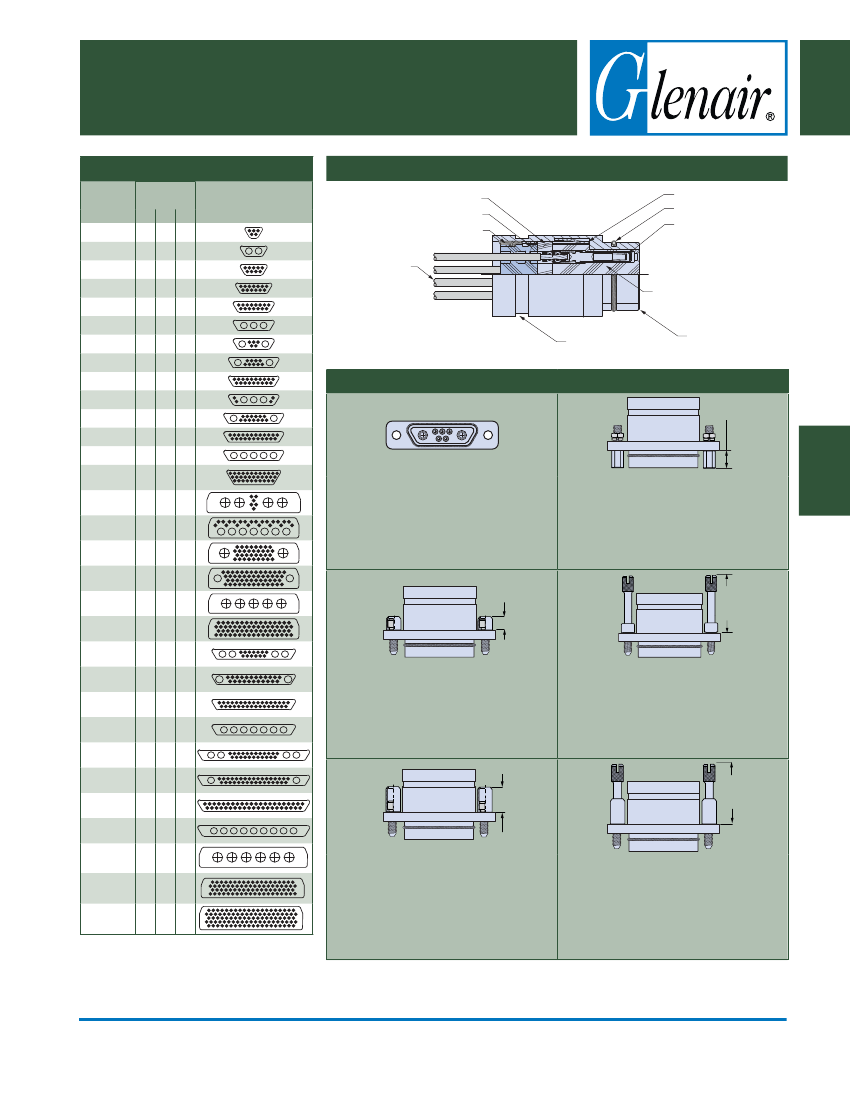

How To Order
Table I Contact Arrangements
Contact
Quantity
Layout
A-5
B-2P2
B-9
C-13
D-15
D-3P3
D-7P2
E-11P2
E-19
E-7P3
F-15P2
F-23
F-5P5
G-33
H-10P4
#23 #16 #12
5
2
9
13
15
3
5
9
19
4
23
5
33
6
4
3
13 2
2
2
GROOVE FOR
EMI ADAPTER
SHELL
WIRE (REF.)
FRONT INSULATOR
CROSS-SECTIONAL VIEW OF 790-025S
REAR INSULATOR
GROMMET
POTTING
RETAINING CLIP
EMI SPRING
CONTACT SOCKET
Face View
TABLE 2 HARDWARE OPTION
.190 (4.83)
MAX
N
No Mating Hardware
Connector is supplied with thru-holes. Shell
sizes H and L are .148" (3.76) diameter, other shell
sizes are .092" (2.34) diameter. Accepts standard
Micro-D M83513 hardware.
.155
(3.94)
MAX
P
Jackposts
Connector is supplied with removable jackposts.
Shell sizes H and L have #4-40 UNC thread,
other sizes have #2-56 thread. Stainless steel.
Conforms to M83513/05.
H-29P7
22 7
H-36P2
34
H-54P2
52 2
H-5P5
H-66
66
5
2
.925
(23.5)
MAX
J-17P4
13 4
J-25P2
23 2
J-33
J-7P7
33
7
L
Hex Head Jackscrews
Connector is supplied with stainless steel non-
removable low profile jackscrews. Shell sizes H
and L have #4-40 UNC thread, other sizes have
#2-56 thread.
K
Extended Jackscrews
Connector is supplied with stainless steel slot
head non-removable jackscrews. Shell sizes H
and L have #4-40 UNC thread, other sizes have
#2-56 thread.
K-27P4
23 4
K-35P2
33 2
K-43
K-9P9
L-6P6
L-78
M-102
78
102
43
9
6
.290 (7.37)
MAX
.925
(23.50)
MAX
S
Hex Head Screwlocks
Connector is supplied with stainless steel non-
removable low profile screwlocks. Shell sizes H
and L have #4-40 UNC thread, other sizes have
#2-56 thread. Screwlocks allow the connector to
be mated before the screws are fastened.
T
Extended Screwlocks
Connector is supplied with stainless steel non-
removable slot head screwlocks. Shell sizes H
and L have #4-40 UNC thread, other sizes have
#2-56 thread. Screwlocks allow the connector to
be mated before the screws are fastened.
Dimensions in Inches (millimeters) are subject to change without notice.
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
D-5
Series 79
Cable
Connectors
790-025S
Crimp Terminated Cable Plug Connector,
Socket Contacts
D
790-025S
Crimp Terminated Cable Plug Connector,
Socket Contacts

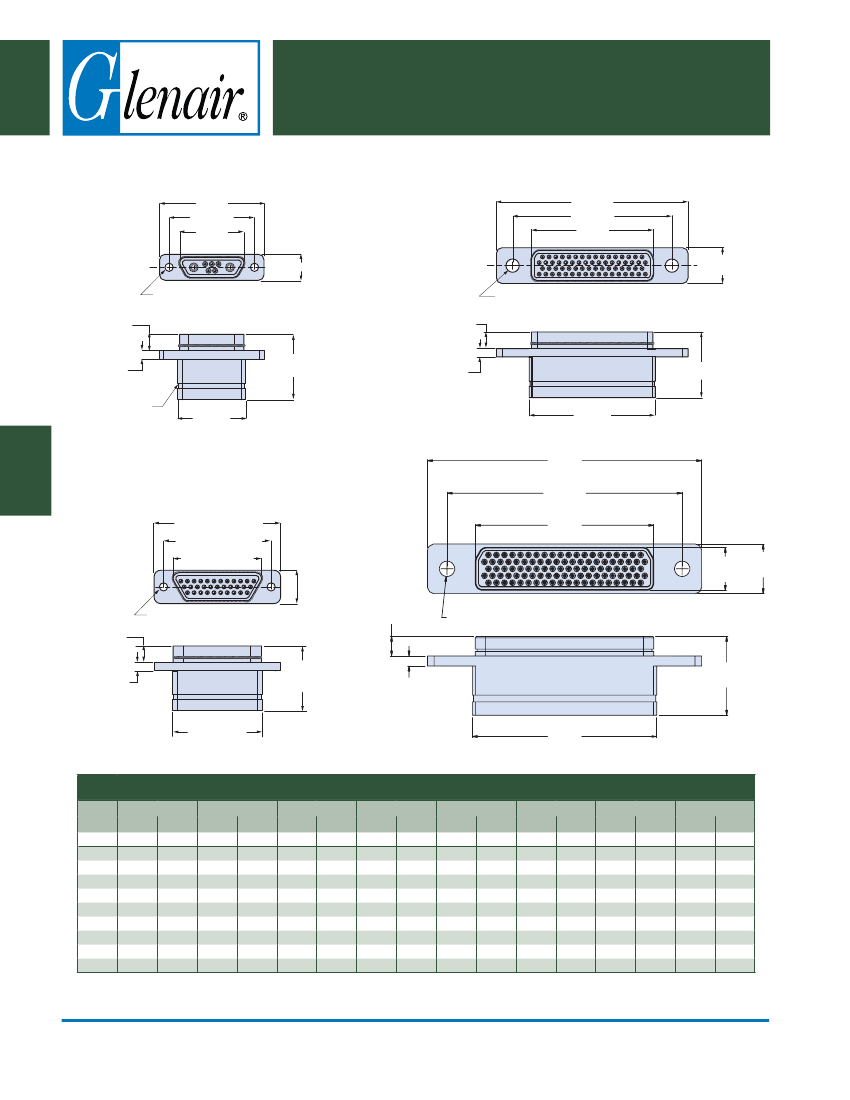

Dimensions
Series 79
Cable
Connectors
A MAX
B BASIC
C MAX
.096/.088 (2.44/2.24)
DIA 2 PLACES
.183 ± .003
(4.65 ± 0.08)
.093 ± .005
(2.36 ± 0.13)
GROOVE FOR
ATTACHMENT OF
EMI ADAPTER
799-015
.760 (19.30)
MAX
D MAX
790-025S Dimensions
E MAX
F BASIC
G MAX
.410 (10.41)
MAX
.152/.145 (3.86/3.68)
DIA 2 PLACES
.183 ± .003
(4.65 ± 0.08)
.760 (19.30)
MAX
.308 (7.82) MAX
.093 ± .005
(2.36 ± 0.13)
H MAX
SHELL SIZE H AND L
2.575
(65.41)
MAX
2.200
( 55.88 )
D
SHELL SIZES A, B, C, D, E, F, J, K
1.435
(36.45) MAX
(1.80) MAX
1.215 (30.86) BASIC
1.010 (25.65) MAX
.395
(10.03)
MAX
.096/.088 (2.44/2.24)
DIA 2 PLACES
.183 ± .003
(4.65 ± 0.08)
.093 ± .005
(2.36 ± 0.13)
.760
(19.30)
MAX
.093±.005
(2.36±0.13)
.183±.003
(4.65±0.08)
1.675
(42.55)
MAX
.407
(10.34)
MAX.
.148/.140
(3.76/3.56)
DIA 2 PLACES
.470
(11.94)
MAX
.760
(10.41)
MAX
1.055 (26.80)
MAX
1.740
(44.20)
MAX
SHELL SIZE G
790-025S DIMENSIONS
Shell
Size
A
B
C
D
E
F
H
J
K
L
A Max.
In.
mm.
.785 19.94
.935 23.75
1.085 27.56
1.185 30.10
1.335 33.91
1.485 37.72
—
—
1.845 46.86
2.240 56.90
—
—
B Basic
In .
mm.
.565 14.35
.715 18.16
.865 21.97
.965 24.51
1.115 28.32
1.265 32.13
—
—
1.615 41.02
2.015 51.18
—
—
C Max.
In.
mm.
.335
8.51
.485 12.32
.635 16.13
.735 18.67
.885 22.48
1.035 26.29
—
—
1.390 35.61
1.795 45.59
—
—
D Max.
In.
mm.
.390
9.91
.540 13.72
.690 17.53
.790 20.07
.940 23.88
1.090 27.69
—
—
1.450 36.83
1.840 46.74
—
—
SHELL SIZE M
E Max.
In.
mm.
—
—
—
—
—
—
—
—
—
—
—
—
2.175 55.25
—
—
—
—
2.420 61.47
F Basic
In.
mm.
—
—
—
—
—
—
—
—
—
—
—
—
1.800 45.72
—
—
—
—
2.036 51.71
G Max.
In.
mm.
—
—
—
—
—
—
—
—
—
—
—
—
1.385 35.18
—
—
—
—
1.623 41.22
H Max.
In.
mm.
—
—
—
—
—
—
—
—
—
—
—
—
1.440 36.58
—
—
—
—
1.675 42.55
Dimensions in Inches (millimeters) are subject to change without notice.
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
D-6
