5000TC Series
Toroidal (Electrodeless)
Conductivity Sensors
Overview
The Honeywell 5000TC toroidal
(electrodeless) conductivity sensor
measures the conductivity of solutions from
0.2 to 2000 millisiemens/cm. The sensors
can be used for monitoring chemical
concentration and salinity as well. The
corrosion and fouling-resistant cells are
available with a variety of mounting
assemblies to ensure compatibility for
applications in the chemical, food & dairy,
refinery, pulp & paper, metal finishing and
wastewater industries.
70-82-03-37
5/00
Page 1 of 8
Specification
Features
•
•
•
Variety of material types to meet most
application needs – PEEK, PFA
Teflon®, PVDF, and Polypropylene.
Increased cell reliability due to high
chemical resistance and low friction
factor in the materials of construction
Flexibility of installations with four
mounting types – Immersion, Union-
mount, Insertion/Removal, and
Sanitary
Temperature-compensated
measurement with Pt 1000 ohm RTD
Convenient for most applications – 20
ft. cable standard
3A-approved materials of construction
and clean-in-place fitting makes the
sanitary type cells suitable for most
sanitary applications.
•
•
•
Figure 1 5000TC Convertible & Sanitary Sensors
Description
The Honeywell 5000TC sensors are
specifically designed for the monitoring of
conductivity, chemical concentration, or
salinity in difficult applications where
coating, fouling, corrosion, or high
temperatures/ pressures are a concern.
The sensor’s 1 ½” diameter bore minimizes
rough surfaces to ensure that flow
impedance is minimized. A 1000Ω Pt RTD
provides accurate temperature
measurement to ensure proper temperature
compensation. Two types of basic sensor
forms are available with the Honeywell
5000TC – the convertible or sanitary style.
Convertible Style
The 5000TC convertible style toroidal
sensor includes both a ¾” and a ½”
fitting to allow direct fastening to the end
of a pipe for either immersion mounting
or a union-mount adapter for a standard
2” pipe tee. The convertible style can
also be insertion mounted into a 2” ball
valve assembly. Convertible sensors
are available in PEEK, PVDF, PFA
Teflon, and Polypropylene materials.
Sanitary Style
The 5000TC sanitary style toroidal sensor
includes a clean-in-place style fitting and is
constructed of 3A-approved materials. It has
an integral 2” sanitary-mount flange which
mates to Honeywell sanitary tee mounting
hardware. The sanitary-style sensor includes
a special cap and EPDM compound gasket.
The gasket is also available separately for
mounting to a 2” sanitary clamp-type ferrule or
butt-weld tee. Sanitary sensors are available in
PVDF, PFA Teflon, and Polypropylene
materials.

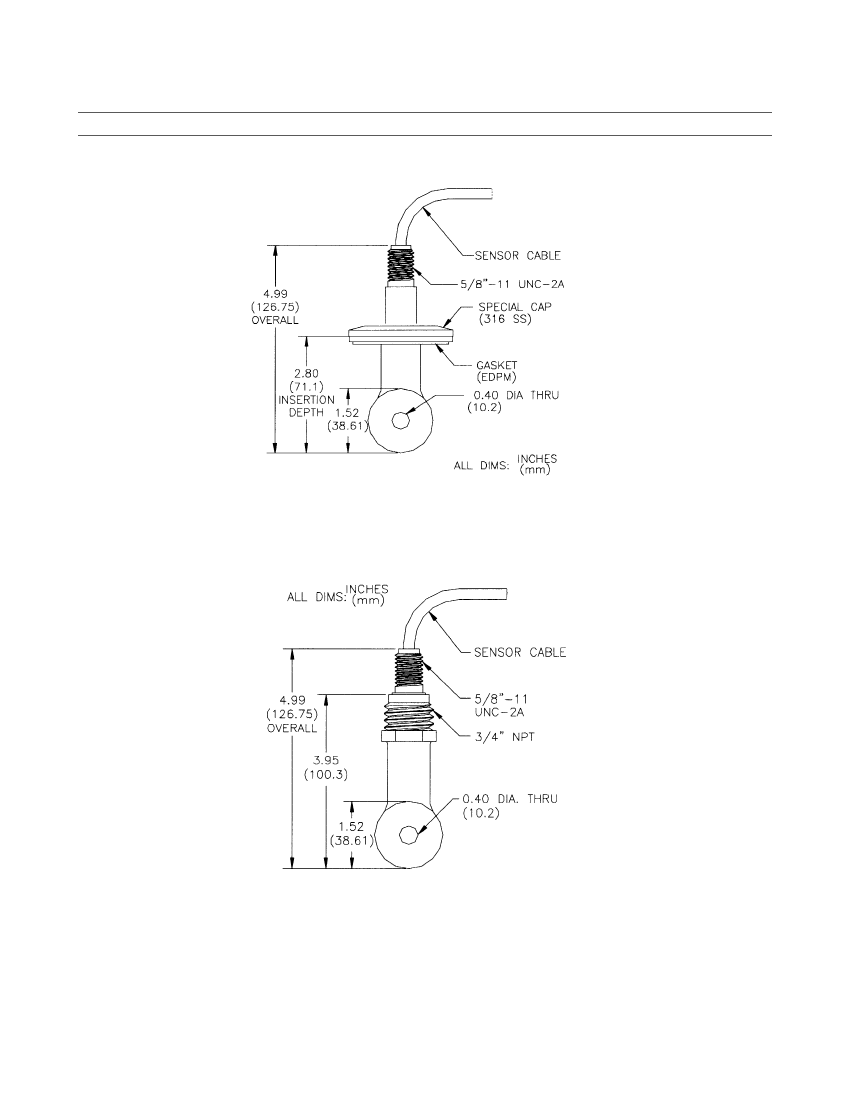

Sensing and Control, 11 West Spring Street, Freeport, Illinois 61032
Printed in U.S.A. © Copyright 2000—Honeywell
70-82-03-37
Page 3 of 8
Wetted Materials
To simplify chemical resistance problems, these sensors are constructed so that only
one material is wetted by the process. The wetted material is non-conductive to
insure that the sensor is electrically isolated from the process fluid. The 5000TC
sensors are available in four different material types – PEEK, PFA Teflon,
Polypropylene and PVDF.
PEEK
(Polyetheretherketone)
This material type is ideal for the broadest range of applications within the chemical, pulp &
paper, and refinery industries. The only known materials to severely attack PEEK are very high
concentrations of acids, such as nitric or sulfuric. It has a higher temperature capability than the
Polypropylene or PVDF sensors.
This material type is ideal for extremely corrosive applications, especially high concentrations of
sodium hydroxide, nitric acid, sulfuric acid, or hydrofluoric acid. It has the highest temperature
rating of the four sensor types. It is also ideal for applications which have a tendency to coat the
sensor.
This material type is ideal for wastewater applications where the temperatures and pressures are
close to ambient and chemical compatibility is not a serious concern.
This material type is one of the most rigid and abrasion-resistant materials. It has good chemical
resistance to halogens, such as chlorine or bromine. It is ideal for applications which require
higher pressure ratings, but do not have high temperatures, such as water treatment applications
in the semiconductor industry.
PFA Teflon (Perfluoroalkoxy
Teflon)
Polypropylene
PVDF (PolyVinylidene
Fluoride, also called
“KYNAR®”)
Specifications Common to All Cell Types
Wetted Materials
Operating Temperature Range
Maximum Flow Rate
Measuring Range
Temperature Compensator
Sensor Cable
PFA Teflon, Polypropylene, PVDF, or PEEK
10
°C
to 125
°C
(14
°F
to 257
°F)
10 ft. (3 m) per second
0.2 to 2000 milliSiemens/cm
Pt 1000
Ω
RTD
5 conductor (plus two isolated shields) cable with XLPE (cross-linked polyethylene) jacket;
rated to 150
°C
(302
°F);
20 ft. (6 m) long
1.5” diameter, 0.4” hole
Bore Size
Pressure/Temperature Limits:
Sensor Only (no hardware)
Polypropylene
PVDF
PEEK
PFA Teflon
100 psi at 212
°C
(6.9 bar at 100
°C)
100 psi at 248
°C
(6.9 bar at 120
°C)
200 psi at 302
°F
(13.8 bar at 150
°C)
200 psi at 302
°F
(13.8 bar at 150
°C)
70-82-03-37
Page 5 of 8

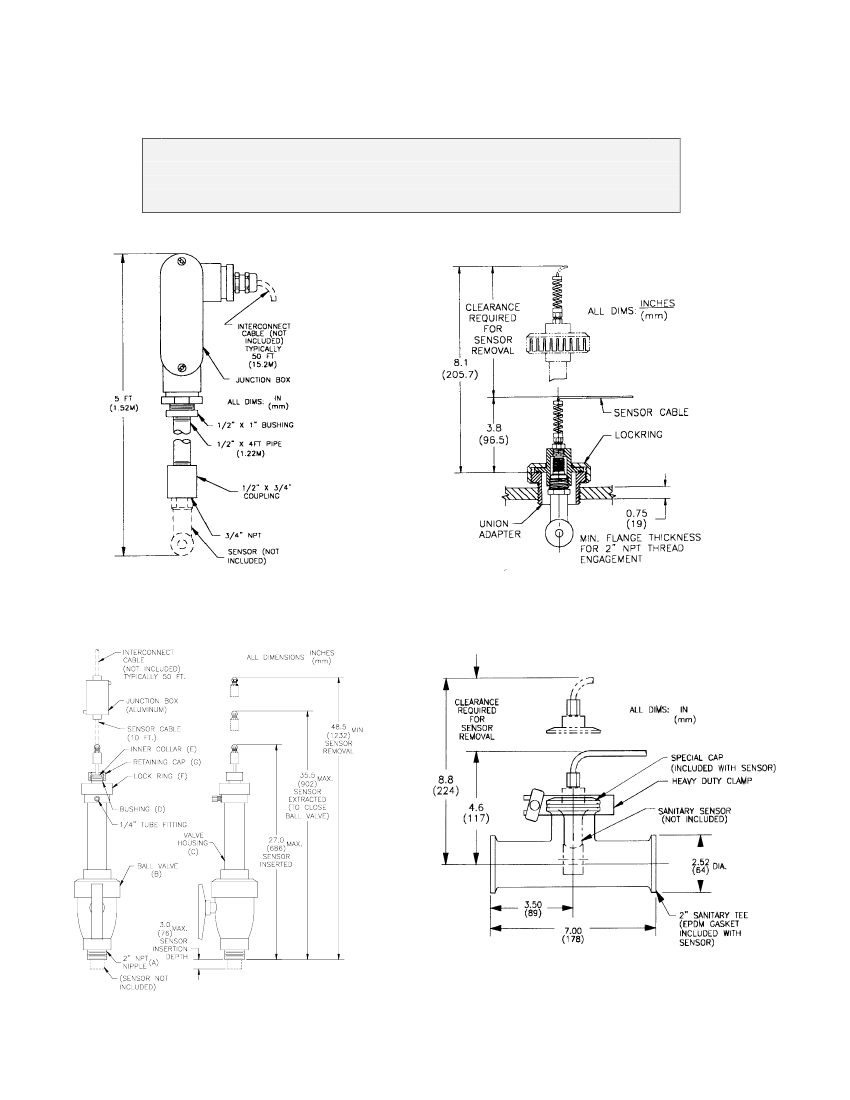

Basic Mounting Specifications
*
CPVC Mounting Hardware
(all Sensor Materials)
300
316 Stainless Steel Sanitary Mounting Hardware**
With Polypropylene Sensor
300
PRESSURE (psig)
PRESSURE (psig)
250
200
150
100
50
0
NOTE:
Rating limited by hardware material.
250
200
150
100
50
0
225
psig
-10 0 10 20 30 40 50 60 70 80 90 100110120
-10 0 10 20 30 40 50 60 70 80 90 100110120
TEMPERATURE (
O
C)
PVDF Mounting Hardware
(all Sensor Materials)
300
TEMPERATURE (
O
C)
316 Stainless Steel Sanitary Mounting Hardware
With PVDF Sensor
300
PRESSURE (psig)
PRESSURE (psig)
250
200
150
100
50
0
NOTE:
Rating limited by hardware material.
250
200
150
100
50
0
-10 0 10 20 30 40 50 60 70 80 90 100110 120
-10 0 10 20 30 40 50 60 70 80 90 100110120
TEMPERATURE (
o
C)
316 Stainless Steel Mounting Hardware
300
300
TEMPERATURE (
O
C)
316 Stainless Steel Sanitary Mounting Hardware
With PFA Teflon Sensor
PRESSURE (psig)
250
200
150
100
50
0
-10 0 10 20 30 40 50 60 70 80 90 100110120130140 150
PRESSURE (psig)
250
200
150
100
50
0
PEEK and PFA Teflon
NOTE:
Rating limited by sensor material.
PVDF
Polypropylene
-10 0 10 20 30 40 50 60 70 80 90 100110120130140 150
TEMPERATURE (
o
C)
TEMPERATURE (
o
C)
*Ratings for the above Honeywell sensor and mounting hardware combinations are based upon water service. More severe service
may require a correction factor. Includes immersion mount, union adapter mount, and sanitary mount. Separate specifications are
provided for the insertion/removal device.
**Sanitary mounting hardware ratings are for 51451248-001 hardware using the 51451257-001 heavy duty sanitary clamp. Other
hardware and clamp combinations may reduce the listed ratings.
