22-28-0340 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 22-28-0340

22-28-0340: DescriptionBoard Connector, 34 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size56KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

22-28-0340 Overview

Board Connector, 34 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,

22-28-0340 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	POLARIZATION
body width	0.284 inch
subject depth	0.337 inch
body length	3.4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
DIN compliance	NO
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.946 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	42227
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	34
UL Flammability Code	94V-0
Evacuation force-minimum value	.556 N
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 2 to 36 circuits

Available with kinked pins for better PC board retention

Available with end backwalls removed for left to right

polarization

Various pin lengths available

Voided circuits available (contact Molex)

Electrical

Voltage: 250V

Current: 4.0A

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 1500V

Insulation Resistance: 50K M

Ω

min.

Mechanical

Durability:

Tin—25 cycles max.

Gold—100 cycles max.

Physical

Housing: Glass-filled nylon, UL 94V-0

Contact: Phosphor Bronze, 0.64mm (.025") square

Plating: See Table

Operating Temperature: 0 to +75˚C

2.54mm (.100") Pitch

Breakaway Header

42227

Vertical

Friction Lock

2.54mm (.100") Pitch

Reference Information

Product Speciﬁcation: PS-10-07

Packaging: Bag

Tooling Information: See cutting tool section

UL File No.: E29179

CSA File No.: LR19980

Mates With:

2695, 4455, 6471, 7720

and

7880

Designed In: Inches

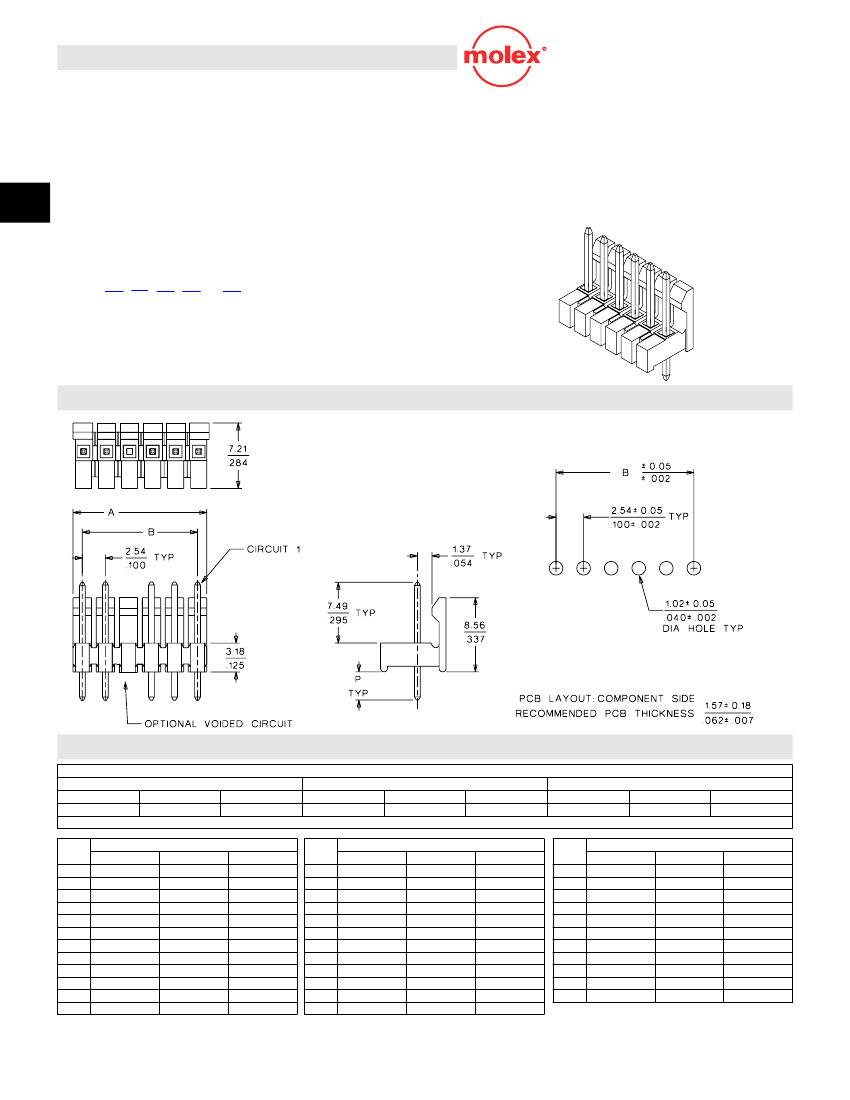

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Standard

" Select Gold

• 22-28-0XX1

Order No.

With Kinked Tails

Tin

" Select Gold

22-28-0XX3

22-28-0XX4

22-28-0XX5

Replace XX with no. of circuits, 02-36

Circuits

Dimension

33.02 (1.300)

35.56 (1.400)

38.10 (1.500)

40.64 (1.600)

43.18 (1.700)

45.72 (1.800)

48.26 (1.900)

50.80 (2.000)

53.34 (2.100)

55.88 (2.200)

58.42 (2.300)

60.96 (2.400)

With Backwalls Removed

" Select Gold

22-28-0XX7*

22-28-0XX8*

Tin

• 22-28-0XX0

" Select Gold

• 22-28-0XX2

Tin

22-28-0XX6*

Circuits

5.08 (.200)

7.62 (.300)

10.16 (.400)

12.70 (.500)

15.24 (.600)

17.78 (.700)

20.32 (.800)

22.86 (.900)

25.40 (1.000)

27.94 (1.100)

30.48 (1.200)

33.02 (1.300)

Dimension

2.54 (.100)

5.08 (.200)

7.62 (.300)

10.16 (.400)

12.70 (.500)

15.24 (.600)

17.78 (.700)

20.32 (.800)

22.86 (.900)

25.40 (1.000)

27.94 (1.100)

30.48 (1.200)

3.05 (.120)

35.56 (1.400)

38.10 (1.500)

40.64 (1.600)

43.18 (1.700)

45.72 (1.800)

48.26 (1.900)

50.80 (2.000)

53.34 (2.100)

55.88 (2.200)

58.42 (2.300)

60.96 (2.400)

63.50 (2.500)

3.43 (.135)

Circuits

66.04 (2.600)

68.58 (2.700)

71.12 (2.800)

73.66 (2.900)

76.20 (3.000)

78.74 (3.100)

81.28 (3.200)

83.82 (3.300)

86.36 (3.400)

88.90 (3.500)

91.44 (3.600)

Dimension

63.50 (2.500)

66.04 (2.600)

68.58 (2.700)

71.12 (2.800)

73.66 (2.900)

76.20 (3.000)

78.74 (3.100)

81.28 (3.200)

83.82 (3.300)

86.36 (3.400)

88.90 (3.500)

3.05

(.120)

• US Standard Product, available through Molex franchised distributors (36 circuit only)

* Available in 3 to 36 circuits only

Circuit 1 designation is used to orient the header to locate the voided circuit. Review mating connector to assure correct mating orientation.

C-122

MX01
