200-200-0000G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 200-200-0000G

200-200-0000G: DescriptionRF Connector Adapter, RDM-RDM, Female-Female, Plug-plug; CategoryThe connector The connector; File Size93KB，5 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric Compare View All

200-200-0000G Overview

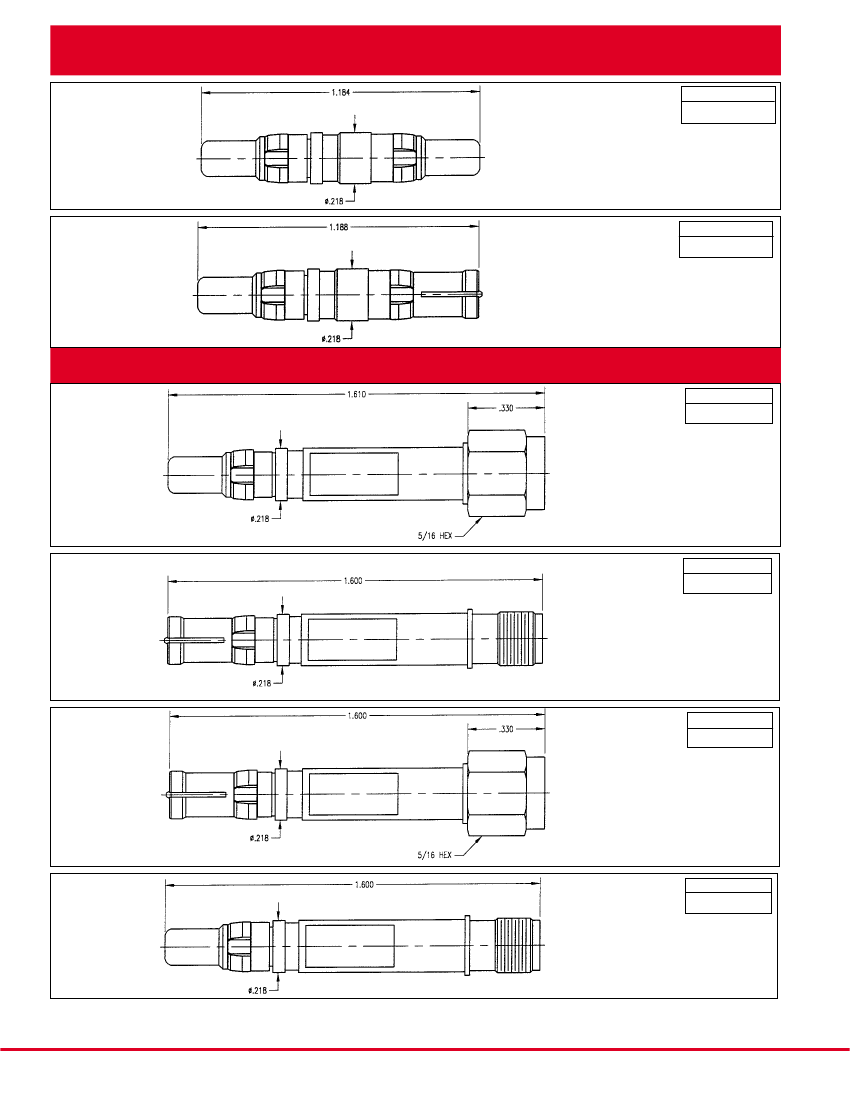

RF Connector Adapter, RDM-RDM, Female-Female, Plug-plug

200-200-0000G Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Adapter type	RDM-RDM
Body/casing type	PLUG-PLUG
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	FEMALE-FEMALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	IN
Maximum operating frequency	0.9 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Base Number Matches	1

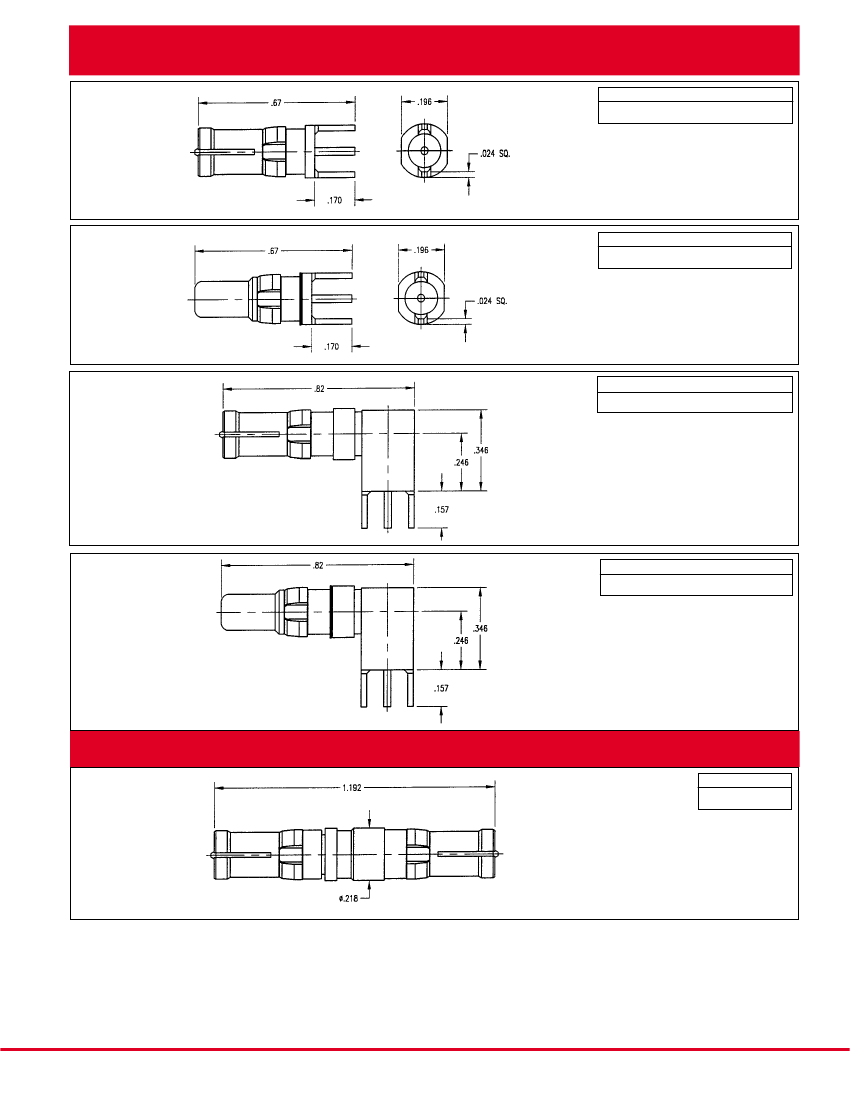

Preview

Download Datasheet

View All

RDM:

Solder / Solder, Semi-Rigid Cable

Part Number

201-510-0470G

201-510-0850G

201-510-1410G

Cable

.047 SR

.085 SR

.141 SR

Straight

Receptacle

• See page 81 for cable assembly procedures: CAP 5-09

• Part number shown is for standard gold plating.

• For military finish change suffix to “H”.

• For commercial finish change suffix to “C”.

Straight Plug

Part Number

200-510-0470G

200-510-0850G

200-510-1410G

Cable

.047 SR

.085 SR

.141 SR

• See page 81 for cable assembly procedures: CAP 5-09

• Part number shown is for standard gold plating.

• For military finish change suffix to “H”.

• For commercial finish change suffix to “C”.

Right Angle

Receptacle

Part Number

203-510-0470G

203-510-0850G

203-510-1410G

Cable

.047 SR

.085 SR

.141 SR

“A”DIM

.29

.35

• See page 82 for cable assembly procedures: CAP 5-10

• Part number shown is for standard gold plating.

• For military finish change suffix to “H”.

• For commercial finish change suffix to “C”.

Right Angle

Plug

Part Number

202-510-0470G

202-510-0850G

202-510-1410G

Cable

.047 SR

.085 SR

.141 SR

“A”DIM

.29

.35

• See page 82 for cable assembly procedures: CAP 5-10

• Part number shown is for standard gold plating.

• For military finish change suffix to “H”.

• For commercial finish change suffix to “C”.

RDM:

Solder / Solder, Flexible Cable

Part Number

201-510-0360G

201-510-0630G

201-510-1070G

201-510-1160G

201-510-1161G

Cable

RG- 178, 196

RG- 316, 188

RG- 180, 195

RG- 141, 58

RG- 142, 223

“A” DIM

.93

1.03

Straight

Receptacle

• See page 79 for cable assembly procedures: CAP 5-07

• Part number shown is for standard gold plating.

• For military finish change suffix to “H”.

• For commercial finish change suffix to “C”.

Dimensions shown are in inches.

Winchester

Electronics

DS/10

62 Barnes Industrial Road North, Wallingford, Connecticut 06492 Phone:(203)741-5400 Fax:(203)741-5500 www.winchesterelectronics.com

200-200-0000G Related Products

	200-200-0000G	200-201-0000G	201-350-0000H	201-201-0000G	201-351-0000H
Description	RF Connector Adapter, RDM-RDM, Female-Female, Plug-plug	RF Connector Adapter, RDM-RDM, Female-Male, Plug-receptacle	RF Connector Adapter, RDM-SMA, Receptacle-plug	RF Connector Adapter, RDM-RDM, Female-Female, Receptacle-receptacle	RF Connector Adapter, RDM-SMA, Receptacle-jack
Reach Compliance Code	unknow	unknow	unknow	unknown	unknown
Adapter type	RDM-RDM	RDM-RDM	RDM-SMA	RDM-RDM	RDM-SMA
Body/casing type	PLUG-PLUG	PLUG-RECEPTACLE	RECEPTACLE-PLUG	RECEPTACLE-RECEPTACLE	RECEPTACLE-JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Coupling type	SNAP	SNAP	SNAP-THREADED	SNAP	SNAP-THREADED
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	IN	IN	BETWEEN	IN	BETWEEN
Maximum operating frequency	0.9 GHz	0.9 GHz	0.9 GHz	0.9 GHz	0.9 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO
Base Number Matches	1	1	1	1	1
Contact point gender	FEMALE-FEMALE	FEMALE-MALE	-	FEMALE-FEMALE	-
