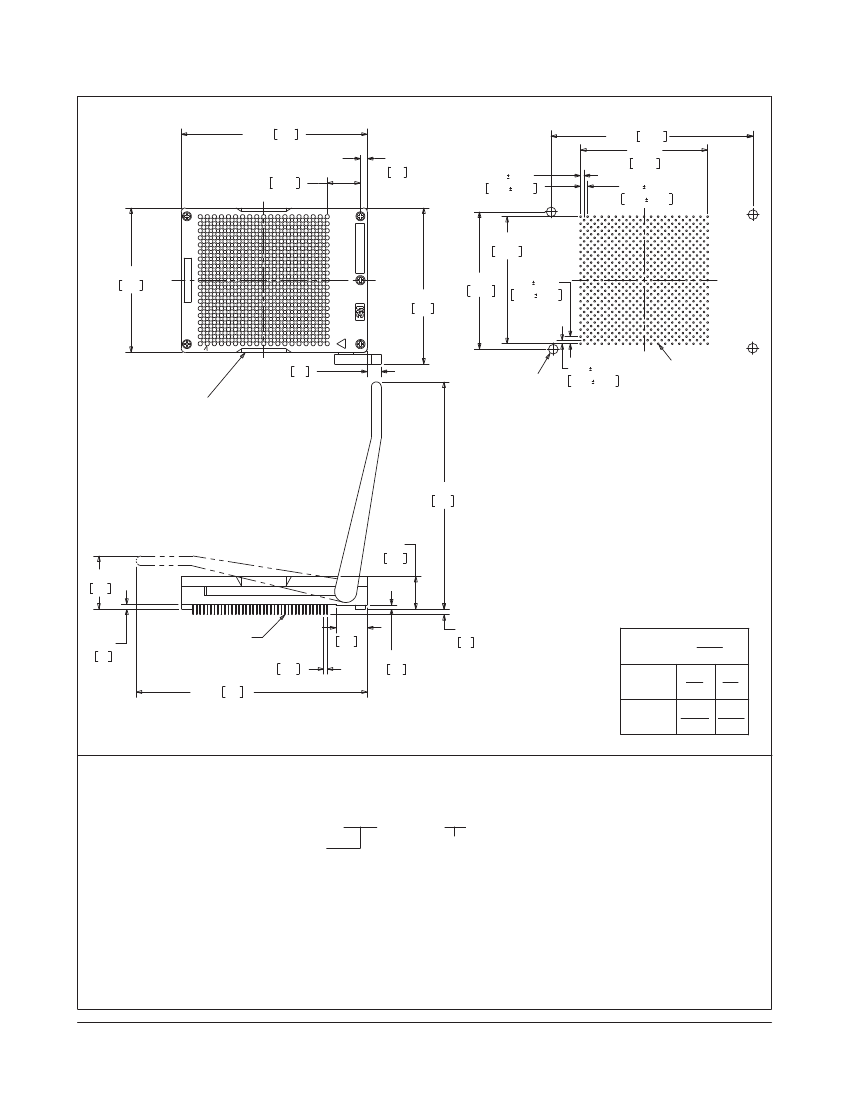

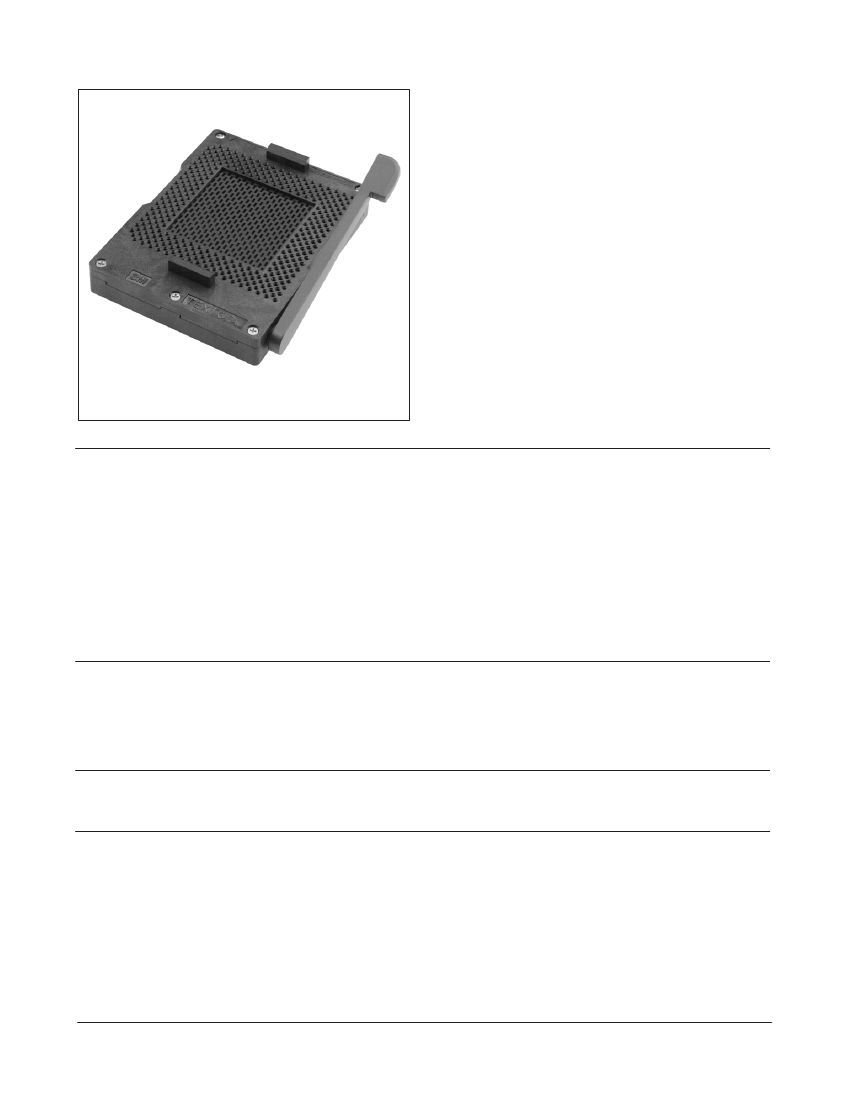

3M Textool, Interstitial Pin Grid Array
Test & Burn-In Sockets
• 19 X 19 outer matrix with 18 X 18 inner
staggered matrix holds up to 685 leads.
• Lever actuated, zero insertion force mechanism.
• Rugged, 3-plate construction for durability and
electrical reliability.
• Accommodates two lead diameter variations
.25 - .40 mm (.010" - .016") inquire*
.35 - .51 mm (.014" - .020") available
*Note : Please contact 3M customer service for
availability.
Date Issued: June 20, 2001
34
TS-1358-04
Sheet 1 of 3
Physical
Insulation:
Material:
Flammability:
Color:
Cam Handle:
Material:
Contact:
Material:
Plating:
Other Metal Parts:
Marking:
Polyethersulfone (PES)
UL 94V-0
Black
Aluminum Alloy, Die Cast
Beryllium Copper
30
m
" (0.76
m
m) Gold over 50
m
" (1.3
m
m) Nickel
Stainless Steel
3M Logo / Textool Logo
Electrical
Insulation Resistance:
Dielectric Withstanding Voltage:
Initial Contact Resistance:
Current Rating:
>500MW at 500 Vdc
500 Vrms at Sea Level
25mW max. initially
1.0 A max.
Environmental
Operating Temperature Rating:
- 55°∞C to + 150°∞C
Mechanical
Durability: When used as a test socket at room temperature
the socket will last 3,000 actuations.
3M Electronic Handling and Protection Division
6801 River Place Blvd.
Austin, TX 78726-9000
For technical, sales or ordering information call
800-328-0411
or visit our website:
http://www.3M.com/ehpd
3M Textool, Interstitial Pin Grid Array
Test & Burn-In Sockets
2.64
67.0
.10
2.5
.470
11.93
.050 .002
1.27 0.05
.100 .002
2.54 0.05
2.463
62.56
1.800
45.72
TEXTOOL
1.800
45.72
2XXX-1358
2.05
52.0
Front
1.810
2.21
56.2
45.97
.100 .002
2.54 0.05
.20 5.0
.050 .002
4x Ø .06 [1.5] Hole for
Mounting Screw
1.27 0.05
685x Ø .024 [.62] Min
Contact Hole
Finger Access
Featue
P. C. BOARD PATTERN
3.22
81.8
.46
11.8
.75
19.1
.44
.07
1.8
Standoffs
3.28
83.2
.012 X.012 Contact Tails
[0.3 X 0.3]
.050
1.27
11.3
.06 Standoffs
1.5
.08 Contact Tail Length
2.0
Tolerance
Dimension
Tolerance
inch
(mm)
.000
(.00)
.00
(.0)
±
.010
±
.005
(±
.25)
(±
.13)
Ordering Information
2XXX - 1358 - XX - 1902
Number of Contacts:
( 685 Maximum )
Lead Diameter Variations:
000 = 0.25 mm-0.40 mm
[ .010
"
-.016
"
]
050 = 0.35 mm-0.51 mm
[ .014
"
-.020
"
]
TS-1358-04
Sheet 2 of 3
3M Electronic Handling and Protection Division
6801 River Place Blvd.
Austin, TX 78726-9000
For technical, sales or ordering information call
800-328-0411
or visit our website:
http://www.3M.com/ehpd
Front
3M Textool, Interstitial Pin Grid Array
Test & Burn-In Sockets

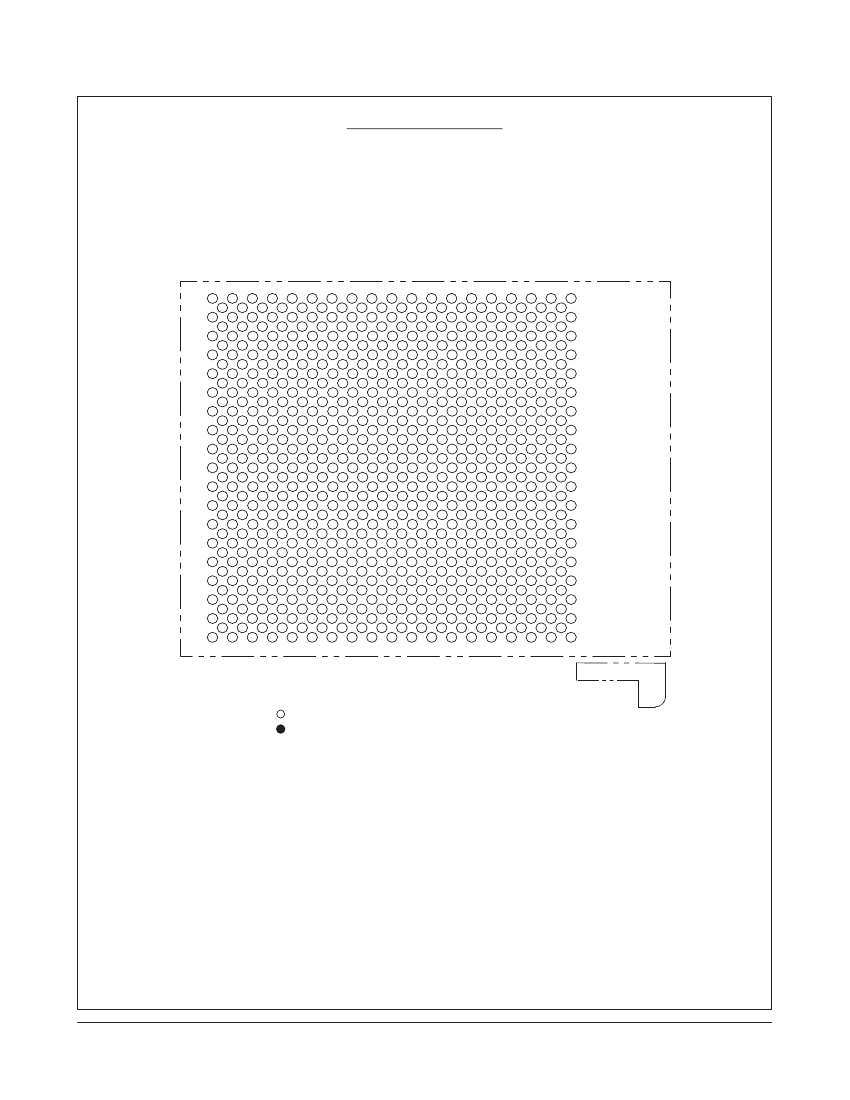

Interstitial Worksheet
1
A
Key:
1. This mark indicates holes only, no contacts.
2. This mark indicates holes with contacts.
Notes:
1. This is only a work sheet. Do not proceed with any layout until a part number is assigned by
3M Textool. The pattern is subject to repositioning.
2. Lead diameter = .016 [ 0.39 ] min, .020 [ 0.51 ] max. The standard socket has been designed
to accept these lead diameters only. For all others please consult the factory.
3. Use this sheet to indicate which positions you intend to use.
4. The device lead must be a minimum of 2.54 [.100 ] below the standoffs on the device leads.
3M Electronic Handling and Protection Division
6801 River Place Blvd.
Austin, TX 78726-9000
TS-1358-04
Sheet 3 of 3
For technical, sales or ordering information call
800-328-0411
or visit our website:
http://www.3M.com/ehpd
