803-004-07Z16-1SN datasheet, PDF

Datasheet> All Categories > The connector> 803-004-07Z16-1SN

803-004-07Z16-1SN: Descriptioncircular mil spec connector mighty mouse connector; CategoryThe connector; File Size601KB，4 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

803-004-07Z16-1SN Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	803-004-07Z16-1SN	-	-	View	Buy Now

803-004-07Z16-1SN Overview

circular mil spec connector mighty mouse connector

803-004-07Z16-1SN Parametric

Parameter Name	Attribute value
Manufacture	Glenai
Product Category	Circular MIL Spec Connec
RoHS	Yes
MIL Type	MIL-DTL-38999
Shell Size	6
Shell Style	Jam Nu
Contact Gende	Socket (Female)
Number of Positions	1
Insert Arrangeme	6-1
Mounting Style	Panel
Termination Style	Crim

Preview

Download Datasheet

View All

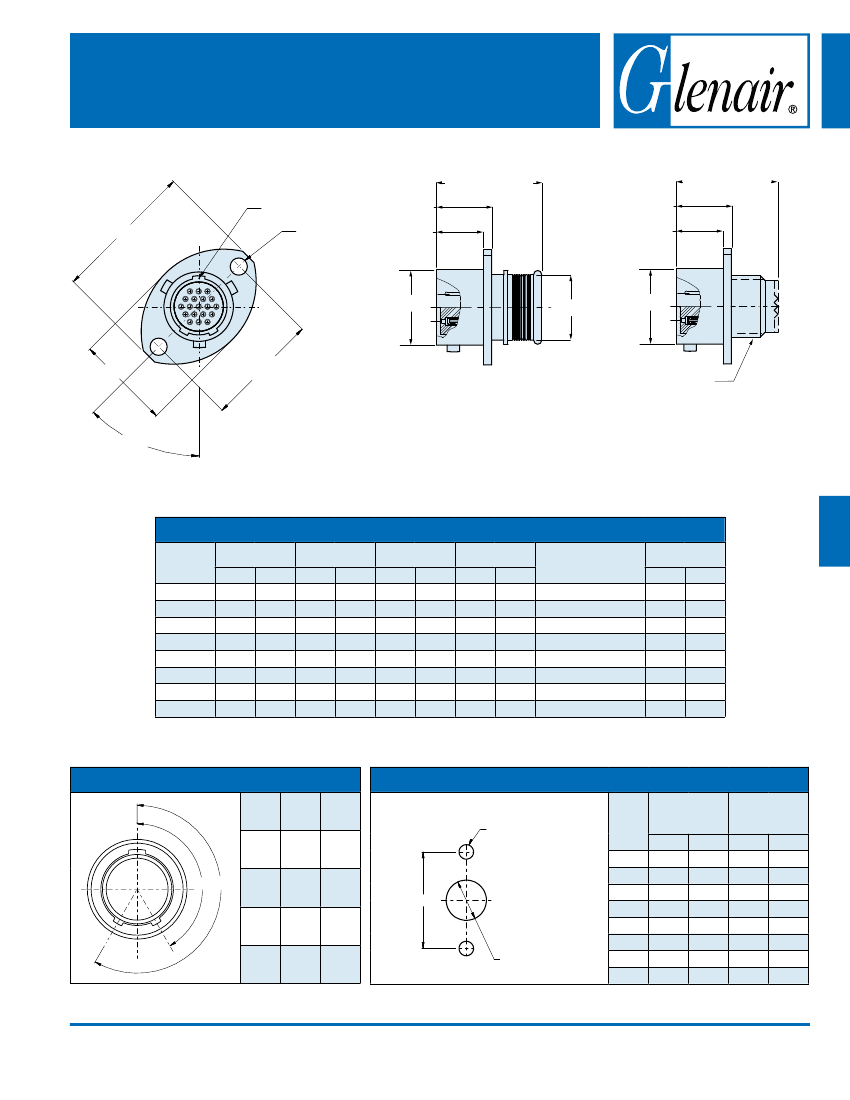

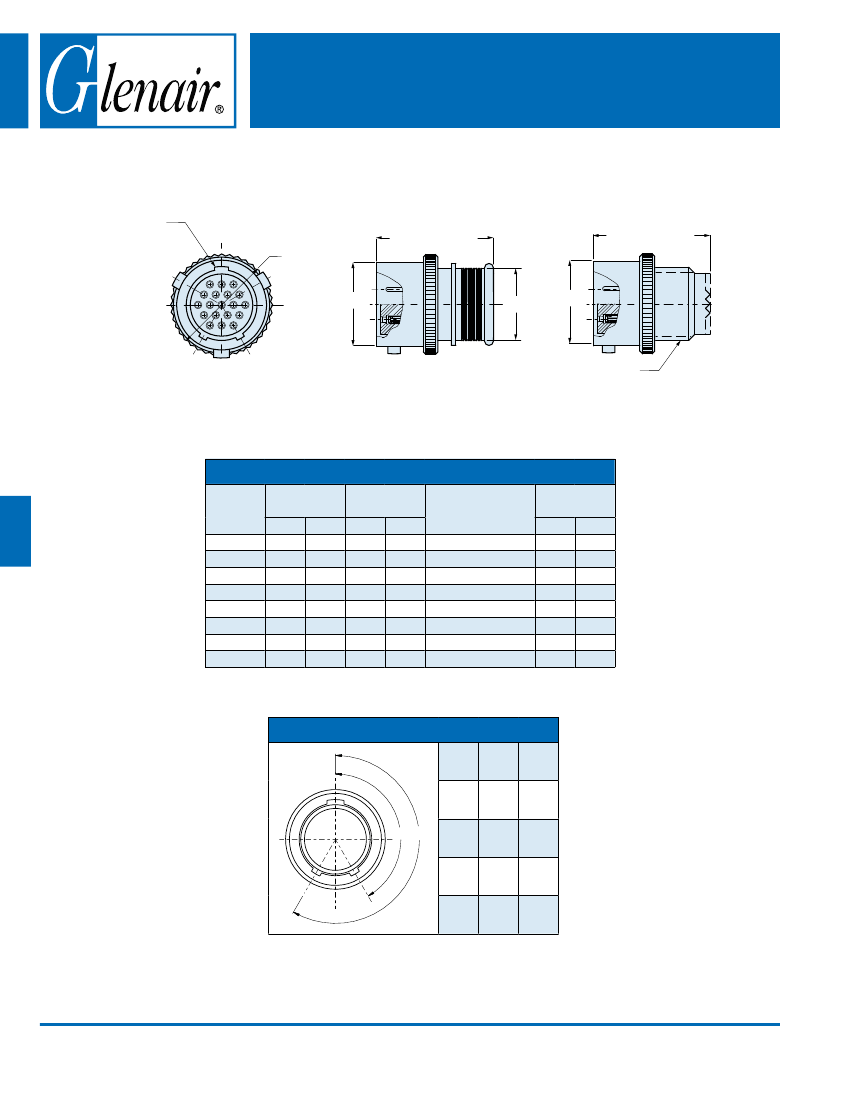

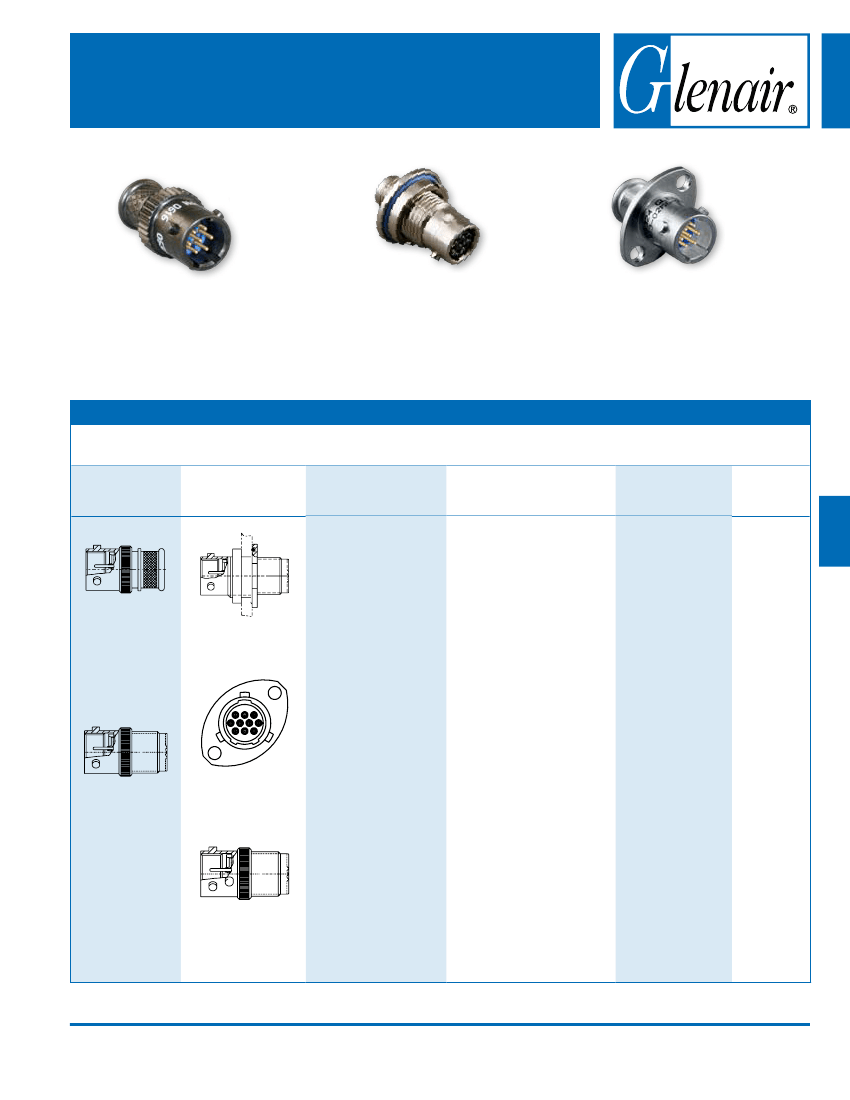

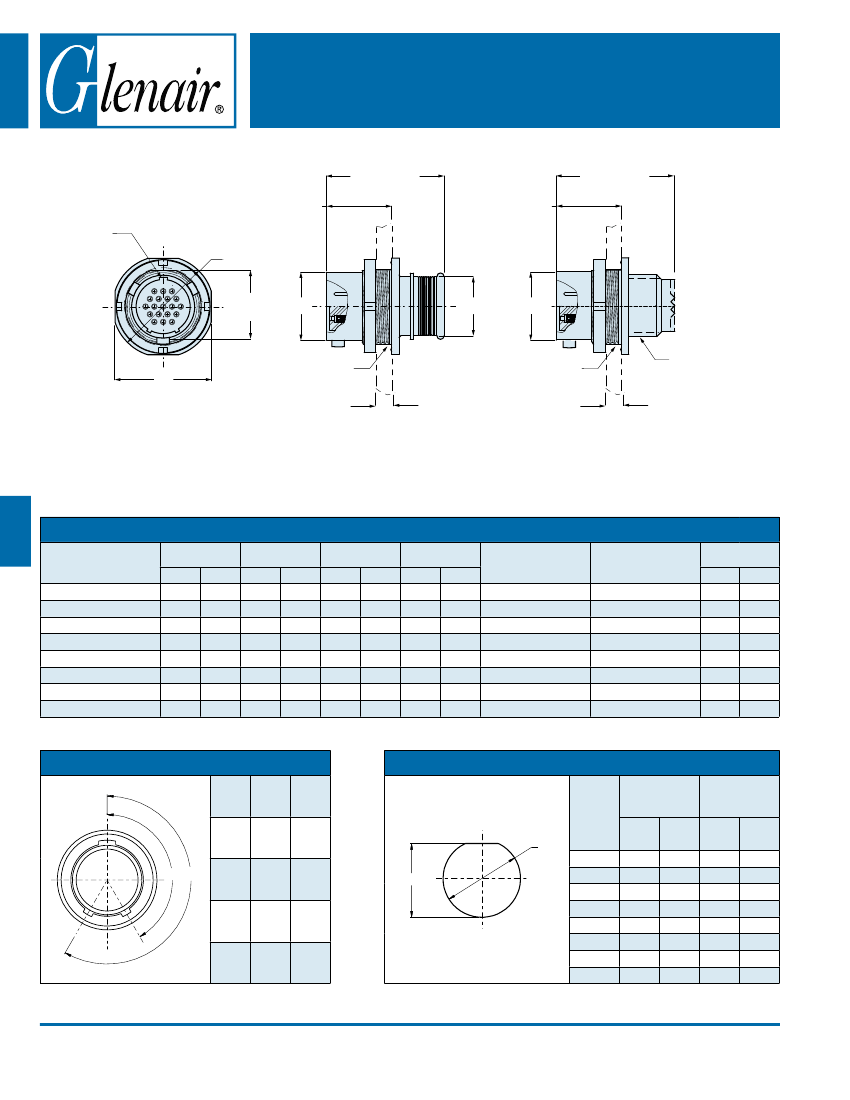

803-003 and 803-004 Crimp Receptacles

In-Line

Jam Nut

Flange

Mount

Push-To-Mate, ¼ Turn to Lock.

These quick-mating connectors feature

bayonet pins on the receptacle. Simply

push the connectors together, then

rotate the plug coupling nut 90° to lock

the connectors together.

Three Shell Mounting Options:

Jam nut with O-ring for rear panel

mounting, elliptical flange for front

or rear panel mounting, or in-line

receptacles for free-hanging cables.

Two Shell Styles:

Choose the integral

band platform for direct attachment of a

cable shield. Install a heat-shrink boot, or

overmold directly onto the band platform.

An accessory thread is available for

attaching strain reliefs and backshells.

HOW TO ORDER

80 3 - 003

Series

-07

Shell Style

Sample Part Number

6 –7

Contact Type

Connector

supplied with

contacts

Socket

Connector

supplied without

contacts

Pin Connector, less

contacts

Socket Connector,

less contacts

Connectors with

contacts are supplied

with signal and/or

power crimp contacts.

These contacts are not

installed.

Coaxial contacts and

non-standard signal

contacts are ordered

separately.

Shell Key

Position

Shell Material /

Finish

Shell Size- Insert

Arrangement

SEE

Receptacle with

Banding Platform

for Direct

Attachment of

Cable Shield and

Overmold

803-003

Aluminum / Black

Anodize

(Non-Conductive)

RoHS Compliant

CONTACT

ARRANGEMENTS

PAGE F-2

Normal

Alternate

Key

Positions:

Jam Nut

-07

Aluminum / Electroless

Nickel

RoHS Compliant

Aluminum / Cadmium

with Olive Drab Chromate

Aluminum / Zinc-Nickel

with Olive Drab Chromate

Receptacle with

Rear Accessory

Thread

803-004

Flange Mount

-02

Aluminum / Zinc-Nickel

with Black Chromate

Aluminum / Nickel-PTFE

RoHS Compliant

Stainless Steel /

Passivated

RoHS Compliant

ZNU

In-Line

-01

www.glenair.com

Dimensions in inches (millimeters) and are subject to change without notice.

CAGE Code 06324

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

F-7

01-JANUARY-2010

Series 803

Series 803 Mighty Mouse ¼ Turn Bayonet Coupling

Connector Ordering Information

803-004-07Z16-1SN Related Products

	803-004-07Z16-1SN	803-003-07NF15-85PN	803-003-01NF7-10PN	803-003-07NF15-85PX
Description	circular mil spec connector mighty mouse connector	circular mil spec connector mighty mouse connector	circular mil spec connector	circular mil spec connector mighty mouse connector
Is it lead-free?	-	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	-	incompatible	incompatible	incompatible
Reach Compliance Code	-	_compli	not_compliant	not_compliant
Factory Lead Time	-	17 weeks 1 day	17 weeks 1 day	17 weeks 1 day
Other features	-	POLARIZED	POLARIZED	POLARIZED
Back shell type	-	SOLID	SOLID	SOLID
Body/casing type	-	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	-	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR
Contact to complete cooperation	-	NOT SPECIFIED	GOLD (50)	GOLD (50)
Contact point gender	-	MALE	MALE	MALE
Contact material	-	NOT SPECIFIED	BERYLLIUM COPPER	BERYLLIUM COPPER
Coupling type	-	BAYONET	BAYONET	BAYONET
DIN compliance	-	NO	NO	NO
empty shell	-	NO	NO	NO
Filter function	-	NO	NO	NO
IEC compliance	-	NO	NO	NO
MIL compliance	-	NO	NO	NO
Plug information	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	-	NO	NO	NO
Installation type	-	CABLE AND PANEL	CABLE	CABLE AND PANEL
Options	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	-	CADMIUM WITH CHROMATE PLATED	CADMIUM WITH CHROMATE PLATED	CADMIUM WITH CHROMATE PLATED
Shell material	-	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY
Housing size	-	15	7	15
Termination type	-	CRIMP	CRIMP	CRIMP
Total number of contacts	-	85	10	85
Base Number Matches	-	1	1	1
