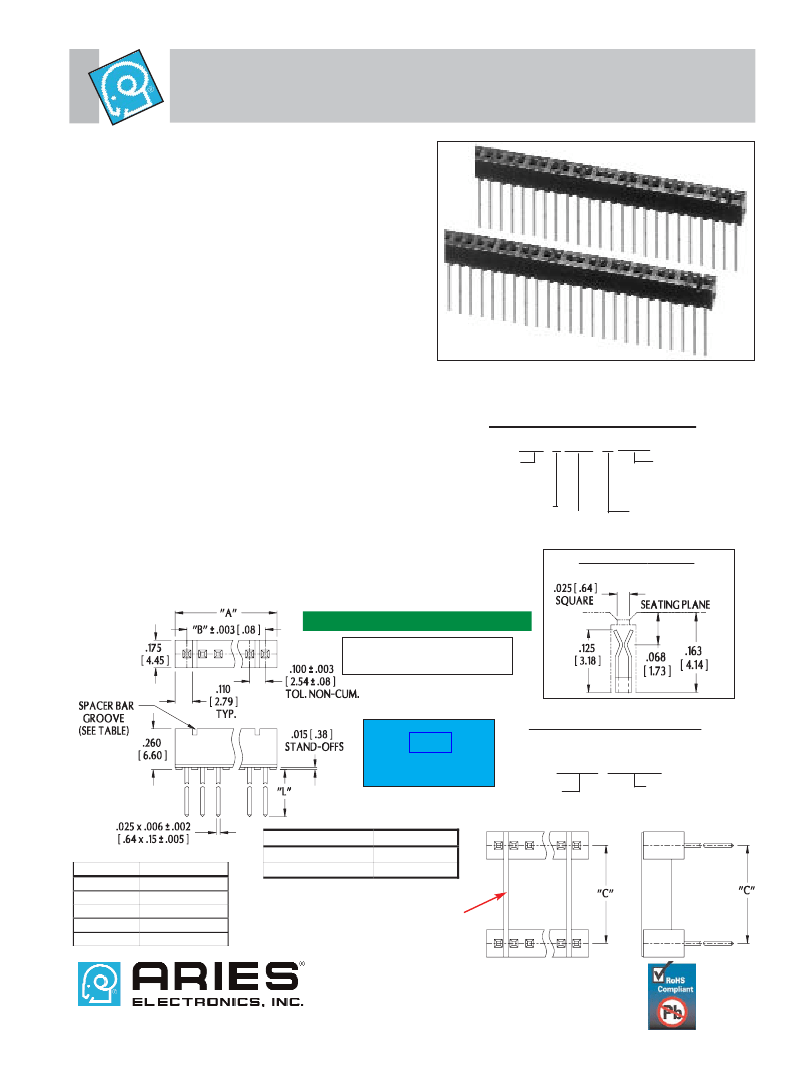

Series 0501 Strip-line Sockets with
Bifurcated Contact Wire Wrap Pins
FEATURES:
• For mounting liquid crystal displays and other high pin count or odd centered
components.
• Available in several sizes with bifurcated cont acts in wire wrap or solder t ail
pins. Consult Data Sheet No. 12008 for solder t ail pins.
• Optional spacer available for mounting on .300 [7.62], .600 [15.24], .900
[22.86], 1.100 [27.94], and 1.300 [33.02] centers. Consult factory for other
sizes.
SPECIFICATIONS:
• Body is black UL 94-V0 Glass-filled 4/6 Nylon.
• Pin is Grade A Phosphor Bronze per QQ-B-750.
• Optional spacer is FR-406, .032 [.81] thick.
• Pin plating is:
11 = 10μ [.25μm] min. Gold per MIL-G-45204 over 50
μ
[1.27μm] min. Nickel
per SAE-AMS-QQ-N-290.
10 = 200μ” min Matte Tin per ASTM B545-97 over 50μ” min. Nickel per
SAE-AMS-QQ-N-290.
10TL = 200μ” min. 90/10 Tin/Lead per MIL-T-10727 Type 1 over 50μ” min.
Nickel per SAE-AMS-QQ-N-290.
• Current rating=1 Amp.
• Operating temperature= -67°F to 221°F [-55°C to 105°C] Tin &
Tin/Lead plating,
= -67°F to 257°F [-55°C to 125°C] Gold.
• Insertion Force=110 grams/pin average; Withdrawal Force=75 grams/pin
average.
• Accepts flat leads up to .014 x .020 wide [.36-.51], round leads up to .020
[.51] in diameter.
• Socket accepts lead lengths from seating plane
.080-.160 [2.03-4.06].
MOUNTING CONSIDERATIONS:
•Suggested PCB hole size=.045 ± .002 [.1.14 ± .05] dia.
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
X X - 0 5 0 1 - X X X X
Plating:
No. of pins
(see table)
Single row socket
Series
0=Tin
0TL= Tin/Lead
1=Gold
2=2 level wire wrap
3=3 level wire wrap
“A”=(NO. OF PINS X .100 [2.54]) + .050 [1.27]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
CONTACT DETAIL
All tolerances ± .005 [.13]
unless otherwise specified
Consult Data Sheet
No. 12008 for
strip-line sockets
with solder tail pins.
ORDERING INFORMATION
(for spacer bar)
0500-X.XXX
Series
Center-to-center
mounting desired
(“C” dimension)
Dim. “ L ”
No of Pins
20
25
30
34
40
No of Grooves
2
2
2
3
2
2 level wire wrap
3 level wire wrap
.420 [1 0.67]
.690 [1 7.52]
Other sizes
available.
Consult factory.
SPACER BAR
12009
http://www.arieselec.com • info@arieselec.com
REV. E
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
Bristol, PA USA
TEL: (215) 781-9956
FAX: (215) 781-9845
