127196MR024S200ZU datasheet, PDF

Datasheet> All Categories > The connector> The connector> 127196MR024S200ZU

127196MR024S200ZU: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size170KB，1 Pages; ManufacturerSUYIN-USA; Websitehttp://www.suyinusa.com

Download Datasheet Parametric View All

127196MR024S200ZU Overview

Board Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle

127196MR024S200ZU Parametric

Parameter Name	Attribute value
Objectid	1166464296
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PACKAGING TUBE W/O CAP
body width	0.136 inch
subject depth	0.188 inch
body length	0.6 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VDC V
Insulator color	BLACK
Manufacturer's serial number	127196
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.3688 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	24

Preview

Download Datasheet

View All

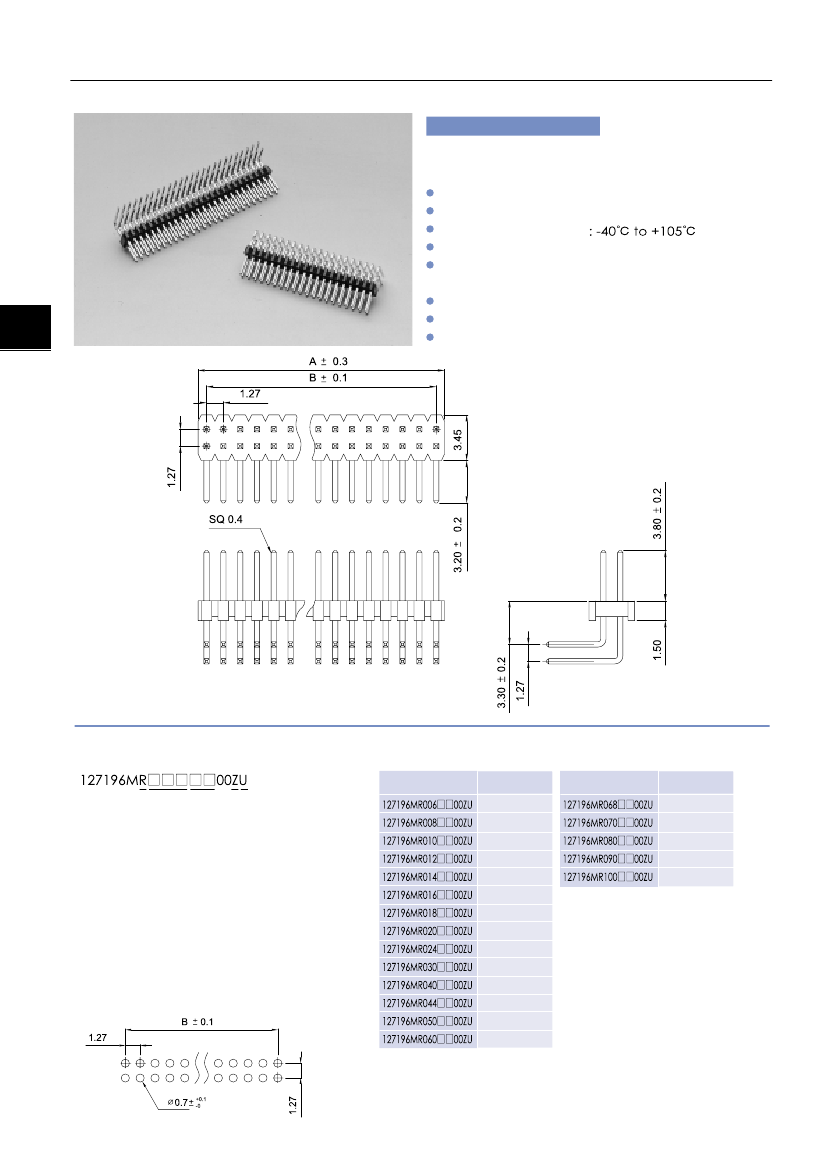

1.27X1.27mm DUAL ROW HEADER RIGHT ANGLE TYPE

127196MR Series

Mates with SUYIN 127123,127150,127151,127152 Series

Specifications:

6-100 Circuits

Insulator material

: Black High Temp . Plastic

Operating Temp. Range

Terminal Material

: Brass

Plating

: Selective Plated (Gold/Tin)

or Full Gold Plated.

Max. Current Rating

: 1.0A

Voltage Rating

: 150V AC

Dielectric Strength

: 500V(Min. 60 seconds)

1.27

Order Information

Dimensional Information

SUYIN P/NO.

DIM.A

3.80

5.07

6.34

7.61

8.88

10.15

11.42

12.69

15.23

19.04

25.39

27.93

31.74

38.09

DIM.B

2.54

3.81

5.08

6.35

7.62

8.89

10.16

11.43

13.97

17.78

24.13

26.67

30.48

36.83

SUYIN P/NO.

DIM.A

43.17

44.44

50.79

57.14

63.49

DIM.B

41.91

43.18

49.53

55.88

62.23

1. 'R' : Right Angle DIP Type

2. No. of Pins

3. Plating

4. Color 'Z' : Black

5. Package

'U' : Tube Package Without CAP

Reference Page 11

Recommended P.C.B. Layout

Recommended Resources

Half-bridge power conversion circuit diagram

Class output statistics circuit

TA7769P power amplifier circuit diagram

YX8955 digital reverb circuit

Ding Ling doorbell circuit

Multivibrators and Schmitt circuits
