208447032007001 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 208447032007001

Preview

208447032007001: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,; CategoryThe connector The connector; File Size23KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

208447032007001 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,

208447032007001 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARD: DIN 41612
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	8447
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	32
Base Number Matches	1

Preview

Download Datasheet

View All

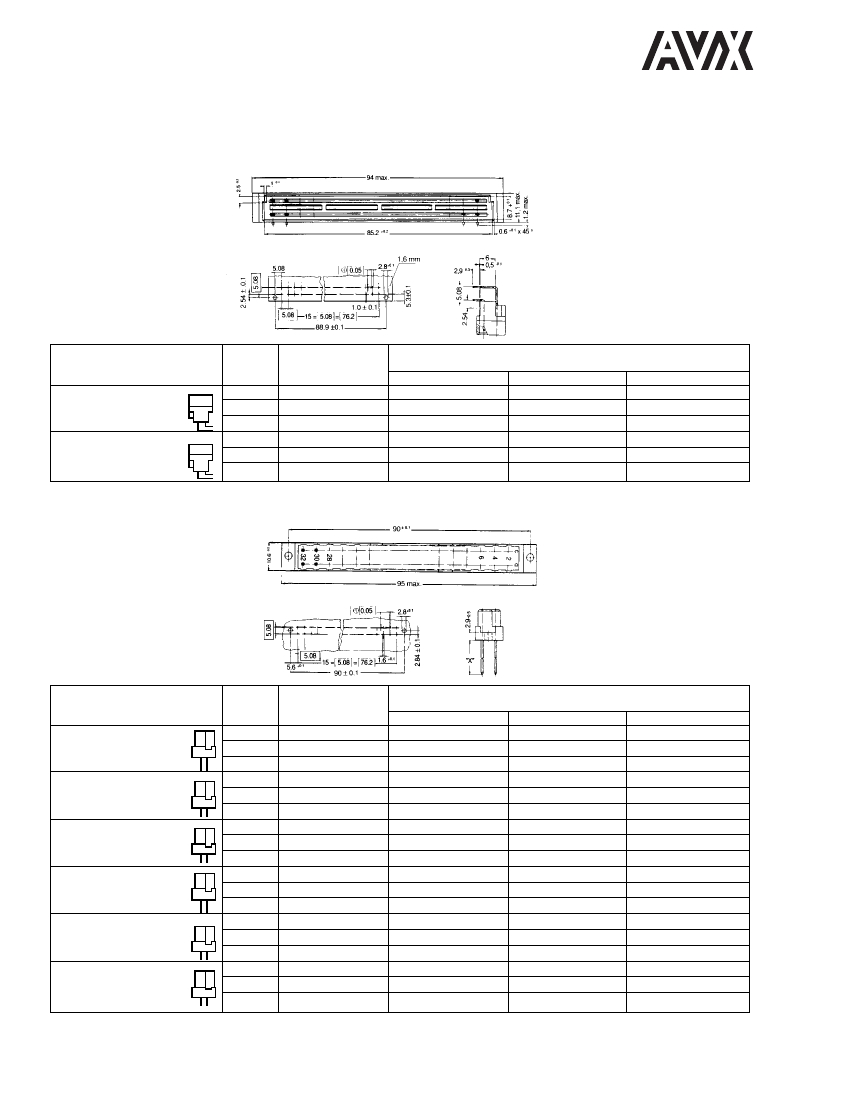

DIN 41612 Connectors

Series 8447 – Male Style D - 2 Rows (2 x 16) -

.100 or .200 Pitch

Dimensions

Contact Design

and

Termination Length

3.0 mm (Y) (0.6 x 0.6 mm)

Right Angled Pitch 5.08

3.0 mm (Y) (0.6 x 0.6 mm)

Right Angled Pitch 2.54

Number

of

Positions

32

30 + 2

32

30 + 2

Loading

Description

a + c fully loaded

fully loaded + ground

a + c fully loaded

fully loaded + ground

Part Number

Performance classes according to DIN 41612

III

II

I

10 8447 032 001 001

10 8447 032 101 001

10 8447 032 002 001

10 8447 032 102 001

10 8447 032 001 025

10 8447 032 101 025

10 8447 032 002 025

10 8447 032 102 025

10 8447 032 001 049

10 8447 032 101 049

10 8447 032 002 049

10 8447 032 102 049

Series 8447 – Female Style D - 2 Rows (2 x 16) - .200 Pitch

Dimensions

Contact Design

and

Termination Length

1 x 1 mm Post Profile

20.0 mm (Y) Straight

1 x 1 mm Post Profile

9.0 mm (Y) Straight

0.6 x 0.6 mm Post Profile

4.0 mm (Y) Straight

1 x 1 mm Post Profile

12.0 mm (Y) Straight

0.6 x 1.28 mm Post Profile

4.5 mm (Y) Straight

Number

of

Positions

Loading

Description

Part Number

Performance classes according to DIN 41612

III

II

I

32

a + c fully loaded

20 8447 032 001 001

20 8447 032 001 025

20 8447 032 001 049

32

a + c fully loaded

20 8447 032 002 001

20 8447 032 002 025

20 8447 032 002 049

32

a + c fully loaded

20 8447 032 003 001

20 8447 032 003 025

20 8447 032 003 049

32

a + c fully loaded

20 8447 032 004 001

20 8447 032 004 025

20 8447 032 004 049

32

a + c fully loaded

20 8447 032 006 001

20 8447 032 006 025

20 8447 032 006 049

7.5 mm (Y) Solder Hole

32

a + c fully loaded

20 8447 032 007 001

20 8447 032 007 025

20 8447 032 007 049

Additional information on this product is available from AVX’s catalog or AVX’s FAX Service.

Call 1-800-879-1613 and request document

#194.

Visit our website http://www.avxcorp.com

194

ELCO

208447032007001 Related Products

	208447032007001	108447032001001	208447032003001	208447032006001	208447032001001
Description	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compliant	compli	compli	compli
Other features	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	MALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Terminal pitch	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	32	32	32	32	32
ECCN code	EAR99	EAR99	-	EAR99	-
Manufacturer's serial number	8447	-	8447	8447	8447
Base Number Matches	1	-	1	1	1
