M85049/78-19W03 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> M85049/78-19W03

M85049/78-19W03: Descriptioncircular mil spec backshells emi/rfi env SH sz19 clmp sz03 olive drab; CategoryThe connector Connector bracket; File Size117KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049/78-19W03 Overview

circular mil spec backshells emi/rfi env SH sz19 clmp sz03 olive drab

M85049/78-19W03 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	_compli
Factory Lead Time	10 weeks
Other features	EMI/RFI SHIELDED
Related Mil-Spec Back Cases	MIL-DTL-38999
Connector bracket type	CONNECTOR ACCESSORY
DIN compliance	NO
IEC compliance	NO
MIL compliance	YES
Military connector accessories name	BACKSHELL
Housing size	19
Base Number Matches	1

Preview

Download Datasheet

View All

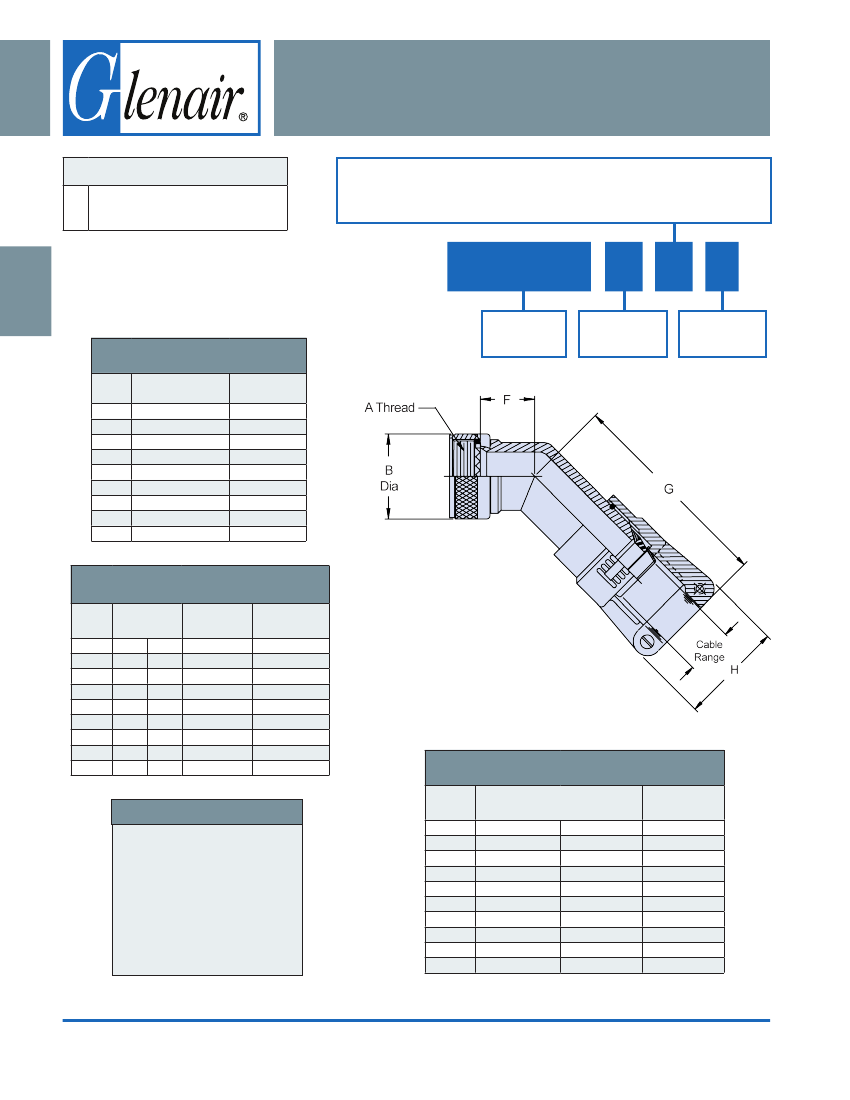

AS85049/78

45° EMI/RFI Environmental Backshell

CONNECTOR DESIGNATOR:

Finish

= Aluminum, Nickel Flurocarbon Polymer

= Aluminum, Zinc-Nickel, Black

TABLE I: Shell Size,

Thread and Dimensions

Shell

Size

A Thread

Class 2B

M12 X 1 - 6H

M15 X 1 - 6H

M18 X 1 - 6H

M22 X 1 - 6H

M25 X 1 - 6H

M28 X 1 - 6H

M31 X 1 - 6H

M34 X 1 - 6H

M37 X 1 - 6H

B Dia

Max

.750 (19.1)

.850 (21.6)

1.000 (25.4)

1.150 (29.2)

1.250 (31.8)

1.400 (35.6)

1.550 (39.4)

1.650 (41.9)

1.850 (47.0)

AS85049

MIL-DTL-38999, Series III and IV

EN3645

= Electroless Nickel

= 1,000 Hr. Cadmium Olive Drab

over Electroless Nickel

M85049/78

Basic

Part Number

Shell Size

(Tables I & II)

Clamp Size

(Tables II & III)

TABLE II: Shell Size,

Clamp Size and Dimensions

Shell

Size

Clamp Size

Min Max

±.062 (1.6)

.398

.458

.518

.588

.678

.868

.958

(10.1)

(11.6)

(13.2)

(14.9)

(17.2)

(22.0)

(24.3)

±.062 (1.6)

3.088

3.148

3.208

3.298

3.408

3.598

3.748

(78.4)

(80.0)

(81.5)

(83.8)

(86.6)

(91.4)

(95.2)

Clamp

Size

.062

.125

.250

.375

.500

.625

.750

.875

1.000

1.125

TABLE III: Clamp Size,

Cable Range and Dimensions

Cable Range

Min

Max

(1.6)

(3.2)

(6.4)

(9.5)

(12.7)

(15.9)

(19.1)

(22.2)

(25.4)

(28.6)

.125

.250

.375

.500

.625

.750

.875

1.000

1.125

1.250

(3.2)

(6.4)

(9.5)

(12.7)

(15.9)

(19.1)

(22.2)

(25.4)

(28.6)

(31.8)

Max

.800

1.000

1.100

1.200

1.250

1.400

1.500

1.650

1.750

1.900

(20.3)

(25.4)

(27.9)

(30.5)

(31.8)

(35.6)

(38.1)

(41.9)

(44.5)

(48.3)

APPLICATION NOTES

For complete dimensions

see the applicable Military

Specification.

Metric dimensions (mm) are in

parentheses.

Cable Range is defined as

the accommodation range

for the wire bundle or cable.

Dimensions shown are not

intended for inspection criteria.

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-92

E-Mail: sales@glenair.com
