5224SW150036 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 5224SW150036

5224SW150036: DescriptionCable Assembly; CategoryThe connector Connector bracket; File Size281KB，3 Pages; ManufacturerVertiv

Download Datasheet Parametric View All

5224SW150036 Overview

Cable Assembly

5224SW150036 Parametric

Parameter Name	Attribute value
Objectid	1928025677
Reach Compliance Code	unknown
Connector bracket type	CABLE ASSEMBLY

Preview

Download Datasheet

View All

Semflex

High Performance Test Cable Assembly

SWI Series

150 Group

Emerson Network Power Connectivity Solutions

offers the Semflex SWI 150 test cable assembly

series. This line incorporates low loss performance

cable and precision connectors providing for a

good interconnect cable. These cables are ideal

for in-box or in-cabinet applications to 18 GHz.

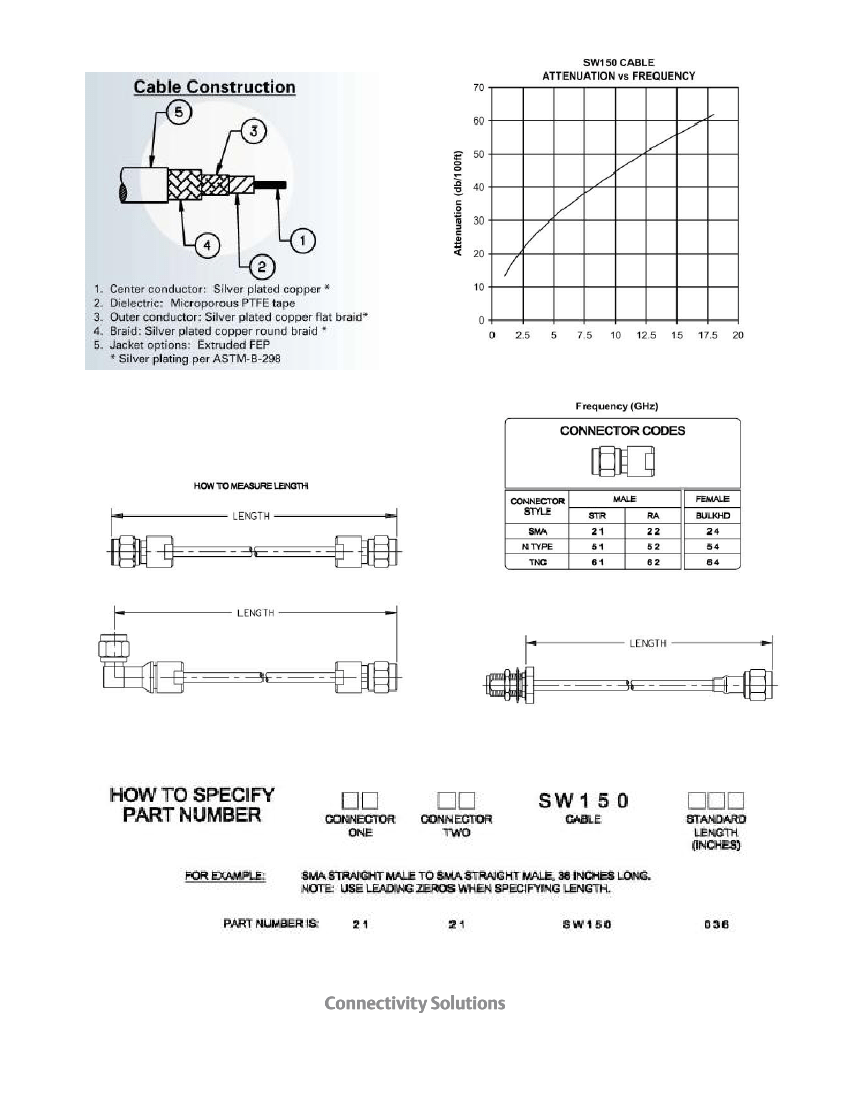

These assemblies feature low loss double shielded

cable with a PTFE

jacket. The double shielded

construction of these cables gives outstanding

shielding effectiveness of greater than -85db at 18

GHz. The assemblies feature precision stainless

steel connectors designed to meet MIL-C-39012,

MIL-STD-348a or all applicable industry

specifications, and are available in straight male,

straight female, bulkhead, and right angle styles.

These cable assemblies feature low loss, excellent

VSWR, and are excellent to increase the

performance of any system.

Key Features & Benefits



Precision stainless steel connectors



Low loss PTFE tape Dielectric



FEP outer jacket



Double shielded for -85 dB leakage at 18GHz

Applications



General purpose, low loss interconnections



High temperature (+200° C)



Low temperature(-65°C)

Available Connectors



N, SMA, TNC



Straight male, right angle male; bulkhead female
