M85049/1817N04B datasheet, PDF

Datasheet> All Categories > The connector> M85049/1817N04B

M85049/1817N04B: Descriptioncircular mil spec backshells straight backshell; CategoryThe connector; File Size180KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

M85049/1817N04B Overview

circular mil spec backshells straight backshell

M85049/1817N04B Parametric

Parameter Name	Attribute value
Manufacture	Glenai
Product Category	Circular MIL Spec Backshells
RoHS	Yes
MIL Type	MIL-DTL-38999 III, IV

Preview

Download Datasheet

View All

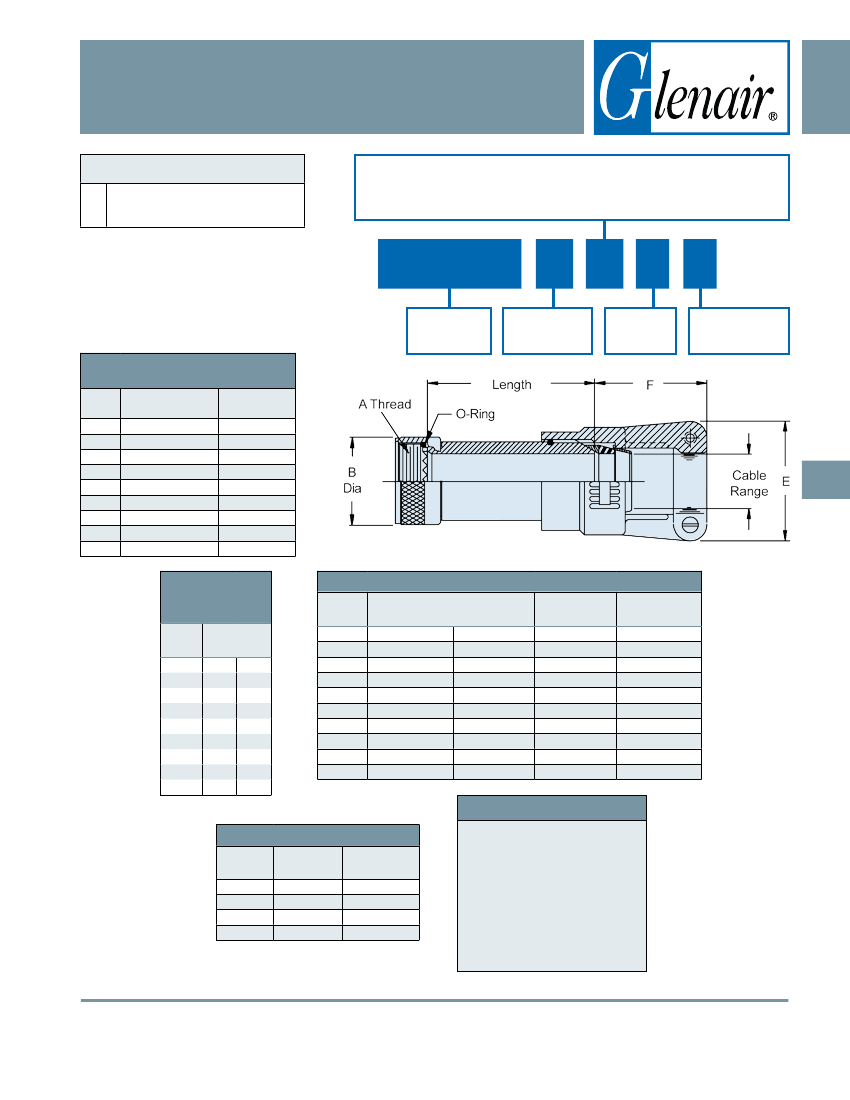

AS85049/18

Straight EMI/RFI Environmental Backshell

CONNECTOR DESIGNATOR:

Finish

= Aluminum, Nickel Flurocarbon Polymer

= Aluminum, Zinc-Nickel, Black

MIL-DTL-38999, Series III and IV

EN3645

= Electroless Nickel

= 1,000 Hr. Cadmium Olive Drab

over Electroless Nickel

M85049/18

Basic

Part Number

Shell Size

(Table I)

Length Code

(Table IV)

Omit for Standard

Clamp Size

(Table III)

TABLE I: Shell Size,

Thread and Dimensions

Shell

Size

A Thread

Class 2B

M12 X 1 - 6H

M15 X 1 - 6H

M18 X 1 - 6H

M22 X 1 - 6H

M25 X 1 - 6H

M28 X 1 - 6H

M31 X 1 - 6H

M34 X 1 - 6H

M37 X 1 - 6H

B Dia

Max

.750 (19.1)

.850 (21.6)

1.000 (25.4)

1.150 (29.2)

1.250 (31.8)

1.400 (35.6)

1.550 (39.4)

1.650 (41.9)

1.850 (47.0)

TABLE II:

Shell Size and

Clamp Size

Shell

Size

Clamp Size

Min Max

TABLE III: Clamp Size, Cable Range and Dimensions

Clamp

Size

Min

.062

.125

.250

.375

.500

.625

.750

.875

1.000

1.125

Cable Range

Max

(3.2)

(6.4)

(9.5)

(12.7)

(15.9)

(19.1)

(22.2)

(25.4)

(28.6)

(31.8)

Max

.781

.969

1.062

1.156

1.250

1.375

1.500

1.625

1.750

1.875

(19.8)

(24.6)

(27.0)

(29.4)

(31.8)

(34.9)

(38.1)

(41.3)

(44.5)

(47.6)

Max

1.250

1.312

1.375

1.500

1.625

(31.8)

(33.3)

(34.9)

(38.1)

(41.3)

(1.6)

(3.2)

(6.4)

(9.5)

(12.7)

(15.9)

(19.1)

(22.2)

(25.4)

(28.6)

.125

.250

.375

.500

.625

.750

.875

1.000

1.125

1.250

APPLICATION NOTES

TABLE IV: Length Code

Length

Code

Standard

Available

Shell Sizes

9 - 25

Length

1.500 (38.1)

2.500 (63.5)

3.500 (88.9)

4.500 (114.3)

For complete dimensions

see the applicable Military

Specification.

Metric dimensions (mm) are in

parentheses.

Cable Range is defined as

the accommodation range

for the wire bundle or cable.

Dimensions shown are not

intended for inspection criteria.

Printed in U.S.A.

CAGE Codes 06324

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com

39-17

EMI/RFI Environ.

Backshells
