10/100/1000BASE-T SINGLE &
DUAL-PORT TRANSFORMER MODULES
Military / Aerospace Grade
Compliant with IEEE 802.ab for 1000Base-T
350µH OCL with 8mA bias at extended temperatures
Operating and storage temperature:
1000B-5001F/5002F/5003F: -40ºC to +85ºC
1000B-5001FX/5002FX/5003FX: -55ºC to +125ºC
IC grade transfer-molded package withstands 235°C peak
temperature profile RoHS version withstands 245°C
MSL:
3
Electrical Specifications @ 25°C
Part
Number
2
1000B-5001F
1000B-5001FX
1000B-5002F
1000B-5002FX
1000B-5003F
1000B-5003FX
Insertion
Loss
(dB Min)
0.1-100
Mhz
-1.20
-1.40
-1.20
-1.20
-1.20
-1.20
Return Loss
(dB Max)
30
Mhz
-18
-18
-18
-18
-18
-18
60
Mhz
-12
-12
-14
-14
-14
-14
80
Mhz
-10
-10
-12
-12
-11
-11
100
Mhz
-10
-8
-10
-10
-9
-9
30
Mhz
-43
-43
-43
-43
-43
-43
Crosstalk
(dB Max)
60
Mhz
-37
-37
-37
-37
-37
-37
100
Mhz
-33
-33
-33
-33
-33
-33
CM to CM
Rejection Ratio
(dB Max)
30
60
100
Mhz
Mhz
Mhz
-40
-35
-30
-40
-40
-40
-40
-40
-35
-35
-35
-35
-35
-30
-30
-30
-30
-30
DM to CM
Rejection Ratio
(dB Max)
30
60
100
Mhz
Mhz
Mhz
-43
-37
-33
-43
-43
-43
-43
-43
-37
-37
-37
-37
-37
-33
-33
-33
-33
-33
Note: 1.
Add suffix NL for RoHS compliant part; i.e. 1000B-5001F becomes 1000B-5001FNL.
2.
For Tape and Reel Packaging, add “T” suffix at the end of the part number; i.e. 1000B-5001FXT.
Mechanical

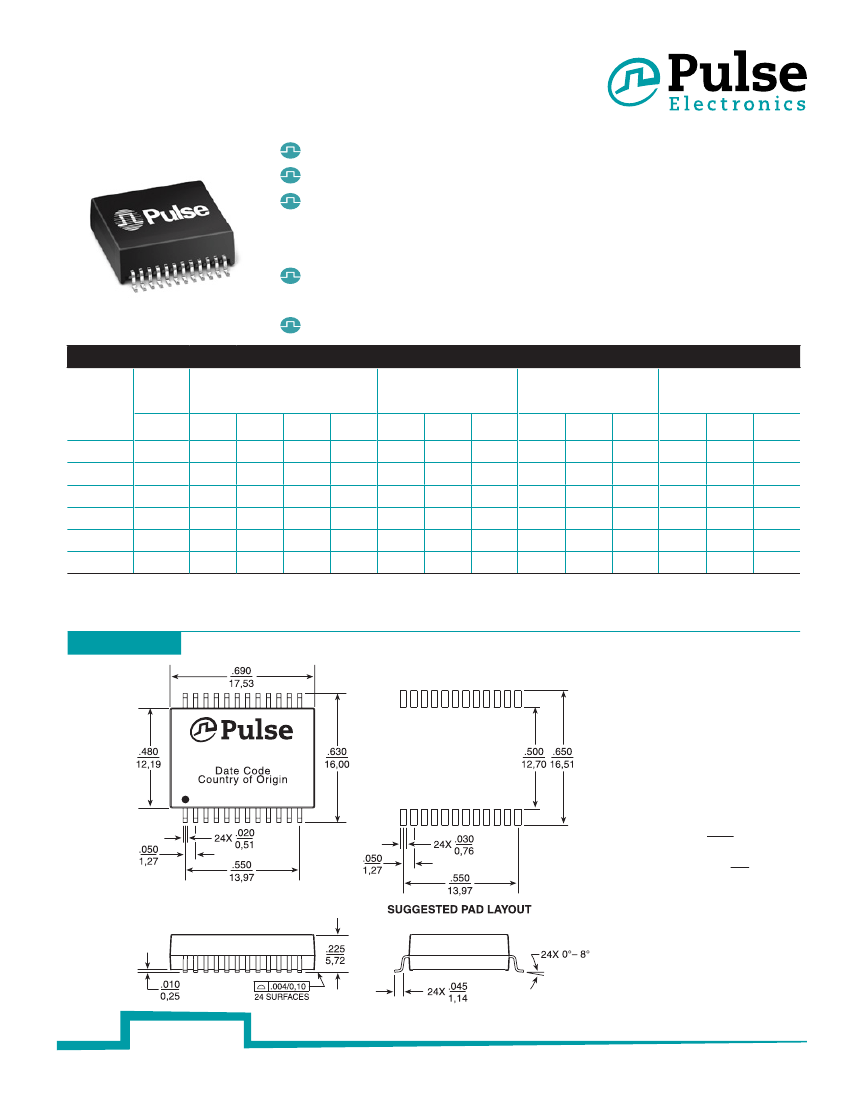

1000B-5001F/X
Weight
. . . . . . . . . . . . . . 3 .0 grams
Tape and Reel
. . . . . . . . . 300/reel
Tube
. . . . . . . . . . . . . . . . . .25/tube
1000B-5001F/X
Dimensions:
Inches
mm
Unless otherwise specified,
all tolerances are ± .010
0,25
1
pulseelectronics.com
M106.F (10/13)
10/100/1000BASE-T SINGLE &
DUAL-PORT TRANSFORMER MODULES
Military / Aerospace Grade

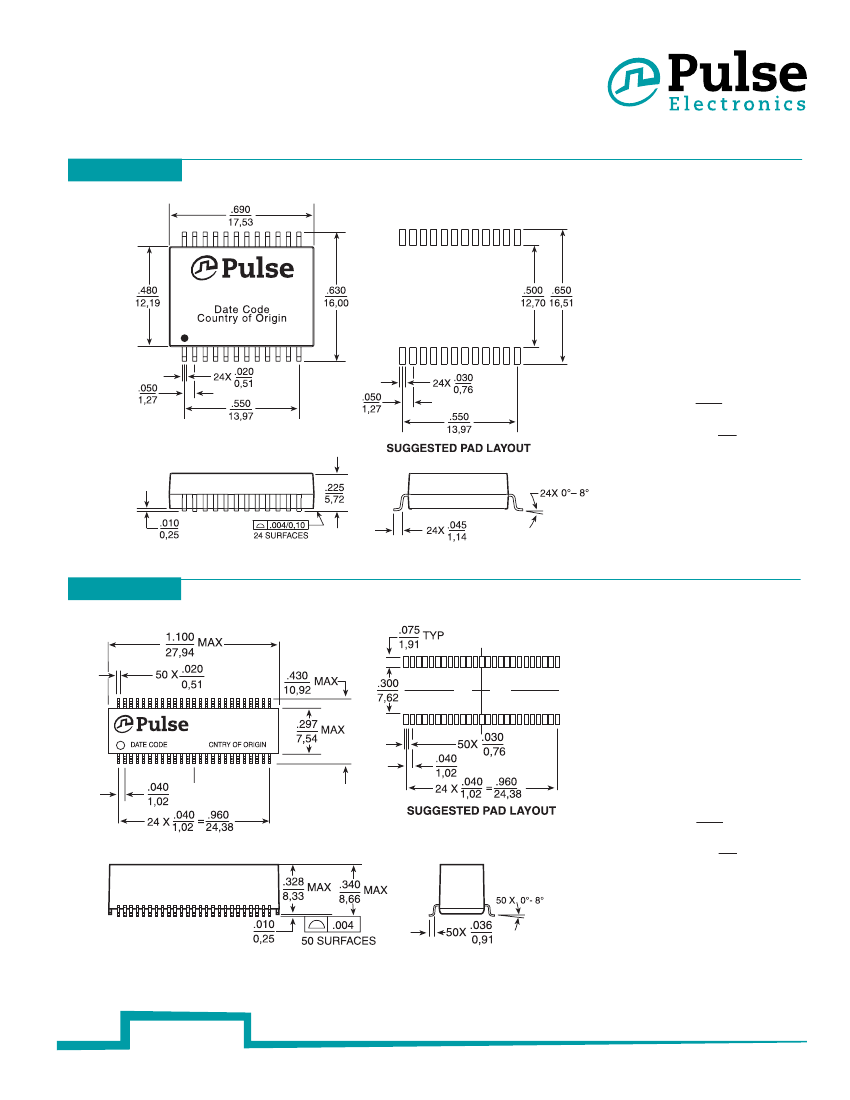

1000B-5002F/X
1000B-5002F/X
Weight
. . . . . . . . . . . . . . 2 .6 grams
Tape and Reel
. . . . . . . . . 300/reel
Tube
. . . . . . . . . . . . . . . . . .25/tube
Dimensions:
Inches
mm
Unless otherwise specified,
all tolerances are ± .010
0,25
1000B-5003F/X
1000B-5003F
1000B-5003FX
Weight
. . . . . . . . . . . . . . 3 .5 grams
Tape and Reel
. . . . . . . . . 250/reel
Tube
. . . . . . . . . . . . . . . . . .15/tube
Dimensions:
Inches
mm
Unless otherwise specified,
all tolerances are ± .010
0,25
2
pulseelectronics.com
M106.F (10/13)
10/100/1000BASE-T SINGLE &
DUAL-PORT TRANSFORMER MODULES
Military / Aerospace Grade

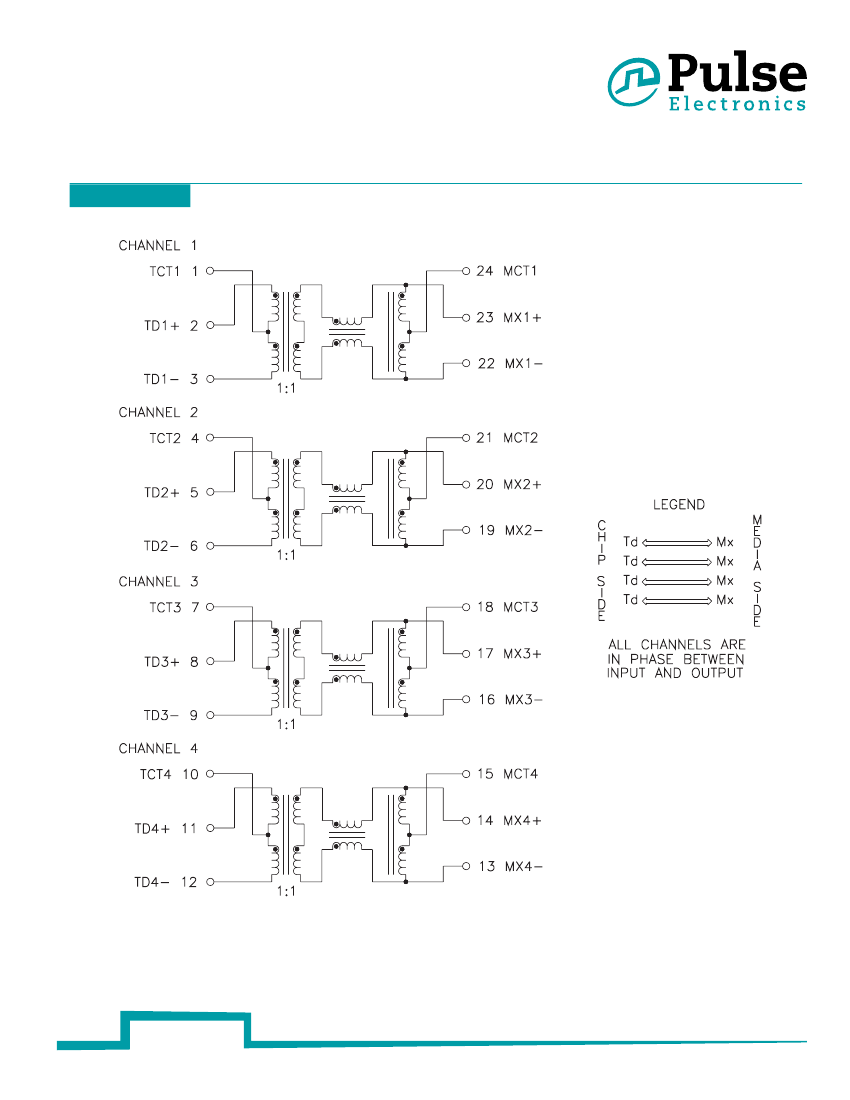

Electrical Schematic
1000B-5001F/X
3
pulseelectronics.com
M106.F (10/13)
10/100/1000BASE-T SINGLE &
DUAL-PORT TRANSFORMER MODULES
Military / Aerospace Grade

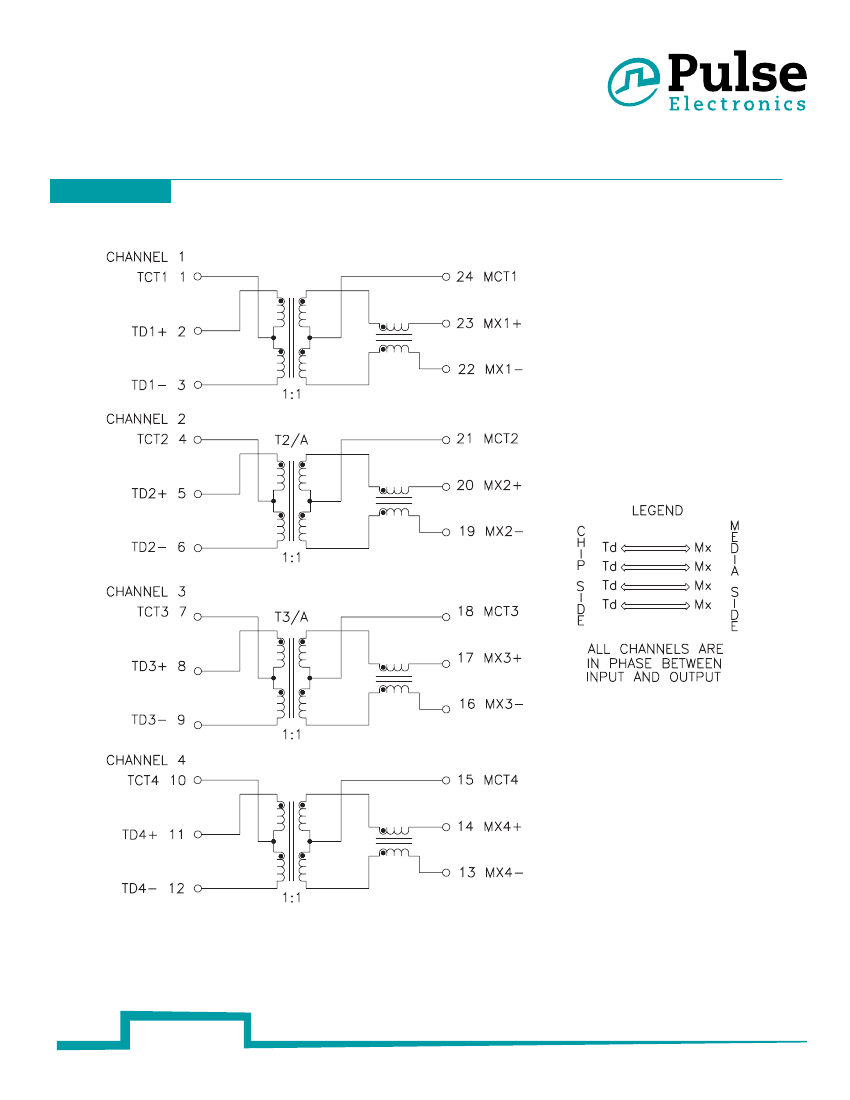

Electrical Schematic
1000B-5002F/X
4
pulseelectronics.com
M106.F (10/13)
10/100/1000BASE-T SINGLE &
DUAL-PORT TRANSFORMER MODULES
Military / Aerospace Grade

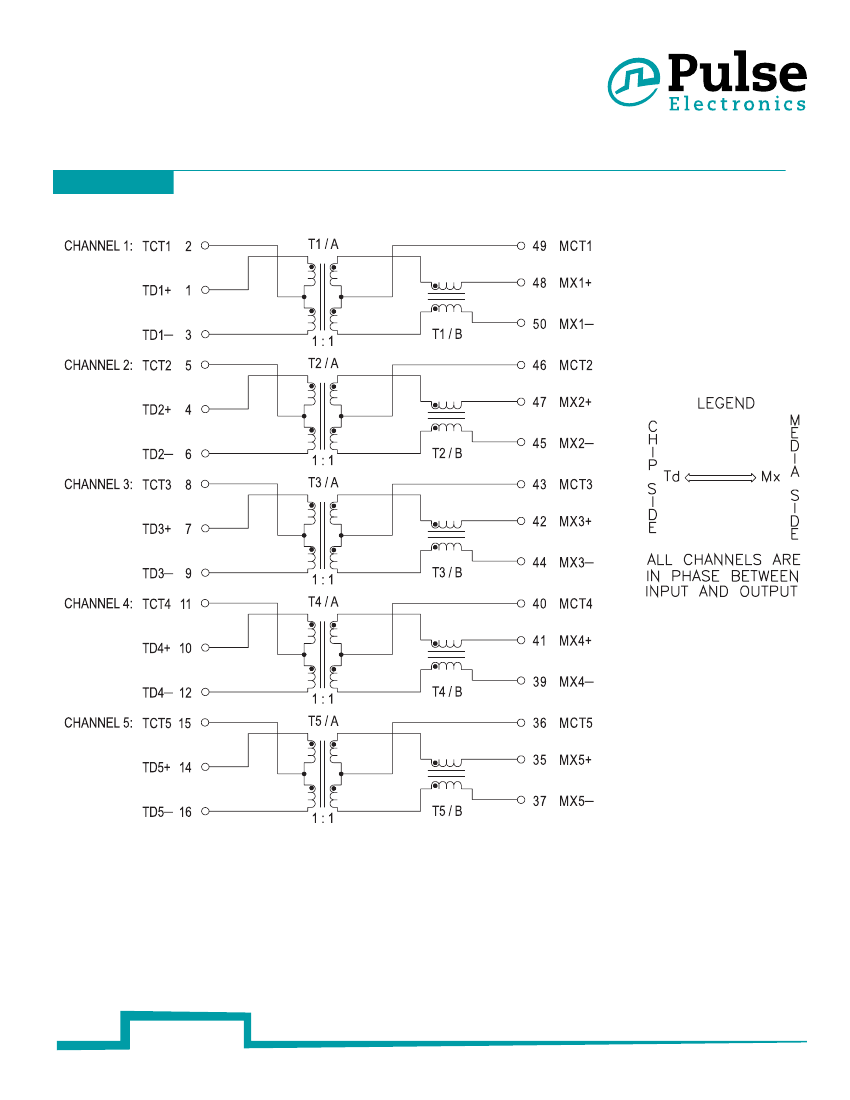

Electrical Schematic
1000B-5003F/X
Continued on next page .
5
pulseelectronics.com
M106.F (10/13)
