M83513/16-D02PP datasheet, PDF

Datasheet> All Categories > The connector> The connector> M83513/16-D02PP

M83513/16-D02PP: DescriptionD-sub mil spec connectors std prof RA pcb pcon 25cnt .140"pctail; CategoryThe connector The connector; File Size229KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M83513/16-D02PP Overview

D-sub mil spec connectors std prof RA pcb pcon 25cnt .140"pctail

M83513/16-D02PP Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compli
Factory Lead Time	9 weeks
Other features	STANDARD: MIL-DTL-83513
Board mount options	HOLE.096
body width	0.325 inch
subject depth	0.465 inch
body length	1.79 inch
Body/casing type	PLUG
Connector type	D MICROMINIATURE CONNECTOR
Contact arrangement	S25P0
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	YES
Plug contact pitch	0.05 inch
Match contact row spacing	0.043 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#2-56
Installation option 2	JACKPOST
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	50u inch
Rated current (signal)	3 A
Guideline	MIL
Shell material	METAL
Housing size	D
Terminal length	0.14 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	25
Evacuation force-minimum value	0.139 N

Preview

Download Datasheet

View All

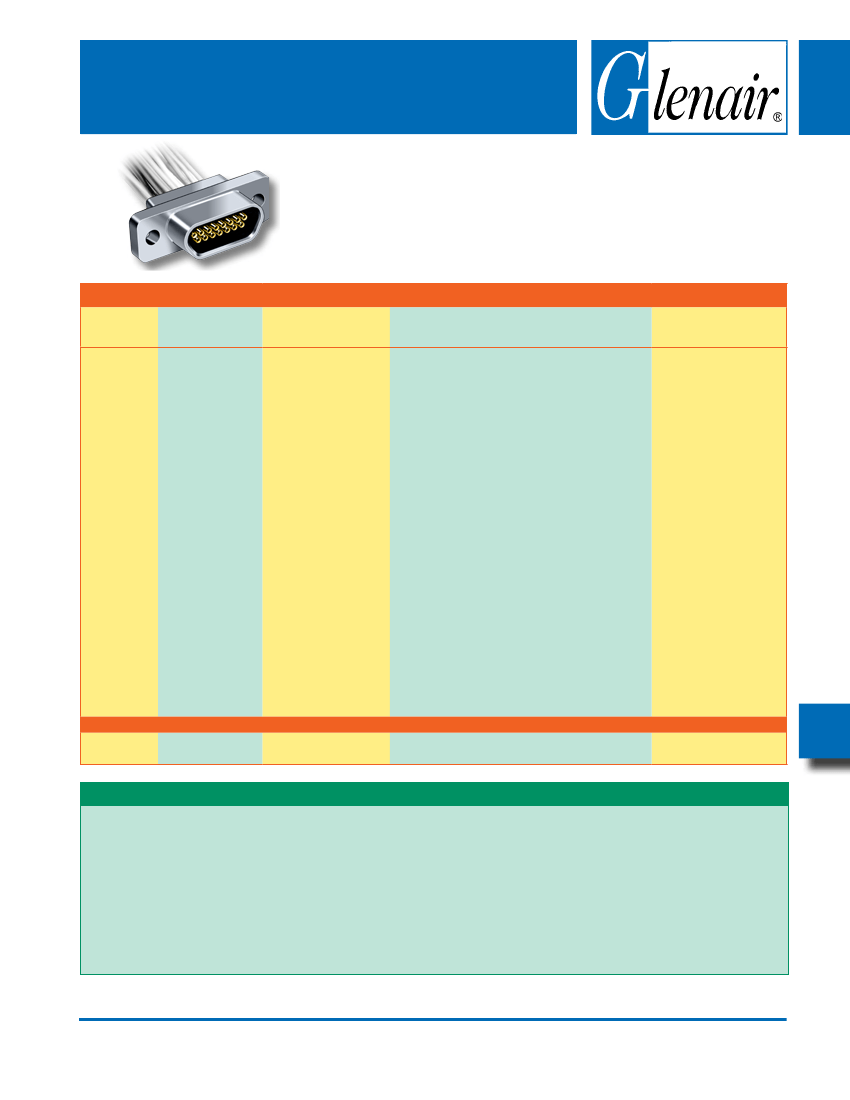

MIL-DTL-83513/03 & /04 Micro-D Connectors

Metal Shell Crimp, Pre-Wired

Micro-D Pre-Wired Pigtails

— These connectors feature gold-plated TwistPin

contacts and mil spec crimp termination. Specify aluminum shells for best

availability. 100% tested and backpotted, ready for use.

Choose the Wire Type To Fit Your Application

— For lightest weight and smallest

diameter, select M22759/33 space grade insulated wire.

HOW TO ORDER METAL SHELL PRE-WIRED CRIMP MIL-DTL-83513 MICRO-D CONNECTORS

Base Part

Number

Slash Number

/03

Pin Connector

(Plug)

Shell Size

Wire Type

Shell Finish

M83513

/04

Socket Connector

(Receptacle)

Codes A - H specify the

shell size. The number

of contacts is shown

below for reference.

A – 9

B – 15

C – 21

D – 25

E – 31

F – 37

G – 51

H – 100

M22759/11-26 Teflon

-Insulated Hookup Wire

– 18 Inches (457mm), White

– 36 Inches (914mm), White

– 18 Inches (457mm), 10 Color Repeating

– 36 Inches (914mm), 10 Color Repeating

– 72 Inches (1829mm), White

– Cadmium

– Electroless Nickel

– Passivated SST

– 72 Inches (1829mm), 10 Color Repeating

M22759/33-26 Irradiated Tefzel

Insulated

Hookup Wire

– 18 Inches (457mm), White

– 36 Inches (914mm), White

– 18 Inches (457mm), 10 Color Repeating

– 36 Inches (914mm), 10 Color Repeating

– 72 Inches (1829mm), White

– 72 Inches (1829mm), 10 Color Repeating

25 AWG Single Strand Uninsulated Wire

– .500 Inch (12.7mm), Gold Plated

– 1.000 Inch (25.4mm), Gold Plated

– .500 Inch (12.7mm), Tin-Lead Plated

(2)

– 1.000 Inch (25.4mm), Tin-Lead Plated

(2)

Sample Part Number

M83513

/04

— B

APPLICATION NOTES

1. Shell Material & Finish: Cadmium plating offers better corrosion resistance compared to nickel, but cad is not acceptable for

space or RoHS applications. Electroless nickel plated aluminum is recommended for new design activity.

Or, choose stainless steel shells for corrosive environments.

2. Tin-Plated Wire:

The next revision of the mil spec is expected to prohibit the use of pure tin. Glenair M83513 connectors

do not contain any components exceeding 97% tin.

3. M22759/33 Corrosion: The M83513 spec contains a cautionary note regarding M22759/33 wire. The wire insulation is known to

cause corrosion to metal parts when stored in a sealed environment. This corrosion has been observed

on M83513 connectors. Glenair has implemented a packaging procedure to minimize or eliminate this

problem. Connectors are individually wrapped with teflon tape, and the unit pack is a perforated paper

envelope. M22759/33 continues to be the preferred wire for space applications.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

L-5

Micro-D

MIL-DTL-83513
