D38999/27YB35PB datasheet, PDF

Datasheet> All Categories > The connector> The connector> D38999/27YB35PB

D38999/27YB35PB: Descriptioncircular mil spec connector 13p Sz 26 pin crimp hermetic weld mount; CategoryThe connector The connector; File Size399KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

D38999/27YB35PB Overview

circular mil spec connector 13p Sz 26 pin crimp hermetic weld mount

D38999/27YB35PB Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compli
Factory Lead Time	17 weeks
Other features	STANDARD: MIL-DTL-38999, EMI SHIELDED, POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	HERMETIC
Shell material	STAINLESS STEEL
Housing size	B
Termination type	SOLDER
Total number of contacts	13

Preview

Download Datasheet

View All

D38999 QPL

Hermetics

Basic Specification

D38999

D38999/27

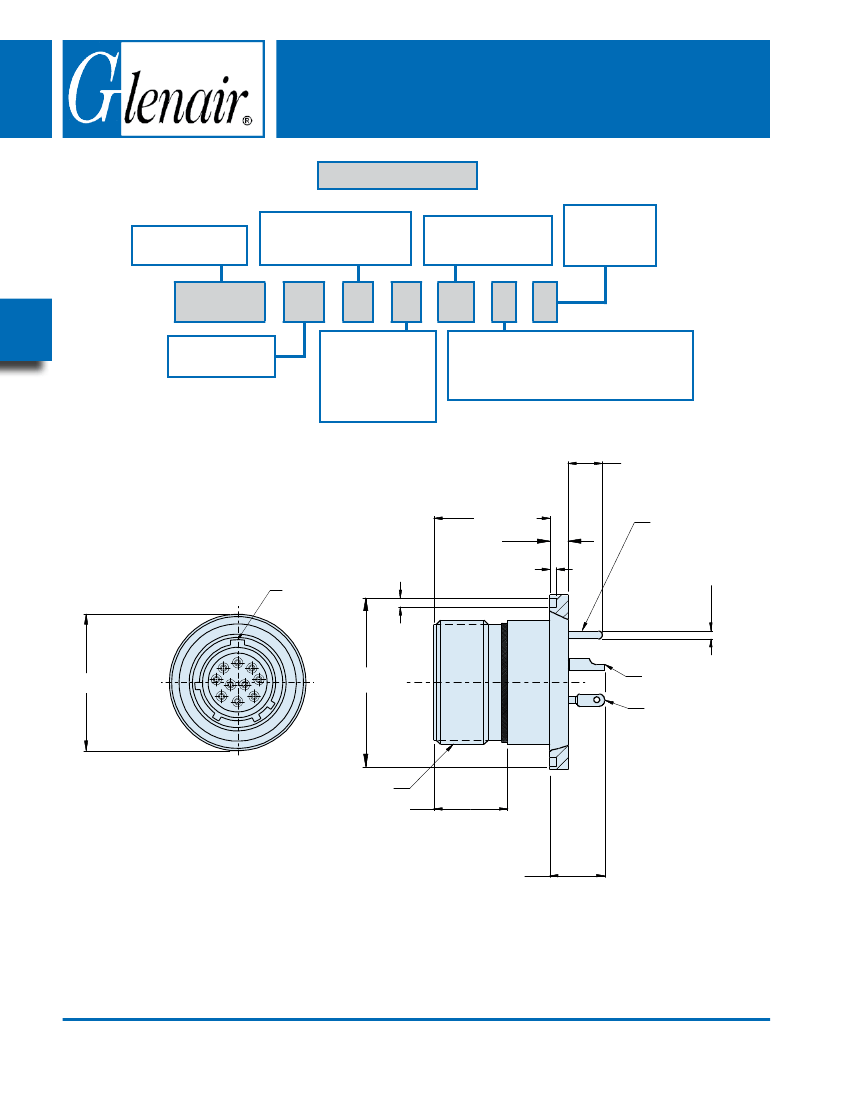

Weld Mount Hermetic Receptacle

MIL-DTL-38999 Series III

How To Order:

Connector Material / Finish

- CRES, Nickel

- CRES, Passivated

Insert Arrangement

Per MIL-STD-1560;

See Pages B2 - B4

Alternate Key

Position

A, B, C, D, E

(N = Normal)

D38999

Shell Style

/27

Weld Mount

/27

Shell Size

- 9

- 19

- 11

- 21

- 13

- 23

- 15

- 25

- 17

Contact Termination

- Pin, Solder Cup

- Socket, Solder Cup

- Pin, Eyelet

- Socket, Eyelet

- Pin, PCB

- Socket, PCB

Flex Feedthrough

.175/.125

.822 Max

.071

.059

Master Keyway

Feedthrough

Contact (C)

.051

.039

P (See Table II)

øC

øB

Solder Cup

Contact (P)

Eyelet

Contact (X)

A Thread

.520 Max

Fully Mated

Indicator

Band-Red

.382 (9.7) Max for P, X, C

.405 (10.3) Max for S, Z, D

Consult Factory for Recommended Panel Cutout Dimensions

www.glenair.com

CAGE CODE 06324

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

B-26

D38999/27YB35PB Related Products

	D38999/27YB35PB	D38999/27YC98PA	D38999/27YB35PN	D38999/27YC4PN	D38999/27YB35PC	D38999/27NB35PN
Description	circular mil spec connector 13p Sz 26 pin crimp hermetic weld mount	circular mil spec connector weld MT herm recept pin sldr cup 13	circular mil spec connector 13p Sz 26 pin crimp hermetic weld mount	circular mil spec connector weld MT herm recept pin sldr cup 13	circular mil spec connector 13p Sz 26 pin crimp hermetic weld mount	circular mil spec connector weld MT herm recept pin sldr cup 11
Reach Compliance Code	compli	compli	compli	compliant	compliant	compliant
Other features	STANDARD: MIL-DTL-38999, EMI SHIELDED, POLARIZED	STANDARD: MIL-DTL-38999, EMI SHIELDED, POLARIZED	STANDARD: MIL-DTL-38999, EMI SHIELDED	STANDARD: MIL-DTL-38999, EMI SHIELDED	STANDARD: MIL-DTL-38999, EMI SHIELDED, POLARIZED	STANDARD: MIL-DTL-38999, EMI SHIELDED
Back shell type	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD	GOLD (50) OVER NICKEL
Contact completed and terminated	GOLD	GOLD	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD	GOLD (50) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Coupling type	THREADED	THREADED	SNAP	SNAP	THREADED	SNAP
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Environmental characteristics	ENVIRONMENT RESISTANT	ENVIRONMENT RESISTANT	CORROSION/MOISTURE/VIBRATION RESISTANT	CORROSION/MOISTURE/VIBRATION RESISTANT	ENVIRONMENT RESISTANT	CORROSION/MOISTURE/VIBRATION RESISTANT
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4
MIL compliance	YES	YES	YES	YES	YES	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL
Options	HERMETIC	HERMETIC	HERMETIC	HERMETIC	HERMETIC	HERMETIC
Shell material	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL
Housing size	B	C	B	C	B	B
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	13	10	13	4	13	13
Maker	Glenair	Glenair	Glenair	Glenair	Glenair	-
Factory Lead Time	17 weeks	17 weeks	17 weeks	17 weeks	17 weeks	-
