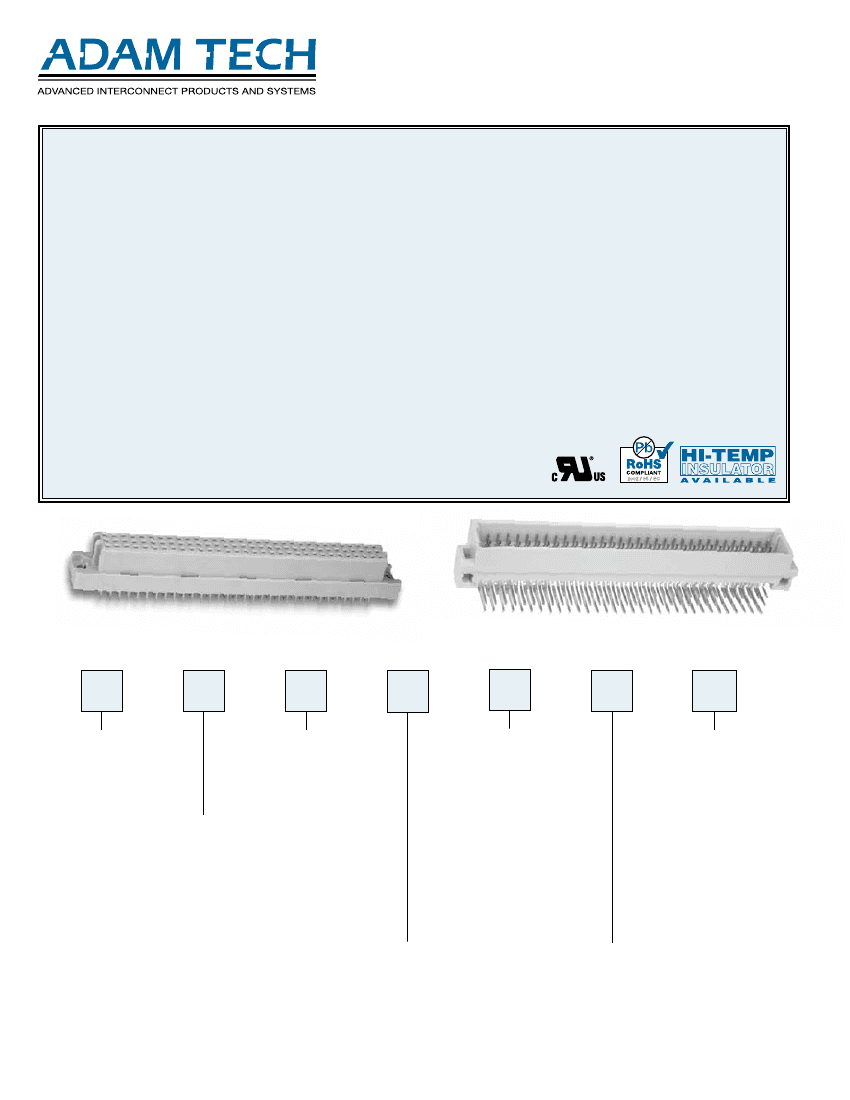

DIN 41612 CONNECTORS
DNR SERIES
INTRODUCTION:
Adam Tech DNR Series DIN 41612
connectors are a versatile two piece PCB
connector set with features useful for
many applications including connections
between plug-in card and back-panel
wiring, PCB to PCB attachment and
peripheral connections for external
interfaces. Features include a multitude
of body sizes and styles with options that
include selective contact loading, make
and break contacts, contact lead length
choices, and contact plating variations
each in .100" [2.54] or .200" [5.08]
centerline spacing.
FEATURES:
Industry Standard Compatible
Multiple Body Sizes
Contact Plating Options
Make and Break contacts
.100" or .200" Centerlines
Mating Options:
Adam Tech DNR series and All industry
standard DIN 41612 Connectors.
SPECIFICATIONS:
Material:
Standard insulator: PBT, glass filled,
rated UL94V-0
Optional Hi-Temp insulator: Nylon 6T,
rated UL94V-0
Insulator Color: Beige
Contacts: Brass or Phosphor Bronze
Plating:
Gold over nickel underplate on
contact area
Tin over copper underplate on tails
Electrical:
Operating voltage: 500V AC max.
Current rating: 2 Amps max
Contact resistance: 30 mΩ max. initial
Insulation resistance: 1000 MΩ min.
Dielectric withstanding voltage: 1000V
AC for 1 minute
Mechanical:
Insertion force: 20 lbs / contact max.
Withdrawal force: 0.033 lbs / contact min
Mating durability: Class I: 500 cycles
Class II: 250 cycles
Class III: 100 cycles
Temperature Rating:
Operating temperature: -55°C to +125°C
Soldering process temperature:
Standard insulator: 235°C
Hi-Temp insulator: 260°C
PACkAGING:
Anti-ESD plastic trays or tubes
APPROVALS AND CERTIFICATIONS:
UL Recognized & CSA Certified,
File no. E224053
ORDERING INFORMATION
DIN
SERIES INDICATOR
DIN
= DIN 41612 Connector
96
M
GENDER
M
= Male, Pin
Contacts
F
= Female,
Socket
Contacts
R
L33
BODy TyPE
S22
= Short body, 2 rows
A & B Loaded
S32
= Short body, 3 rows
A & C Loaded
S33
= Short body, 3 rows
A, B & C Loaded
L22
= Long body, 2 rows
A & B Loaded
L32
= Long body, 3 rows
A & C Loaded
L33
= Long body, 3 rows
A, B & C Loaded
L44
= Long body, 4 rows
A, B, C & D Loaded
A
1
SOLDER TAIL LENGTH
1
= Standard solder
tail length .157"
2
= Wire wrap
.511" Solder
tail (straight
female only)
NO. OF CONTACTS
Short body 2 rows: 16, 32
Short body 3 rows: 16, 32, 48
Long body 2 rows: 32, 64
Long body 3 rows: 32, 64, 96
Long body 4 rows: 100, 128, 160, 200, 240
OPTIONS:
Add designator(s) to end of part number
PF
= Press Fit Tails (pg 241)
HT
= Hi-Temp insulator 260°C max.
BL
= Metal board locks in mounting holes
C1
=
30u" Gold over nickel underplate
C2
=
15u" gold over nickel underplate
MOUNTING ANGLE
S
= Straight, PCB mount
R
= Right Angle, PCB mount
PITCH
A
= .100" [2.54 mm]
B
= .200" [5.08 mm]
240
