TYPE LCMZ TYPE LCPZ
A.C. Rated
Metalized Polyester
and Metalized
Polypropylene
Capacitors
Typical Applications:
Motors • Fans • Refrigerators • Appliances • Pumps
Business Machines • Electric Tools
1221 N. Highway 17-92 • Longwood, FL 32750 • Phone: (407) 695-6562 • Fax: (407) 695-6889
E-Mail: dearborn92@worldnet.att.net • Web site: www.dearbornelectronics.com
A.C. RATED METALIZED
POLYESTER CAPACITORS
LCMZM
File #E145953(N)

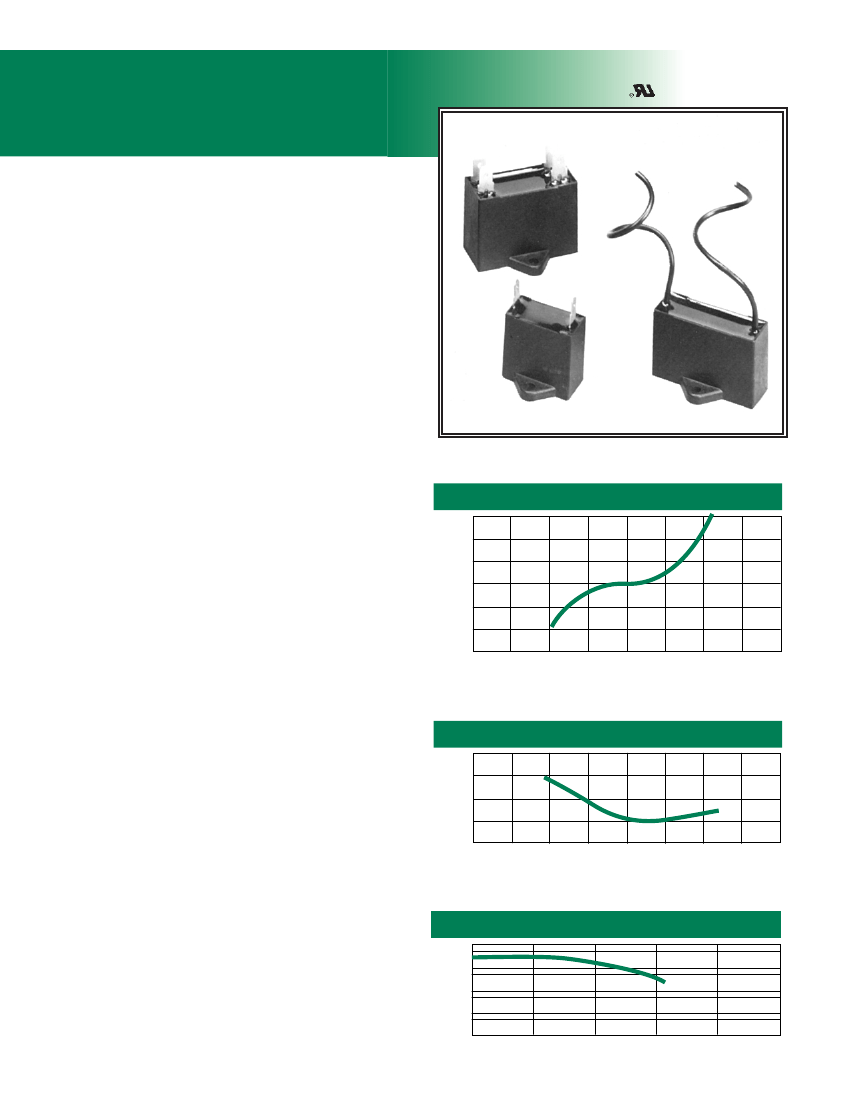

TYPE LCMZ
Applications
• Motors & Fans
• Refrigerators & Appliances
• Pumps, Business Machines
• Electric Tools
General Description
DIELECTRIC:
Metalized polyester. Self healing in the
event of momentary overvoltage.
WINDING:
Non-inductive using a zinc alloy spray to
contact the edges of the metalized film.
ENCLOSURE:
Molded rectangular case of black polyester
glass and epoxy potting, flame retardant per UL94 V0.
MARKING:
Each unit is stamped with the capacitance
value, voltage rating and catalog number with a code
letter for capacitance tolerance.
TERMINALS:
For standard configurations see center
page. Capacitors with wire terminals (Style U) utilize
UL 1015 listed insulated wire.
LCMZE
LCMZU
Typical
CAPACITANCE CHANGE vs. TEMPERATURE
+3
% DISSIPATION FACTOR
CAPACITANCE:
Values from .50 MFD to 34.0 MFD are
available in 5%, 10%, and 20% tolerances and shall be
within specified tolerances when measured at 1000 Hz
(25°C). (Standard capacitance tolerance is ±10%).
VOLTAGE:
The available voltages for this type of capacitor
are 220, 250, 370, 440, and 500 VAC.
TEMPERATURE:
Units will operate continuously over a
temperature range of -25°C to +70°C without derating.
DISSIPATION FACTOR:
Shall be less than .35% when
measured at 60 HZ and 25°C.
INSULATION RESISTANCE:
Measurements after 2 minute
electrification at 135 VDC shall have minimum values
of: 10,000 Megohms x MFDS at 25°C across terminals.
20,000 Megohms Minimum from terminal to case
% CAPACITANCE CHANGE
Electrical Characteristics
+2
+1
0
-1
-2
-3
-25°
0°
+25°
+50°
+75°
Typical
INSULATION RESISTACE vs. TEMPERATURE
DISSIPATION FACTOR vs. TEMPERATURE
2.0
1.5
.5
0
-25°
0°
+25°
+50°
+75°
Test Specifications
DIELECTRIC STRENGTH:
Capacitors shall withstand
175% of the rated voltage for a period of 60 seconds.
CASE TEST:
Terminal to case shall withstand 2 x rated
voltage plus 1500 VAC for 60 seconds.
HUMIDITY RESISTANCE:
Units shall exceed the
requirements of MIL-STD-202, Method 106.
LIFE TEST:
After 1000 hours at 60°C with 120% of rated
voltage applied between terminals:
• Capacitance shall be within 7% of initial value.
• D.F. shall not exceed .45% at 60Hz and 25°C.
• Insulation resistance shall not be less than
100 Megohms x Microfarads.
Typical
INSULATION RESISTANCE vs. TEMPERATURE
200,000
100,000
10,000
5,000
1,000
500
100
50
10
0°
+25°
+50°
+75°
MEGOHM-MFDS

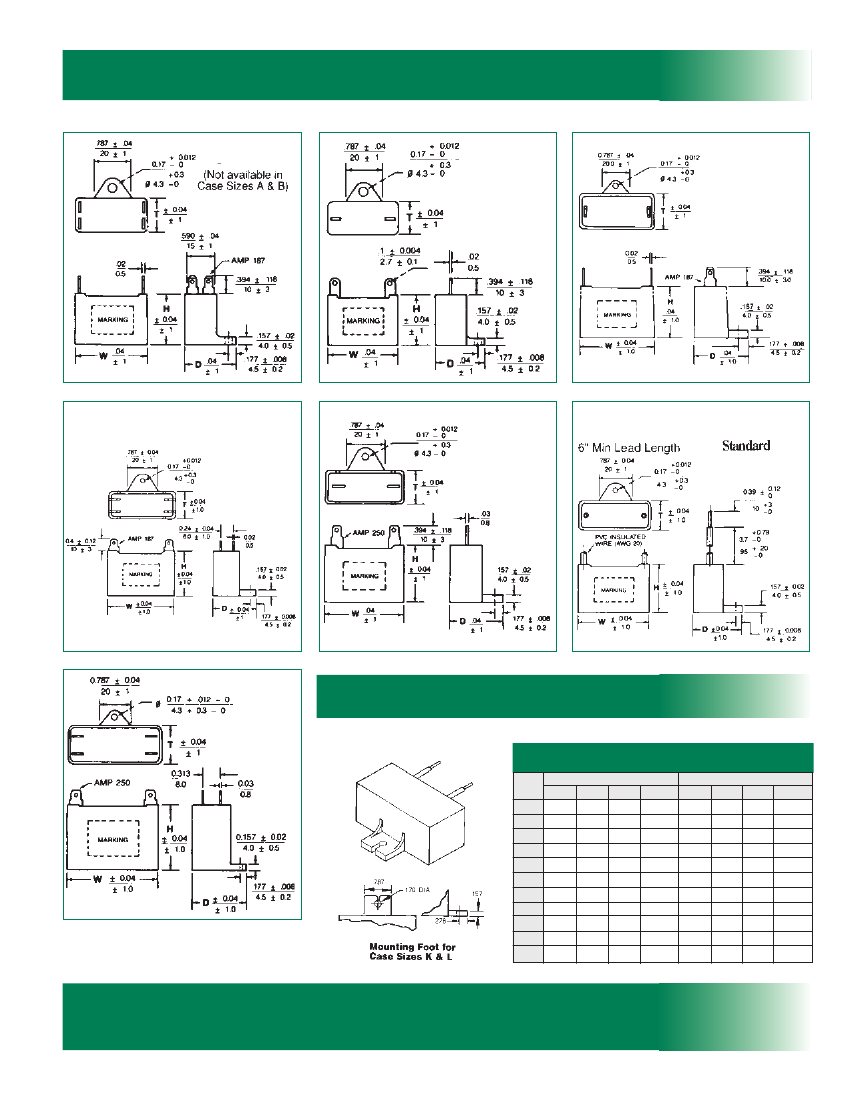

DIMENSIONS
Style A
Style C
Style E
Style M
Style T
Style J
Style U*
*Style W same as style U except 20AWG bare solid copper wire 1” min.
Style V
90 DEGREE MOUNTING FOOT
CASE DIMENSIONS
Case
Code
“A”
“B”
“C”
“D”
“E”
“F”
“G”
“H”
“J”
“K”
“L”
W
1.22
1.22
1.46
1.50
1.50
1.89
1.89
1.89
2.28
2.28
2.28
Inches ±.040”
H
T
D
.93
.57
.97
1.06
.67 1.06
1.06
.71 1.10
1.14
.75 1.14
1.22
.83 1.22
1.14
.75 1.14
1.22
.83 1.22
1.24
.89 1.28
1.38
.87 1.26
1.61 1.14 1.73
1.46
.92 1.52
Millimeters ±1 mm
W
H
T
D
31.0 23.5 14.5
24.5
31.0 27.0 17.0
27.0
37.0 27.0 18.0
28.0
38.0 29.0 19.0
29.0
38.0 31.0 21.0
31.0
48.0 29.0 19.0
29.0
48.0 31.0 21.0
31.0
48.0 31.5 22.5
32.5
58.0 35.0 22.0
32.0
58.0 41.0 29.0
44.0
58.0 37.0 23.5
38.5
Contact Dearborn Electronics, Inc. for all of your Industrial/Midwec requirements
Phone: (407) 695- 6562 • Fax: (407) 695- 6889
E-Mail: dearborn92@worldnet.att.net • Web Site: www.dearbornelectronics.com
A.C. RATED METALIZED
POLYPROPYLENE CAPACITORS
Applications
• Motors & Fans
• Refrigerators & Appliances
• Pumps, Business Machines
• Electric Tools
File #E145953(N)

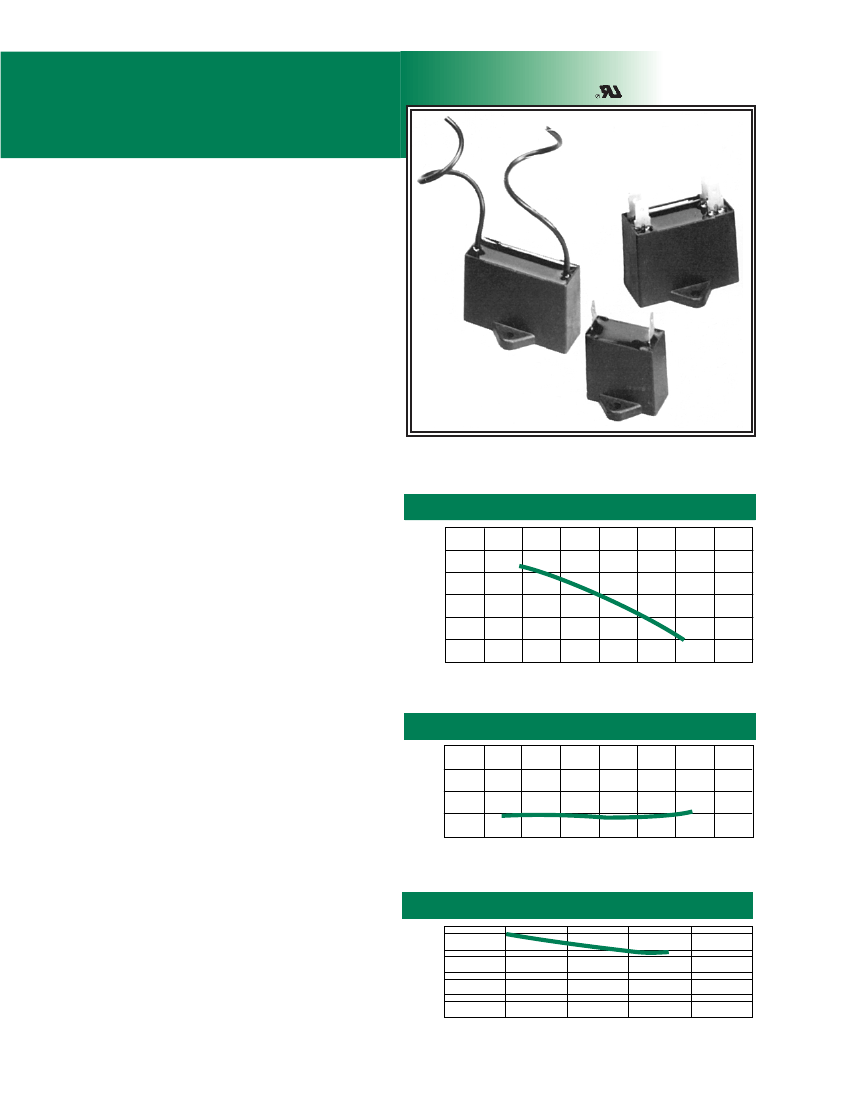

TYPE LCPZ
General Description
DIELECTRIC:
Metalized polpropylene film impregnated
with low loss micro-crystalline wax. Self healing in the
event of momentary overvoltage.
WINDING:
Non-inductive using a zinc alloy spray to
contact the edges of the metalized film.
ENCLOSURE:
Molded rectangular case of black polyester
glass and epoxy potting, flame retardant per UL94 V0.
MARKING:
Each unit is stamped with the capacitance
value, voltage rating and catalog number with a code
letter for capacitance tolerance.
TERMINALS:
For standard configurations see reverse
side. Capacitors with wire terminals (Style U) utilize
UL 1015 listed insulated wire.
LCPZM
LCPZU
LCPZE
Typical
CAPACITANCE CHANGE vs. TEMPERATURE
+3
+2
Electrical Characteristics
CAPACITANCE:
Values from .50 MFD to 16.0 MFD are
available in 5%, 10% and 20% tolerances and shall be
within specified tolerances when measured at 1000 Hz
(25°C). (Standard capacitance tolerance is ±10%).
VOLTAGE:
The available voltages for this type of capacitor
are 250, 330, 370, 440 VAC.
TEMPERATURE:
Units will operate continuously over a
temperature range of -25°C to +85°C without derating.
DISSIPATION FACTOR:
Shall be less than .10% when
measured at 60 HZ and 25°C.
INSULATION RESISTANCE:
Measurements after 2 minute
electrification at 135 VDC shall have minimum values
of: 10,000 Megohms x MFDS at 25°C across terminals.
20,000 Megohms minimum from terminal to case.
% CAPACITANCE CHANGE
+1
0
-1
-2
-3
-25°
0°
+25°
+50°
+75°
Typical
DISSIPATION FACTOR vs. TEMPERATURE
.20
% DISSIPATION FACTOR
.15
.10
.05
0
-25°
0°
+25°
+50°
+75°
Test Specifications
DIELECTRIC STRENGTH:
Capacitors shall withstand
175% of the rated voltage for a period of 60 seconds.
CASE TEST:
Terminal to case shall withstand 2 x rated
voltage plus 1500 VAC for 60 seconds.
HUMIDITY RESISTANCE:
Units shall exceed the
requirements of MIL-STD-202, Method 106.
LIFE TEST:
After 1000 hours at 85°C with 120% of rated
voltage applied between terminals:
• Capacitance shall be within 4% of initial value.
• D.F. shall not exceed .10% at 60Hz and 25°C.
• Insulation resistance shall not be less than
1000 Megohms x Microfarads.
Typical
INSULATION RESISTANCE vs. TEMPERATURE
200,000
100,000
10,000
5,000
1,000
500
100
50
10
MEGOHM-MFDS
0°
+25°
+50°
+75°
ORDER INFORMATION
TYPE LCMZ
220 VAC
CAP
MFD
0.5
0.6
0.8
1.0
1.5
2.0
2.2
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
7.0
8.0
9.0
10.0
12.0
14.0
15.0
18.0
19.0
20.0
21.0
22.0
23.0
24.0
25.0
26.0
27.0
28.0
29.0
30.0
31.0
33.0
34.0
Case
A
A
A
A
A
A
A
A
A
A
A
B
B
C
C
C
D
D
F
F
G
G
H
J
J
L
L
L
L
L
L
K
K
K
K
K
K
K
CATALOG #
22LCMZ
*
____504
22LCMZ _____604
22LCMZ _____804
22LCMZ _____105
22LCMZ _____155
22LCMZ _____205
22LCMZ _____225
22LCMZ _____255
22LCMZ _____305
22LCMZ _____355
22LCMZ _____405
22LCMZ _____455
22LCMZ _____505
22LCMZ _____555
22LCMZ _____605
22LCMZ _____705
22LCMZ _____805
22LCMZ _____905
22LCMZ _____106
22LCMZ _____126
22LCMZ _____146
22LCMZ _____156
22LCMZ _____186
22LCMZ _____196
22LCMZ _____206
22LCMZ _____216
22LCMZ _____226
22LCMZ _____236
22LCMZ _____246
22LCMZ _____256
22LCMZ _____266
22LCMZ _____276
22LCMZ _____286
22LCMZ _____296
22LCMZ _____306
22LCMZ _____316
22LCMZ _____336
22LCMZ _____346
CASE
A
A
A
A
A
A
A
A
A
B
B
B
C
C
C
D
F
F
F
G
H
J
L
L
L
L
K
K
K
K
K
K
K
K
250 VAC
CATALOG #
25LCMZ
*
____504
25LCMZ _____604
25LCMZ _____804
25LCMZ _____105
25LCMZ _____155
25LCMZ _____205
25LCMZ _____225
25LCMZ _____255
25LCMZ _____305
25LCMZ _____355
25LCMZ _____405
25LCMZ _____455
25LCMZ _____505
25LCMZ _____555
25LCMZ _____605
25LCMZ _____705
25LCMZ _____805
25LCMZ _____905
25LCMZ _____106
25LCMZ _____126
25LCMZ _____146
25LCMZ _____156
25LCMZ _____186
25LCMZ _____196
25LCMZ _____206
25LCMZ _____216
25LCMZ _____226
25LCMZ _____236
25LCMZ _____246
25LCMZ _____256
25LCMZ _____266
25LCMZ _____276
25LCMZ _____286
25LCMZ _____296
CASE
A
A
B
C
F
F
F
F
G
G
H
J
J
L
L
K
K
370 VAC
CATALOG #
37LCMZ
*
_____504
37LCMZ______604
37LCMZ______804
37LCMZ______105
37LCMZ______155
37LCMZ______205
37LCMZ______225
37LCMZ______255
37LCMZ______305
37LCMZ______355
37LCMZ______405
37LCMZ______455
37LCMZ______505
37LCMZ______555
37LCMZ______605
37LCMZ______705
37LCMZ______805
CASE
A
A
A
B
C
F
F
F
G
G
H
J
J
L
L
K
K
440 VAC
CATALOG #
44LCMZ
*
____504
44LCMZ _____604
44LCMZ _____804
44LCMZ _____105
44LCMZ _____155
44LCMZ _____205
44LCMZ _____225
44LCMZ _____255
44LCMZ _____305
44LCMZ _____355
44LCMZ _____405
44LCMZ _____455
44LCMZ _____505
44LCMZ _____555
44LCMZ _____605
44LCMZ _____705
44LCMZ _____805
CASE
A
A
A
C
D
F
G
G
H
J
L
L
L
K
K
500 VAC
CATALOG #
50LCMZ
*
____504
50LCMZ _____604
50LCMZ _____804
50LCMZ _____105
50LCMZ _____155
50LCMZ _____205
50LCMZ _____225
50LCMZ _____255
50LCMZ _____305
50LCMZ _____355
50LCMZ _____405
50LCMZ _____455
50LCMZ _____505
50LCMZ _____555
50LCMZ _____605
Additional capacitance values and voltages are available upon request
TYPICAL PART NUMBER:
25
Voltage
LCMZ
Series
M
Terminal
225
K
N
Case Option
Capacitance Tolerance
TOLERANCE:
J = ±5%
K = ±10%
M = ±20%
CASE OPTION:
N = NO FOOT
90 = 90 DEGREE FOOT
NONE = STANDARD FOOT
*
LCPZ:
insert letter for style (E, M, A, V, T, C, or W, U, J) W=20AWG bare solid copper wire,
1” min. Add tolerance letter (J, K, M) and case option (if any) to complete catalog number.
TYPE LCPZ
250 VAC
CAP
MFD
0.5
0.6
0.8
1.0
1.5
2.0
2.2
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
7.0
8.0
9.0
10.0
12.0
14.0
15.0
16.0
Case
A
A
A
A
A
B
C
C
D
E
F
F
G
H
H
J
J
J
J
L
K
K
K
CATALOG #
25LCPZ
*
_______504
25LCPZ ________604
25LCPZ ________804
25LCPZ ________105
25LCPZ ________155
25LCPZ ________205
25LCPZ ________225
25LCPZ ________255
25LCPZ ________305
25LCPZ ________355
25LCPZ ________405
25LCPZ ________455
25LCPZ ________505
25LCPZ ________555
25LCPZ ________605
25LCPZ ________705
25LCPZ ________805
25LCPZ ________905
25LCPZ ________106
25LCPZ ________126
25LCPZ ________146
25LCPZ ________156
25LCPZ ________166
CASE
A
A
A
B
C
D
D
E
F
G
H
J
J
J
J
L
L
K
K
330 VAC
CATALOG #
33LCPZ
*
_______504
33LCPZ ________604
33LCPZ ________804
33LCPZ ________105
33LCPZ ________155
33LCPZ ________205
33LCPZ ________225
33LCPZ ________255
33LCPZ ________305
33LCPZ ________355
33LCPZ ________405
33LCPZ ________455
33LCPZ ________505
33LCPZ ________555
33LCPZ ________605
33LCPZ ________705
33LCPZ ________805
33LCPZ ________905
33LCPZ ________106
CASE
A
A
A
B
B
C
D
E
F
G
H
J
J
J
L
L
K
K
370 VAC
CATALOG #
37LCPZ
*
_______504
37LCPZ ________604
37LCPZ ________804
37LCPZ ________105
37LCPZ ________155
37LCPZ ________205
37LCPZ ________225
37LCPZ ________255
37LCPZ ________305
37LCPZ ________355
37LCPZ ________405
37LCPZ ________455
37LCPZ ________505
37LCPZ ________555
37LCPZ ________605
37LCPZ ________705
37LCPZ ________805
37LCPZ ________905
CASE
A
B
B
C
E
F
F
G
J
J
J
L
L
L
K
K
K
440 VAC
CATALOG #
44LCPZ
*
_______504
44LCPZ ________604
44LCPZ ________804
44LCPZ ________105
44LCPZ ________155
44LCPZ ________205
44LCPZ ________225
44LCPZ ________255
44LCPZ ________305
44LCPZ ________355
44LCPZ ________405
44LCPZ ________455
44LCPZ ________505
44LCPZ ________555
44LCPZ ________605
44LCPZ ________705
44LCPZ ________805
Additional capacitance values and voltages are available upon request
TYPICAL PART NUMBER:
25
LCPZ
Series
M
Terminal
225
K
N
Case Option
Voltage
Capacitance Tolerance
*
LCPZ:
insert letter for style (E, M, A, V, T, C, or W, U, J)
W=20AWG bare solid copper wire, 1” min. Add tolerance
letter (J, K, M) and case option (if any) to complete
catalog number.
TOLERANCE:
J = ±5%
K = ±10%
M = ±20%
CASE OPTION:
N = NO FOOT
90 = 90 DEGREE FOOT
NONE = STANDARD FOOT
京公网安备 11010802033920号
EEWORLD
