G5V-1-DC12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> G5V-1-DC12

G5V-1-DC12: Descriptionlow signal relays - pcb thruhole Hi-sens spdt 12dc 150mw seal; CategoryTopical application Mechanical and electrical/engineering/automation; File Size299KB，4 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

G5V-1-DC12 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	G5V-1-DC12	-	-	View	Buy Now

G5V-1-DC12 Overview

low signal relays - pcb thruhole Hi-sens spdt 12dc 150mw seal

G5V-1-DC12 Parametric

Parameter Name	Attribute value
Manufacture	Om
Product Category	Low Signal Relays - PCB
RoHS	Yes
Contact Form	SPDT (1 Form C)
Contact Current Rating	2 A
Coil Voltage	12 V
Maximum Switching Curre	1 A
Coil Curre	12.5 mA
Coil Type	Non-Latching
Power Consumpti	150 mW
Termination Style	Solder Pi
Contact Rating	0.5 A at 125 VAC, 1 A at 24 VDC
Factory Pack Quantity	25

Preview

Download Datasheet

View All

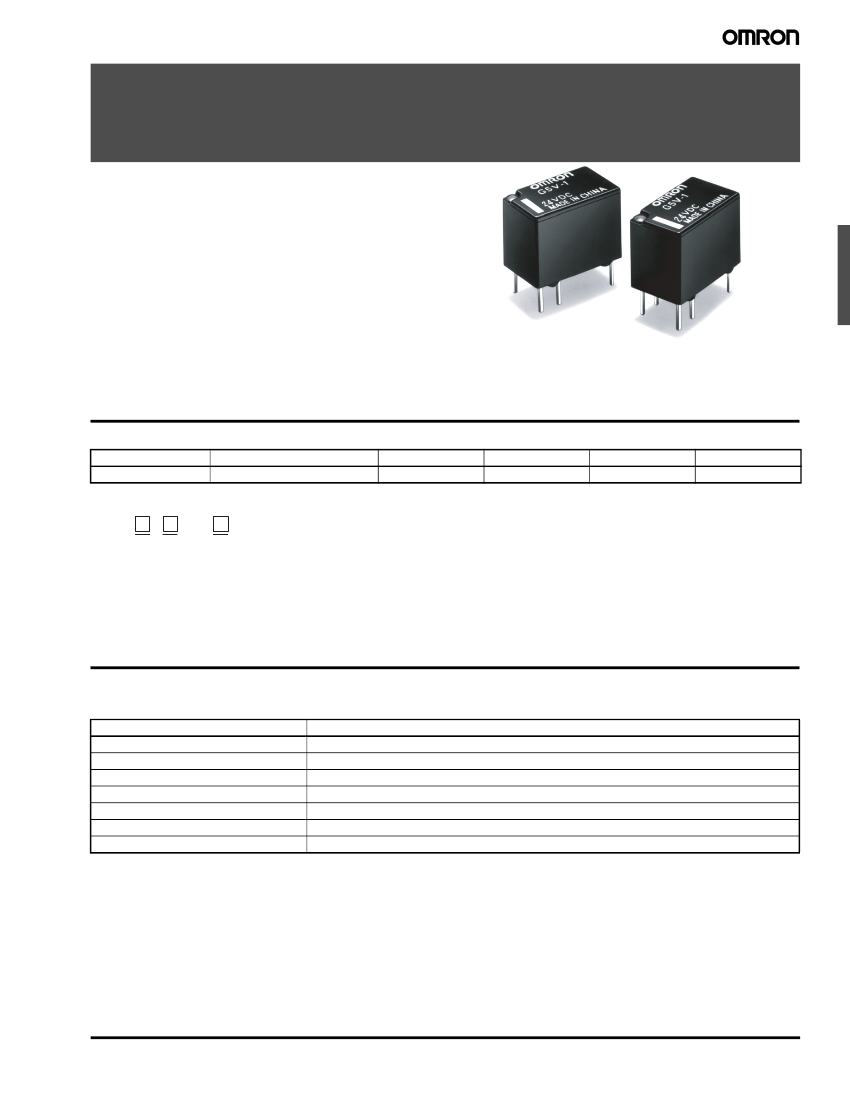

Low Signal Relay

G5V-1

Ultra-miniature, Highly Sensitive SPDT

Relay for Signal Circuits

• High sensitivity: 150 mW nominal power consumption.

• Small size at 10 H x 7.5 W x 12.5 L mm.

• Switches from 1 mA to 1 A.

• Conforms to FCC part 68 requirements for coil to contacts.

• Fully-sealed construction.

• Ideal for use in telecommunications, security, and comput-

er/peripheral equipment.

• RoHS Compliant.

Contact type

Single crossbar

Construction

Fully sealed

G5V-1

Model

Ordering Information

To Order: Select the part number and add the desired coil voltage rating (e.g., G5V-1-DC12).

Terminal

PCB through-hole

Standard

Type

Contact form

SPDT

Model Number Legend

G5V -

2. Pickup Voltage %

Blank: Standard,

80%

of nominal

3. Rated Coil Voltage

3, 5, 6, 9, 12, 24

VDC

1. Contact Form

1: SPDT

Specifications

■

Contact Data

Load

Rated load

Contact material

Carry current

Max. operating voltage

Max. operating current

Max. switching capacity

Min. permissible load (See note)

0.50 A at 125 VAC, 1A 24 VDC

Ag + Au-Alloy

125 VAC, 60 VDC

62.50 VA, 30W

1 mA, 5 VDC

Resistive load (p.f. = 1)

Note:

P level:

= 0.1 x 10

–6

/operation

This value was measured at a switching frequency of 120 operations/min and the criterion of contact resistance is 100

Ω.

This value may

vary depending on the operating environment. Always double-check relay suitability under actual operating conditions.

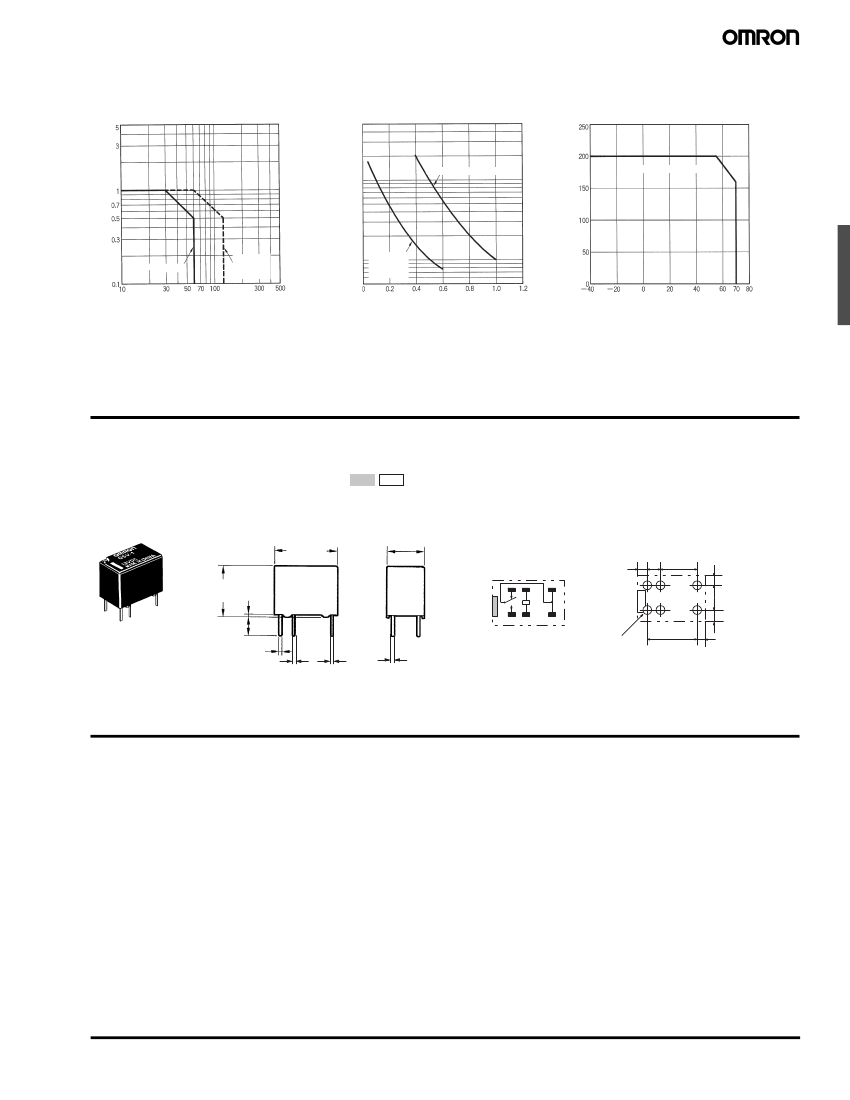

Low Signal Relay

G5V-1

G5V-1-DC12 Related Products

	G5V-1-DC12	G5V-1-DC5	G5V-1-DC3
Description	low signal relays - pcb thruhole Hi-sens spdt 12dc 150mw seal	low signal relays - pcb thruhole Hi-sens spdt 5dc 150mw seal	low signal relays - pcb thruhole Hi-sens spdt 3dc 150mw seal
Manufacture	Om	Om	Om
Product Category	Low Signal Relays - PCB	Low Signal Relays - PCB	Low Signal Relays - PCB
RoHS	Yes	Yes	Yes
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)	SPDT (1 Form C)
Coil Voltage	12 V	5 V	3 V
Maximum Switching Curre	1 A	1 A	1 A
Coil Type	Non-Latching	Non-Latching	Non-Latching
Power Consumpti	150 mW	150 mW	150 mW
Termination Style	Solder Pi	Solder Pi	Solder Pi
Factory Pack Quantity	25	25	25
Contact Current Rating	2 A	2 A	-
Coil Curre	12.5 mA	30 mA	-
Contact Rating	0.5 A at 125 VAC, 1 A at 24 VDC	0.5 A at 125 VAC, 1 A at 24 VDC	-
