DMB3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> DMB3

DMB3: Descriptionsolid state relays - industrial mount 3-phase rhp din-rail bracket; CategoryTopical application Mechanical and electrical/engineering/automation; File Size1MB，6 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

DMB3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DMB3	-	-	View	Buy Now

DMB3 Overview

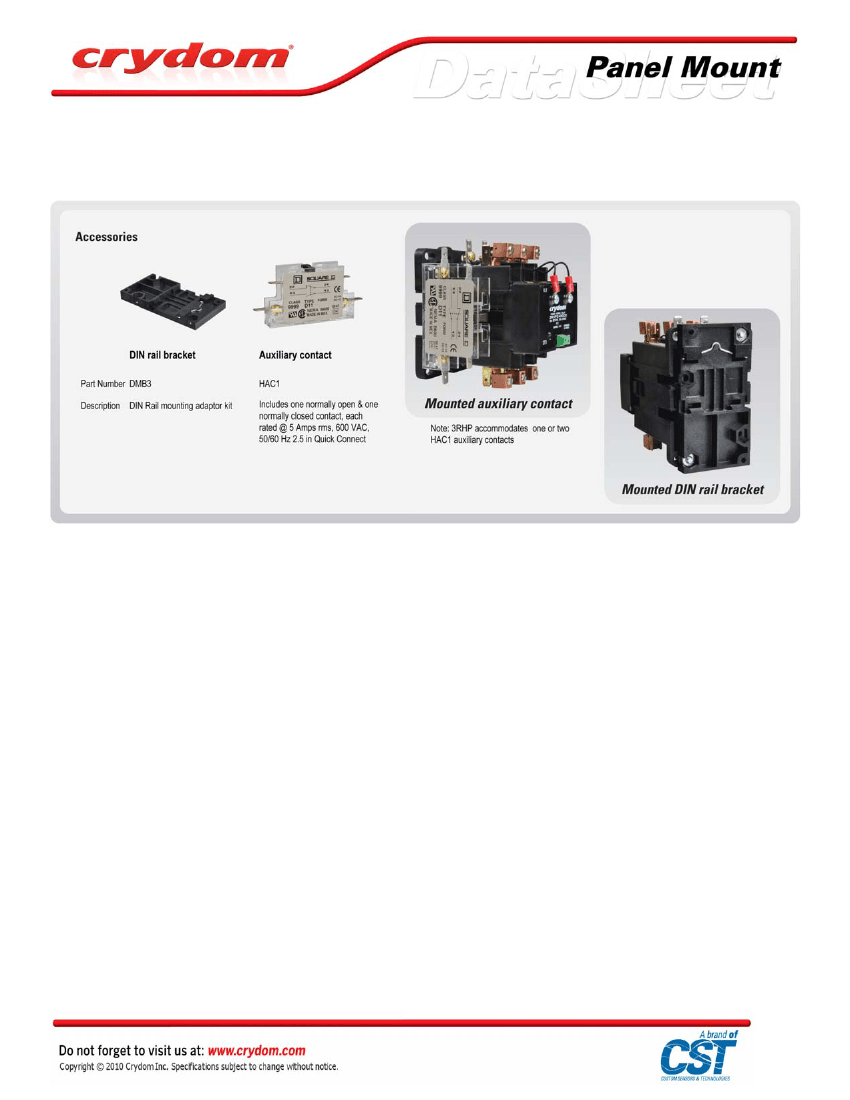

solid state relays - industrial mount 3-phase rhp din-rail bracket

DMB3 Parametric

Parameter Name	Attribute value
Manufacture	Crydom
Product Category	Solid State Relays - Industrial Mou

Preview

Download Datasheet

View All

3RHP Series DC Control

• 100K-cycle UL508 Endurance Rating for Enhanced Reliability

• 40 and 50A output

• Voltage ratings to 240 VAC

• Lifetime 2 million operations at full load

• LED input status indicator

• Wire, lug or quick connect termination

• Industry Standard DP contactor mounting

PRODUCT SELECTION (by control voltage and output rating)

Control Voltage

4.5-5.5 VDC

10-15 VDC

22-27 VDC

40A 120 VAC

3RHP1240D5

3RHP1240D12

3RHP1240D24

OUTPUT SPECIFICATIONS (voltage)

Description

Operating Voltage (47-63Hz) [Vrms]

Maximum Off-State Leakage Current per channel

120 VAC

100-120

0.05 mA @ 120 VAC

OUTPUT SPECIFICATIONS (current)

Description

Maximum Load Current per phase @ 40°C [Arms] (1)

40A Resistive

Power terminals

1/4" Quick Connect and 10x32 binder

head screws

Wire Size

8-14 AWG

INPUT SPECIFICATIONS

Description

Coil Voltage

Max. Reverse Voltage

Input Current

Min. Turn-On Voltage

Min. Turn-Off Voltage

SUFIX D5

4.5-5.5 VDC

-5.5 VDC

12mA @ 5 VDC

4.5 VDC

1 VDC

40A

50A

6-14 AWG

GENERAL SPECIFICATIONS

Description

Dielectric Strength, Input to Output

Dielectric Strength, Input/Output to ground

Contacts (2)

Ambient Operating Temperature Range (3)

Ambient Storage Temperature Range

Max. Turn-On Time 50/60 Hz

Max. Turn-Off Time 50/60Hz

Maximum Number of Operations

Lifetime Number of Operations @ Rated Current (4)

Weight (typical)

Screw Torque (input/Output) 40A

Screw Torque (input/Output) 50A

50A 120 VAC

3RHP1250D5

3RHP1250D12

3RHP1250D24

40A 240 VAC

3RHP2440D5

3RHP2440D12

3RHP2440D24

50A 240 VAC

3RHP2450D5

3RHP2450D12

3RHP2450D24

240 VAC

208-240

0.06 mA @ 240 VAC

50A Resistive

1/4" Quick Connect and box lugs

SUFIX D12

10-15 VDC

-15.5 VDC

12mA @ 12 VDC

9.5 VDC

2 VDC

SUFIX D24

22-27 VDC

-27.5 VDC

12mA @ 24 VDC

9.5 VDC

2 VDC

Parameters

4000 Vrms

2500 Vrms

Three Normally Open

-20 to 75 °C

-40 to 100 °C

20 ms / 16.6 ms

40 ms / 32 ms

30 per Minute

> 2 Million

1.19 lbs (540 g)

4.4-5 in lb (0.5-0.6 Nm) / 15-18 in lb (1.7-2.1 Nm)

4.4-5 in lb (0.5-0.6 Nm) / 20-25 in lb (2.2-2.9 Nm)
