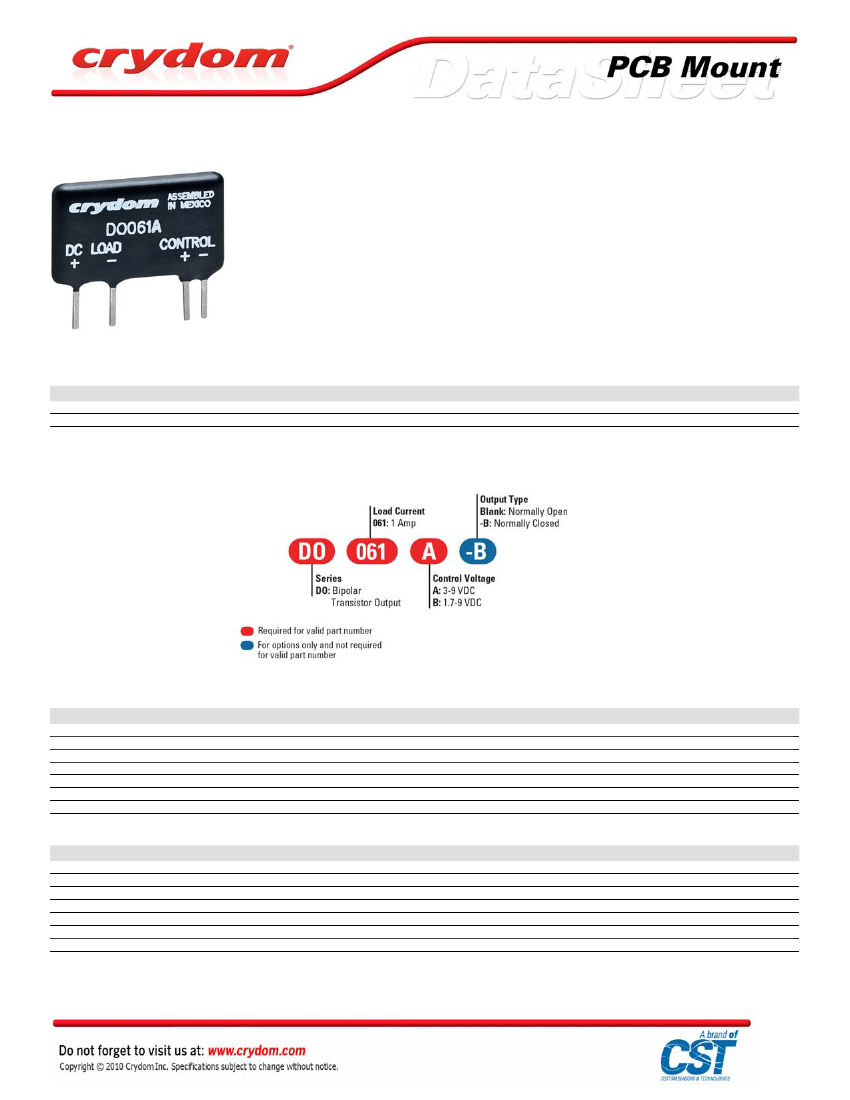

DO Series
• Mini-SIP SSR
• Ratings to 1A @ 60 V DC
• Bi-polar transistor output
• DC control
• Normally open or normally closed output
PRODUCT SELECTION
Control Voltage
3-9 VDC
1.7-9 VDC
1A
DO061A (4), DO061A-B
DO061B (4), DO061B -B
AVAILABLE OPTIONS
OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage Range (47-63Hz) [VDC]
Maximum Off-State Leakage Current @ Rated Voltage [µA]
Maximum Load Current [Adc]
Minimum Load Current [Adc]
Maximum Surge Current [Adc]
Maximum On-State Voltage Drop @ Rated Current
Minimum Power Factor (with Maximum Load)
DO0
3-60
200
1.0
0.02
5 (1sec)
1.5
0.5
INPUT SPECIFICATIONS (1)
Description
Control Voltage Range
Must Turn On Voltage
Must Turn Off Voltage
Typycal Input Current @ 5 VDC
Nominal Input Impedance
Maximum Turn-On Time [µsec]
Maximum Turn-Off Time [µsec]
DO061A
3-9 VDC
3.0 VDC
1.0 VDC
15 mAdc
270 Ohm
50
50
DO061B
1.7-9 VDC
1.7 VDC
0.8 VDC
15 mAdc
270 Ohm
50
150
GENERAL SPECIFICATIONS
Description
Dielectric Strength, Input/Output/Base (50/60Hz)(3)
Minimum Insulation Resistance (@ 500 VDC)(3)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Encapsulation
Parameters
4000 Vrms
10
9
Ohm
8 pF
-30 to 80 °C
-30 to 125 °C
0.15 oz. (4.3g)
Thermally Conductive Epoxy
GENERAL NOTES
1) All parameters at 25°C unless otherwise specified.
2) Typical On-State Resistance=.13
3) Dielectric and ins ulation resistance are measured between input and output
4) Inductive loads should be diode suppressed

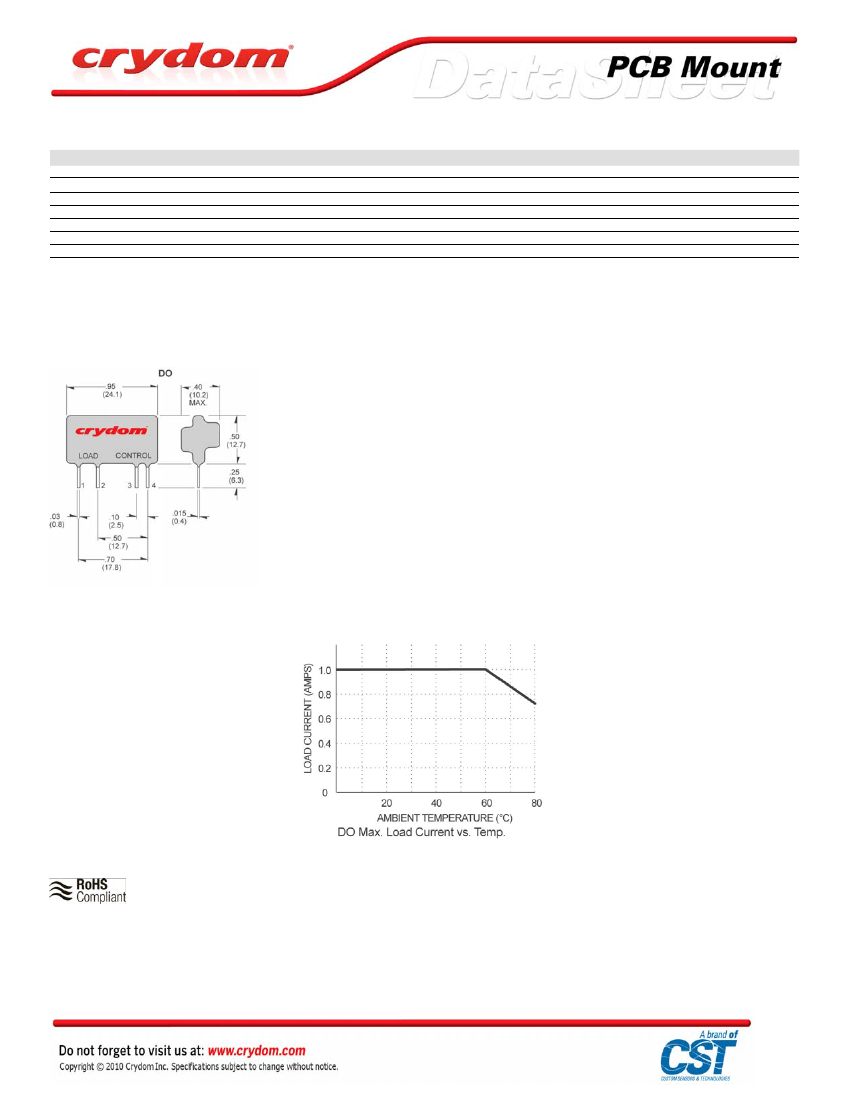

MECHANICAL SPECIFICATIONS
DC C ONTROL
PIN 1: +DC LOAD
PIN 2: -DC LOAD
PIN 3: +DC CONTROL
PIN 4: -DC CONTROL
THERMAL DERATE INFORMATION
AGENCY APPROVALS
Rev. 010411

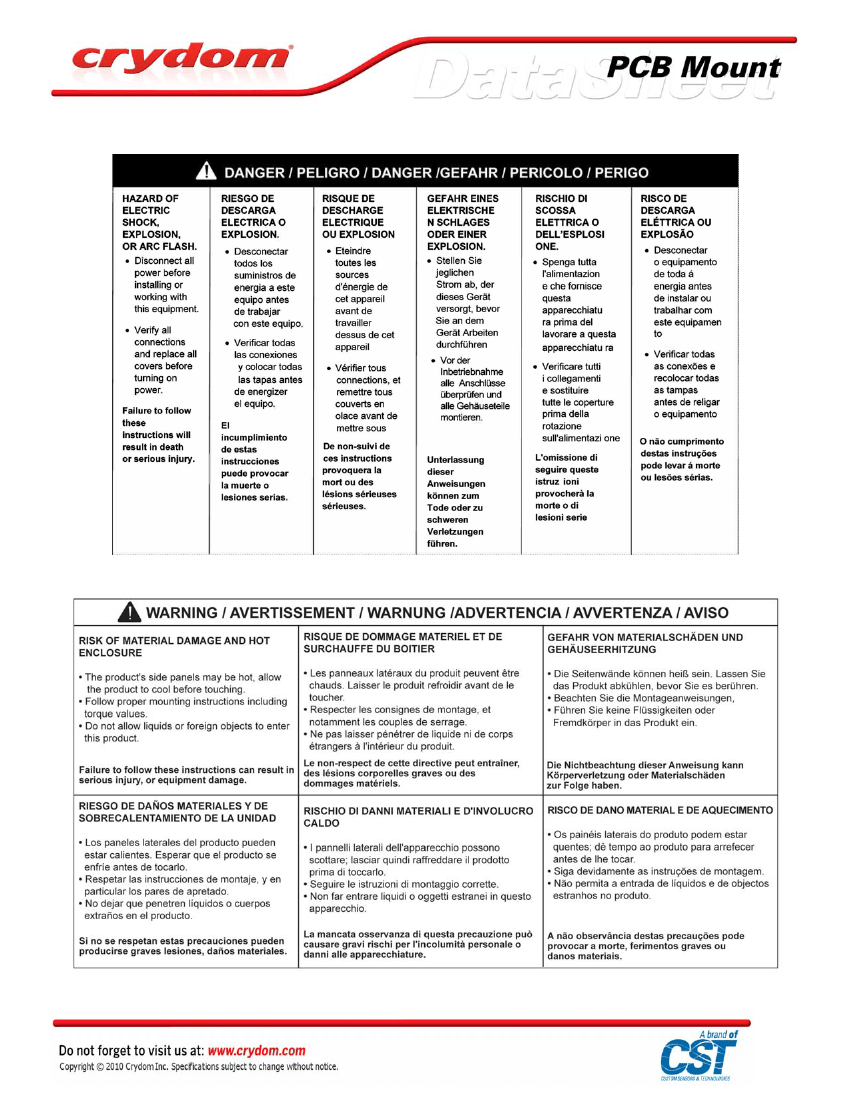

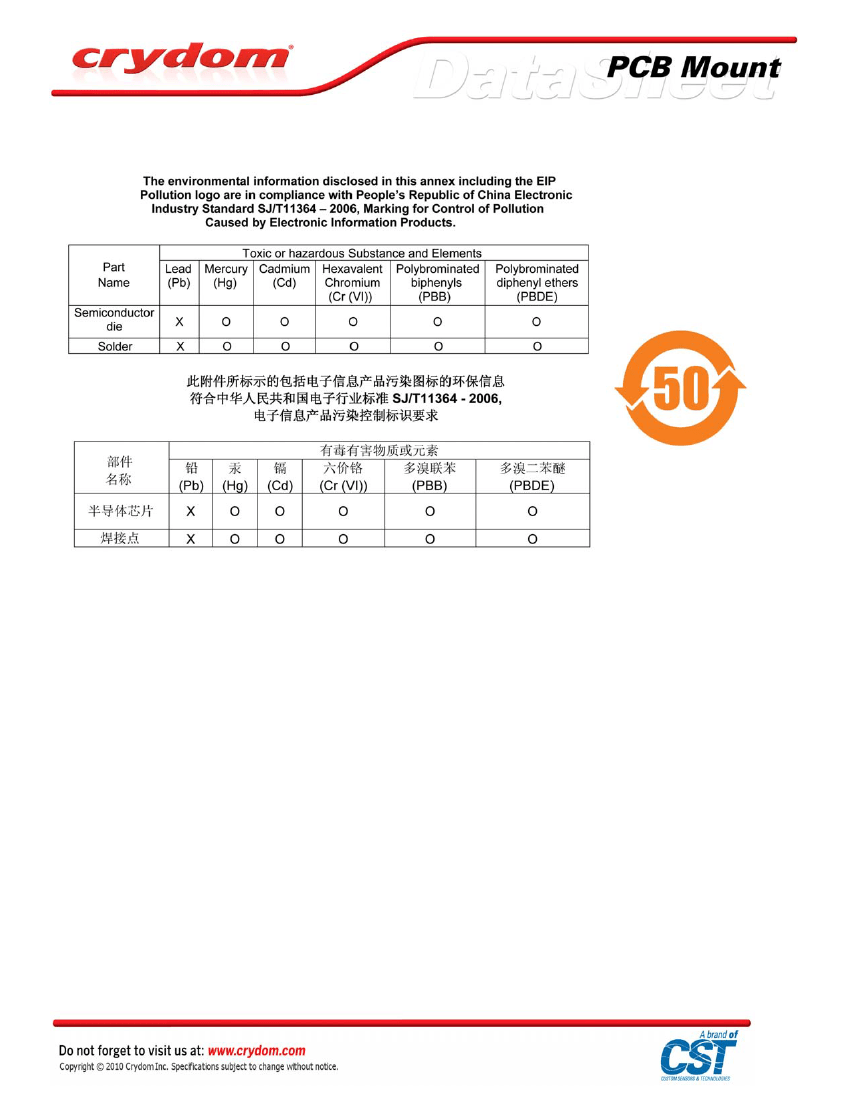

ANNEX - ENVIROMENTAL INFORMATION
