MFMP9290-11-CC01-000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MFMP9290-11-CC01-000

Preview

MFMP9290-11-CC01-000: DescriptionBoard Connector, 11 Contact(s), Female, Right Angle, IDC Terminal, Locking Mech, Natural Insulator, Plug; CategoryThe connector The connector; File Size208KB，3 Pages; ManufacturerStocko Contact GmbH & Co Kg; Websitehttps://www.stocko-contact.com; Environmental Compliance

Download Datasheet Parametric View All

MFMP9290-11-CC01-000 Overview

Board Connector, 11 Contact(s), Female, Right Angle, IDC Terminal, Locking Mech, Natural Insulator, Plug

MFMP9290-11-CC01-000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	303588704
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLAR B/W CAVITIES=2+3/8+9
body width	0.539 inch
subject depth	0.866 inch
body length	2.165 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact arrangement	S0P11
Contact to complete cooperation	SN
Contact point gender	FEMALE
Contact material	BRONZE
Contact resistance	5 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	3000VAC V
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	MFMP9290
Mixed contacts	YES
Installation option 1	LOCKING MECH
Installation method	RIGHT ANGLE
Installation type	CABLE
Number of connectors	ONE
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Rated current (signal)	6 A
Guideline	UL,VDE
reliability	COMMERCIAL
Terminal length
Termination type	IDC
Total number of contacts	11

Preview

Download Datasheet

View All

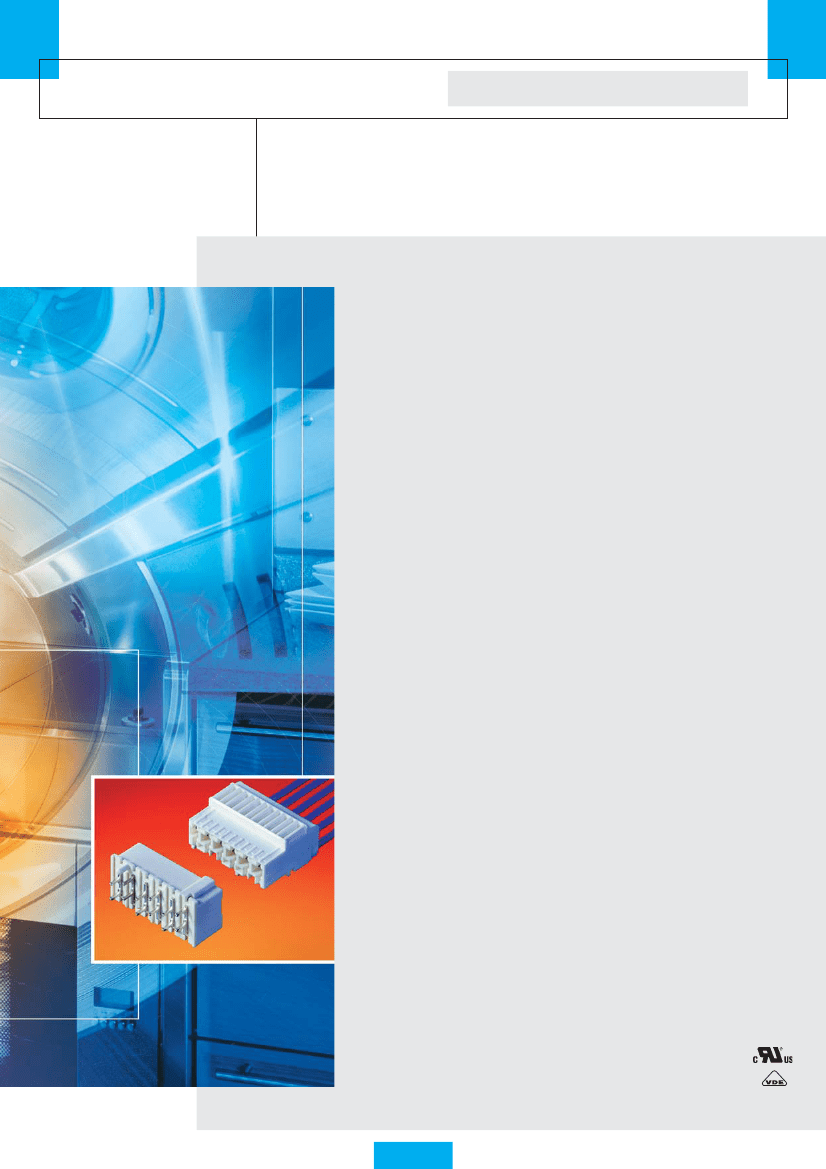

Steckverbindersysteme

CO-DO

O-DOMO RAS

E CO-DOMO / RA S T 5

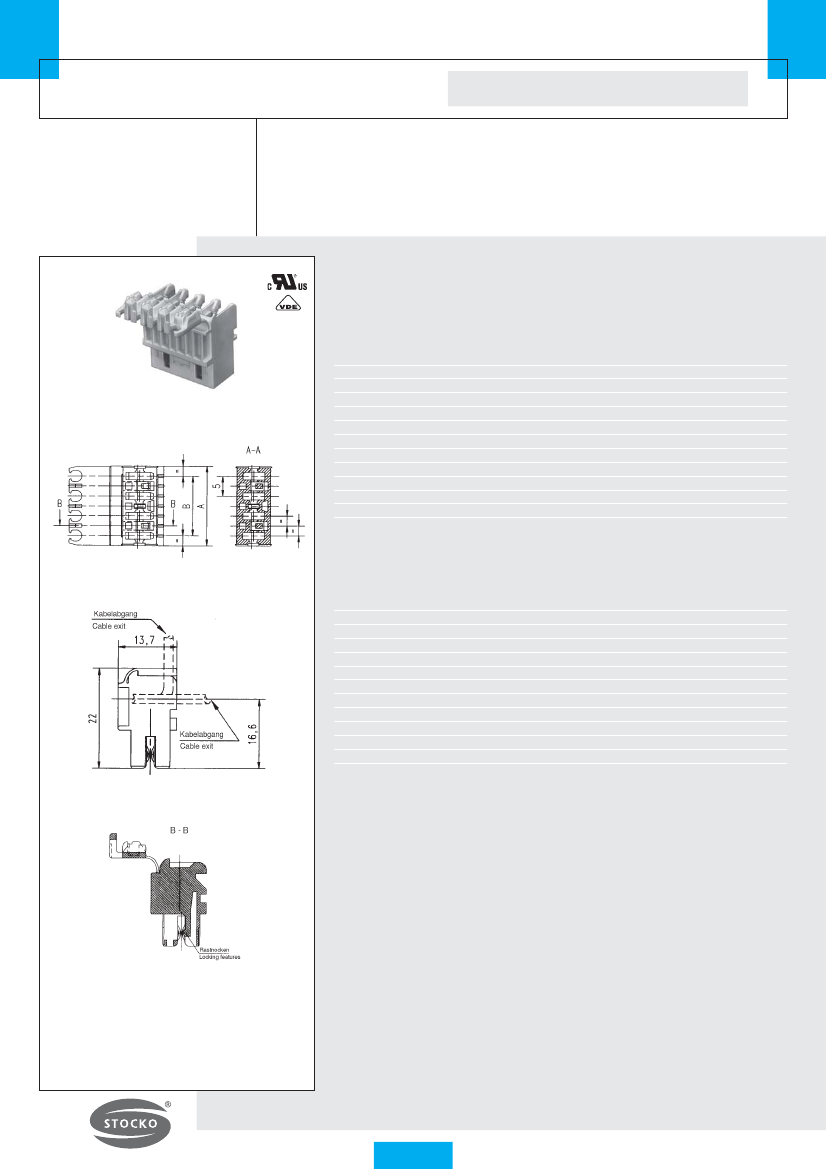

Technische Daten /

Technical Data

Connector systems

Mechanisch

Mechanical

Raster

Pitch

Polzahl

Positions

Verrastung

Locking features

Anschlußart

Termination

Leiterquerschnitt

Wire size

Isolations Ø

Insulation diameter

Leiteraufbau

Type of wire

Temperaturbereich

Temperature range

Elektrisch

Electrical

Strombelastbarkeit

Current rating

Nennspannung

Nom. voltage

Durchschlagsfestigkeit

Gehäusematerial

Delectrical strength

Isolationswiderstand

Insulation resistance

Durchgangswiderstand

Contact resistance

Luftstrecke

Air gap

Kriechstrecke

Creeping distance

Kriechstromfestigkeit

Creeping strength

Freigaben

Approved by

Werkstoffe

Materials

Kontakt

Contact

Kontaktoberfläche

Contact finishing

Isolierkörper

Housing

Gehäusefarbe

Colour of housing

Feder /

Socket:

CuSn

Feder /

Socket:

Sn

PBT

natur

natural

Direktstecker /

Direct connector

Indirektstecker

/ Indirect connector

Direktstecker /

Direct connector

Indirektstecker

/ Indirect connector

≥

3000 V eff

≥

10

9

Ohm

≤

5 m Ohm

≥

3 mm

Direktstecker /

Direct connector

Indirektstecker

/

Indirect connector

CTI

≥

250

DIN VDE 0627, UL

≥

3 mm

≥

4 mm

6A

16 A

250 V AC

400 V AC

5 mm

Direktstecker /

Direct connector

Indirektstecker

/ Indirect connector

Direktstecker /

Direct connector

Indirektstecker

/ Indirect connector

IDC

Direktstecker /

Direct connector

Indirektstecker

/

Indirect connector

Direktstecker /

Direct connector

Indirektstecker

/ Indirect connector

Litze

stranded

- 40 °C ...+ 110 °C

2 - 12

1 - 12

PCB

Innen /

inside

0,5 - 0,75 mm

2

0,35 - 1,5 mm²

3,0 mm

3,2 mm

31
