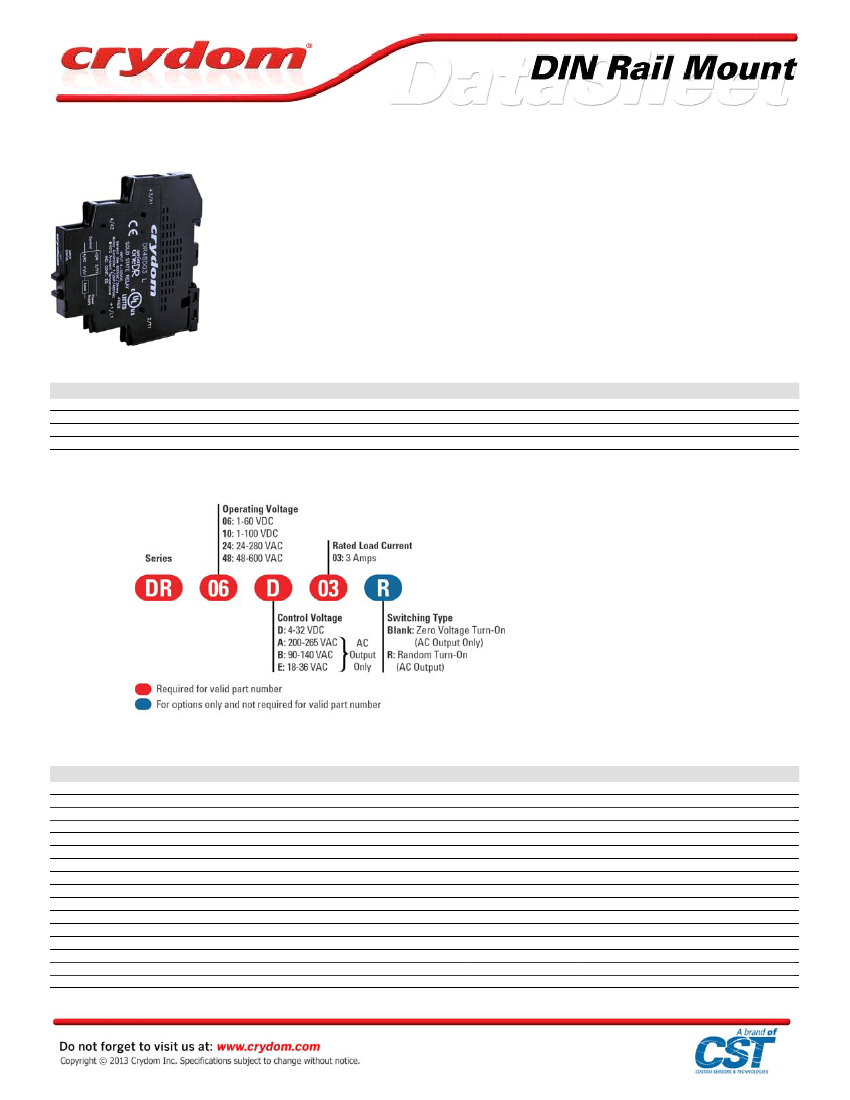

SeriesOne DR Series
• Rating 3 Amps
• Load voltage ratings of 24-280VAC, 48-600VAC, 1-60VDC and 1-100VDC
• Fits standard 35mm DIN Rail
• LED input status indicator
• AC or DC control
• Zero-crossing (resistive loads) or random turn-on (inductive loads) output
• UL and cUL Listed, HP Rated, CE & RoHS Compliant
• UL 508 Endurance Rating for Enhanced Reliability
PRODUCT SELECTION
Description
4-32 VDC Control
90-140 VAC Control
200-265 VAC Control
18-36 VAC Control
280V, 3A
DR24D03
DR24B03
DR24A03
DR24E03
600V, 3A
DR48D03
60V, 3A
DR06D03
100V, 3A
DR10D03

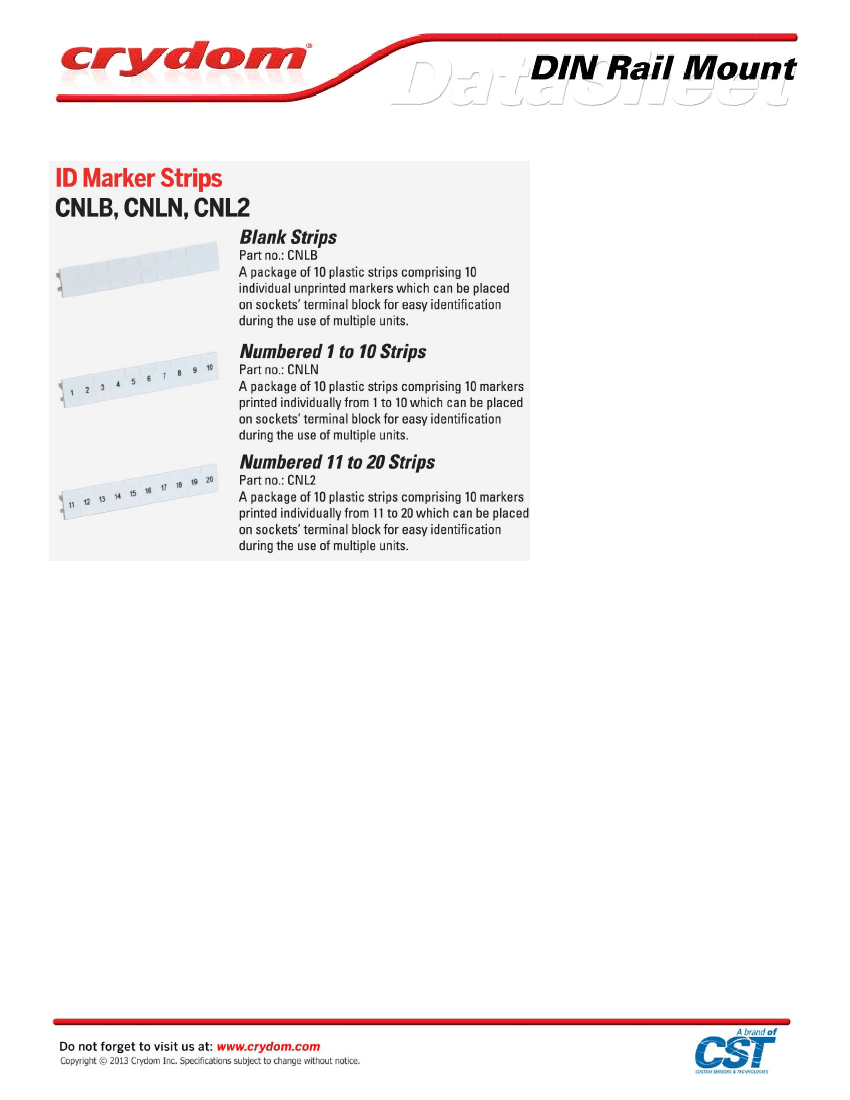

AVAILABLE OPTIONS
OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage (2)
Transient Overvoltage [Vpk]
Maximum Load Current, resistive (2A)
Minimum Load Current
Maximum Off-State Leakage Current @ Rated Voltage [mA]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (3)
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Maximum Surge Current (50/60 Hz, 1 cycle) [Apk]
Maximum I²t for Fusing (50/60 HZ, 1/2 cycle) [A² sec]
HP Rating UL 508/IEC60947[HP (KW)] @ 240V
HP Rating UL 508/IEC60947[HP (KW)] @ 380V
HP Rating UL 508/IEC60947[HP (KW)] @ 480V
Minimum Power Factor (with Maximum Load)
Min/Max stranded wire
Min/Max solid wire
Weight (typical)
DR24x03
24-280 Vrms
600
3 Arms
0.15
0.1
500
1.3
285/300
410/375
1/4 (0.18)
1/2 (.37)
1/2 (.37)
0.5
22/14 AWG
22/14 AWG
1.76 oz. (50g)
DR48x03
48-600 Vrms
1200
3 Arms
0.15 Arms
0.1
500
1.3
285/300
410/375
1/4 (0.18)
1/3 (.25)
1/2 (.37)
0.5
22/14 AWG
22/14 AWG
1.76 oz. (50g)
DR06D03
1-60 VDC
NA
3
2.5 mA
0.1
NA
0.6
60
NA
NA
NA
NA
NA
22/14 AWG
22/14 AWG
1.76 oz. (50g)
DR10D03
1-100 VDC
NA
3
2.5 mA
0.1
NA
0.6
60
NA
NA
NA
NA
NA
22/14 AWG
22/14 AWG
1.76 oz. (50g)
INPUT SPECIFICATIONS (1)
Description
Control Voltage Range (4)
Minimum Turn-On Voltage
Minimum Turn-Off Voltage
Minimum Input Current [mA] (5)
Maximum Input Current [mA] (5)
Maximum Turn-On Time (6) (7)
Maximum Turn-Off Time (8)
Min/Max stranded/solid wire
DRxxDxx
4.0-32 VDC
4.0 VDC
1.0 VDC
9
11
1/2 Cycle
1/2 Cycle
22/16 AWG
DRxxBxx
90-140 Vrms
90 Vrms
10 Vrms
3
5
20 msec
30 msec
22/16 AWG
DRxxAxx
200-265 Vrms
200 Vrms
90 Vrms
2.5
3.3
20 msec
30 msec
22/16 AWG
DRxxExx
18-36 Vrms
18 Vrms
4 Vrms
3.5
8
20 msec
30 msec
22/16 AWG
GENERAL SPECIFICATIONS (1)
Description
Dielectric Strength, Input to Output (50/60Hz)
Minimum Insulation Resistance (@ 500 V DC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Recommended Terminal Screw Torque Range:
Parameters
4000Vrms (9)
10
9
Ohms
10 pF
-30ºC to 80ºC
-30ºC to 100ºC
4.4-7.0 in lb (0.5-0.8 Nm)
GENERAL NOTES
1) All parameters at 25°C unless otherwise specified.

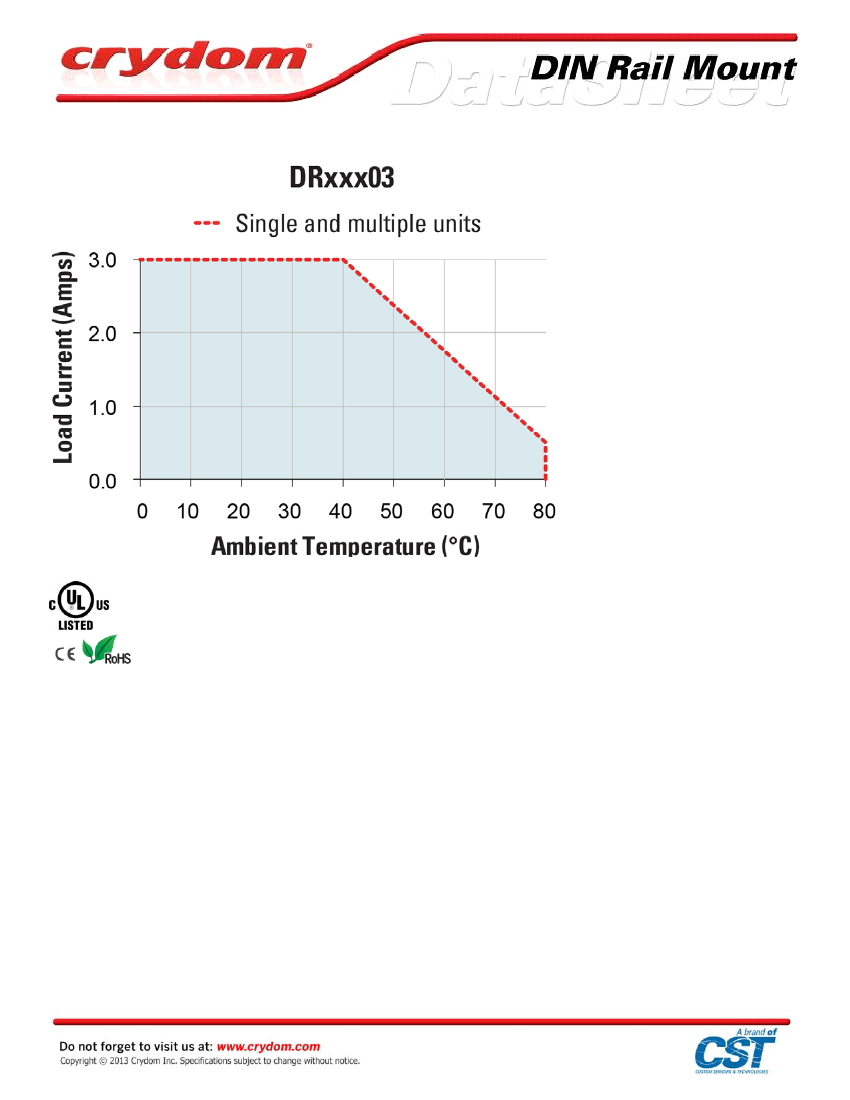

2) See Derating Curves
2A) For AC output frequency is 47-63Hz
3) Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
4) DC control includes reverse polarity protection.
5) Input circuitry incorporates active current limiter.
6) Turn-on time for DC control random turn-on versions is 0.1 msec
7) Turn-on time for DC output 600µsec
8) Turn-off time for DC output 300µsec
9) 2500 Vrms for DC output
Standards of Compliance
IEC 62314
LC A, Resistive or Slightly Inductive Load Ratings: 3A @ 40°C ambient for DR24x03, 3A @ 40°C ambient for DR48x03
LC B, Motor Loads Ratings: 0.18KW @ 240VAC for DR24x03 and 0.375KW @ 480VAC DR48x03

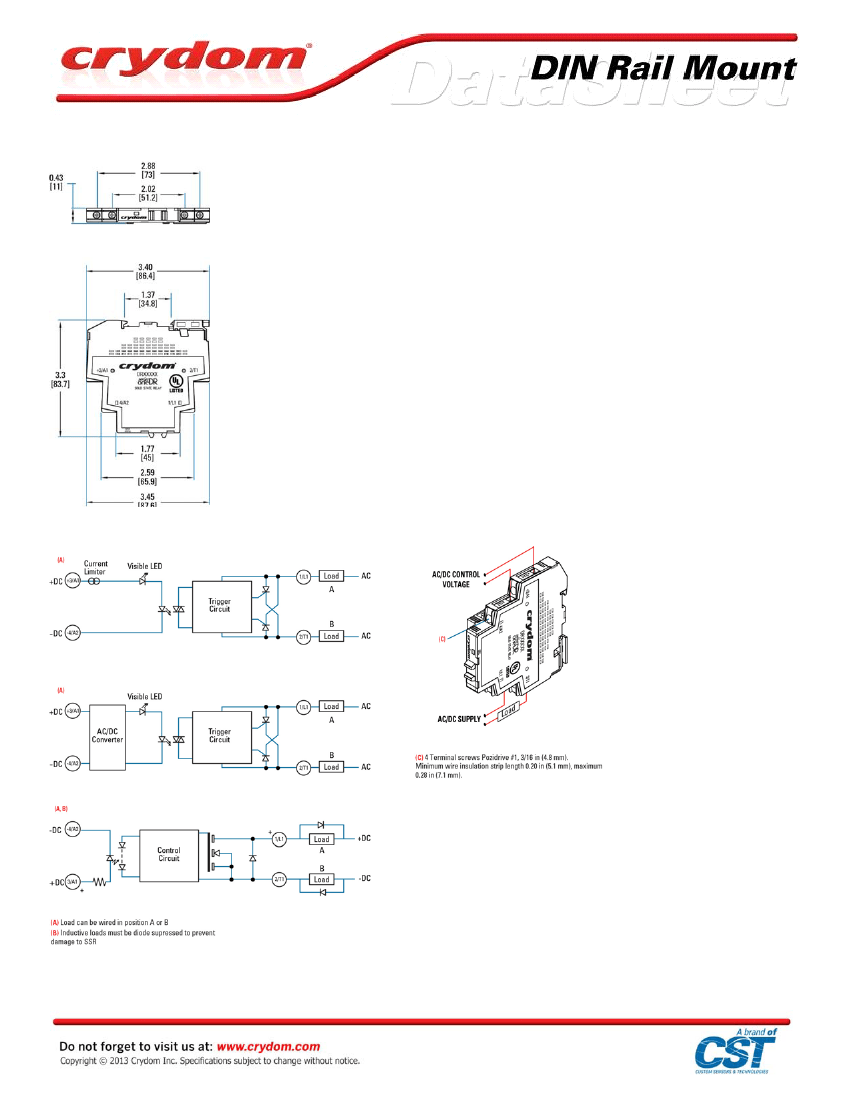

Shock and Vibration
(Applies to all part numbers)
Vibration Resistance according to IEC 60068-2-6:
0.35mm and 0.75mm Amplitude over 10-55 Hz
Shock Resistance according to IEC 60068-2-27:
15g/11ms
EMC
(Applies to all part numbers)
IEC 61000-4-2 : Electrostatic Discharge – Level 3
IEC 61000-4-4 : Electrically Fast Transients – Level 3
IEC 61000-4-5 : Electrical Surges – Level 3
