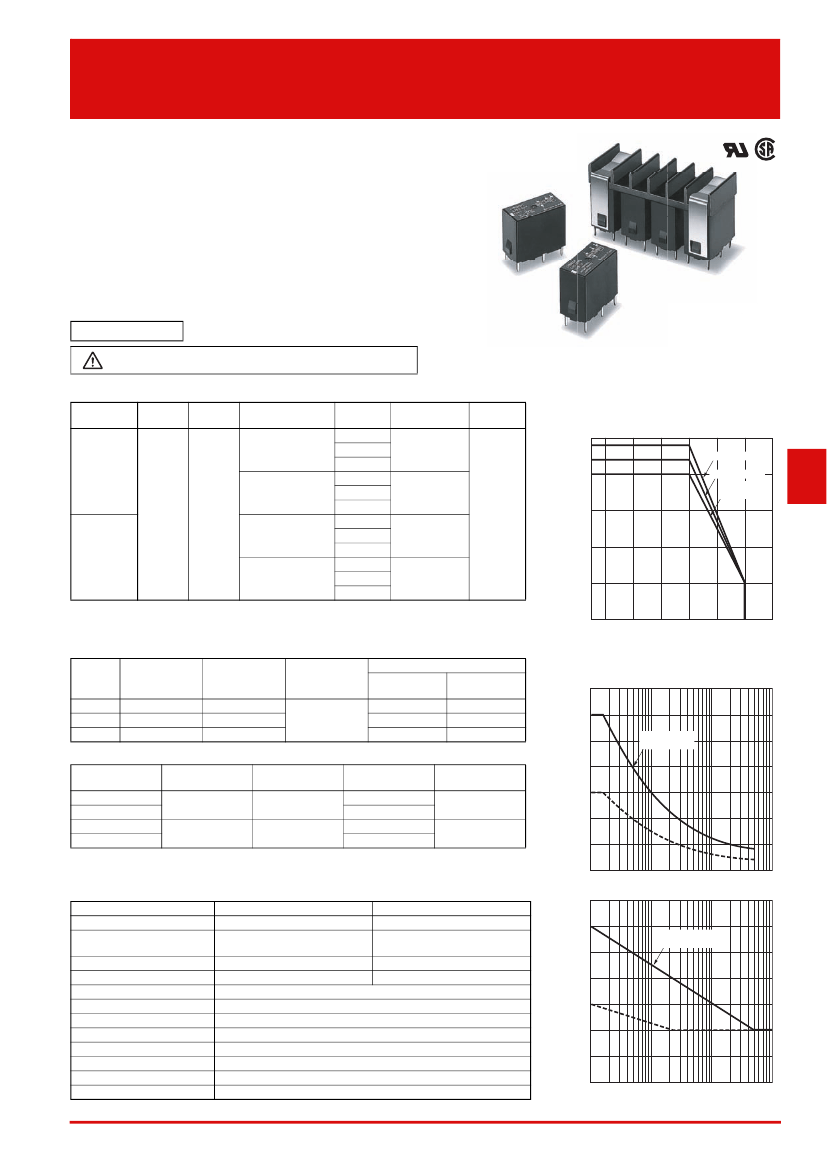

• Terminals are compatible with G6B Electromagnetic Relay’s. Be
capable mix with G6Bs as the application requires.
• Close mounting possible. In addition, heat sink dedicated to this
mounting style also available.
• Both AC- and DC-load versions available.
• High isolation of 2,500 VAC between input and output.
• Built-in varistor effectively absorbs external surges (for AC switching).
• Lineup includes models with UL and CSA certification (model numbers
ending in “-US”).
RoHS Compliant
Refer to "Solid State Relays Common Precautions".
■List
of Models
Isolation
Zero cross
Indicator
function
Rated input
Rated output load
voltage
5 VDC
1A
12 VDC
100 to 240 VAC *1
24 VDC
5 VDC
1.2 A
12 VDC
100 to 240 VAC *1
24 VDC
5 VDC
1A
12 VDC
4 to 24 VDC *2
24 VDC
5 VDC
1.1 A
12 VDC
4 to 24 VDC *2
24 VDC
Model
Minimum
packing unit
■Engineering
Data
• Load Current vs Ambient
Temperature Characteristics
Load current (A)
1.25
1.2
1.1
1
G3S-201PL-PD
G3SD-Z01P-PD
G3S-201PL
G3SD-Z01P
G3S-201PL
Phototriac
G3S-201PL-PD
100 pcs
G3SD-Z01P
No
No
0.75
0.5
Photocoupler
G3SD-Z01P-PD
0.25
*1. Product is labelled “250 VAC”. *2 Product is labelled “24 VDC”.
G
3
S
/
G
3
S
D
0
20
40
60
80
100
Ambient temperature (°C)
■Ratings
Input
(Each models has 5-VDC, 12-VDC, and 24-VDC input versions.)
Rated
voltage
5 VDC
12 VDC
24 VDC
Operating voltage
Must operate
voltage level
Must release
voltage level
Impedance
G3S-201PL
G3SD-Z01P
G3S-201PL-PD G3SD-Z01P-PD
450
Ω
±20%
630
Ω
±20%
1.1 kΩ ±20%
1.5 kΩ ±20%
2.2 kΩ ±20%
2.8 kΩ ±20%
0
−30 −20
• One Cycle Surge Current: Non-repetitive
Non-repetitive (Keep the inrush current to half the
rated value if it occurs repetitively.)
Inrush current (A. Peak)
4 to 6 VDC
4 VDC max.
9.6 to 14.4 VDC 9.6 VDC max.
19.2 to 28.8 VDC 19.2 VDC max.
1 VDC min.
15
G3S-201PL
G3S-201PL-PD
10
Output
Model
Item Rated load voltage
100 to 240 VAC
4 to 24 VDC
Rated load voltage
range
75 to 264 VAC
3 to 26 VDC
Load current
0.1 to 1 A
*
0.1 to 1.2 A
*
0.01 to 1 A
*
0.01 to 1.1 A *
Inrush current
15 A
(60 Hz, 1 cycle)
3 A (10 ms)
G3S-201PL
G3S-201PL-PD
G3SD-Z01P
G3SD-Z01P-PD
5
* The applicable output load current varies depending on the ambient temperature.
Refer to reference data the "Load Current vs. Ambient Temperature" rating characteristic for details.
0
10
30 50 100 200
500 1,000
5,000
■Characteristics
Item
Operate time
Release time
Output ON voltage drop
Leakage current
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Storage temperature
Ambient operating temperature
Ambient operating humidity
Weight
Model
G3S-201PL, G3S-201PL-PD
G3SD-Z01P, G3SD-Z01P-PD
1 ms max.
1 ms max.
1/2 of load power source cycle +
1 ms max.
1 ms max.
1.6 V (RMS) max.
1.5 V max.
2 mA (at 200 VAC)
0.1 mA max. (at 26 VDC)
100 MΩ min. (at 500 VDC)
2,500 VAC, 50/60 Hz for 1 min between input and output
10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
1,000 m/s
2
−30°C
to 100°C (with no icing or condensation)
−30°C
to 80°C (with no icing or condensation)
45% to 85% RH
Approx. 13 g
Inrush current (A. Peak)
3
Energized time (ms)
G3SD-Z01P
G3SD-Z01P-PD
2
1
0
10
30 50 100 200
500 1,000
5,000
Energized time (ms)
1
G3S/G3SD

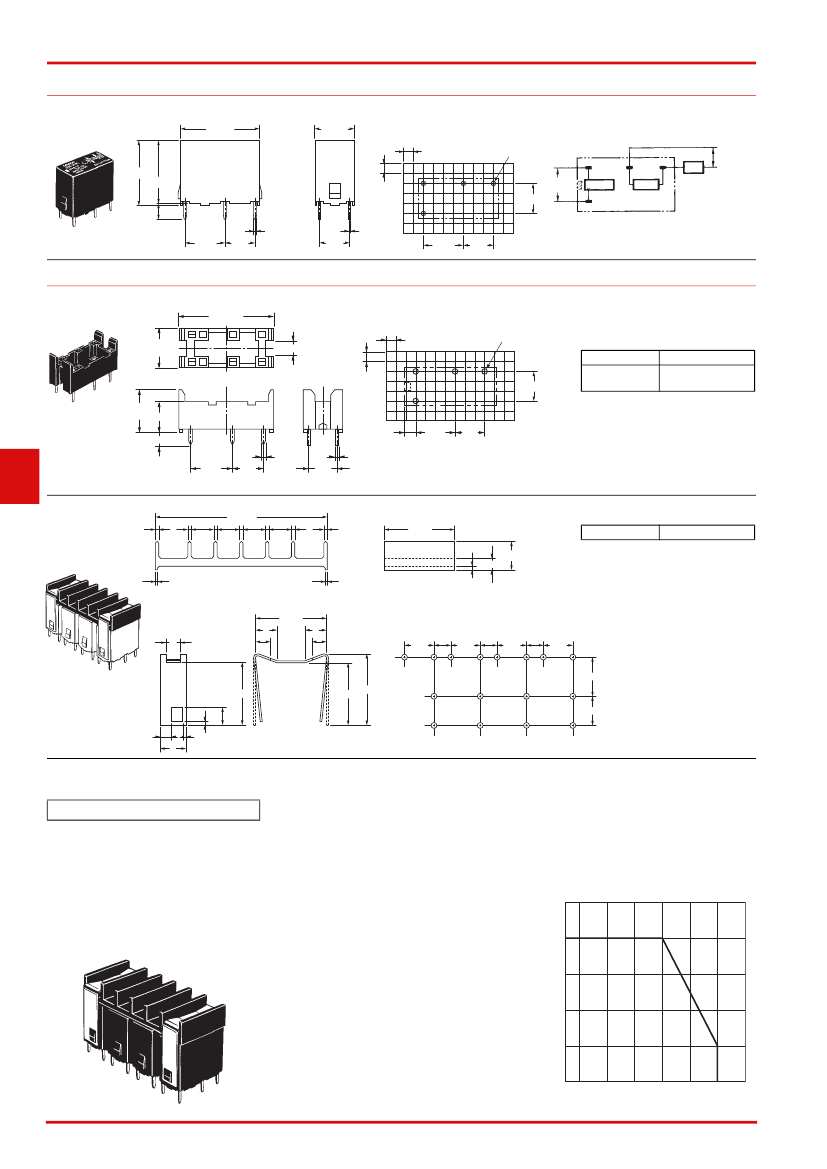

■Dimensions
G3S
G3SD
20 max.
10 max.
Solid State Relays
(Unit: mm)
Mounting Holes
(BOTTOM VIEW)
Tolerance: ±0.1 mm
2.54
Four, 1.1 dia. holes
−
1
(−)
−
INPUT
+
6
3
(+)
4
LOAD
Terminal Arrangement/
Internal Connections
(BOTTOM VIEW)
(−)
Load power
supply
(+)
16.5 max.
16 max.
2.54
7.62
Input
voltage
+
LOAD
4
0.8
10.16
7.62
7.62
0.4
10.16
7.62
Note: Values in parentheses apply to the DC-load versions.
■Connecting
Socket
G6B-04P
23.2 max.
(23)*
10 max.
(9.9)*
3.1
Mounting Holes
(BOTTOM VIEW)
Tolerance: ±0.1 mm
2.54
Four, 1.1-dia. holes
Model
2.54
7.62
P6B-04P
10.1 max.
(10)* 7
3.5
0.8
10.16
7.62
7.62
* Average value
0.4
(2.71)
10.16
7.62
Minimum order
20
quantity (pcs)
Note: Order the models below in
increments of the minimum quantity
packaged.
G
Heat Sink
3
Y92B-S08N
S
/
G
3
S
D
1
8
48.2
+0
−0.3
1 6.3 1 6.3 1 6.3 1 6.3 1
1
8
20
+0
−0.3
8
+0
−0.25
Model
Y92B-S08N
Note: The
Y92B-S08N
Relay is
composed of
heat sink with
two mounting
tools.
3
0.5
0.5
1
+0
−0.2
Mounting Bracket
20
+0.3
−0
4
6
4
6
4
7.62
4.5
Mounting Holes
(BOTTOM VIEW)
Tolerance: ±0.1 mm
7.62
4.5
7.62
4.5
7.62
10.16
16
0.7 4.2
2.6
7
0.8
15.5
18
7.62
■Safety
Precautions
• Please refer to “Solid State Relays Common Precautions” for correct use.
Precautions for Correct Use
• Close Mounting
G3S-201PL-PD and G3SD-Z01-PD
SSRs can be closely mounted side by
side. Attach the Y92B-S08N Heat Sink to
the SSRs mounted closely side by side.
When these SSRs are mounted side by
side, the load current vs. ambient
temperature characteristic declines as
shown below.
Apply a thin layer of Momentive
Performance Materials’s YG6260 or
Shin-Etsu Chemical’s G747, or similar
product to the heat sink before mounting.
When these SSRs are mounted side by
side (with heat sink), the load current vs.
ambient temperature characteristic
declines as shown on the right.
• Load Current vs. Ambient
Temperature Characteristics
(When four SSRs are mounted closely
side by side and each of them is
switched to the same load current)
Load current (A)
1
0.75
0.5
0.25
0
−30 −20
0
20
40
60
80
100
Ambient temperature (°C)
2
G3S/G3SD
Solid State Relays
G
3
S
/
G
3
S
D
•
