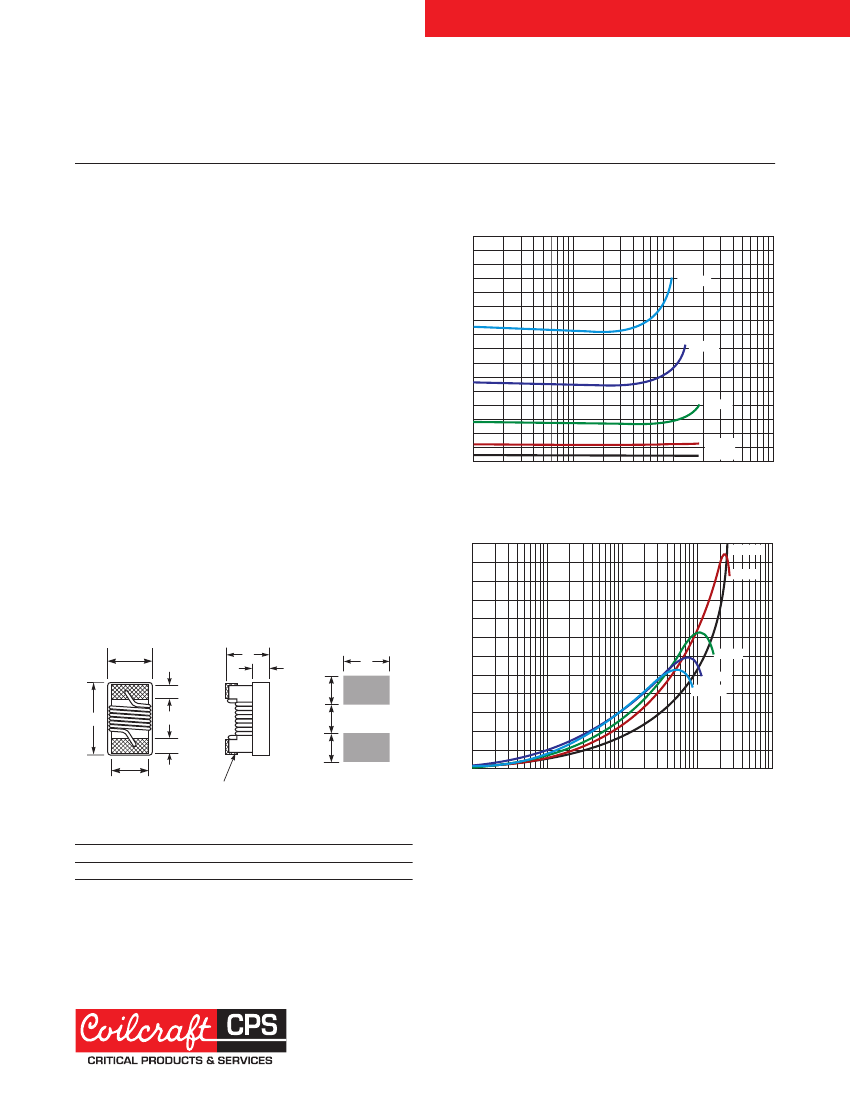

0603 CHIP INDUCTORS
OutgassingCompliantChipInductors
AR312RAA
Exceptional Q and high SRFs
DCR and current carrying characteristics
Outstanding self-resonant frequency
Tight inductance tolerance
High temperature materials allow operation in ambient
temperatures up to 155°C.
Passes NASA low outgassing specifications
Standard tin-lead (Sn-Pb) terminations ensures the best
possible board adhesion. Note: Nickel barrier termination
(tin-lead over tin over nickel over silver-platinum-glass frit,
termination code P) is recommended for hand soldering
applications.
Core material
Ceramic
Terminations
Tin-lead (63/37) over tin over nickel over silver-platinum-
glass frit. Other terminations are also available.
Ambient temperature
–65°C to +125°C with
Imax
current
Maximum part temperature
+155°C (ambient + temp rise)
Storage temperature
Component: –65°C to +155°C.
Tape and reel packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +155 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced crush-resistant packaging
2000 per 7″ reel
Paper tape: 8 mm wide, 1.0 mm thick, 4 mm pocket spacing
Typical L vs Frequency
200
175
120 nH
150
Inductance (nH)
125
100
75
50
25
0
10
100
1000
68 nH
33 nH
12 nH
3.9 nH
10000
Frequency (MHz)
Typical Q vs Frequency
120
110
100
90
80
3.9 nH
12 nH
Q Factor
70
60
50
40
30
20
10
0
B
overall
C
D
I
H
33 nH
68 nH
120 nH
F
A
G
F
J
I
E
terminal
Terminal wraparound:
approx 0.007/0,18 both ends
Suggested
Land Pattern
1
10
100
1000
10000
Frequency (MHz)
A
max
0.071
1,80
B
max
0.044
1,12
C
max
1,02
D
ref
0,38
E
0,76
F
0,33
G
0,86
H
1,02
I
0,64
J
0,64
0.040 0.015 0.030 0.013 0.034 0.040 0.025 0.025
Note: Dimensions are before solder application. For maximum overall
dimensions including solder, add 0.0025 in / 0,064 mm to
B
and
0.006 in / 0,15 mm to
A
and
C.
®
Document AR195-1 Revised 09/06/18
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2018
0603 CHIP INDUCTORS
AR312RAA Series (0603)
Part number
1
AR312RAA1N6JPZ
AR312RAA1N8JPZ
AR312RAA2N2JPZ
6
AR312RAA3N3_PZ
AR312RAA3N6_PZ
AR312RAA3N9_PZ
AR312RAA4N3_PZ
AR312RAA4N7_PZ
6
AR312RAA5N1_PZ
6
AR312RAA5N6_PZ
AR312RAA6N8_PZ
AR312RAA7N5_PZ
AR312RAA8N2_PZ
AR312RAA8N7_PZ
AR312RAA9N5_PZ
AR312RAA10N_PZ
AR312RAA11N_PZ
AR312RAA12N_PZ
AR312RAA15N_PZ
AR312RAA16N_PZ
AR312RAA18N_PZ
AR312RAA22N_PZ
AR312RAA23N_PZ
AR312RAA24N_PZ
AR312RAA27N_PZ
AR312RAA30N_PZ
AR312RAA33N_PZ
AR312RAA36N_PZ
AR312RAA39N_PZ
AR312RAA43N_PZ
AR312RAA47N_PZ
AR312RAA51N_PZ
AR312RAA56N_PZ
AR312RAA68N_PZ
AR312RAA72N_PZ
6
AR312RAA82N_PZ
6
AR312RAAR10_PZ
6
AR312RAAR11_PZ
6
AR312RAAR12_PZ
6
AR312RAAR15_PZ
6
AR312RAAR18_PZ
6
AR312RAAR20_PZ
6
AR312RAAR21_PZ
6
AR312RAAR22_PZ
6
AR312RAAR25_PZ
6
AR312RAAR27_PZ
6
AR312RAAR33_PZ
6
AR312RAAR39_PZ
6
Inductance
2
(nH)
1.6 @ 250 MHz
1.8 @ 250 MHz
2.2 @ 250 MHz
3.3 @ 250 MHz
3.6 @ 250 MHz
3.9 @ 250 MHz
4.3 @ 250 MHz
4.7 @ 250 MHz
5.1 @ 250 MHz
5.6 @ 250 MHz
6.8 @ 250 MHz
7.5 @ 250 MHz
8.2 @ 250 MHz
8.7 @ 250 MHz
9.5 @ 250 MHz
10 @ 250 MHz
11 @ 250 MHz
12 @ 250 MHz
15 @ 250 MHz
16 @ 250 MHz
18 @ 250 MHz
22 @ 250 MHz
23 @ 250 MHz
24 @ 250 MHz
27 @ 250 MHz
30 @ 250 MHz
33 @ 250 MHz
36 @ 250 MHz
39 @ 250 MHz
43 @ 250 MHz
47 @ 200 MHz
51 @ 200 MHz
56 @ 200 MHz
68 @ 200 MHz
72 @ 150 MHz
82 @ 150 MHz
100 @ 150 MHz
110 @ 150 MHz
120 @ 150 MHz
150 @ 150 MHz
180 @ 100 MHz
200 @ 100 MHz
210 @ 100 MHz
220 @ 100 MHz
250 @ 100 MHz
270 @ 100 MHz
330 @ 100 MHz
390 @ 100 MHz
Percent
tolerance
5
5
5
5,2
5,2
5,2
5,2
5,2
5,2
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
Q
min
3
26
21
11
35
18
20
29
18
20
25
28
23
26
27
22
28
26
29
28
29
29
31
39
36
32
32
33
32
36
28
35
38
37
35
35
29
28
30
28
28
25
25
27
25
25
26
25
25
900 MHz
L typ Q typ
1.67
1.83
2.22
3.31
3.72
3.95
4.32
4.72
4.93
5.77
6.75
7.70
8.25
8.86
9.70
10.0
11.0
12.3
15.4
16.2
18.7
22.8
24.1
24.5
29.2
31.4
36.0
39.4
42.7
47.0
52.2
55.5
62.5
80.5
82.0
96.2
124
138
166
250
305
49
35
31
75
53
49
50
47
47
63
60
60
82
62
59
66
53
72
64
55
70
73
71
45
74
47
67
47
60
44
62
69
56
54
53
54
49
43
39
25
22
1.7 GHz
L typ Q typ
1.65
1.86
2.24
3.38
3.71
3.96
4.33
4.75
4.95
6.05
7.10
7.82
8.37
9.32
9.92
10.6
11.5
13.5
16.8
17.3
21.4
26.1
28.0
28.7
34.6
39.9
49.5
52.7
60.2
64.9
77.2
82.2
97
168
135
177
63
50
44
88
65
67
70
57
56
80
81
65
87
58
61
83
56
83
89
52
69
71
67
39
65
28
42
24
40
21
35
34
26
21
20
21
SRF
min
4
(MHz)
>5000
>5000
>5000
>5000
>5000
>5000
>5000
>5000
>5000
4760
4660
4320
3880
3680
4100
3860
3640
3220
3020
3040
2680
2380
2380
2380
2380
2240
1900
1960
1740
1580
1560
1560
1480
1380
1360
1300
1140
1080
1020
900
820
800
780
760
742
700
620
580
DCR
max
5
(Ohms)
0.022
0.045
0.24
0.045
0.063
0.080
0.063
0.116
0.140
0.075
0.110
0.106
0.115
0.109
0.135
0.130
0.130
0.130
0.170
0.170
0.170
0.190
0.190
0.190
0.220
0.220
0.220
0.250
0.250
0.280
0.280
0.300
0.310
0.340
0.490
0.540
0.580
0.610
0.650
0.915
1.25
1.98
2.06
2.10
3.55
2.30
3.89
4.35
Imax
(mA)
700
700
100
700
700
700
700
605
510
700
700
700
700
700
700
700
700
620
600
600
600
560
560
560
530
500
500
460
460
440
440
420
420
410
340
340
310
310
270
250
210
170
160
160
120
150
100
100
1. When ordering, please specify
tolerance, termination
and
testing
codes:
AR312RAAR39JSZ
Tolerance: F
= 1%
G
= 2%
J
= 5%
Termination:
See
Notes about terminations
P
= Tin-lead (63/37) over tin over nickel over silver-platinum-glass frit
R
= Matte tin over nickel over silver-platinum glass frit
Q
= Tin-silver-copper (95.5/4/0.5) over tin over nickel over
silver-platinum-glass frit.
S
= Tin-lead (63/37) over leach-resistant silver-platinum-
glass frit
A
= Gold over nickel over moly-mag
C
= Tin-lead (63/37) over gold over nickel over moly-mag
L
= Silver-palladium-platinum-glass frit
Testing:
Z
= Unscreened
H
= Group A screening per Coilcraft CP-SA-10001
T
= Screening per MIL-STD-981
U
= Screening per EEE-INST-002
F
= Screening per ESCC 3201
All screening performed to the document’s latest revision
Custom screening also available
®
2. Inductance measured using a Coilcraft SMD-A test fixture and
Coilcraft-provided correlation pieces with an Agilent/HP 4286A
impedance analyzer or equivalent.
3. Q measured at the same frequency as inductance using an Agilent/
HP 4291A with an Agilent/HP 16197A test fixture or equivalents.
4. SRF measured using an Agilent/HP 8753ES network analyzer and a
Coilcraft CCF1232 test fixture.
5. DCR measured on a Keithley 580 micro-ohmmeter and a Coilcraft
CCF1010 test fixture.
6. Part is not compliant with MIL-STD-981 Family 50, Class S due to wire gauge
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Notes about terminations
For hand soldering applications, the nickel barrier termination (tin-lead over tin
over nickel over silver-platinum-glass frit, termination code P) is recommended.
Exposed gold or tin in the terminations migrates into the solder.
Document AR195-2 Revised 09/06/18
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2018
The difference between simulation and emulation
I came across this question by chance and couldn't figure it out, so I looked it up online and found this article, which I would like to share with my friends who haven't realized the difference. The ...
熊猫 Integrated technical exchanges
Moderator, please check if there is any error in the STM8L152c reference manual (English version)
I am planning to use the STM8L series, so I have been looking at the technical documentation of the stm8l152c6 recently. I downloaded the reference manual number (RM0031) from the official website and...
jishengbao stm32/stm8
Combining operational amplifier with field effect tube SI2302 to make constant current circuit
[i=s] This post was last edited by sdkd2006 on 2017-2-13 09:48 [/i]The function of this circuit is to put a certain voltage on the 3rd pin of the op amp to make the LED connected at P1 in a constant c...
sdkd2006 Analog electronics
PCB layout
Is it necessary to place copper between pairs of differential lines on a double-sided board to isolate crosstalk? Do I still need to place copper if the spacing between several sets of differential li...
asionl PCB Design
51 serial communication problem, please help me look at this program, thank you
I am doing an idea contest for school, and I need communication between microcontrollers. I have called out the program for transmitting fixed data, but I have a problem with transmitting the variable...
changyuan009 Embedded System
How to DIY a BootLoader (x86)
The LOADCEPC.EXE of X86 is not easy to use. I have seen someone make a BOOTLOADER by himself before, which can display a LOGO.BMP picture when loading NK.BIN! I also want to make one by myself! Does a...
紫皮书 Embedded System

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 2580  1952  702  2703  1669  52  40  15  55  34
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
