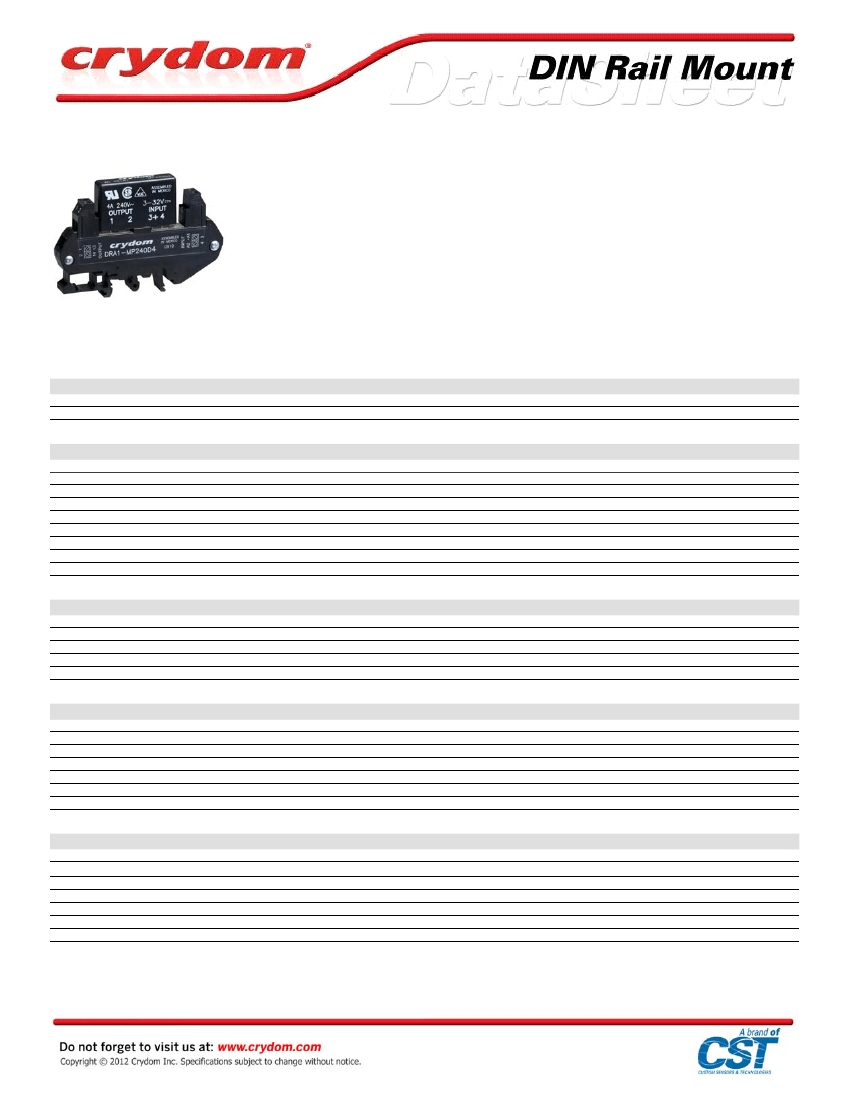

DRA1 MP Series
• 10mm Single Channel DIN Rail Mount SSR Assembly
• AC Ratings up to 280 VAC and 4 Amps
• DC Ratings 60 VDC and 3 Amps
• N.O. AC or DC output, N.C. DC Output (-B)
• 3-32VDC control
• Cage style screw terminals for easy connection
• Fits standard 35mm DIN rail
PRODUCT SELECTION
Description
3-32 VDC Control
3-32 VDC Control
3A
DRA1-MP120D3
DRA1-MPDCD3
3A
DRA1-MP240D3
DRA1-MPDCD3-B
4A
DRA1-MP240D4
AC OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage [VAC]
Transient Overvoltage [Vpk]
Maximum Load Current [Arms] (2)
Minimum Load Current [Arms]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum off-state dv/dt @ maximum rated voltage [V/µsec] (3)
Maximum 1 Cycle Surge Current (50/60 Hz) [Apk]
Maximum I²t for fusing (50/60 Hz, 1/2 cycle) [A² sec]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
DRA1-MP120D3
12-140
400
3
0.02
5
200
86/90
39/36
1.6
DRA1-MP240D3
24-280
600
3
0.02
5
200
86/90
39/36
1.6
DRA1-MP240D4
24-280
600
4
0.02
5
200
125/130
78/72
1.6
DC OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage [VDC]
Maximum Load Current [Adc]
Minimum Load Current [Adc]
Maximum Surge Current [Adc]
Maximum On-State Voltage Drop @ Rated Current [Vdc]
DRA1-MPDCD3
3-60
3
0.02
5
1.5
DRA1-MPDCD3-B
3-60
3
0.02
5
1.5
INPUT SPECIFICATIONS (1)
Description
Control Voltage Range
Must Turn On Voltage
Must Turn Off Voltage
Typycal Input Current
Nominal Input Impedance
Maximum Turn-On Time [msec]
Maximum Turn-Off Time [msec]
DRA1-MPxxxDx
3-32 VDC
3.0 VDC
1 .0 VDC
2.6 mAdc
1500 Ohm
8.33
8.33
DRA1-MPDCD3
3-32 VDC
3.0 VDC
1 .0 VDC
2.6 mAdc
1500 Ohm
0.10
0.10
DRA1-MPDCD3-B
3-32 VDC
1.0 VDC
3 .0 VDC
2.6 mAdc
1500 Ohm
0.10
0.10
GENERAL SPECIFICATIONS
Description
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 VDC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Encapsulation
Parameters
4000 VRMS
10
9
Ohms
8 pF
-40 to 80°C
-40 to 125 °C
0.08 lb (36.4g)
Themally Conductive Epoxy
GENERAL NOTES
1) All parameters at 25°C unless otherwise specified.

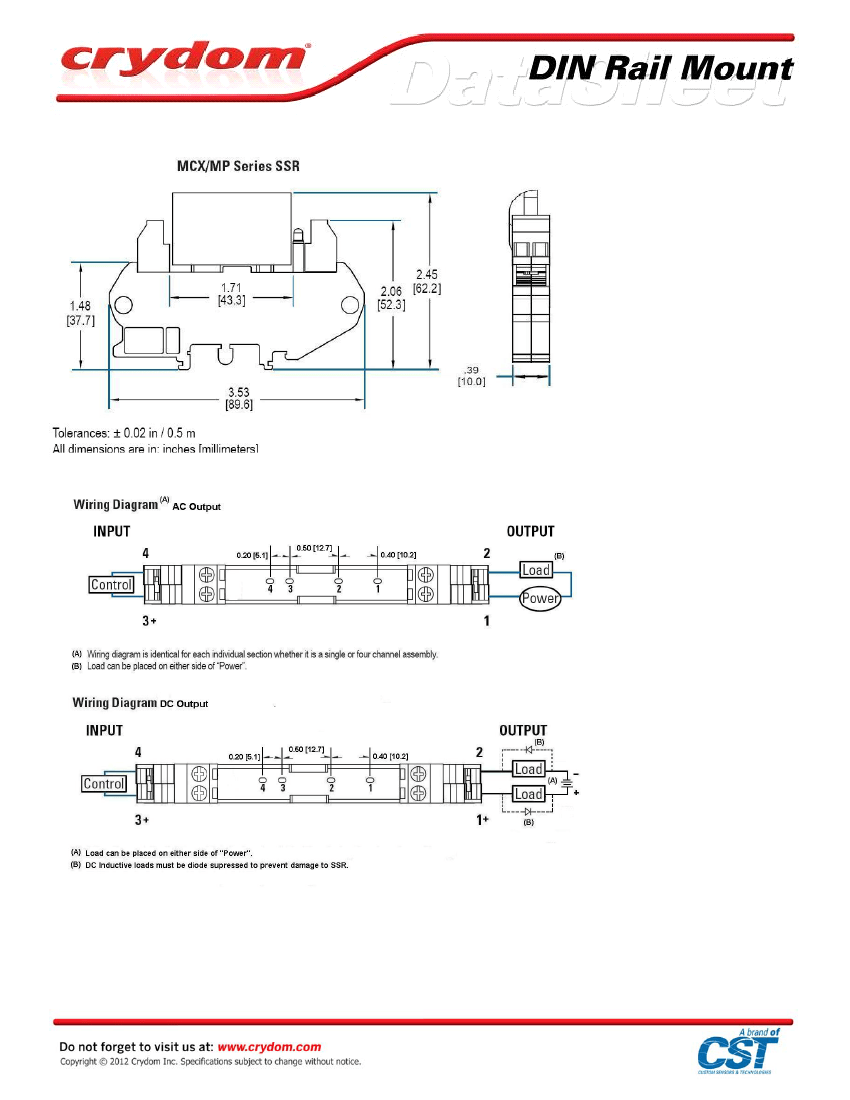

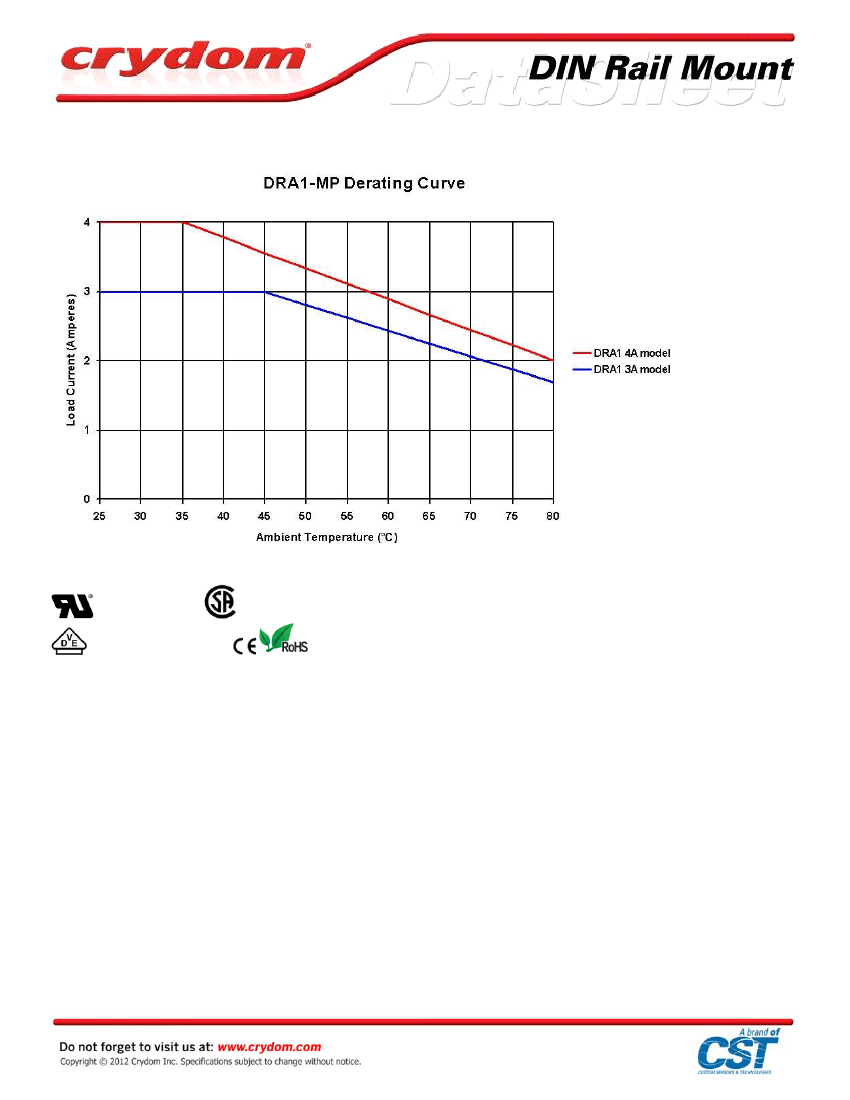

2) See derating chart on page 3
3) Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
