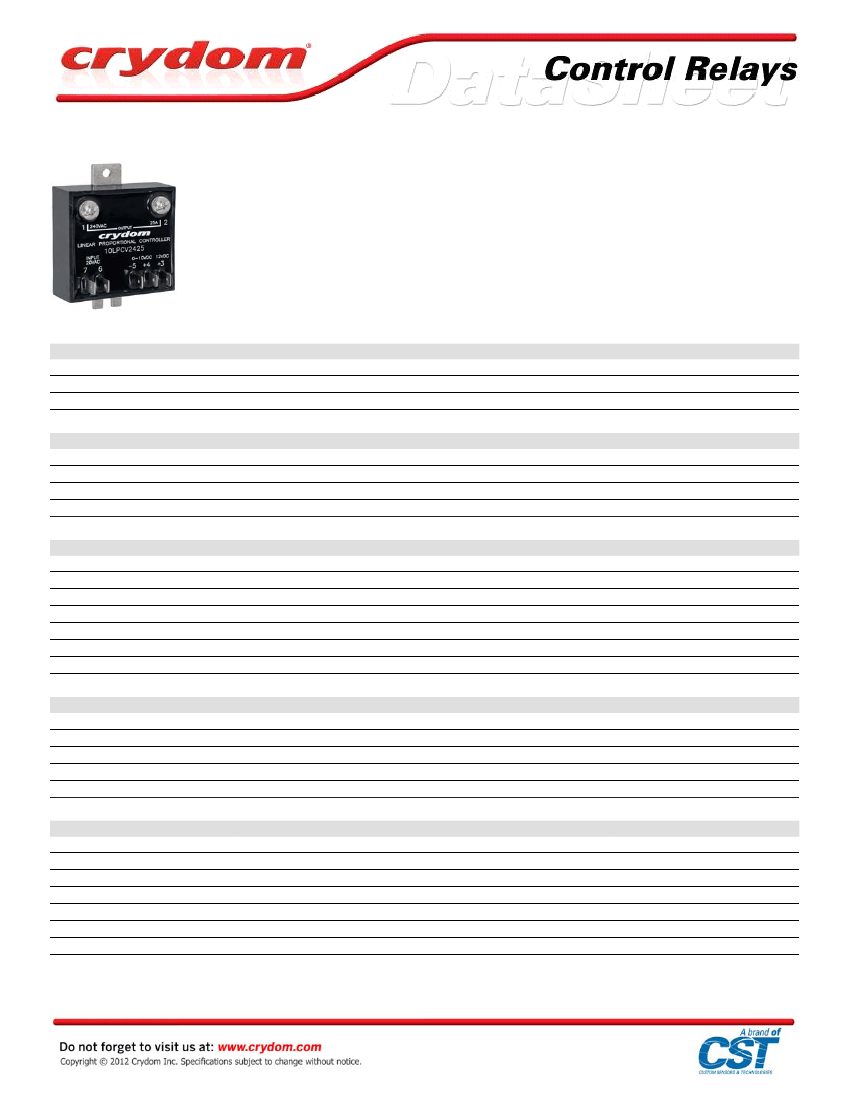

LPCV Series
• Linear proportional controller
• Ratings from 15A to 110A @ 240 VAC
• 0-5 V DC, 0-10 V DC, or 4-20mA input
• For use with resistive loads only
PRODUCT SELECTION
Description
0-5 VDC Control
0-10 VDC Control
4-20 mA Control
15 A
5LPCV2415
10LPCV2415
20LPCV2415
25 A
5LPCV2425
10LPCV2425
20LPCV2425
40 A
5LPCV2440
10LPCV2440
20LPCV2440
75 A
5LPCV2475
10LPCV2475
20LPCV2475
110 A
5LPCV24110
10LPCV24110
20LPCV24110
OUTPUT SPECIFICATIONS (voltage) (1)
Description
Operating Voltage (60Hz) [Vrms]
Transient Overvoltage [Vpk]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec]
240 VAC
20-300
600
10
200
OUTPUT SPECIFICATIONS (current) (1)
Description
Maximum Load Current [Arms]
Minimum Load Current [Arms]
Maximum Surge Current (16.6ms) [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Thermal Resistance Junction to Case (Rjc) [°C/W]
Maximum I² t for Fusing (8.3 msec) [A² sec]
Minimum Power Factor (with Maximum Load)
15 A
15
0.10
150
1.6
1.48
94
0.5
25 A
25
0.10
250
1.6
1.02
260
0.5
40 A
40
0.10
625
1.6
0.63
1620
0.5
75 A
75
0.15
1000
1.6
0.31
4150
0.5
110 A
110
0.20
1500
1.6
0.28
9340
0.5
INPUT SPECIFICATIONS (1)
Description
Control Voltage Range
Control Range Limits (Min/Msx)
Turn-On Threshold
Nominal Input Impedance
Sync Voltage (terminal 6 and 7)
5LPCV
0-5 VDC
-0.5/10 VDC
0.25 VDC
12.7K Ohm
16-24 VAC
10LPCV
0-10 VDC
-1.0/20 VDC
0.5 VDC
25 K Ohm
16-24 VAC
20LPCV
4-20 mA
-0.5/25 mA
4.5 mA
460 Ohm
16-24 VAC
POWER SUPPLY SPECIFICATION (4)
Description
Input Voltage 50/60Hz
Output Voltage 50/60Hz (Sync Voltage)
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Terminals
Screw Torque Requirement
Weight (typical)
PS120
120 VAC
20 VAC/100mA
-30 to 80°C
-40 to 125°C
6-32 Screws, .25" Fastons
6-32 Screws -10 in lbs.
8.6 oz. (245g)
PS240
240 VAC
20 VAC/100mA
-30 to 80°C
-40 to 125°C
GENERAL SPECIFICATIONS
Description
Dielectric Strength, signal to load
Dielectric Strength, signal to Base
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Encapsulation
Terminals
Screw Torque Requirement
2500 Vrms
2500 Vrms
-30 to 80°C
-40 to 125°C
6.0 oz. (175g)
Themally Conductive Epoxy
8-32 Screws, .25" Fastons
8-32 and 10-32 Screws - 20in. lbs.

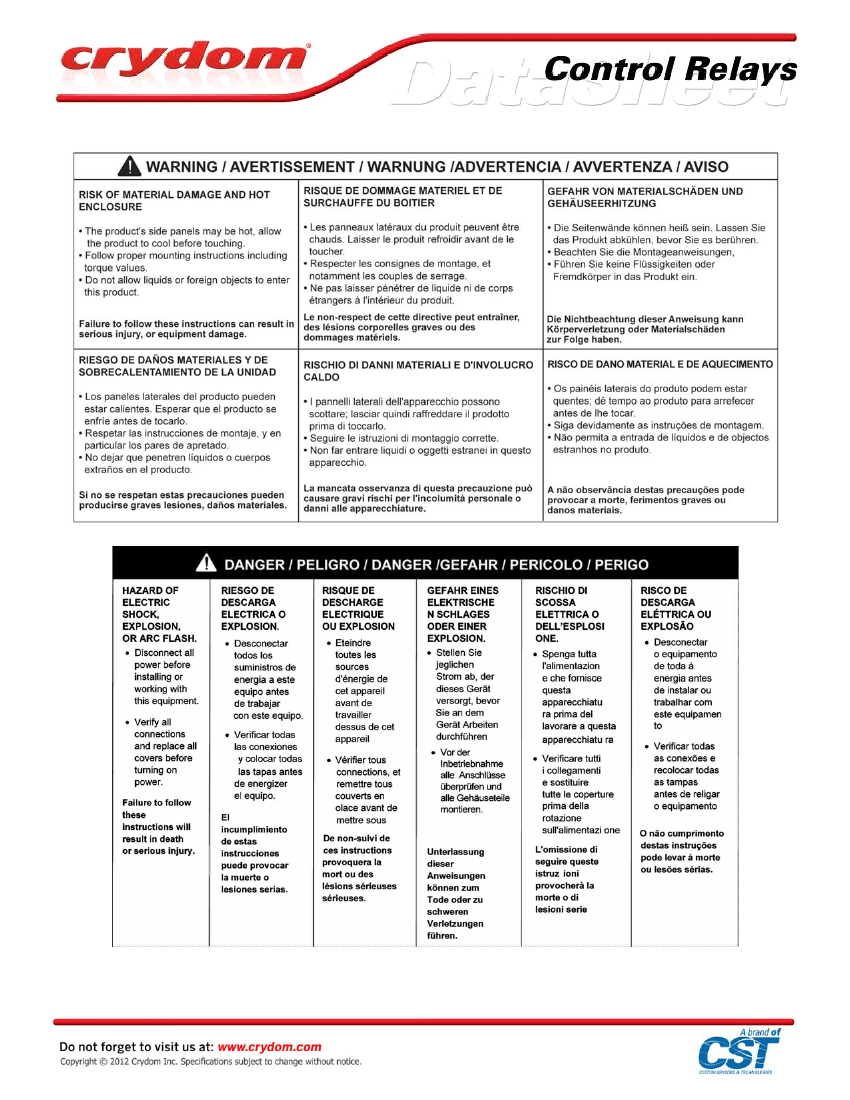

GENERAL NOTES
1) All parameters at 25°C unless otherwise specified.
2) Linear taper potentiometer 1-10K Ohm, ½ watt.
3) 50Hz models available.
4) 20 VAC must be in phase with load

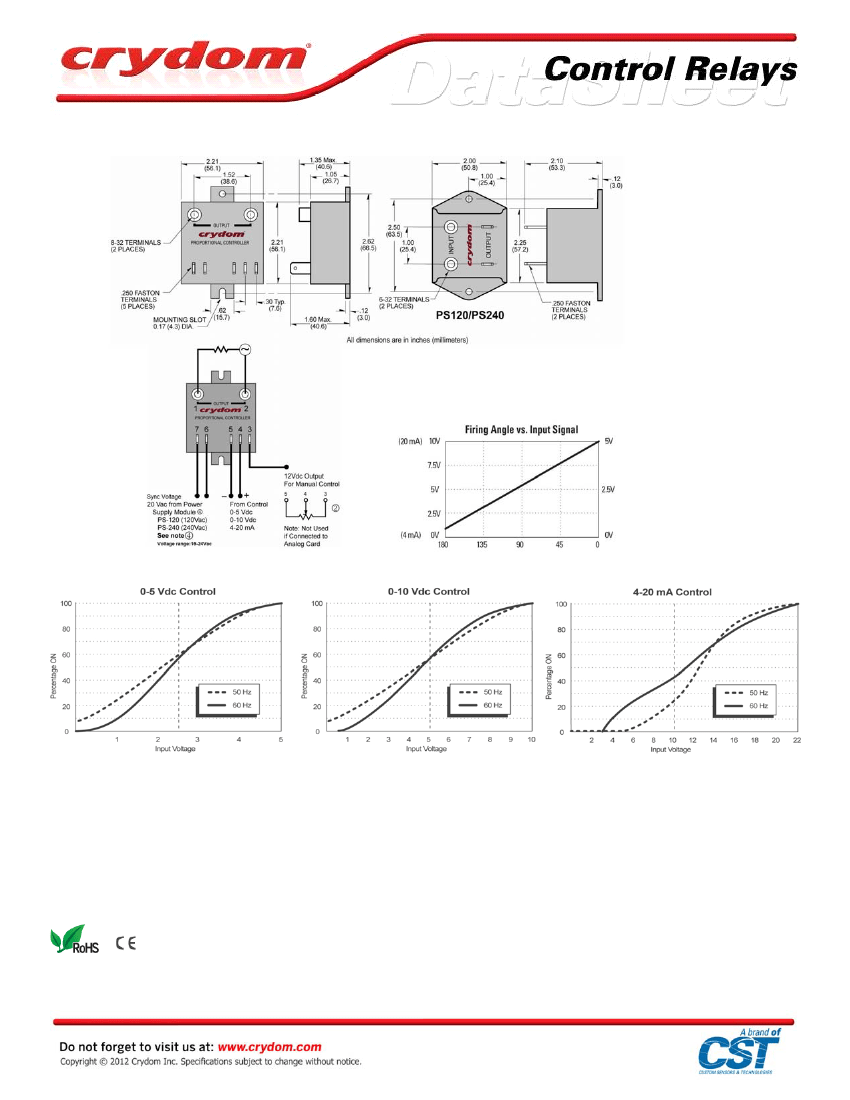

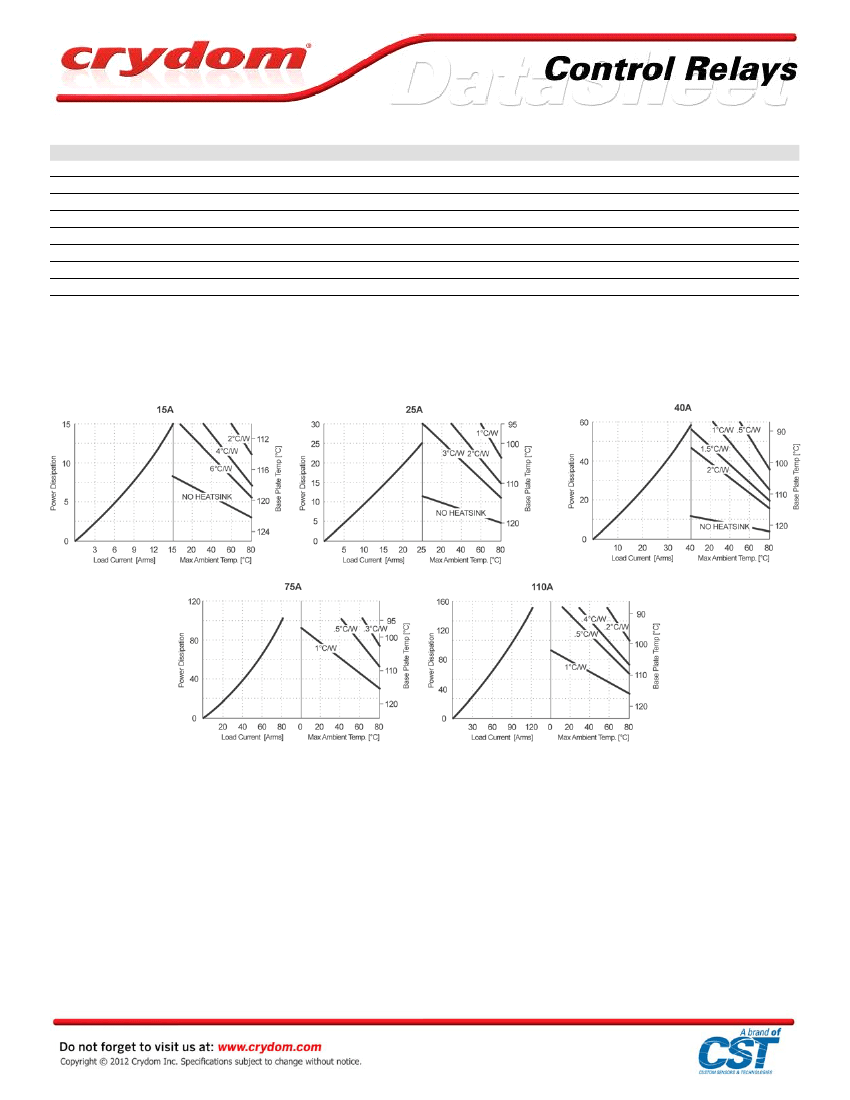

THERMAL DERATE INFORMATION
TYPICAL APPLICATIONS
• Infrared and quartz heaters
• Thermal forming equipment
• Resistive heating elements
• Conveyor speed control
• Rectified DC motors
• Printing applications
• Industrial temperature controllers
