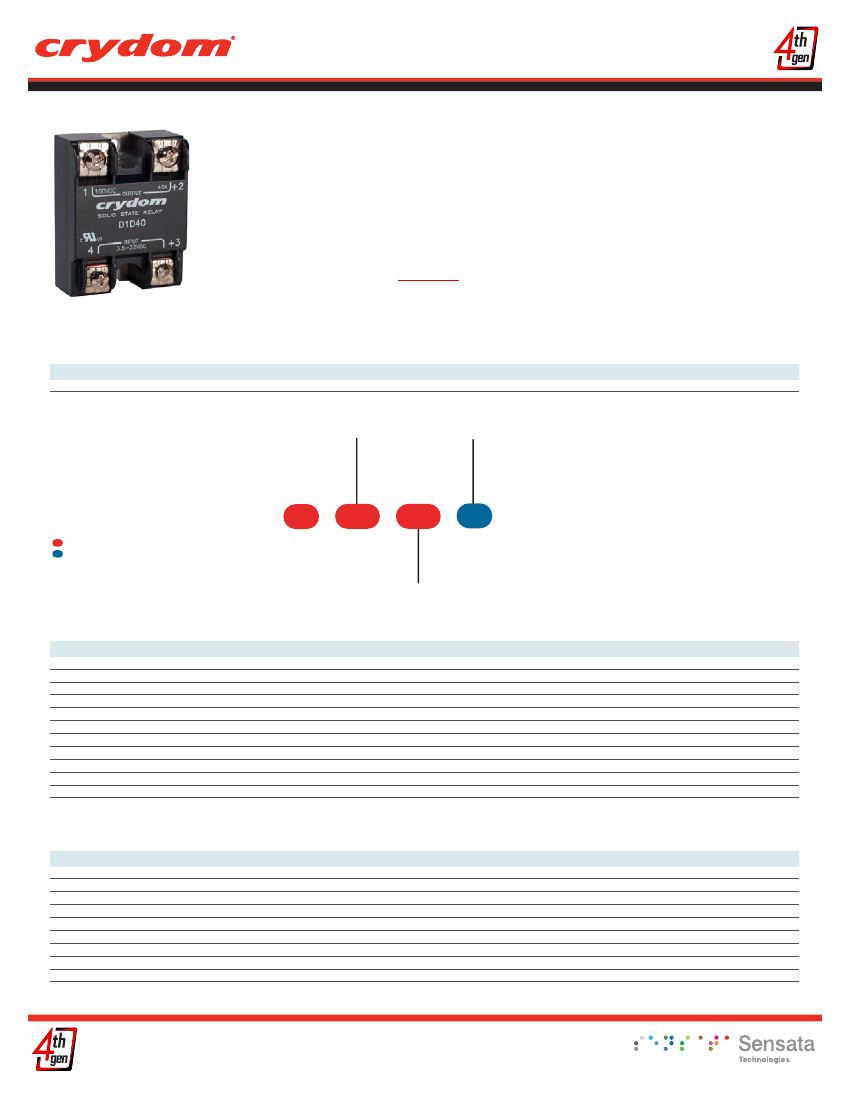

Datasheet
1-DC Series
•
Ratings from 60 A to 100 A @ 100 VDC
•
Mosfet Output
•
UL Approved, CE Compliant to EN60950-1
•
Improved SEMS screw and washer
•
Redesigned housing with anti-rotation barriers
For
Generation 3
datasheet
click here
•
DC control
•
EMC Compliant to Level 3
•
Epoxy Free Design
Panel Mount
PRODUCT SELECTION
Control Voltage
3.5-32 VDC
60 A
D1D60
80 A
D1D80
100 A
D1D100
AVAILABLE OPTIONS
Operating Voltage
1D:
1-100 VDC
Series
Termination
Blank:
Screws & clamps
K:
Installed standoffs with
(1)
screws for PC Board
mounting
D
*
Required for valid part number
For options only and not required for valid part number
Not all part number combinations are available.
Contact Crydom Technical Support for information on
the availability of a specific part number.
1D
60
K
Rated Load Current
60:
60 Amps
80:
80 Amps
100:
100 Amps
OUTPUT SPECIFICATIONS
(2)
Description
Recommended Operating Voltage [Vdc]
60 A
1-72
100
0.1
60
5
180
0.6
0.01
0.34
1
1000
80 A
1-72
100
0.2
80
5
220
0.7
0.008
0.34
0.5
900
100 A
1-72
100
0.3
100
5
330
0.5
0.005
0.27
0.5
800
Absolute Maximum Rating [Vdc]
Maximum Off-State Leakage Current @ Rated Voltage [mA]
Maximum Load Current [Adc]
(1)(3)
Minimum Load Current [mA]
(4)
Maximum Surge Current (10 msec)[Adc]
Maximum On-State Voltage Drop @ Rated Current [Vdc]
Maximum On-State Resistance [RDS-ON][Ohms]
Thermal Resistance Junction to Case (Rjc) [°C/W]
Minimum Heat Sink for Rated Current @ 40°C [°C/W]
Maximum Pulse Width Modulation Frequency [Hz]
(5)
INPUT SPECIFICATIONS
(1)
Description
Control Voltage Range
Maximum Reverse Voltage
Minimum Turn-On Voltage
(6)
Must Turn-Off Voltage
Minimum Input Current (for on-state)
Maximum Input Current
Nominal Input Impedance
Maximum Turn-On Time [µsec]
Maximum Turn-Off Time [µsec]
DC Control
3.5-32 VDC
-32 VDC
3.5 VDC
1 VDC
10 mA
15 mA
Current Regulated
100
100
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
Datasheet
GENERAL SPECIFICATIONS
(2)
Description
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 VDC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
(7)
Ambient Storage Temperature Range
Weight (typical)
Housing Material
Baseplate Material
Input Terminal Screw Torque Range (in-lb/Nm)
Load Terminal Screw Torque Range (in-lb/Nm)
SSR Mounting Screw Torque Range (in-lb/Nm)
Input/Load Terminal Screw Torque Range (in-lb/Nm)
(1)
Input/Output Terminal Screw Thread Size
Humidity per IEC60068-2-78
MTBF (Mean Time Between Failures) at 40°C ambient temperature
(8)
MTBF (Mean Time Between Failures) at 60°C ambient temperature
(8)
Panel Mount
Parameters
3750 Vrms
10
9
Ohm
8 pF
-40 to 100°C
-40 to 125 °C
2.66 oz (75.5 g)
UL94 V-0
Aluminum
13-15 /1.5-1.7
18-20 / 2-2.2
18-20 / 2-2.2
w/”K” option 8-10 / 0.9-1.13
#6-32 UNC / #8-32 UNC
93% non-condensing
21,395,130 hours (2,441 years)
11,545,504 hours (1,317 years)

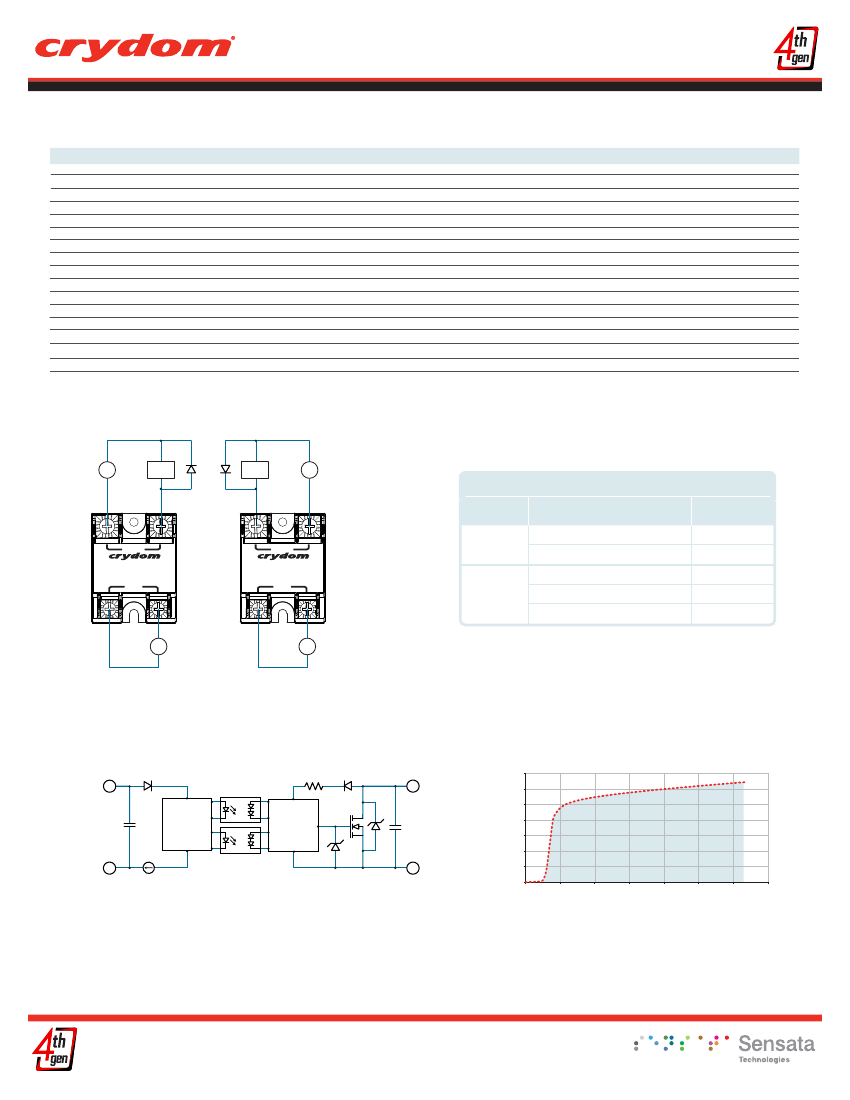

WIRING DIAGRAM
+
V
-
+
*
Inductive loads must be diode suppresed.
-
V
+
Load
*
*
Load
+
Recommended Wire Sizes
Terminals
Wire Size
(Solid / Stranded)
24 AWG (0.2 mm
2
) / 0.2 [minimum]
2 x 12 AWG (3.3 mm
2
) / 3.3 [maximum]
20 AWG (0.5 mm
2
) / 0.518 [minimum]
Wire Pull-Out
Strength (lb)[N]
10 [44.5]
90 [400]
30 [133]
110 [490]
90 [400]
1
OUTPUT
+2
1
OUTPUT
+2
Input
S O L I D S TAT E R E L AY
S O L I D S TAT E R E L AY
4
INPUT
+3
4
INPUT
+3
Output
2 x 10 AWG (5.3 mm
2
)
/ 5.3
2 x 8 AWG (8.4 mm
2
) / 8.4 [maximum]
+
V
-
+
V
-
EQUIVALENT CIRCUIT BLOCK DIAGRAMS
Input Current vs Input Voltage
Standard Regulated DC Input
14
+DC
3
2
+DC
Input Current (mA)
1
-DC
12
10
8
6
4
2
0
0
5
10
15
20
25
30
35
Control
Circuit
Trigger
Circuit
-DC
4
DC Input Voltage
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
Datasheet
Tolerances: ±0.02 in / 0.5 mm
All dimensions are in: inches [millimeters]
Panel Mount

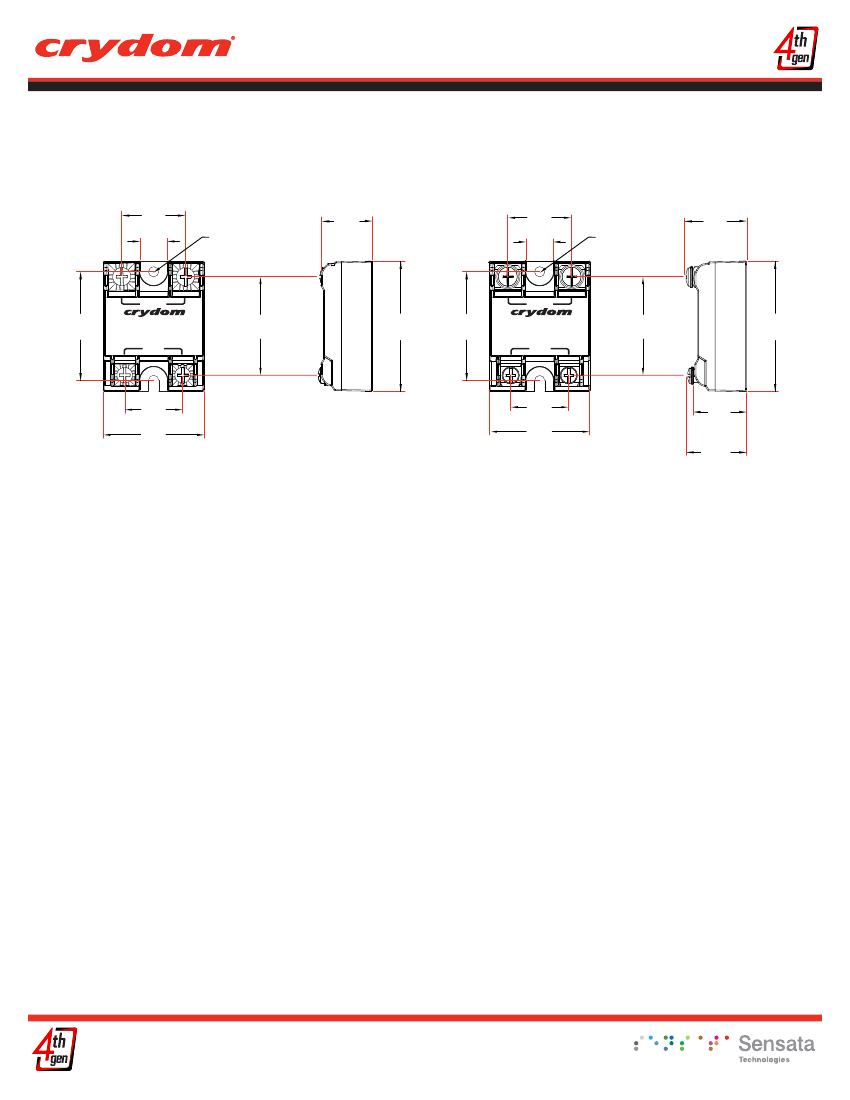

MECHANICAL SPECIFICATIONS
(2)
Screw Termination
1.1
[27.9]
0.49
[12.4]
0.89
[22.6]
Hex Standoff Termination (“K”
Option)
(1)
1.1
[27.9]
0.49
[12.4]
Mounting
Hole/Slot
0.19 [4.9]
DIA.
Mounting
Hole/Slot
0.19 [4.9]
DIA.
1.04
[26.4]
(2 places)
1
OUTPUT
+
2
1
OUTPUT
+
2
1.88
[47.6]
S O L I D S TAT E R E L AY
1.7
[43.2]
2.25
[57.3]
1.88
[47.6]
S O L I D S TAT E R E L AY
1.7
[43.2]
2.25
[57.3]
4
INPUT
+
3
4
INPUT
+
3
1.0
[25.4]
1.75
[44.5]
1.0
[25.4]
1.75
[44.5]
0.93
[23.6]
(4 places)
1.0
[25.4]
(2 places)
GENERAL NOTES
(1)
Option “K” is designed and tested for use with printed circuit boards or ring/fork terminals having a thickness between 0.031 and 0.093 inches (0.79 to 2.36 mm), and loads rated up to 50 Amps.
For higher load currents, the “K” standoff temperature must not exceed 105°C. For additional application assistance please contact Crydom Technical Support.
(2)
All parameters at Tc=25°C unless otherwise specified.
(3)
Heat sinking required, see derating curves.
(4)
Low current loads and high ambient temperature can affect turn-on time.
(5)
8 VDC minimum control voltage. Resistive loads only. Consider switching losses; at maximum frequency reduce to 75% output current.
(6)
Increase minimum voltage by 1V for operations from -20 to -40°C.
(7)
Decrease maximum control voltage 1.35V/°C above 80°C ambient temperature.
(8)
All parameters at 50% power rating and 100% duty cycle (contact Crydom tech support for detailed report).
For additional information or specific questions, contact Crydom Technical Support.
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
Datasheet

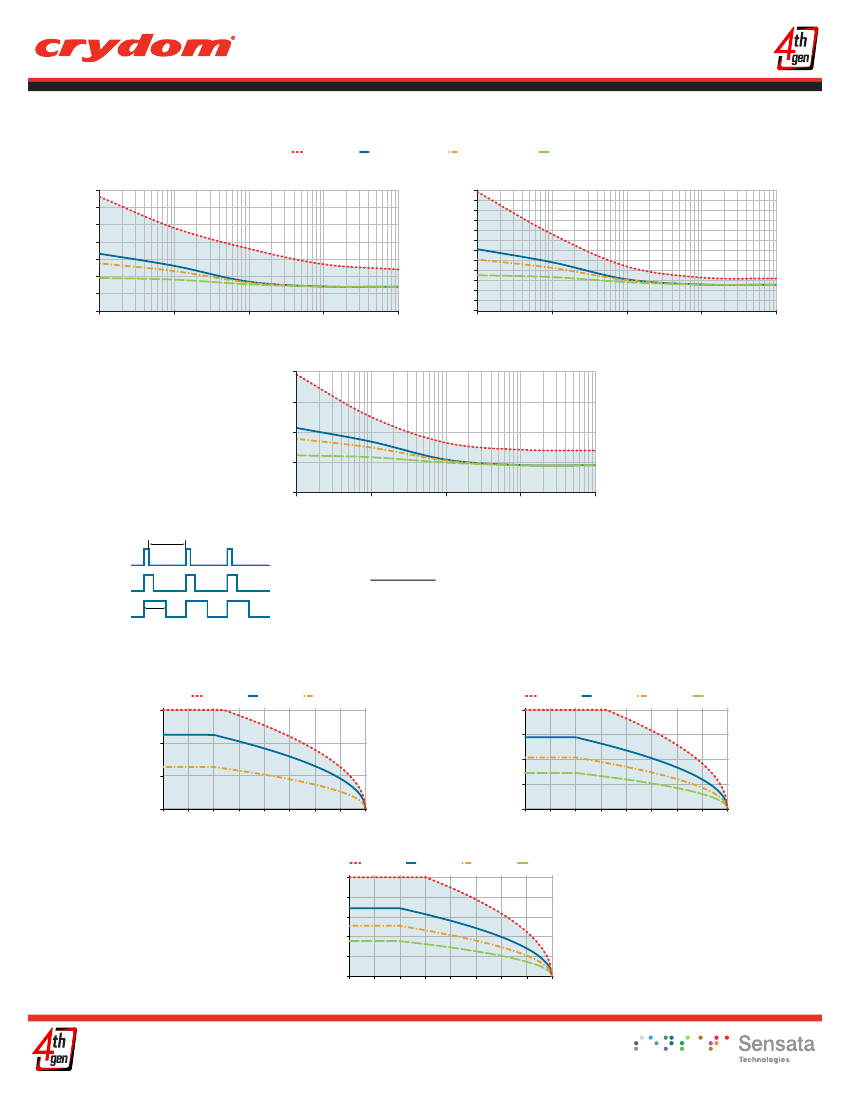

SURGE CURRENT INFORMATION
350
300
Single Pulse
(i)
Duty Factor (10%)
(ii)
Duty Factor (20%)
(ii)
Duty Factor (50%)
(ii)
Panel Mount
D1D60
Surge Current (Amp)
250
200
150
100
50
0
0.1
1
10
100
1000
600
550
500
450
400
350
300
250
200
150
100
50
0
0.1
1
D1D80
Surge Current (Amp)
10
100
1000
Surge Duration (msec)
Surge Duration (msec)
800
D1D100
Surge Current (Amp)
600
400
200
0
0.1
1
10
100
1000
Surge Duration (msec)
Period
Duty Factor 10%
Duty Factor 20%
Duty Factor 50%
Pulse
Width
For Pulse Width Modulation applications select
the curve according duty factor and pulse duration as following.
Pulse Width
Period
x100 (%)
Duty Factor
=
(i) for Single Surge Pulse Tc=40°C ;Tj 175°C
(ii) for Repetitive Surge Pulse Tc=40°C ;Tj 130°C
THERMAL DERATE INFORMATION
D1D60
1°C/W
60
2°C/W
5°C/W
80
0.5°C/W
D1D80
1.5°C/W
3°C/W
5°C/W
Load Current (Amps)
Load Current (Amps)
40
60
40
20
0
20
0
20
30
40
50
60
70
80
90
100
20
30
40
50
60
70
80
90
100
Ambient Temperature (ºC)
Ambient Temperature (ºC)
D1D100
0.5°C/W
100
1.5°C/W
3°C/W
5°C/W
Load Current (Amps)
80
60
40
20
0
20
30
40
50
60
70
80
90
100
Ambient Temperature (ºC)
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
Datasheet

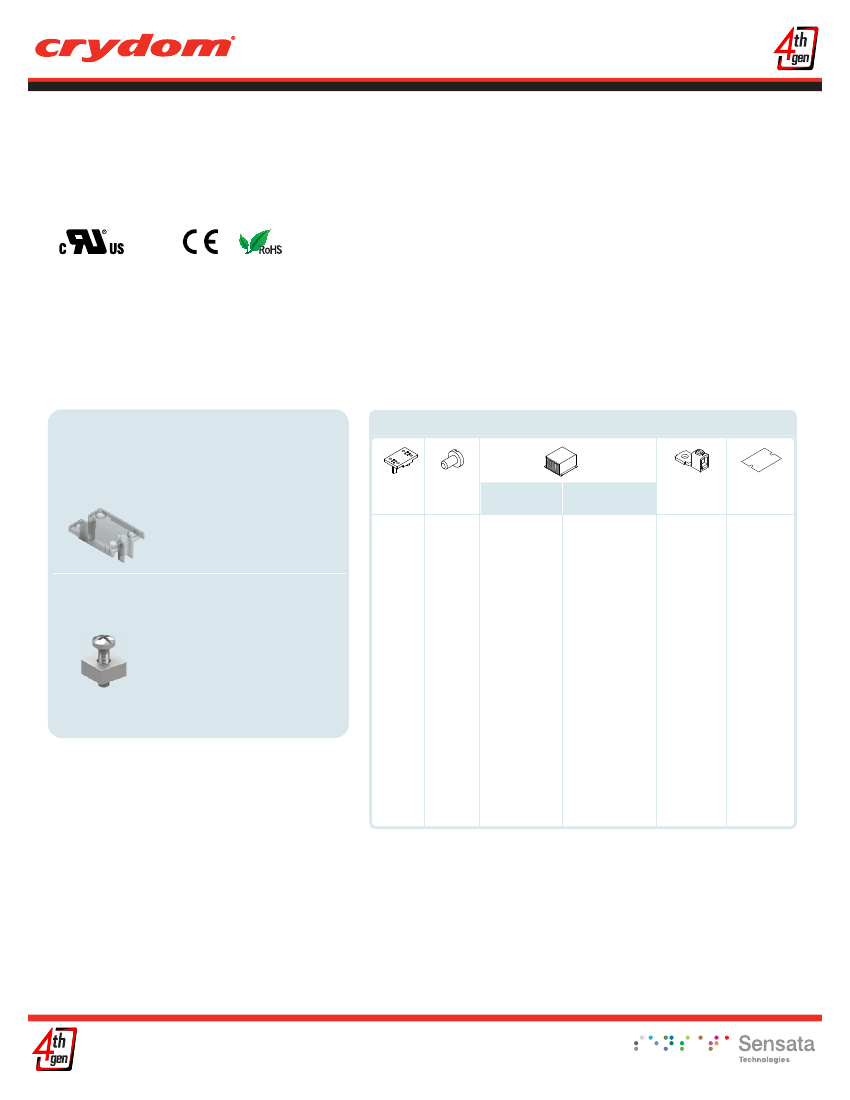

AGENCY APPROVALS
EN60950-1: Meets the requirements of sections1.5: 1,7: 2.9: 2.10.5.3: 4.2: 4.5: 4.7:
IEC 61000-4-2 Electrostatic Discharge Level 3
IEC 61000-4-4 Electrically Fast Transients Level 3
IEC 61000-4-5 Electrical Surges Level 3
Panel Mount
E116950
ACCESORIES
New Accessories!
Part number: KS101
Recommended Accessories
Protective Cover & Hardware Kits
Protective Cover
Cover
Clear plastic cover compatible with all new
S1 designs. Safety covers provide added
protection from electric shock when
installing or checking equipment.
Hardware
Kit
HK1
HK4
Heat Sink
Part No.
HS501DR
HS301 / HS301DR
HS251
HS201 / HS201DR
HS202 / HS202DR
Thermal Resistance
Lug Terminal Thermal Pad
[ºC/W]
5.0
3.0
2.5
2.0
2.0
1.7
1.5
1.2
1.0
1.0
0.7
0.7
0.5
0.36
0.25
TRM1
TRM6
HSP-1
HSP-2
KS101
Hardware Kit
Part number: HK4
Bag with 2 square brass accessories and 2
screw 8-32 x 5/8 for output. Used to mount
TMR1 lug terminals.
HS172
HS151 / HS151DR
HS122 / HS122DR
HS103 / HS103DR
HS101
HS073
HS072
HS053
HS033
HS023
Rev. 051016
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
