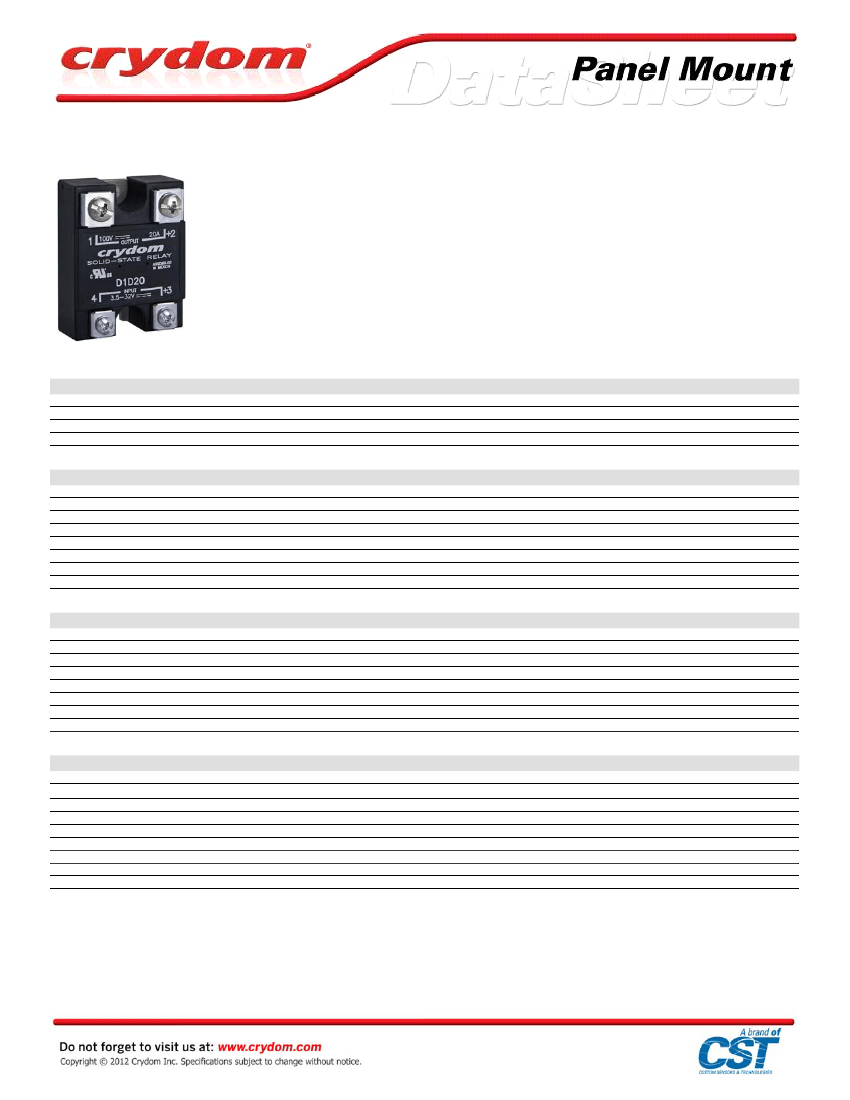

Series 1-DCL
• Optically Coupled MOSFET output
• Ratings from 7A to 40A @ 200 VDC, and from 7A to 10A @ 500 VDC
• DC Control
• Relays are easily paralleled for higher-current applications
PRODUCT SELECTION
Load Voltage
100 VDC
200 VDC
400 VDC
500 VDC
7A
D1D07L
D2D07L
D4D07L
D5D07L
10A
12A
D1D12L
D2D12L
D4D12L
20A
D1D20L
40A
D1D40L
D2D40L
D5D10L
OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage Range
Maximum Off-State Leakage Current @ Rated Voltage [mA]
Maximum Load Current (3) [Adc]
Minimum Load Current [mA]
Maximum Surge Current [Adc] (10ms)
Maximum On-State Voltage Drop @ Rated Current [Vdc]
Thermal Resistance Junction to Case (Rjc) [°C/W]
Maximum On-State Resistance [RDS-ON][Ohms]
7A
0-100
0.1
7
1
15
2.0
2.2
0.29
12A
0-100
0.2
12
1
28
1.6
1.34
0.13
20A
0-100
0.3
20
1
42
2.1
1.06
0.10
40A
0-100
0.3
40
1
106
2.1
0.83
0.05
7A
0-200
0.1
7
1
22
2.0
1.5
0.29
12A
0-200
0.3
12
1
27
2.8
1.06
0.23
40A
0-200
0.3
40
1
106
2.1
0.83
0.05
7A
0-400
0.3
7
1
17
4.2
1.06
0.6
12A
0-400
0.3
12
1
36
4.2
0.8
0.35
7A
0-500
0.2
7
1
19
5.7
1.0
0.8
10A
0-500
0.3
10
1
29
5.5
0.8
0.55
INPUT SPECIFICATIONS (1)
Description
Control Voltage Range
Minimum Turn-On Voltage
Minimum Turn-Off Voltage
Minimum Input Current @ 3.5V
Maximum Input Current @ 32VDC
Nominal Input Impedance
Maximum Turn-On Time [msec]
Maximum Turn-Off Time [msec]
3.5-32 VDC
3.5 VDC
1.0 VDC
8.4 mA
10.6 mA
See Note 4
1.0
1.0
GENERAL SPECIFICATIONS
Description
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 V DC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Encapsulation
Terminals
Recommended Terminal Screw Torque Range:
Parameters
2500 VRMS
10
9
Ohm
50 pF
-40 to 80°C
-40 to 125 °C
3.0 oz (86.5g)
Thermally conductive Epoxy
Screws and Saddle Clamps Furnished, Unmounted
6-32 Screws - 10 in lbs. 8-32 and 10-32 Screws -20 in. lbs. (Screws dry without grase)
GENERAL NOTES
1) All parameters at 25°C and per section unless otherwise specified.
2) Dielectric strength and insulation resistance are measured between input and output
3) Heat sinking required, for derating curves see page 3.

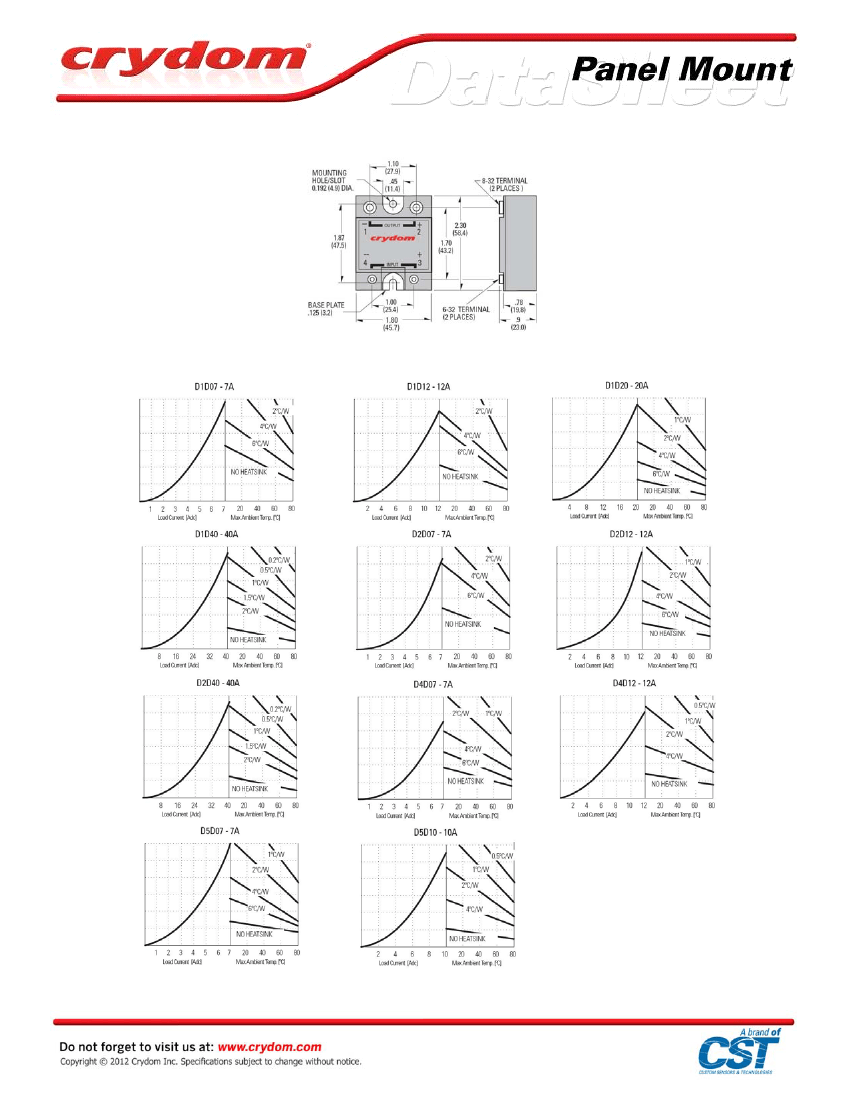

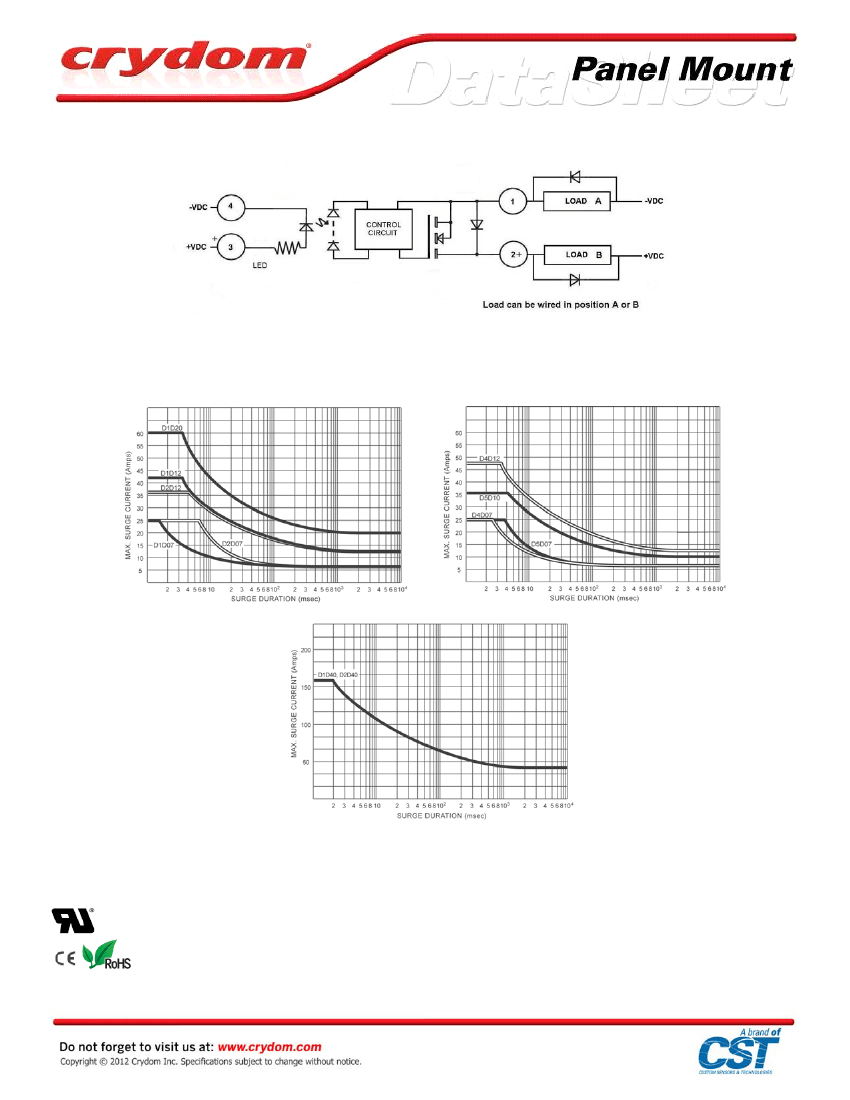

4) Input circuitry version incorporates active current limiter.
