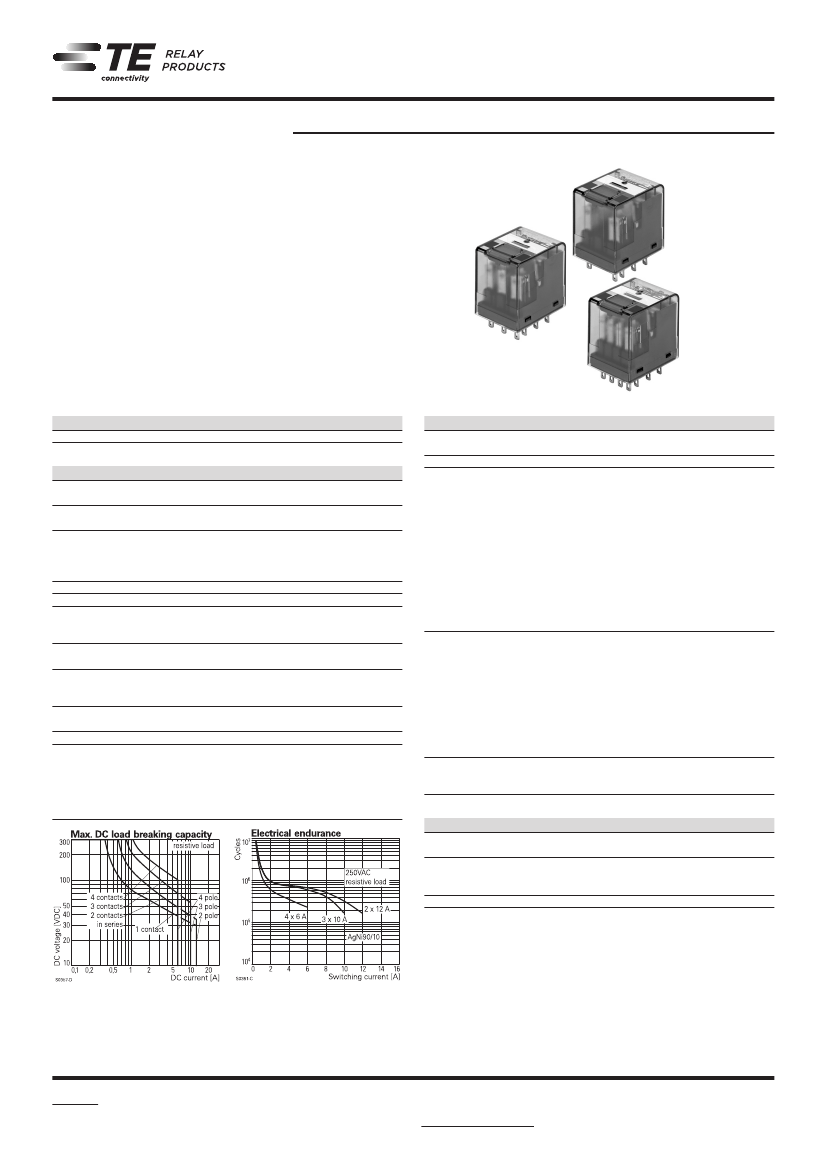

General Purpose Relays
Industrial Relays
Miniature Relay PT
n
n
n
n
n
n
n
SCHRACK
2 pole 12A, 3 pole 10A or 4 pole 6A, 2, 3 or 4 form C (CO) contacts
DC or AC coil
Switching performance up to 3000VA
Relay height 29mm
Mechanical indicator, optional LED and protection diode
Manual test tab, optionally lockable
White marking tabs
Typical applications
Universal use in control and automation
F0191-B
VZL
Approvals
VDE REG.-Nr. 115719, UL E214025, Lloyds 00/20059(E2)
Technical data of approved types on request
Contact Data
(continued)
Contact ratings
Type Contact
UL 508
PT 2 C (CO)
PT 2 C (CO)
PT 2 A (NO) of C (CO)
PT 2 A (NO) of C (CO)
PT 3 C (CO)
PT 3 C (CO)
PT 3 A (NO) of C (CO)
PT 3 B (NC) of C (CO)
PT 5 C (CO)
PT 5 C (CO)
PT 5 A (NO) of C (CO)
PT 5 B (NC) of C (CO)
EN60947-4-1
PT 2 A (NO) of C (CO)
PT 2 A (NO) of C (CO)
PT 3
PT 3
PT 5
PT 5
A (NO) of C (CO)
A (NO) of C (CO)
A (NO) of C (CO)
A (NO) of C (CO)
Load
12A, 250VAC, general purpose, 70°C
12A, 250VAC, resistive, 70°C
12A, 250VAC, resistive, 70°C
12A, 250VAC, resistive, 70°C
10A, 250VAC, general purpose, 70°C
10A, 250VAC, resistive, 70°C
10A, 250VAC, resistive, 70°C
10A, 250VAC, resistive, 70°C
6A, 250VAC, general purpose, 70°C
6A, 250VAC, resistive, 70°C
6A, 250VAC, resistive, 70°C
6A, 250VAC, resistive, 70°C
Cycles
6.000
100x10
3
100x10
3
100x10
3
6.000
100x10
3
100x10
3
100x10
3
6.000
100x10
3
100x10
3
100x10
3
Contact Data
3 form C
4 form C
3 CO
4 CO
Rated voltage
240VAC
Max. switching voltage
400VAC
400VAC
240VAC
Rated current
12A
10A
6A
Limiting making current, max. 20ms 24A
20A
12A
Limiting breaking current
12A
10A
6A
Limiting short-time current
300A/30ms
Switching power
3000VA
2500VA
1500VA
Contact material
AgNi90/10, AgNi90/10 gold plated
Min. recommended contact load
12V at 10mA
gold plated: 20mV at 1mA
Initial voltage drop
30mV at 100mA/6VDC
Frequency of operation
with/without load
360/36000h
-1
Operate time typ., DC coil
15ms
Release time typ., DC coil, without/with PD
10/18ms
Bounce time typ., DC coil, form A/form B
6/8ms
Contact ratings
Type
IEC 61810
PT 2 DC/AC coil
PT 2 DC/AC coil
PT 2 DC/AC coil
PT 3 DC/AC coil
PT 5 DC/AC coil
Contact
C (CO)
A (NO) of C (CO)
A (NO) of C (CO)
C (CO)
C (CO)
Load
12A, 250VAC, cosφ=1, 70°C
9A, 250VAC, cosφ=1, 80°C
4A, 250VAC, cosφ=1, 80°C
10A, 250VAC, cosφ=1, 70°C
6A, 250VAC, cosφ=1, 70°C
Cycles
70x10
3
150x10
3
300x10
3
100x10
3
100x10
3
Contact arrangement
2 form C
2 CO
PT2
PT3
PT5
Mechanical endurance
DC coil
AC coil
400VAC, 3.75A, AC3, opposite polarity, 70°C
230VAC, 1.7A, AC5b (400W lamp load),
opposite polarity, 70°C
250VAC, 2A, AC3, opposite polarity 70°C
230VAC, 1.7A, AC5b (400W lamp load),
opposite polarity, 70°C
250VAC, 3A, AC3, same polarity 70°C
230VAC, 1.7A, AC5b (400W lamp load),
same polarity, 70°C
30x10
6
operations
20x10
6
operations
Coil Data
Coil voltage range
Operative range, IEC 61810
DC coil, AC-coil 50Hz
AC coil 60 Hz at 70°C
Coil insulation system according UL
6 to 220VDC
6 to 230VAC
2
90..110% of rated voltage
class 155 (F)
04-2011, Rev. 0411
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
General Purpose Relays
Industrial Relays
Miniature Relay PT
(Continued)
Coil Data
(continued)
Coil versions, DC coil, standard
Coil
Rated
Operate
Release
Coil
Rated coil
code
voltage
voltage
voltage
resistance
power
VDC
VDC
VDC
Ω±10%
1)2)
mW
006
6
4.5
0.6
48
750
012
12
9.0
1.2
192
750
024
24
18.0
2.4
777
741
048
48
36.0
4.8
3072
750
060
60
45.0
6
4845
1)
743
110
110
82.5
11
16133
2)
750
220
220
165.0
22
64533
2)
750
Coil versions, DC coil with bipolar LED or LED and protection diode
Coil code
Rated
Operate
Release
Coil
Rated coil
bipol. LED+
voltage
voltage
voltage resistance +LED pwr.
LED PD
3
)
VDC
VDC
VDC
Ω±10%
1)2)
mW
L06
LA6
6
4.5
0.6
48
750+3.5
L12
LB2
12
9.0
1.2
192
750+10
L24
LC4
24
18.0
2.4
777
741+18
L48
LE8
48
36.0
4.8
3072
750+38
L60
LG0
60
45.0
6.0
4845
1)
743+56
M10 MB0
110
82.5
11.0
16133
2)
750+96.5
N20 NC0
220
165.0
22.0
64533
2)
750+202.5
1) Coil resistance ±12%, 2) Coil resistance ±15%,
3) Protection diode PD; standard polarity: +A1/-A2
All figures are given for coil without pre-energization, at ambient temperature +23°C
SCHRACK
Insulation Data
Initial dielectric strength
between open contacts
1200V
rms
1200V
rms
1200V
rms
between contact and coil
2500V
rms
2500V
rms
2500V
rms
between adjacent contacts
2500V
rms
2500V
rms
2000V
rms
Initial surge withstand voltage
between contact and coil
5000V (1.2/50µs)
Clearance/creepage
between contact and coil
≥4/4mm
≥4/4mm
≥4/4mm
between adjacent contacts
≥3.5/9.5mm ≥2.6/3.5mm ≥1.8/3.5mm
Material group of insulation parts
IIIa
PT2
PT3
PT5
Other Data
Coil versions, AC coil, 50/60Hz
Coil code
Rated
Operate
Release
Coil
Rated coil
STD
LED
voltage
voltage
voltage resistance
power
50/60Hz
50/60Hz
50/60Hz
VAC
VAC
VAC
Ω±10%
1)2)
VA
506
R06
6
4.8/5.4
1.8
11
1.0/0.85
512
R12
12
9.6/10.8
3.6
48
1.0/0.85
524
R24
24
19.2/21.6
7.2
192
1.0/0.79
548
R48
48
38.4/43.2
14.4
777
1.0/0.87
560
R60
60
48.0/54.0
18.0
1306
1.0/0.87
615
S15
115
92.0/103.5 34.5
4845
1)
1.0/0.86
730
T30
230
184/207
69.0
19465
2)
1.0/0.90
1) Coil resistance ±12%, 2) Coil resistance ±15%
All figures are given for coil without pre-energization, at ambient temperature +23°C
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Ambient temperature
-40 to +70°C
Cold storage, IEC 60068-2-1
-40°C/16h
Dry heat, IEC 60068-2-2
85°C/16h
Category of environmental protection
IEC 61810
RTII - flux proof
Vibration resistance (functional),
form A (NO)/form B (NC)
7/4g
Shock resistance (functional),
form A (NO)/form B (NC)
20/5g
Terminal type
PCB-THT, plug-in
quick-connect
Cover retention, pull/push force
100/100N
Weight
30g
Mounting distance, for mounting on PCB
5mm
Resistance to soldering heat THT
IEC 60068-2-20
270°C/10s
Packaging unit
10/250pcs.
Accessories
For details see datasheet
Accessories Miniature Relay PT
Note: indicated contact ratings and electrical endurance data for direct
wiring of relays (according IEC 61810-1); for relays mounted on sockets
deratings may apply.
Product Sets
Complete sets consisting of a relay
mounted on a socket see
Package PT
2
04-2011, Rev. 0411
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
General Purpose Relays
Industrial Relays
Miniature Relay PT
(Continued)

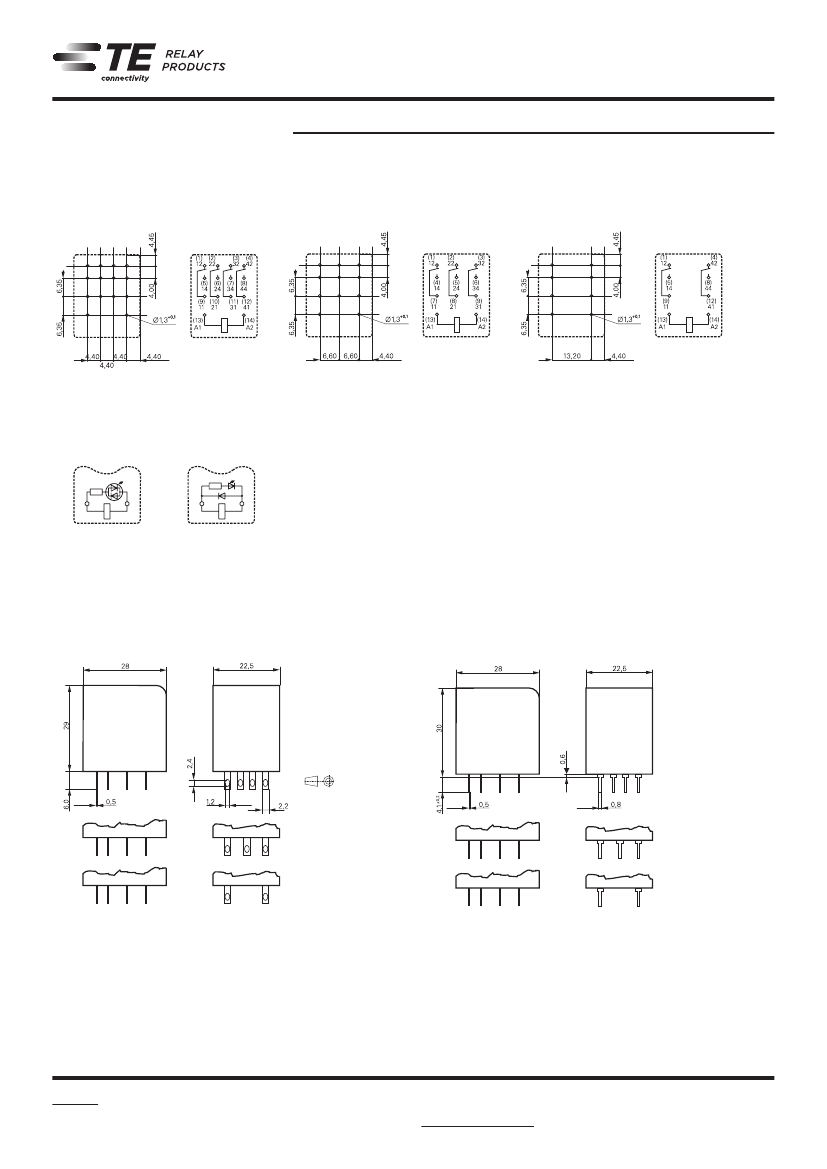

PCB layout / terminal assignment
Bottom view on pins
SCHRACK
4 pole
3 pole
2 pole
S0354-AA
S0354-AD
S0354-AB
S0354-AE
S0354-AC
S0354-AF
Circuit
LED
protection diode+LED
(13)
A1
(14)
A2
(13)
A1+
(14)
A2-
Dimensions
Solder- and plug-in terminals (standard version)
PCB version
S0355-AA
S0355-BB
04-2011, Rev. 0411
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
3
General Purpose Relays
Industrial Relays
Miniature Relay PT
(Continued)
Product code structure
Type
PT
Miniature Relay PT
Contact arrangement
2
2 form C contacts (2 CO contacts)
3
3 form C contacts (3 CO contacts)
5
4 form C contacts (4 CO contacts)
Contact material
7
AgNi 90/10, with test button
2
AgNi 90/10, without test button
Version
0
Standard, 2.8mm quick connect term.
Coil
Coil code: please refer to coil versions table
Other types on request
SCHRACK
Typical product code
PT
5
7
0
730
8
3
1
AgNi 90/10 gold plated, with test button
AgNi 90/10 gold plated, without test button
PCB terminals
Product code
PT270024
PT270524
PT270615
PT270730
PT270L24
PT270R24
PT270S15
PT270T30
PT271024
PT271524
PT271615
PT271730
PT370024
PT370524
PT370615
PT370730
PT370L24
PT370R24
PT370S15
PT370T30
PT371024
PT371524
PT371615
PT371730
PT570024
PT570524
PT570615
PT570730
PT570L24
PT570LC4
PT570R24
PT570S15
PT570T30
PT571024
PT571524
PT571615
PT571730
PT580024
PT580524
PT580730
PT580L24
PT580R24
PT580T30
PT581024
PT581730
Cont. Config.
2 form C
2 CO contacts
Cont. material
AgNi 90/10
test button
AMP 2.8
connectors
Version
DC coil
AC coil
DC coil+LED
AC coil+LED
Coil
PCB terminals
DC coil
AC coil
DC coil
AC coil
DC coil+LED
AC coil+LED
3 form C
3 CO contacts
AgNi 90/10
test button
AMP 2.8
connectors
PCB terminals
DC coil
AC coil
DC coil
AC coil
DC coil+LED
DC coil+LED+PD
AC coil+LED
4 form C
4 CO contacts
AgNi 90/10
test button
AMP 2.8
connectors
24VDC
24VAC
115VAC
230VAC
24VDC
24VAC
115VAC
230VAC
24VDC
24VAC
115VAC
230VAC
24VDC
24VAC
115VAC
230VAC
24VDC
24VAC
115VAC
230VAC
24VDC
24VAC
115VAC
230VAC
24VDC
24VAC
115VAC
230VAC
24VDC
24VAC
115VAC
230VAC
24VDC
24VAC
115VAC
230VAC
24VDC
24VAC
230VAC
24VDC
24VAC
230VAC
24VDC
230VAC
Coil
Part number
4-1419111-2
4-1419111-8
5-1419111-0
5-1419111-1
9-1415001-1
1415002-1
2-1415039-1
3-1415002-1
5-1419111-3
5-1419111-6
4-1419135-0
5-1419111-8
6-1419111-1
6-1419111-6
6-1419111-8
6-1419111-9
5-1415002-1
7-1415002-1
9-1415039-1
9-1415002-1
7-1419111-1
7-1419111-3
1393154-8
7-1419111-5
1-1393154-2
8-1419111-7
9-1419111-0
9-1419111-1
6-1415001-1
7-1415541-0
7-1415001-1
7-1415003-1
8-1415001-1
9-1419111-3
9-1419111-6
1-1393154-5
9-1419111-8
1-1393154-7
2-1393154-1
2-1393154-2
5-1415026-1
6-1415026-1
7-1415026-1
7-1419135-2
2-1393154-3
PCB terminals
DC coil
AC coil
DC coil
AC coil
DC coil+LED
AC coil+LED
AgNi 90/10
gold plated
test button
AMP 2.8
connectors
PCB terminals
DC coil
AC coil
4
04-2011, Rev. 0411
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
京公网安备 11010802033920号
EEWORLD
