CC0402N120J3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> CC0402N120J3

CC0402N120J3: DescriptionCeramic Capacitor, Ceramic, 50V, 5% +Tol, 5% -Tol, NP0, -/+30ppm/Cel TC, 0.000012uF, 0402,; CategoryPassive components capacitor; File Size460KB，33 Pages; ManufacturerStrong Capacitor Co., Ltd.

Download Datasheet Parametric View All

CC0402N120J3 Overview

Ceramic Capacitor, Ceramic, 50V, 5% +Tol, 5% -Tol, NP0, -/+30ppm/Cel TC, 0.000012uF, 0402,

CC0402N120J3 Parametric

Parameter Name	Attribute value
Objectid	910419662
package instruction	, 0402
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.000012 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.5 mm
length	1 mm
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
positive tolerance	5%
Rated (DC) voltage (URdc)	50 V
series	CC0402N(50V)
size code	0402
Temperature characteristic code	NP0
Temperature Coefficient	30ppm/Cel ppm/°C
width	0.5 mm

Preview

Download Datasheet

View All

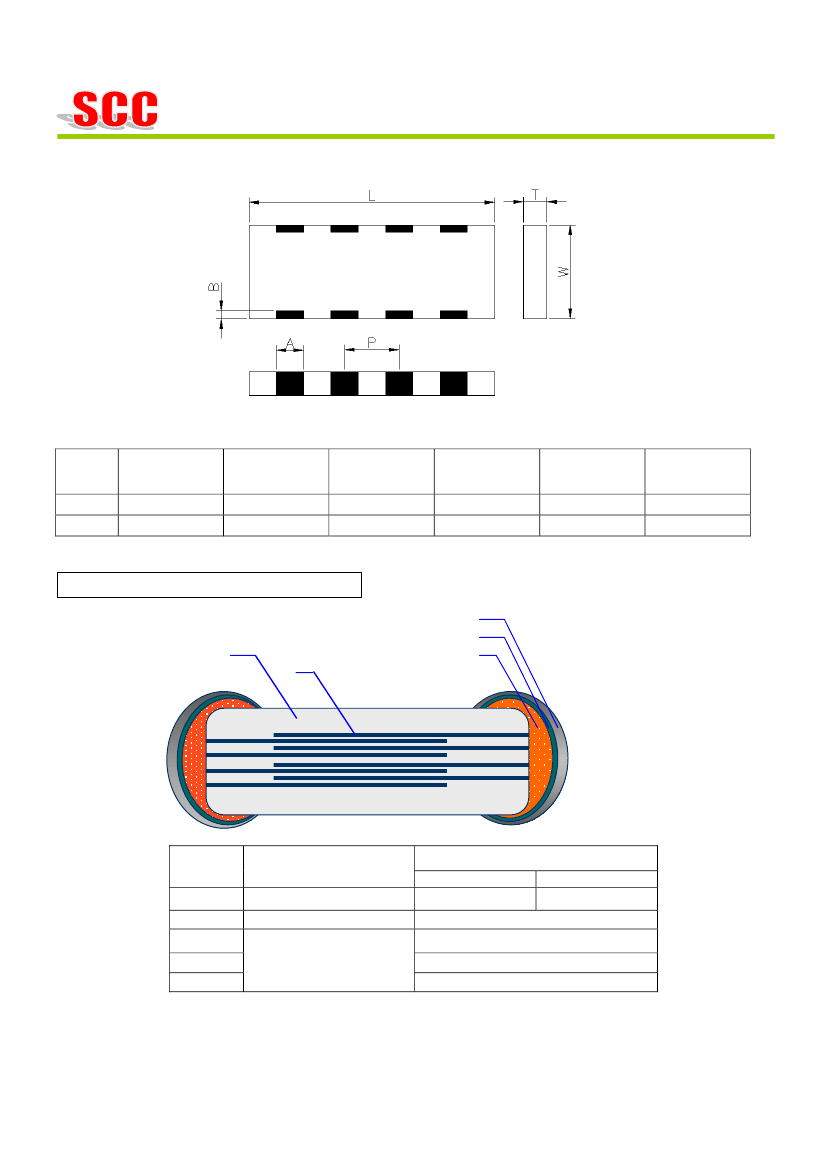

MULTI-LAYER CERAMIC CAPACITOR

Ordering Code

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(5)

(9) (10)

(1)

Style

CC：MLCC

CA：MLCC Array

(*4)

(3)

Dielectric Material

N：NP0

X：X7R

Y：Y5V

Z：Z5U

U：Y5U

B：X5R

S：X6S

Chip Size: L×W

0201=0.02×0.01”

0402=0.04×0.02”

0603=0.06×0.03”

0805=0.08×0.05”

1206=0.12×0.06”

1210=0.12×0.10”

1808=0.18×0.08”

1812=0.18×0.12”

Capacitance

in pF,the first two digits are

significant digits and the last

digits gives the no.of zeros.

Example：

8=×0.01

9=×0.1

0=×1

1=×10

2=×100

3=×1000

4=×10000

5=×100000

6=×1000000

278=0.27pF

279=2.7pF

270=27pF

271=270pF

272=2.7nF

273=27nF

274=270nF

275=2.7μF

276=27μF

Tolerance

±0.05pf

±3%

±0.10pf

±5%

±0.25pf

±10%

±0.50pf

±20%

±1%

Z:+80/-20%

±2%

±1pf

Note:

A,B,C,D:for<10pF

NPO:ALL Tolerance

X7R/X5R:J,K,M

Z5U/Y5V/Y5U：M,Z

(6)

Rated Voltage

1=16V

2=25V

3=50V

4=100V

5=200V

6=500V

7=1KV

8=3KV

A=10V

B=6.3V

C=250V

D=2KV

E=63V

F=4 V

G=35V

H=630V

(7)

Termination Style

O : Cu/Ni/Sn

S : Ag/Ni/Sn

(8)

Chip Thickness

S:0.30mm±0.03mm(0201)

S:0.50mm±0.05mm(0402)

S:0.80mm±0.10mm(0603)

S: Max 1.0mm (For CA0402)

S: Max 1.3mm (For CA0603)

A: 0.6±0.1mm

B: 0.8±0.1mm

C: 1.0±0.1mm

D: 1.15±0.1mm

E: 1.25±0.1mm

F: 1.60±0.15mm

G: 1.90±0.15mm

H: 2.10±0.15mm

T : > 2.25mm(Max2.8mm) 1210

T : > 2.25mm(Max3.2mm) 1812

K:<0.6mm

(9)

Packing Standard

B: Bulk

T: Paper Tape

R: Plastic Tape

(10)

Preserved Code

1: 10K Packing quantity

2: 15K Packing quantity

3: 50K Packing quantity

P: Positive tolerance

N: Negative tolerance

V: Virginal paper
