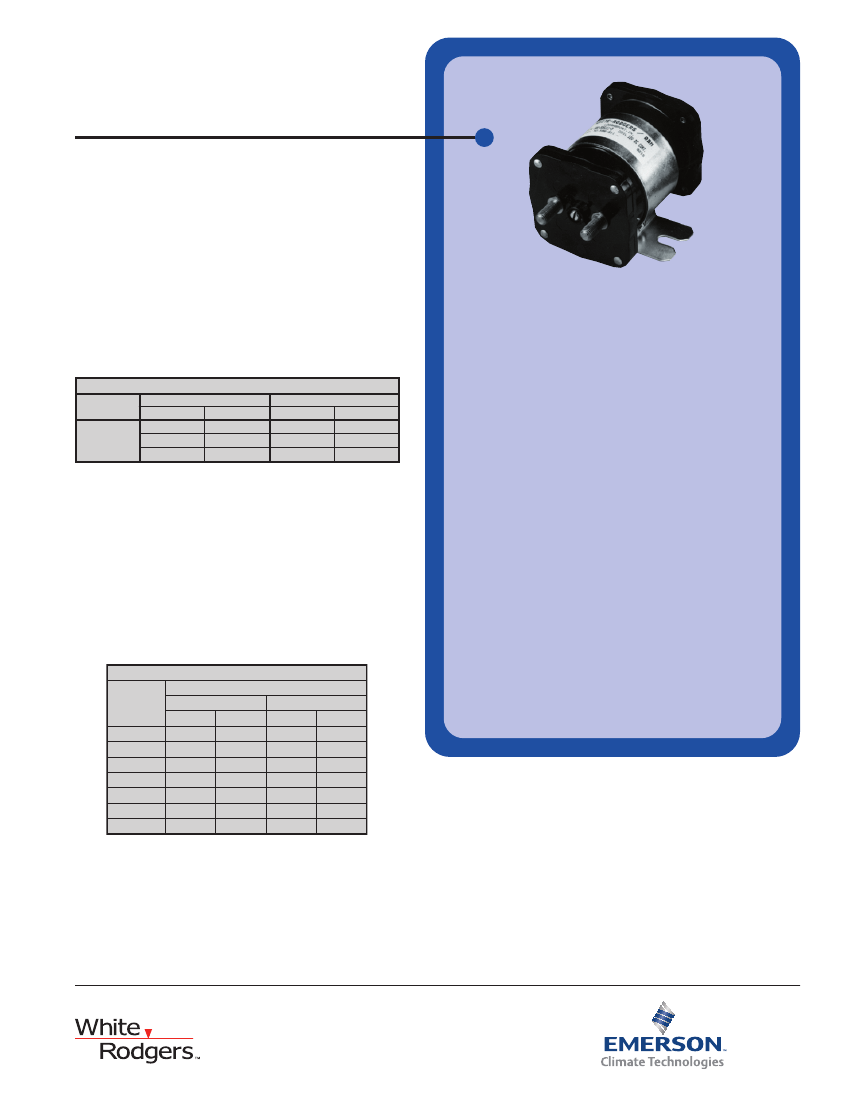

WHITE-RODGERS
DC PRODUCTS
Type 586
sealed solenoid
FEATURES
•
•
•
•
Water resistant
Double-make or double-break contacts
Capable of handling high and low current requirements
Black impact phenolic casing
ENGINEERING DATA
Contacts
• Pole form–SPNO and SPDT
• Material–silver alloy
• Termination–
5
/
16
”-24 UNF-2A thread
RATINGS
NO
Volts DC
6
12
24 & 36
Cont.
200A
200 A
200 A
Inrush
600 A
600 A
600 A
Cont.
100A
100 A
100 A
NC
Inrush
300 A
300 A
200 A
GENERAL DATA
Dielectric Strength
• 500 Volts
Temperature Range
• -40°F/-40°C to 149°F/65°C
Mechanical Life (no load)
• 100,000 cycles
Electrical Life (rated load—making and break-
ing
200 amp on NO Contacts)
• 50,000 cycles
Mounting Position
• Recommended mounting is vertical plane
with coil terminals up
Weight (approximate)
• SPNO–24.0 oz.
• SPDT–26.0 oz.
Duty Cycle
• Continuous
• Intermittent—10 seconds “on” maximum
and minimum 60 seconds “off”
One minute “on” maximum and minimum
6 minutes “off”
Hardware Torque Specification
• Contact Terminal: 60 inch-lbs. max.
• Coil Terminal: 12-18 inch-lbs. max.
Coils
• Voltage–6 VDC through 48 VDC
• Termination–#10-32 UNF-2A thread
• Power (approximate)
Continuous 12 watts SPDT, 8 watts SPNO
• Connections
Coil isolated (two terminals)
• Operate (77°F/25°C)
67% of nominal coil voltage (intermittent)
110% max. safe of nominal coil voltage
COIL DATA
Resistance in Ohms
Intermittent
§
Continuous
SPDT
SPNO
SPDT
SPNO
2.2
3.3
3.3
5.25
8.4
13.2
13.2
21.0
13.1
21.0
21.0
32.8
18.4
30.0
30.0
47.0
33.6
53.0
53.0
84.0
75.6
120.0
120.0
189.0
134.0
213.0
213.0
336.0
Volts DC
6
12
15
18
24
36
48
§
Intermittent—special request only
St. Louis, Missouri Markham, Ontario
314-553-3600 905-948-3411
www.white-rodgers.com
The Emerson logo is a
trademark and a service mark
of Emerson Electric Co.
R-4005B
1232
TYPE 586 PART NUMBERING SYSTEM
586 – x xx x x x - x
Basic Part Number Series
Mounting
Bracket
1 – Standard bracket
Factory Assigned Specials
(where undefined, contact factory)
Contact
Form
1 – SPNO
3 – SPDT
Coil
Voltage/Duty
02 – 6 Volt continuous
05 – 12 Volt continuous
08 – 15 Volt continuous
14 – 24 Volt continuous
16 – 28 Volt continuous
17 – 36 Volt continuous
20 – 48 Volt continuous
Coil
Termination
1 – Isolated
Contact
Material
1 – AgCdO
APPLICATION NOTES
• Not all part number combinations are available. Please contact your Sales Representative for
available part numbers.
• Solenoids applied in battery charging circuits should be protected from higher than rated
voltage during charging. The service life may be affected by this condition and the solenoid
may or may not operate the circuit as intended.
• Circuits should be designed to provide safe operation should the solenoid fail in either the
open or closed position.
No dash – Standard assem-
bly, hardware sent bulk
2 – Customer requested
markings
3 – Customer requested
markings
3A – Customer requested
markings
5 – Customer requested
markings
6 – Customer requested
markings
6A – Customer requested
markings
7 – Customer requested
markings

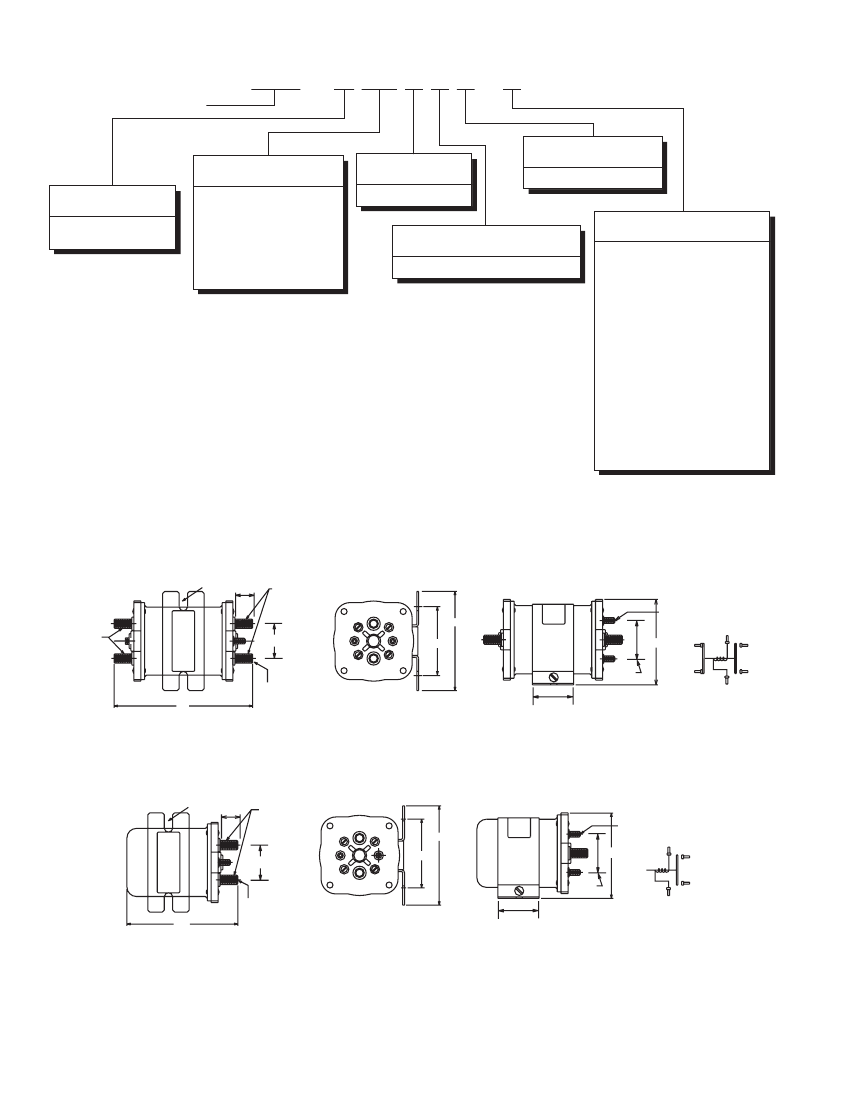

SPDT – Isolated Coil
.281 WIDE X .640 LONG SLOT
NORMALLY
.594
OPEN
#10-32 UNF-2A X .375 LONG
W 3.300
NORMALLY
CLOSED
1.156
2.300
1.274
5/16-24 UNF-2A X .594 LONG
L
4.618
1.375
CIRCUIT DIAGRAM
H 2.797
SPNO – Isolated Coil
.281 WIDE X .640 LONG SLOT
NORMALLY
.594
OPEN
W 3.300
1.156
2.300
1.274
5/16-24 UNF-2A X .594 LONG
L
3.688
1.375
CIRCUIT DIAGRAM
H 2.797
#10-32 UNF-2A X .375 LONG
R-4005C
1232
